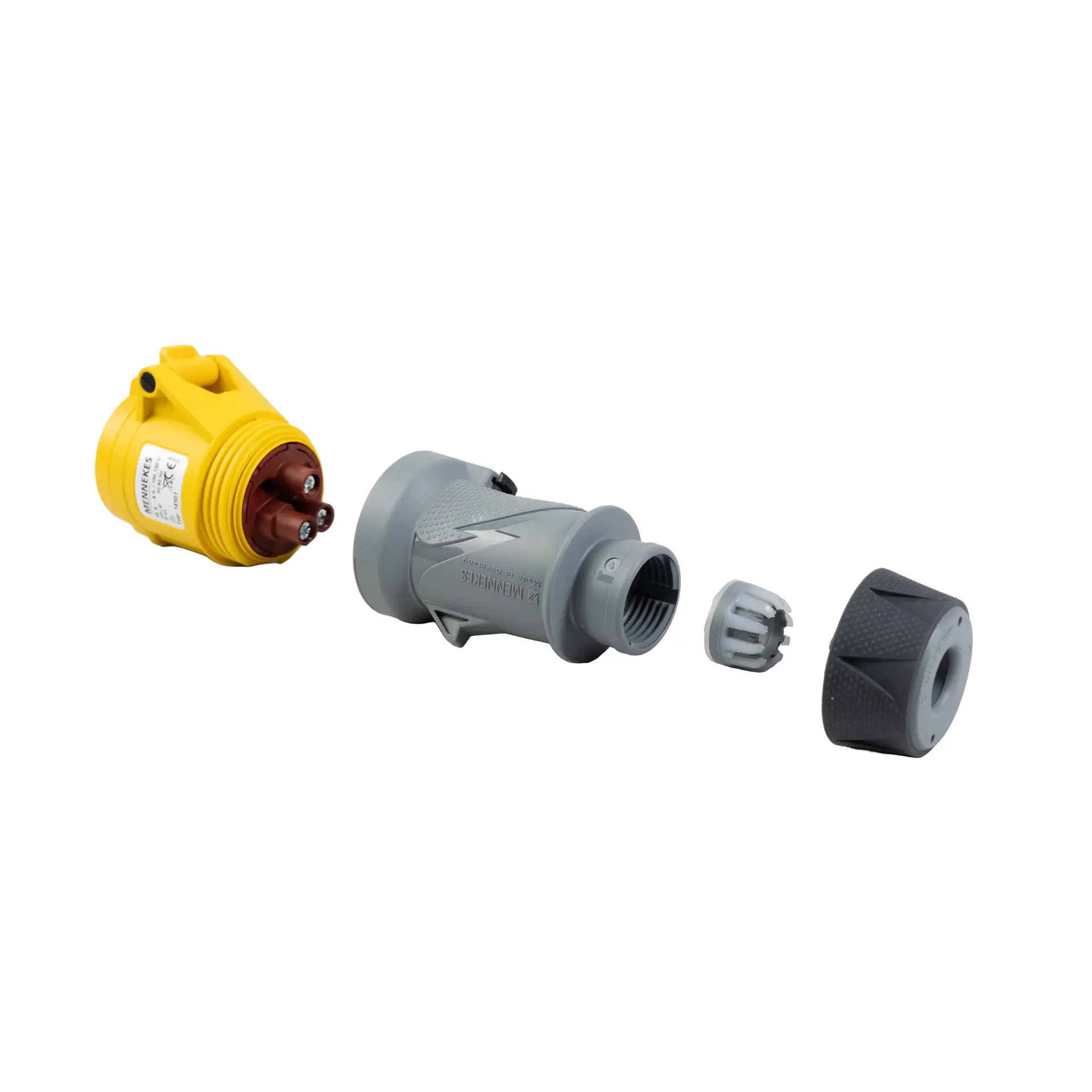

16A 110V 2P+E IP54 PowerTOP Extra Socket (14501) - CONN433

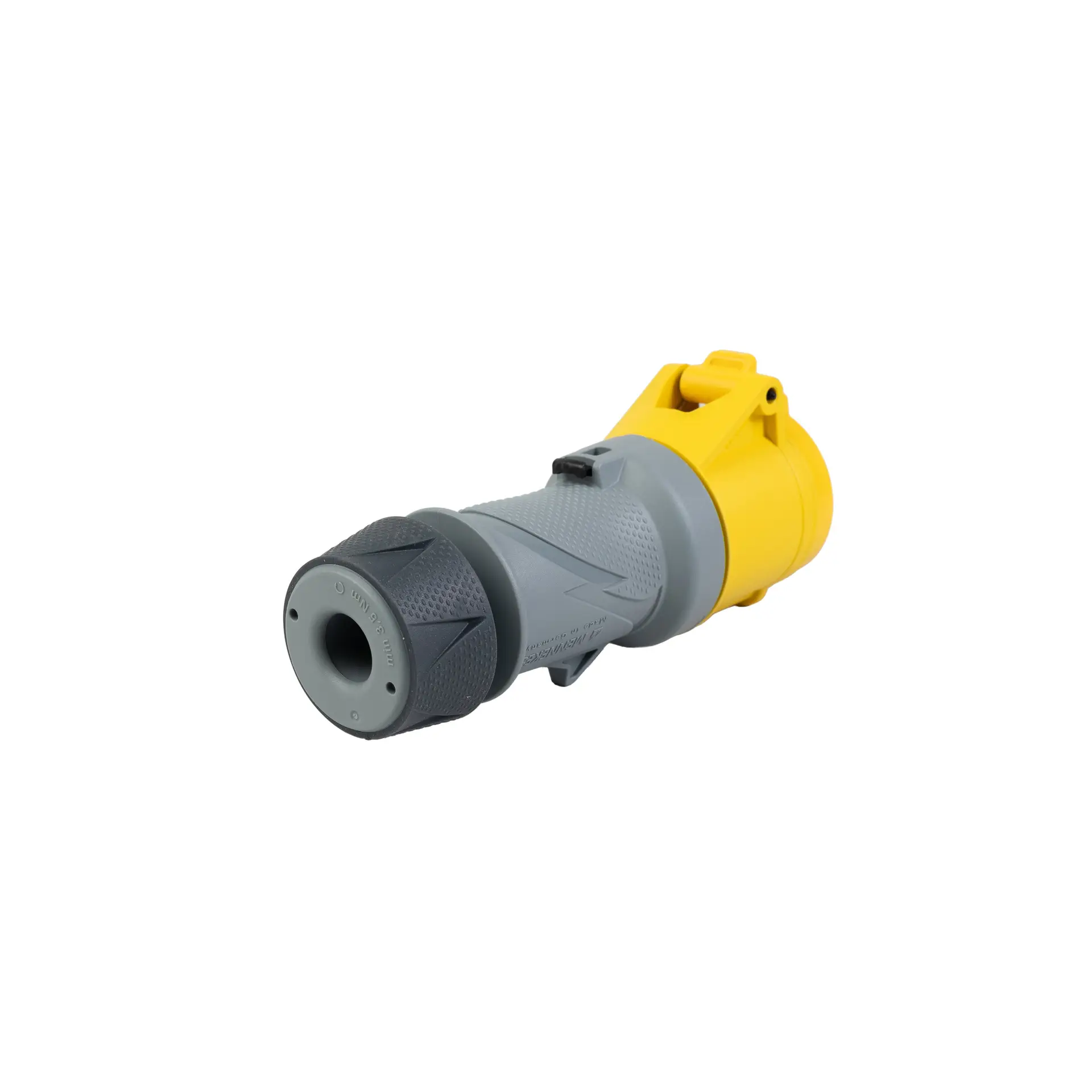

16A 110V 2P+E IP54 PowerTOP Extra Socket (14501) - Image 2

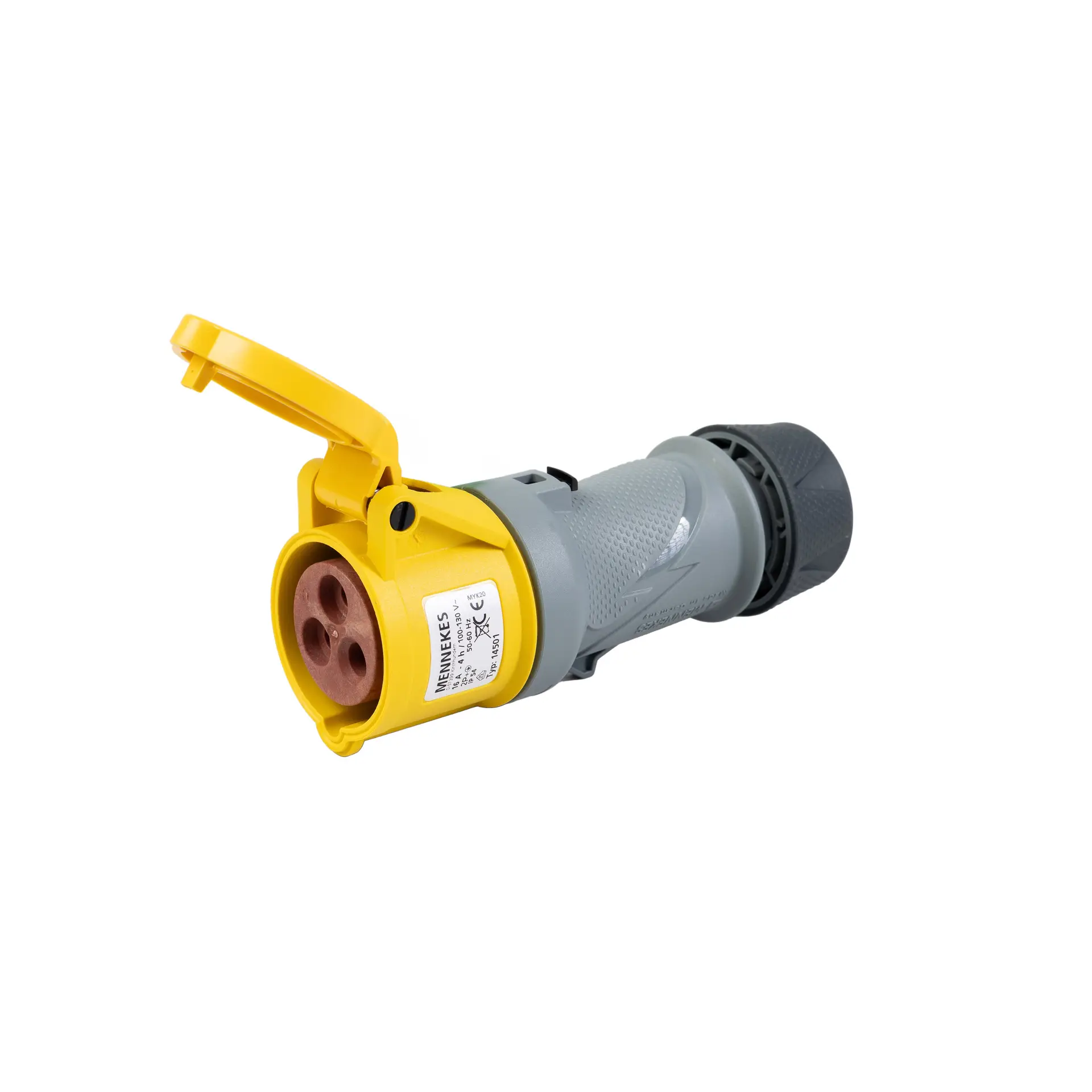

16A 110V 2P+E IP54 PowerTOP Extra Socket (14501) - Image 3
The Best PricesCompetitive pricing always
🇬🇧Supplying fast delivery throughout UK

16A 110V 2P+E IP54 PowerTOP Extra Socket (14501)

£5.39
ex. VAT inc. VAT
In stock

Across all versions and applications PowerTOP® Xtra connectors excel with proven success factors: ergonomic design easy installation and safe and straightforward connection.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: CONN433
Categories: , , ,

Description

Across all versions and applications PowerTOP® Xtra connectors excel with proven success factors: ergonomic design easy installation and safe and straightforward connection. The PowerTOP® Xtra connector boasts IP54 protection class and is therefore impervious to water spray and dust.

{“@context”:”https://schema.org””@type”:”FAQPage””mainEntity”:[{“@type”:”Question””name”:”What is the protection rating of the PowerTOP® Xtra connector?””acceptedAnswer”:{“@type”:”Answer””text”:”The PowerTOP® Xtra connector has an IP54 protection class.”}}{“@type”:”Question””name”:”What is the rated current?””acceptedAnswer”:{“@type”:”Answer””text”:”This version is rated at 16A.”}}{“@type”:”Question””name”:”What voltage is this connector designed for?””acceptedAnswer”:{“@type”:”Answer””text”:”This connector is designed for AC110V applications.”}}{“@type”:”Question””name”:”What connection technology is used?””acceptedAnswer”:{“@type”:”Answer””text”:”It uses screw terminals with ErgoCONTACT® connection technology.”}}]}

Ampere: 16A Number of poles: 3p Clock position: 4h Nominal voltage: AC110V Nominal frequency: 50-60Hz Protection type: IP54 Contact carrier: standard X-CONTACT: yes Connection: screw terminals - ErgoCONTACT Contact screw drive: PZ2 slot Tightening torque connection terminal: 1.2Nm Recommended wire end treatment for supply cable connection: terminal ferrule square gasproof crimped Strip length jacket: 55mm Strip length conductor PH + N: 10mm Strip length conductor PE: 10mm Pilot contact: without pilot contact Conductor cross-section min.: 1mm² Conductor cross-section max.: 2.5mm² Cable kink protection: integrated in cable gland Protective grommet: without protective grommet Weight (net): 200g Packaging unit: 10pcs Quantity per pallet: 880pcs EAN / identification number: 4015394305491 Permanent ambient temperature: -25°C to 40°C RoHS 2011/65/EU incl. 2015/863/EU POP regulation (EU) 2019/1021 Norm: DIN EN IEC60309-2 Declaration of Conformity: CE Test label: CB Zertifikat VDE

screw connection technology ErgoCONTACT economic enclosure design with nubbed grip areas enclosure with thread lock and safety slide X-CONTACT protection against kinking strain relief rubberised cable gland with sealing area for self-adhesive labels

CONN433_Datasheet.pdf Open in new tab ↗
