18P HEX - ADJ1226100333
18P HEX - Image 2
The Best PricesCompetitive pricing always
🇬🇧Supplying fast delivery throughout UK

18P HEX

Free Delivery on this item!
£283.43
ex. VAT inc. VAT
In stock

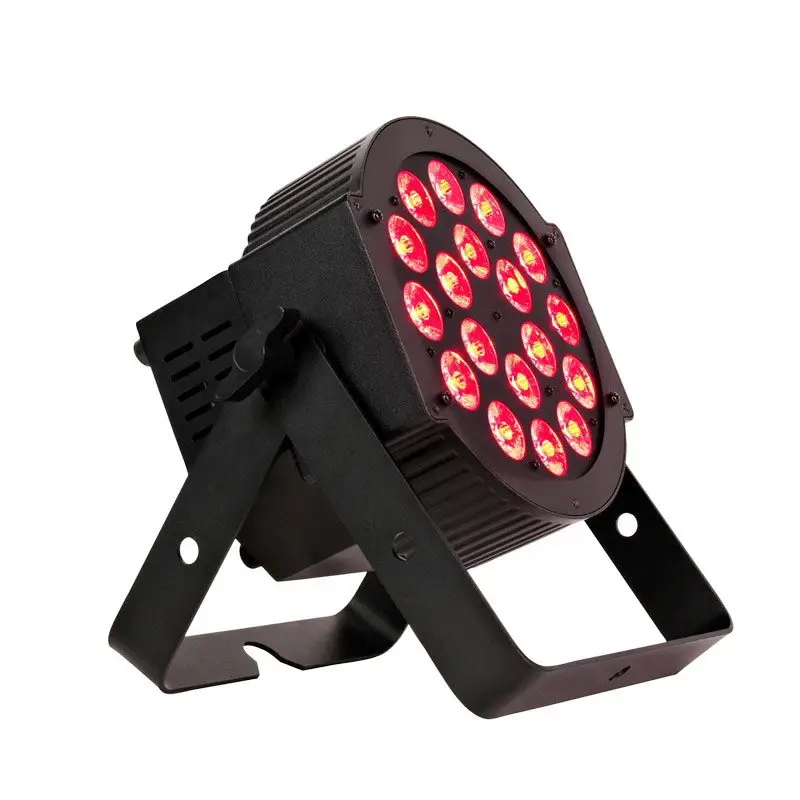

An all-metal powerful 216W LED Par fixture with 18 × 12W 6-in-1 HEX LEDs. With a 25° beam angle users can produce wide washes with smooth colour mixing from 63 built-in colour macros using red green.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1226100333
Categories: ,
Brand:

Description

The ADJ 18P Hex is an all-metal powerful 216W LED Par fixture with 18 × 12W 6-in-1 HEX LEDs. With a 25° beam angle users can produce wide washes with smooth colour mixing from 63 built-in colour macros using red green blue amber white and UV LEDs. Not only is this LED Par great for lighting stages but with its intelligently designed power and DMX connectors it’s also ideal for uplighting large venues.

The 18P HEX professional features include: 4 DMX modes (6 7 8 and 12) 5 operational modes 5 dimming curves flicker-free operation and a 4-button DMX menu with digital display. Daisy-chain up to 10 units (110V) or 12 units (240V) via the built-in locking Power In/Out connectors.

The 18P HEX is compatible with the Dotz Par RF wireless remote (sold separately). Alternatively the fixture can be controlled via a DMX controller or its built-in programs. It comes with a metal gel frame allowing a beam diffuser (sold separately) to be used to soften the beam.

Manufacturer Part Number: 1226100333 Dimensions (L x W x H): 28.0 x 30.5 x 28.0cm

Specifications:


Source

• Light Source: 18 RGBWA+UV LEDs (Red Green Blue White Amber & UV LED)

• Individual LED wattage : 12W

• Average LED lifetime :approximately 50000 hrs.


Optics

• Beam Angle: 25 degrees

• Gel frame for diffusion filters included (optional diffusion filters)


Control

• 5 Operational modes: Static Colour Mode RGBWA+UV Dimmer Mode Program Mode Sound Active Mode and

DMX Control

• 4 DMX Modes: 6 7 8 & 12-channel

• Electronic Dimming: 0 - 100%

• 63 built-in Colour Macros

• 7 built-in Programs Sound Active Mode

• 5 selectable Dim Curves (Standard Stage TV Architectural Theatre)

• Optional Dotz PAR RF Remote available (order code 1223200035)

• LED pulse and strobe effect

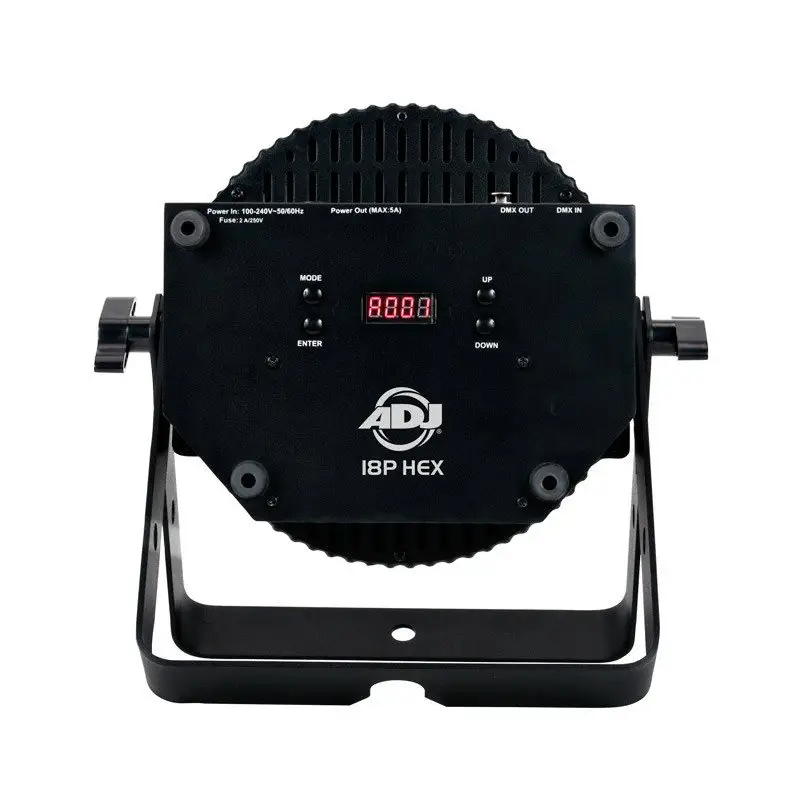

• 4-button DMX digital display on rear panel


Colours

• RGBWA+UV Colour Mixing


Construction

• Metal Housing

• Low Noise fan cooling

• Scissor yoke


Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 154W


Connections

• Sideways 3-pin Locking DMX connectors

• Sideways Locking Power In/Out connections


Dimensions & Weight

• Dimensions (LxWxH): 304 x 1748 x 3304mm

• Weight: 59 kg.

adj_18p_hex_-_user_manual_1.pdf Open in new tab ↗
