2U 32A Rackmount Power Distribution Unit (PDU16-32PC) - PENN147
2U 32A Rackmount Power Distribution Unit (PDU16-32PC) - Image 2
2U 32A Rackmount Power Distribution Unit (PDU16-32PC) - Image 3
2U 32A Rackmount Power Distribution Unit (PDU16-32PC) - Image 4
2U 32A Rackmount Power Distribution Unit (PDU16-32PC) - Image 5
The Best PricesCompetitive pricing always
🇬🇧Supplying fast delivery throughout UK

2U 32A Rackmount Power Distribution Unit (PDU16-32PC)

Free Delivery on this item!
£336.00
ex. VAT inc. VAT
In stock

2U 32A AC rack mount PDU With 8 x Neutrik powerCON sockets overload protection and power monitoring. 2U high horizontal mounting unit designed to provide versatile hook-up for the distribution of AC.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: PENN147
Categories: ,
Brand:

Description

2U 32A AC rack mount PDU With 8 x Neutrik powerCON sockets overload protection and power monitoring. 2U high horizontal mounting unit designed to provide versatile hook-up for the distribution of AC power within multimedia theatre and touring rack applications.

Compliance: All components used in this conform to current RoHS CE and UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-23 EMS:EN61000-4-23456811; Light industry level criteria A) Nominal voltage: 110V~240V Usable voltages: 110V~240V Frequency: 50/60Hz Max. output current: 16A Dimensions (H x W x D): 88 x 430 x 140mm (Overall width including rack ears 483mm) Weight: 2.5kg

Additional information

Weight 3.4000 kg
Dimensions 36.0000 × 55.0000 × 10.0000 cm

Main input - C-FORM 240V 32A IP44 panel mount appliance inlet

  • Circuit A:

    • - Protection: Illuminated 16A circuit breaker for overload protection
    - Output - C-FORM 240V 16A IP44 panel mount appliance outlet

  • Circuit B:

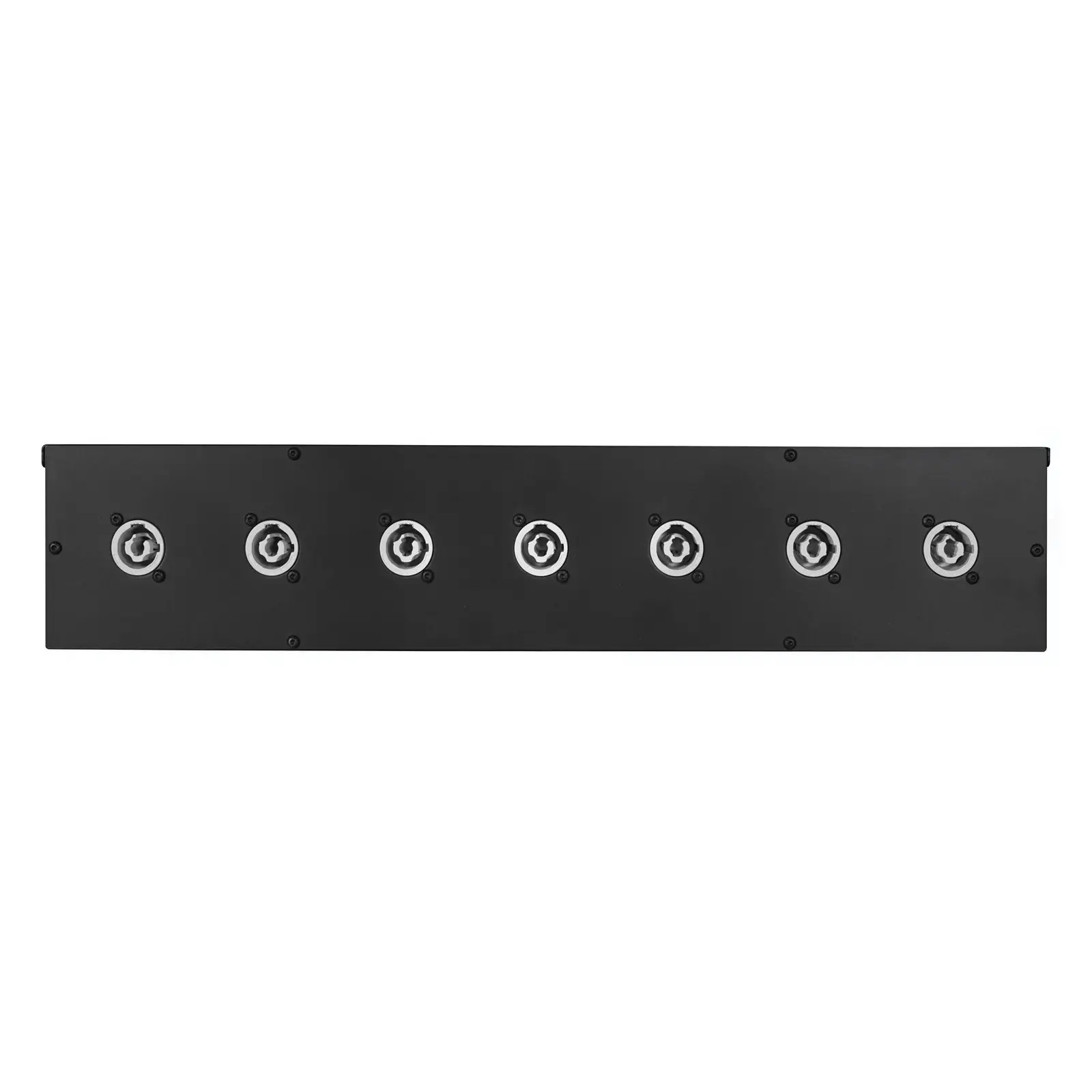

    • - Output - 8 x Neutrik powerCON sockets with a maximum combined load of 16A
    - Protection - Illuminated circuit breaker 16A overload protection

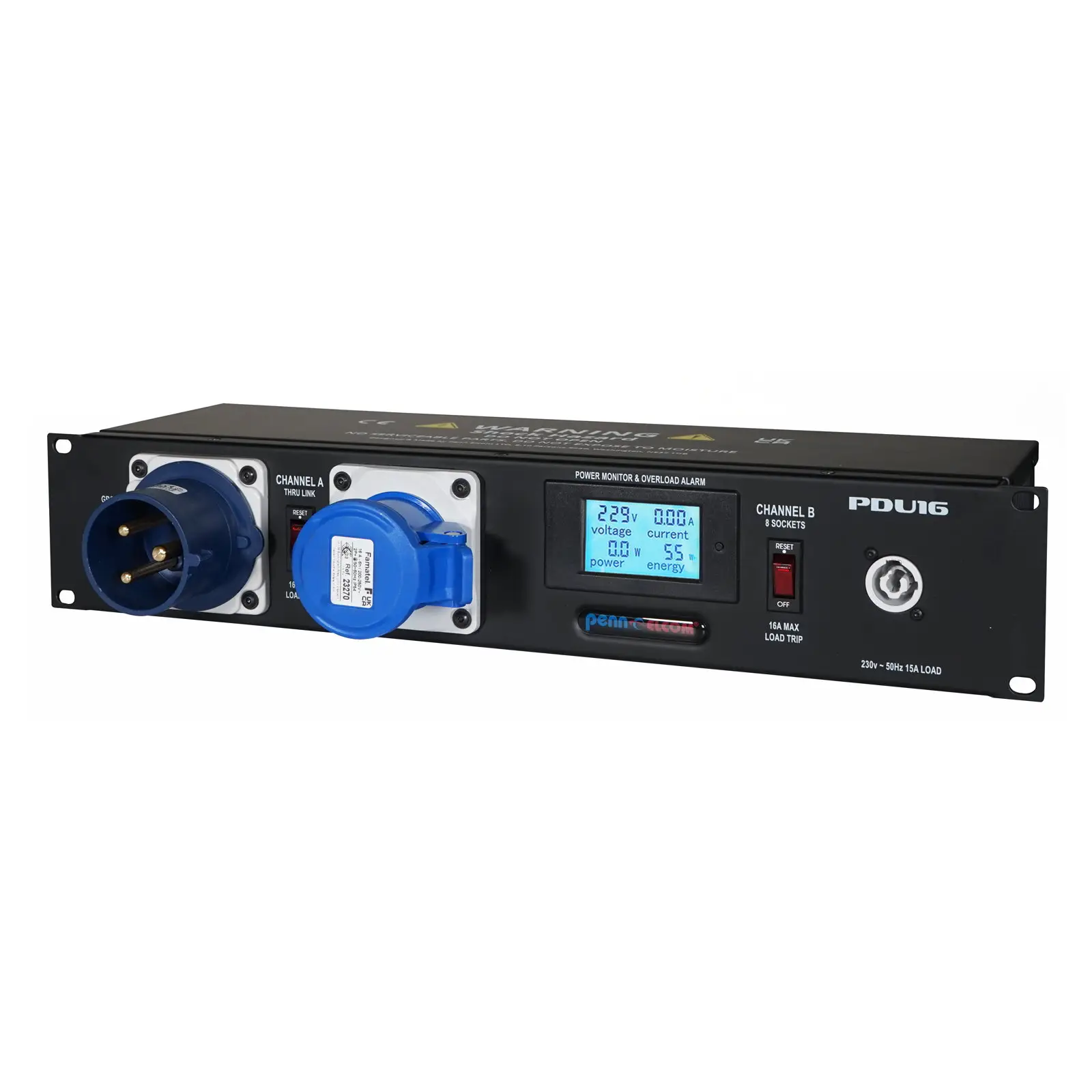

  • LCD monitor: LCD power monitor giving voltage current power energy levels and overload alarm Earth link - M4 screw terminal for rack grounding
    • PENN147_UsersGuide.pdf Open in new tab ↗
    Checking document preview…
