32 HEX Panel IP

Free Delivery on this item!
£688.56
ex. VAT inc. VAT
In stock

An IP65 rated multi-functional wash / blinder / colour strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs 8 individually controlled sections with Pixel Zone Control and.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1237000203
Categories: ,
Brand:

Description

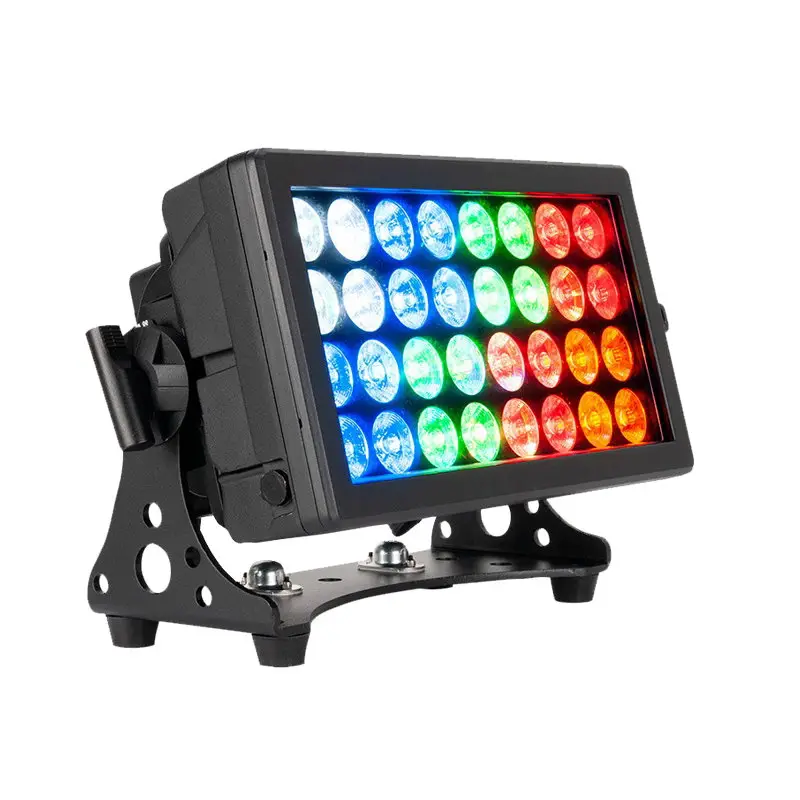

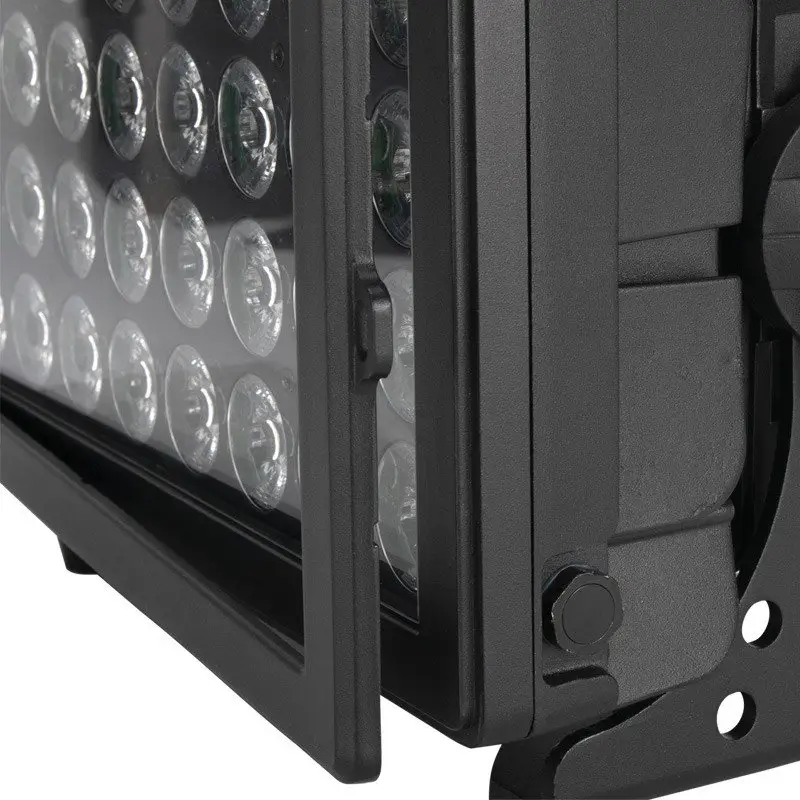

The ADJ 32 HEX Panel IP is an IP65 rated multi-functional wash / blinder / colour strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBAW+UV) 8 individually controlled sections with Pixel Zone Control and a 24-degree beam angle. With an all metal black housing and IP65 outdoor rating its protected from elements – dust sand moisture and liquids. It includes a magnetic removable filter frame with a 32 degree diffusion filter to change the beam angle.

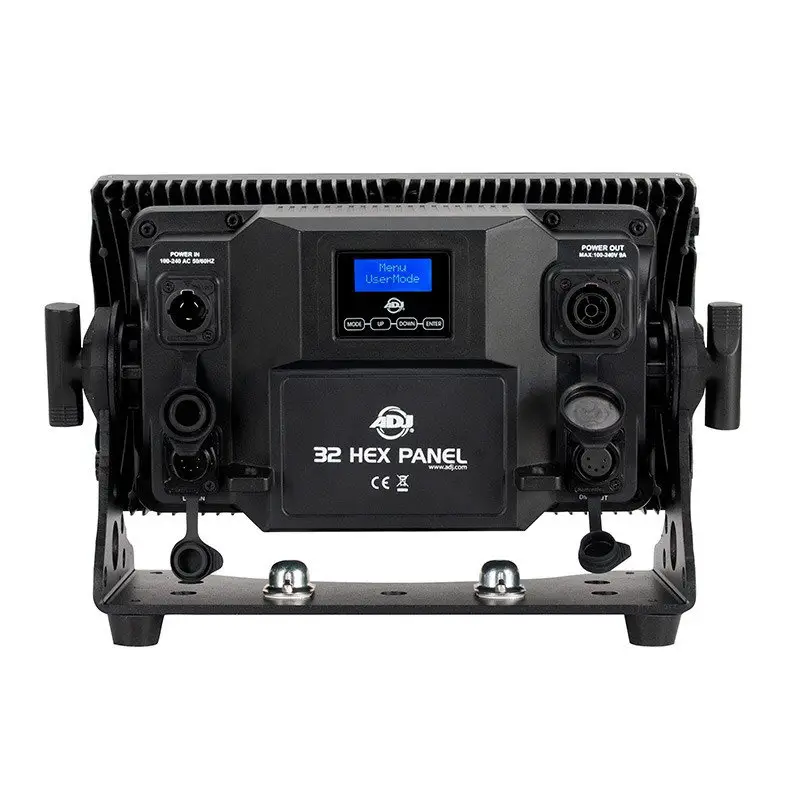

On the rear panel it features IP65 5-pin DMX In/Out connections and IP65 Locking Power In/Out connections to daisy chain the power. Both the DMX and IP65 Locking Power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.
The 32 HEX Panel IP is flicker free for film and broadcast and has multiple DMX control modes dimmer curve modes and selectable gamma and LED refresh rate settings.
Manufacturer Part Number: 1237000203 Dimensions (L x W x H): 35.5 x 16.5 x 22.5cm
Specifications
Source

Light Source: 32x 12W HEX (6-in-1) RGBWA+UV LEDs Average LED lifetime: approx. 50000 hrs

Optics

Beam Angle: 24° LUX: 33040 @ 1m 1322 @ 5m (Full On No UV); 20659 @ 1m 826 @ 5m (Full On) Removable magnetic filter frame with 32° diffusion filter (60° field angle) Optional barndoors available (ordering code 1237000206)

Control

5 operational modes: Static Colour RGBAW+UV Dimmer Program Colour Macro DMX 8 DMX modes: 6 8 10 11 16 48 57 & 96-channel RDM compatible (Remote Device Management) 16-bit electronic dimming: 0-100% 63 built-in colour macros Built-in programs with speed and fade time adjustments 8 individually controlled sections with zone control 5 selectable dim curves: Standard Stage TV Architectural Theatre Gamma control: 2.0 / 2.2 / 2.4 / 2.6 / 2.8 LED refresh rate control: 900Hz-25kHz LED pulse and strobe effect OLED display with function buttons

Colours

RGBAW+UV colour mixing

Construction

All-metal heavy-duty housing IP rating: IP65 Fan cooling Sure-lock heavy-duty locking bracket system (locks every 10°) Optional Omega quicklock bracket (ordering code 1226100419 108mm)

Electrical

Multivoltage 100-240V 50/60Hz Daisy chain up to 6 fixtures max (@ 230V) Power consumption: 220W max Operating temperature: -15°C to +45°C

Connections

5-pin locking IP65 DMX connectors IP65 locking power in/out connections

Dimensions

350 x 230 x 170mm Weight: 11kg

What's Included

Removable frost filter with metal frame IP65 locking power cable Two safety cables

Approvals / Rating

IP65-rated

Specifications are subject to change
