40 Hex IP Panel

Free Delivery on this item!
£1,096.90
ex. VAT inc. VAT
In stock

The ADJ 40 HEX Panel IP is a versatile IP65-rated fixture designed for both indoor and outdoor use as a wash light blinder or colour strobe. It is equipped with 40 × 20W HEX LEDs and features 10.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1226100438
Categories: ,
Brand:

Description

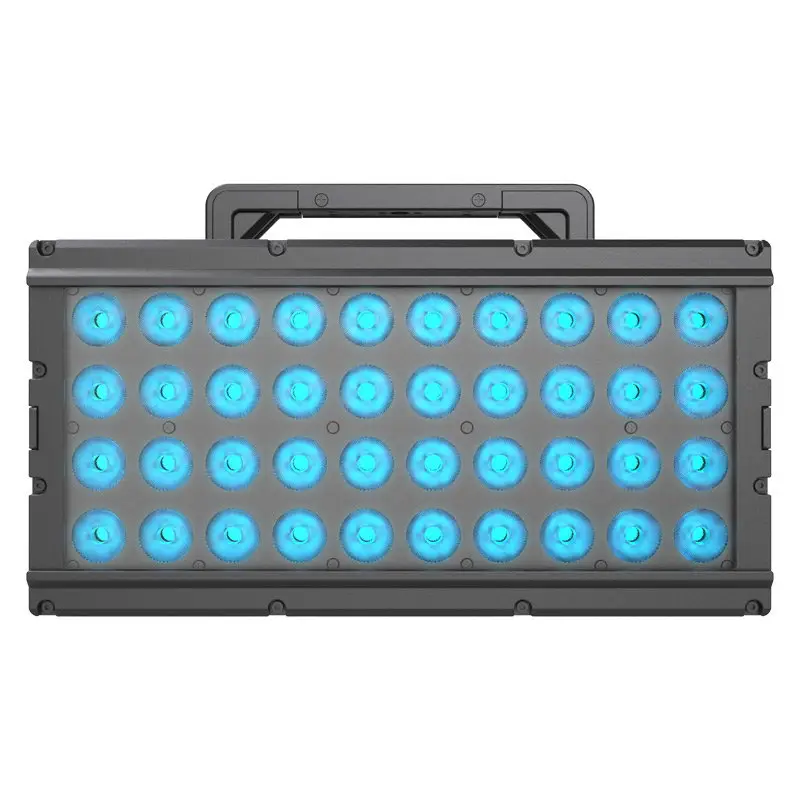

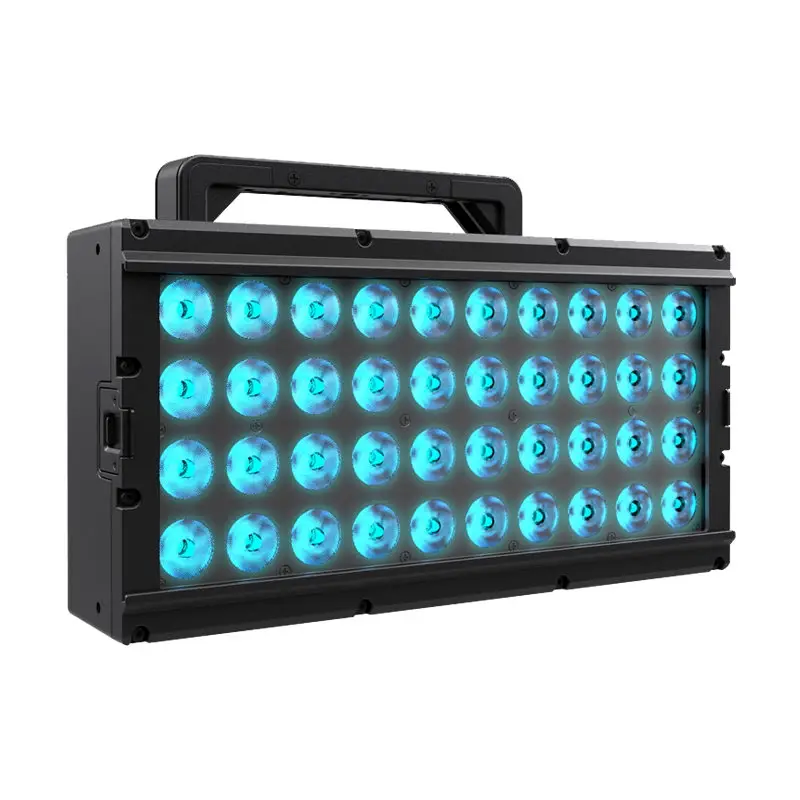

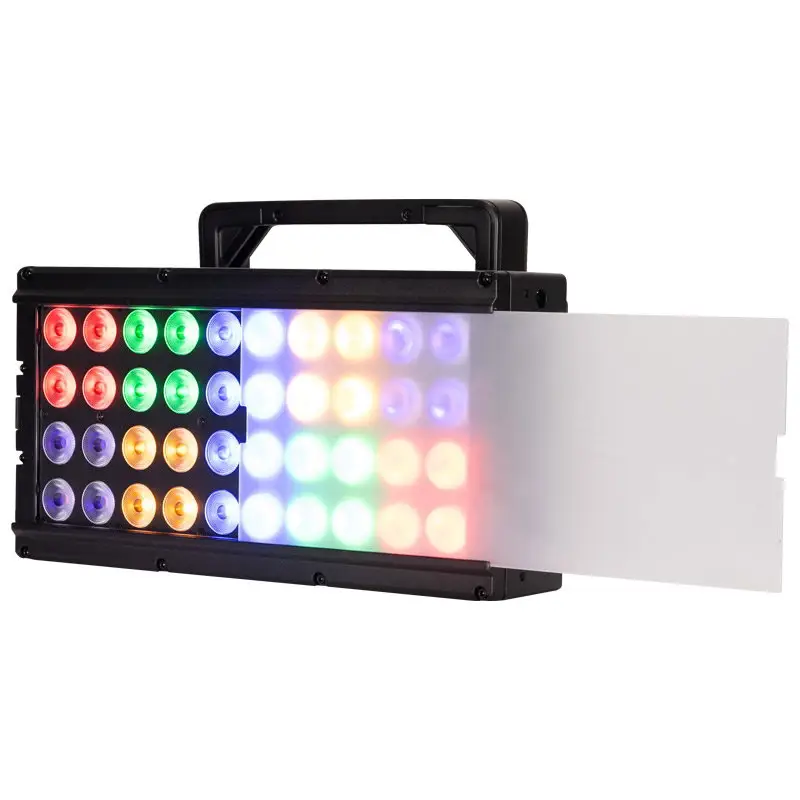

The ADJ 40 HEX Panel IP is a versatile IP65-rated fixture designed for both indoor and outdoor use as a wash light blinder or colour strobe. It is equipped with 40 × 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal black housing is IP65-rated offering protection against dust sand moisture and liquids. A magnetic removable filter frame allows for the addition of a diffusion filter to adjust the beam angle.

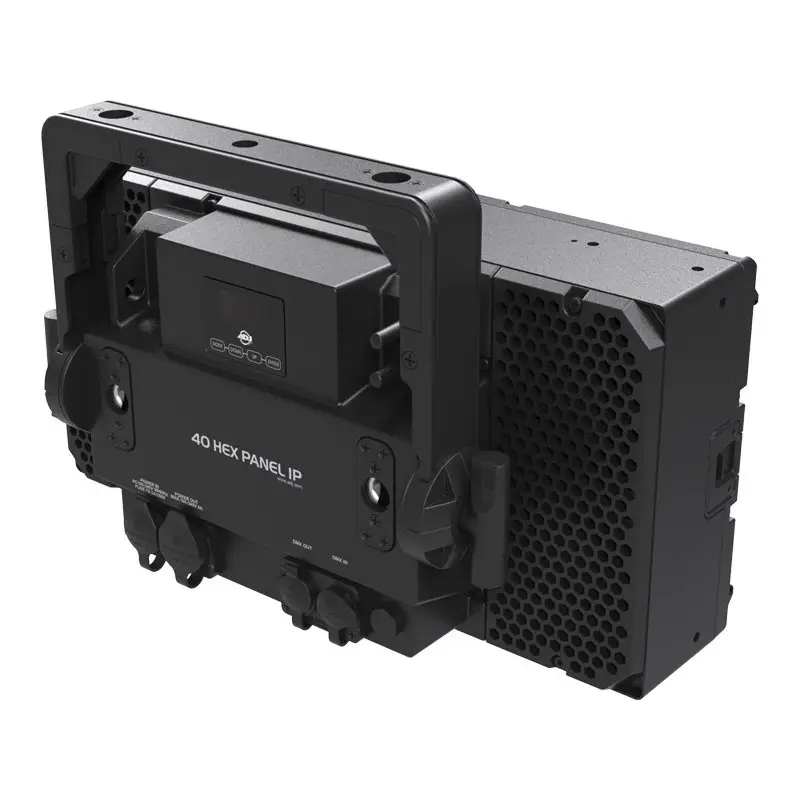

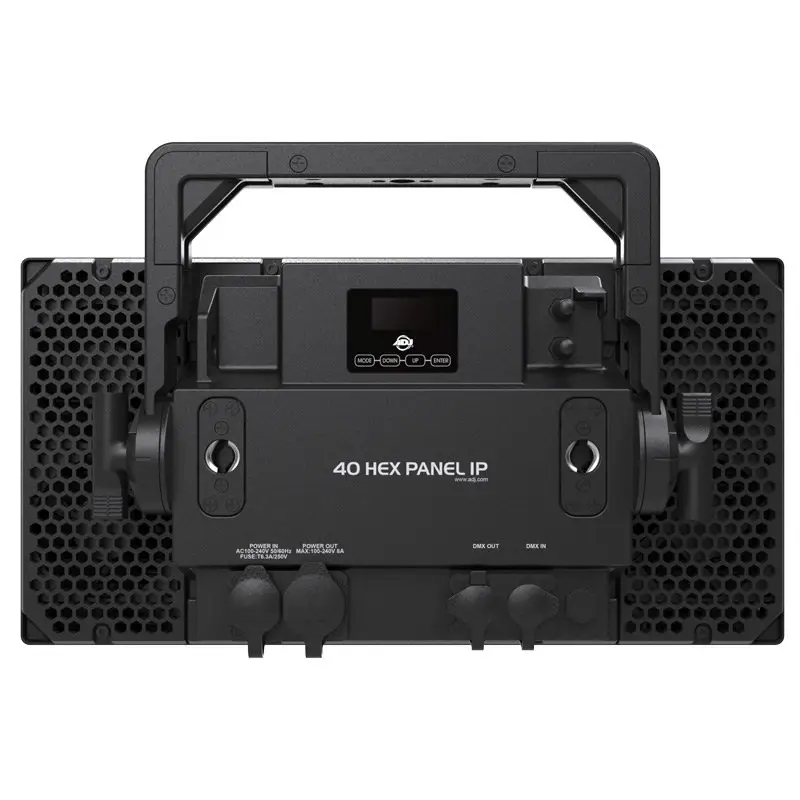

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons provides easy access to the fixture’s functions.
Perfect for film and broadcast use the 40 HEX Panel IP is flicker-free and offers multiple DMX control modes dimming options and LED refresh rate settings. The built-in Aria X2 wireless management system allows over-the-air firmware and software updates.
Manufacturer Part Number: 1226100438
Light Source:

LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50000 hr.) Beam Angle: X = 28.61° Y = 23.72° Field Angle: X = 50.82° Y = 44.95° Lumens: 19590

Features:

IP65 rated - protects from dust sand moisture water Aria X2 Management System All-metal construction with black housing Includes heavy-duty bracket Flicker free for film and broadcast Linear variable white temperature control

Construction:

Display: OLED display with function buttons All-metal heavy-duty housing built to last in outdoor or touring applications

Control:

24 DMX Control Modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G / 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes 4 Control Groups: 1 / 2 / 5 & 10 Groups 0-100% Dimming + smooth 16-bit Dimming 5 Dimming Curve Modes Control Mode: DMX512 RDM (Remote Device Management) LED Refresh Rate: Multiple settings With Wired Digital Communication Network

Connections:

Data: IP65 Locking 5-pin DMX In/Out Power: IP65 Locking Power In/Out

Electrical:

100-240V 50Hz/60Hz (Auto Sensing) Max Power Consumption: 492W @220V Max Power Link: 4pcs @230V Fuse Protected: T4A/250V Glass Fuse (5x20MM)

Dimensions / Weight:

Dimensions (LxWxH): 417x296.8x212mm Weight: 11.15 kg

What's Included:

1 x IP65 Locking Power Cable 1 x Frost Filter 1 x Safety Cable

Optional Accessories:

180mm Omega Bracket JPFXBLKF (Black Filter for Jolt Panel FX2 and Jolt Panel FXIP) JPFX1X60LF (1x60° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP) JPFX60X1LF (60x1° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)

Approvals and Ratings:

IP65

Specifications are subject to change without notice.
adj_40_hex_panel_ip_-_user_manual.pdf Open in new tab ↗
