Name: AHM16 16x16 Digital Matrix System - Power-Hub
Brand: Allen & Heath
SKU: AH0024
Price: 1356.60 GBP
Availability: InStock

AHM16 16×16 Digital Matrix System

Free Delivery on this item!

£1,356.60

ex. VAT inc. VAT

In stock

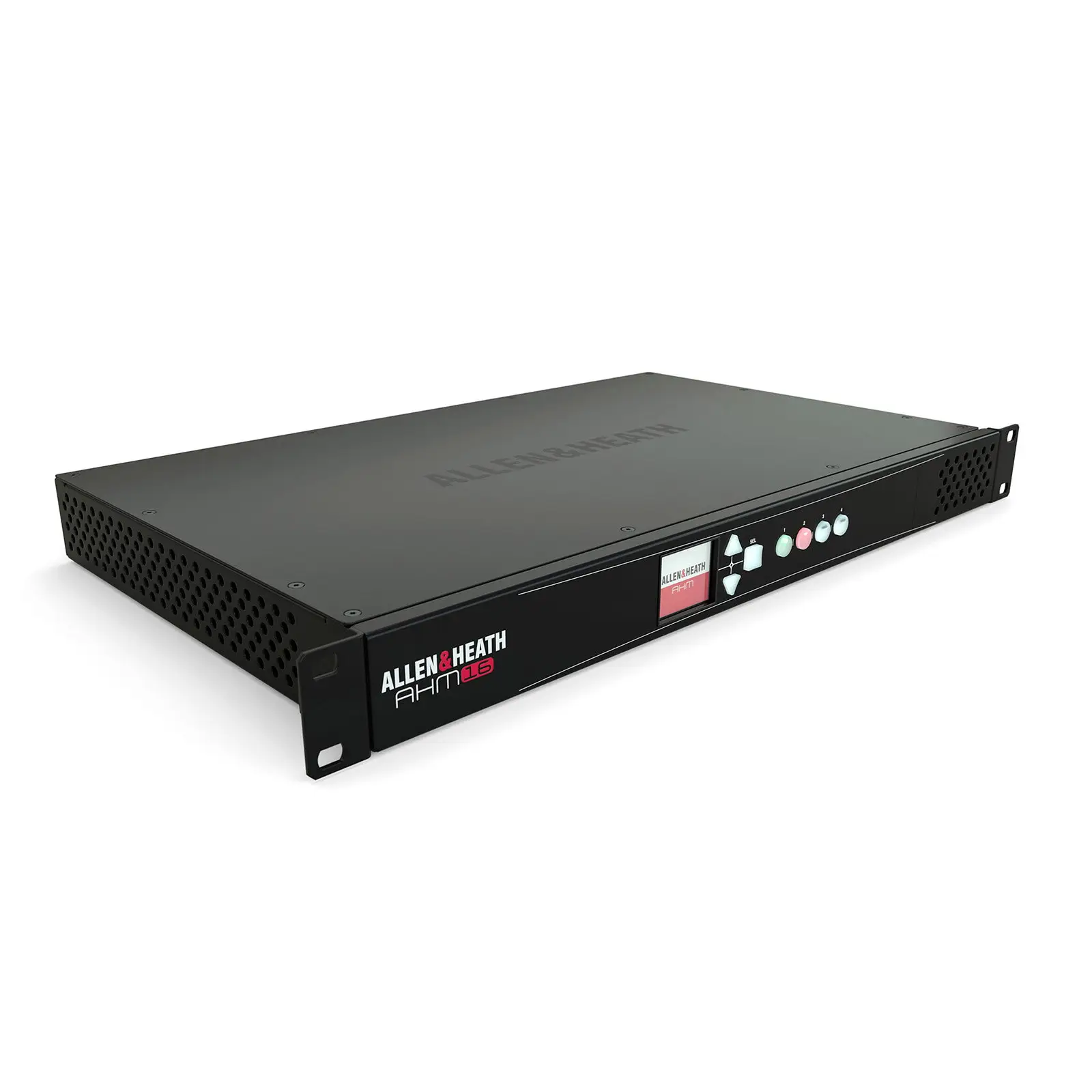

The Allen & Heath AHM-16 is a compact 1U 16×16 digital matrix processor featuring a 96kHz FPGA core 8×8 local analog I/O and an I/O port supporting up to 128×128 audio networking.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

Description

The Allen & Heath AHM-16 is a compact 1U 16×16 digital matrix processor featuring a 96kHz FPGA core 8×8 local analog I/O and an I/O port supporting up to 128×128 audio networking. Designed for sound management and installation it offers advanced features like automatic mic mixing ambient noise compensation and speaker processing making it ideal for corporate hospitality education and house of worship environments.

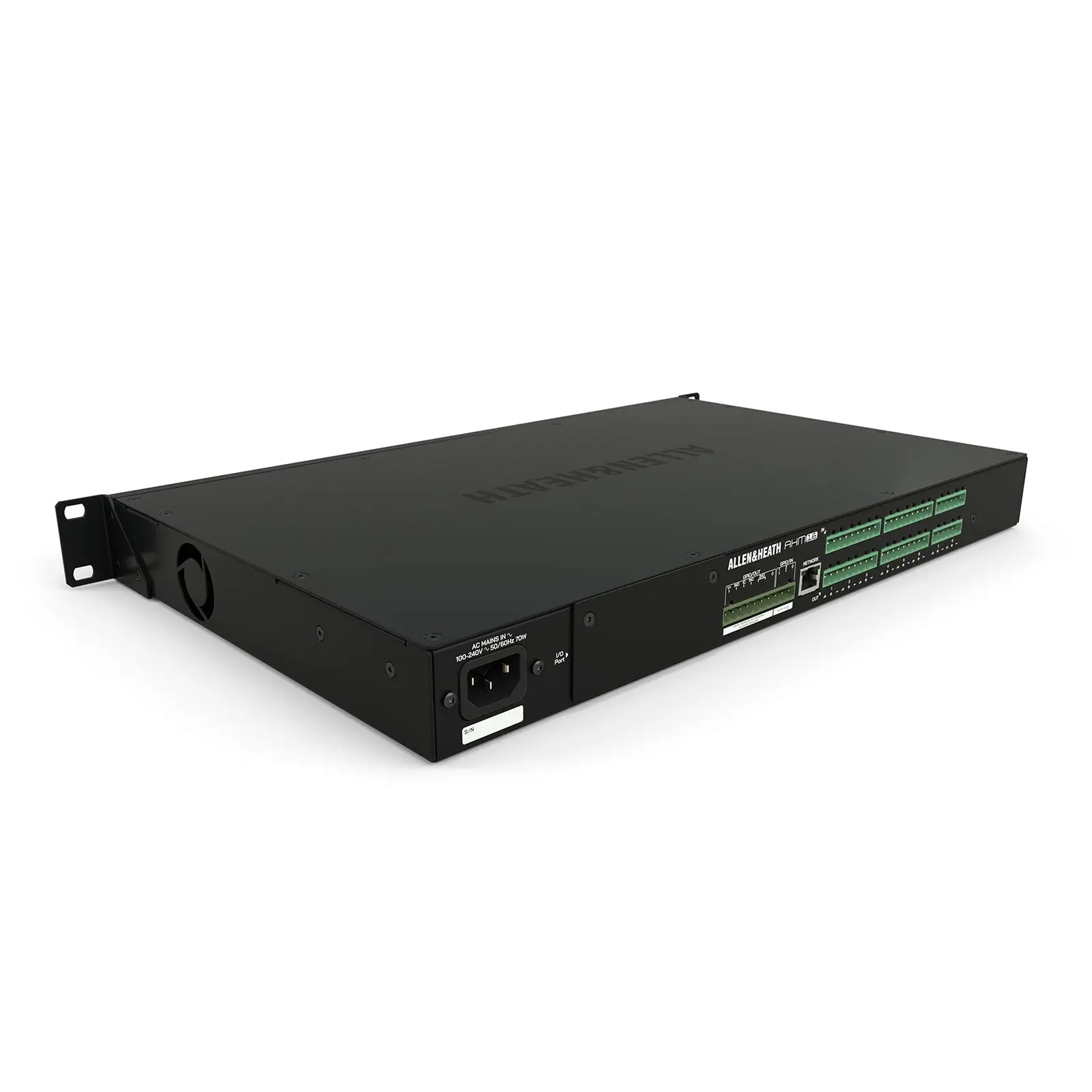

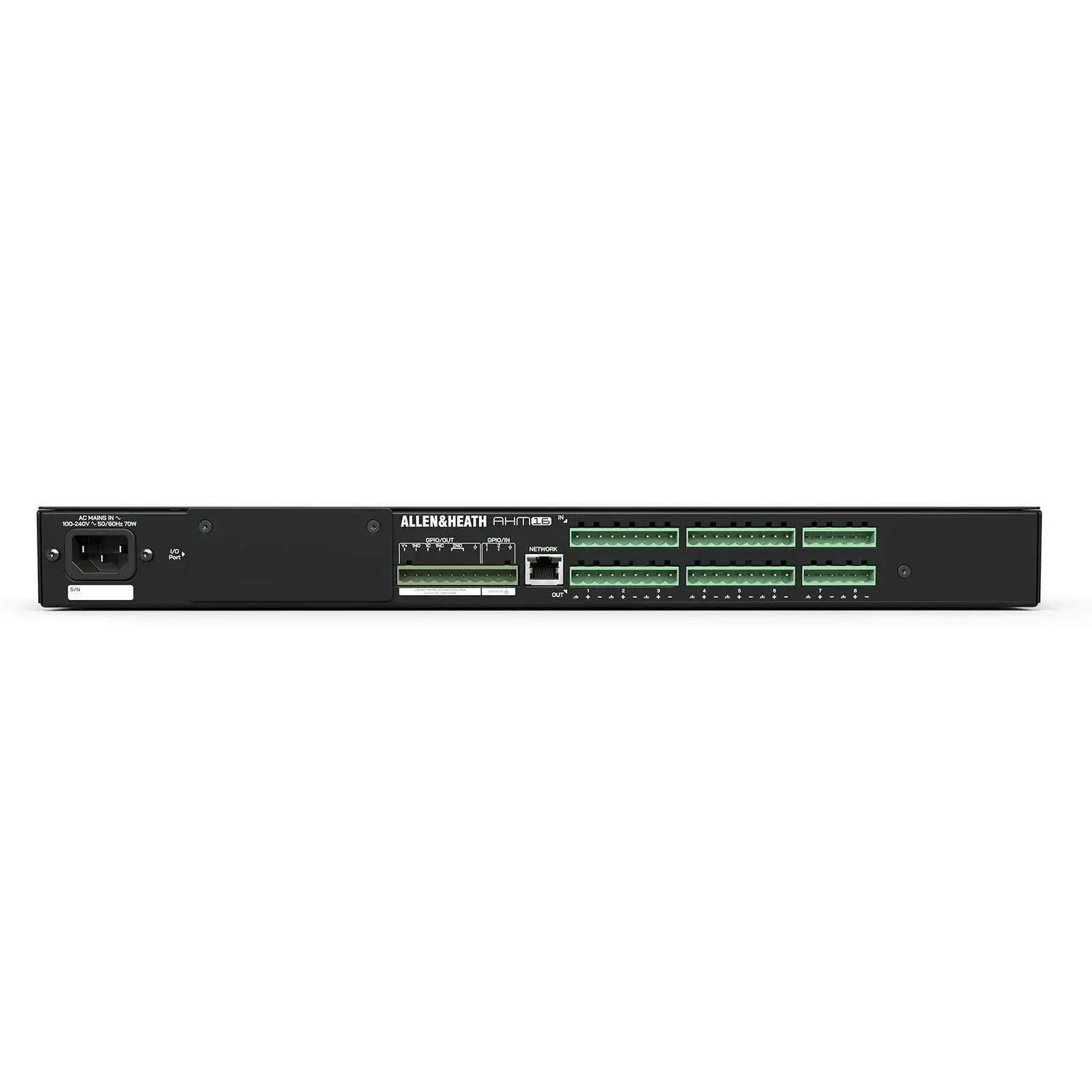

Mic/Line Inputs: 8 x 3-pin Euroblock (balanced +48V phantom power) Line Outputs: 8 x 3-pin Euroblock (balanced relay protected) Input Sensitivity: -60 to +15dBu Analog Gain: +5 to +60dB in 1dB steps Maximum Input Level: +30dBu (PAD in) Output Impedance: <75Ω Maximum Output Level: +21dBu Dynamic Range: 108dB Frequency Response: 20Hz - 20kHz (+0/-0.5dB) THD+N: 0.005% @ +16dBu output 1kHz +5dB gain Sampling Rate: 96kHz ±20 PPM Power Supply: 100-240V AC 50-60Hz 65W max Dimensions (H x W x D): 44mm x 482.6mm x 270mm Weight: 3.8kg (8.38 lbs)

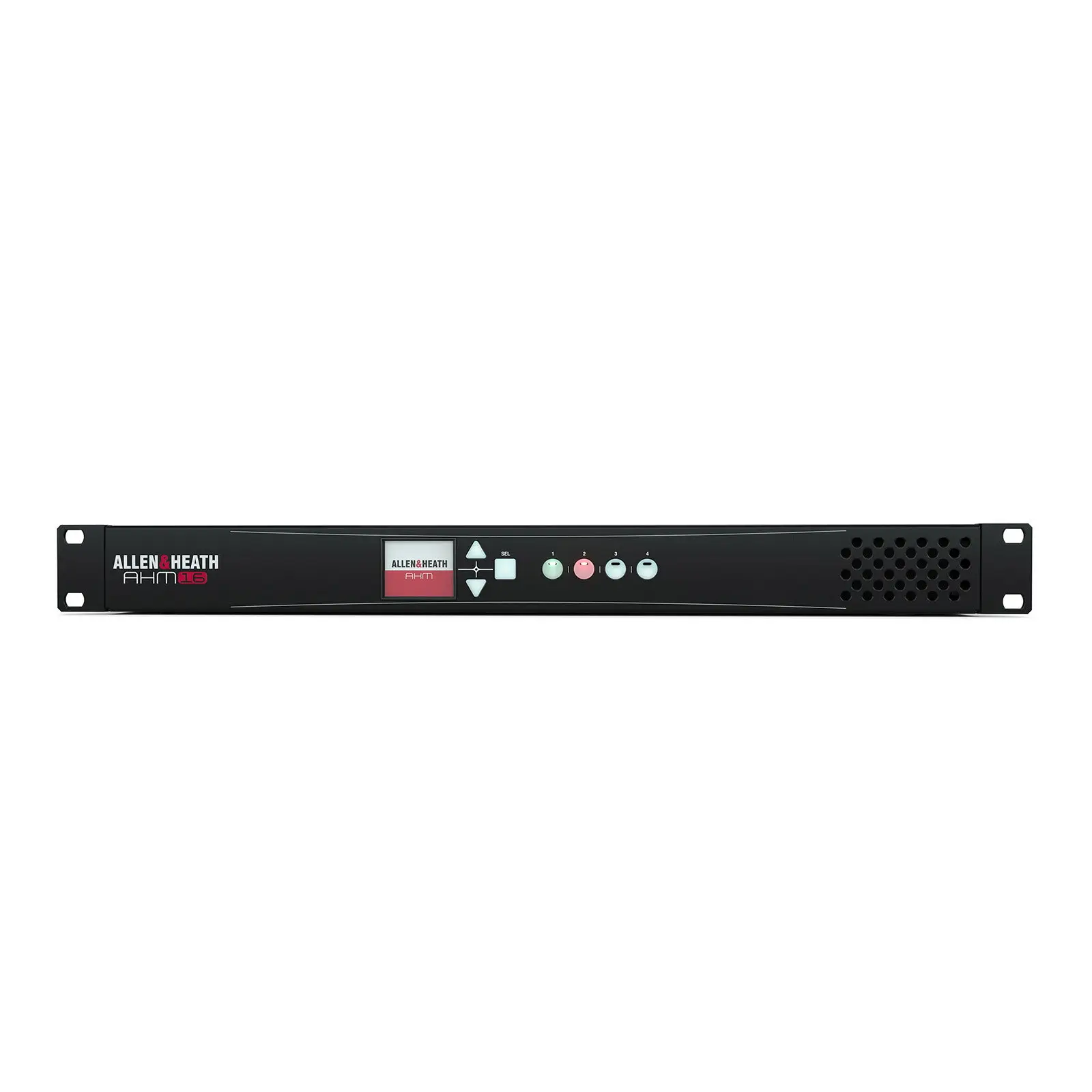

16x16 processing matrix with 96kHz FPGA core 8x8 local analog I/O via Euroblock connectors I/O port supporting up to 128x128 audio networking Front panel screen with 4 programmable SoftKeys Automatic mic mixer and ambient noise compensation Priority ducking and 8-band PEQ on all inputs and zones Speaker processing with crossover delay limiter and EQ Compatible with IP1 IP6 and IP8 remote controllers Integration with third-party control systems via GPIO and TCP/IP Custom Control app and editor for tailored user interfaces

AH0024_Datasheet.pdf Open in new tab ↗

Checking document preview…

AH0024_Manual.pdf Open in new tab ↗

Checking document preview…

AH0024_TD.pdf Open in new tab ↗

Checking document preview…
