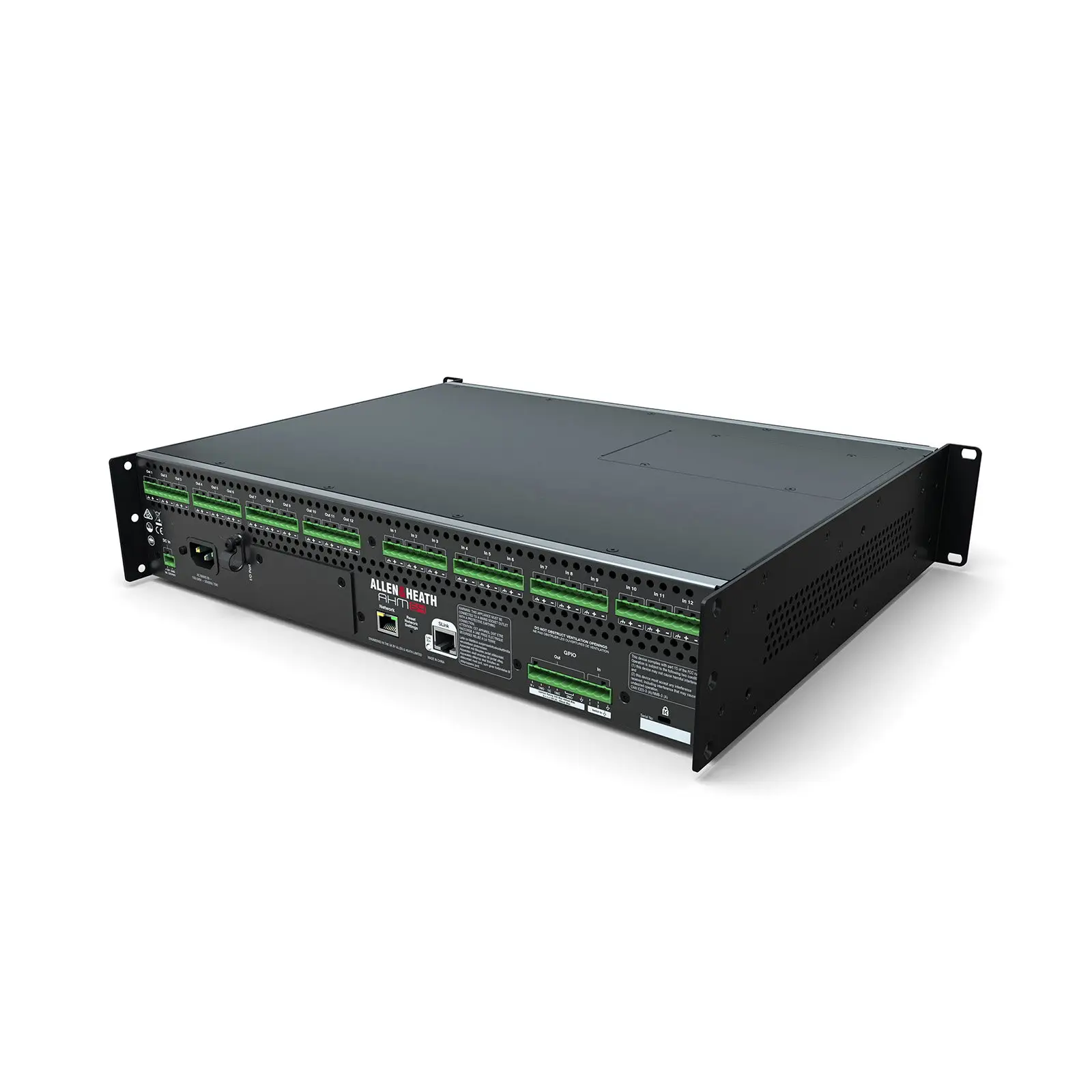

AHM64 64x64 Matrix Processor - AH0026

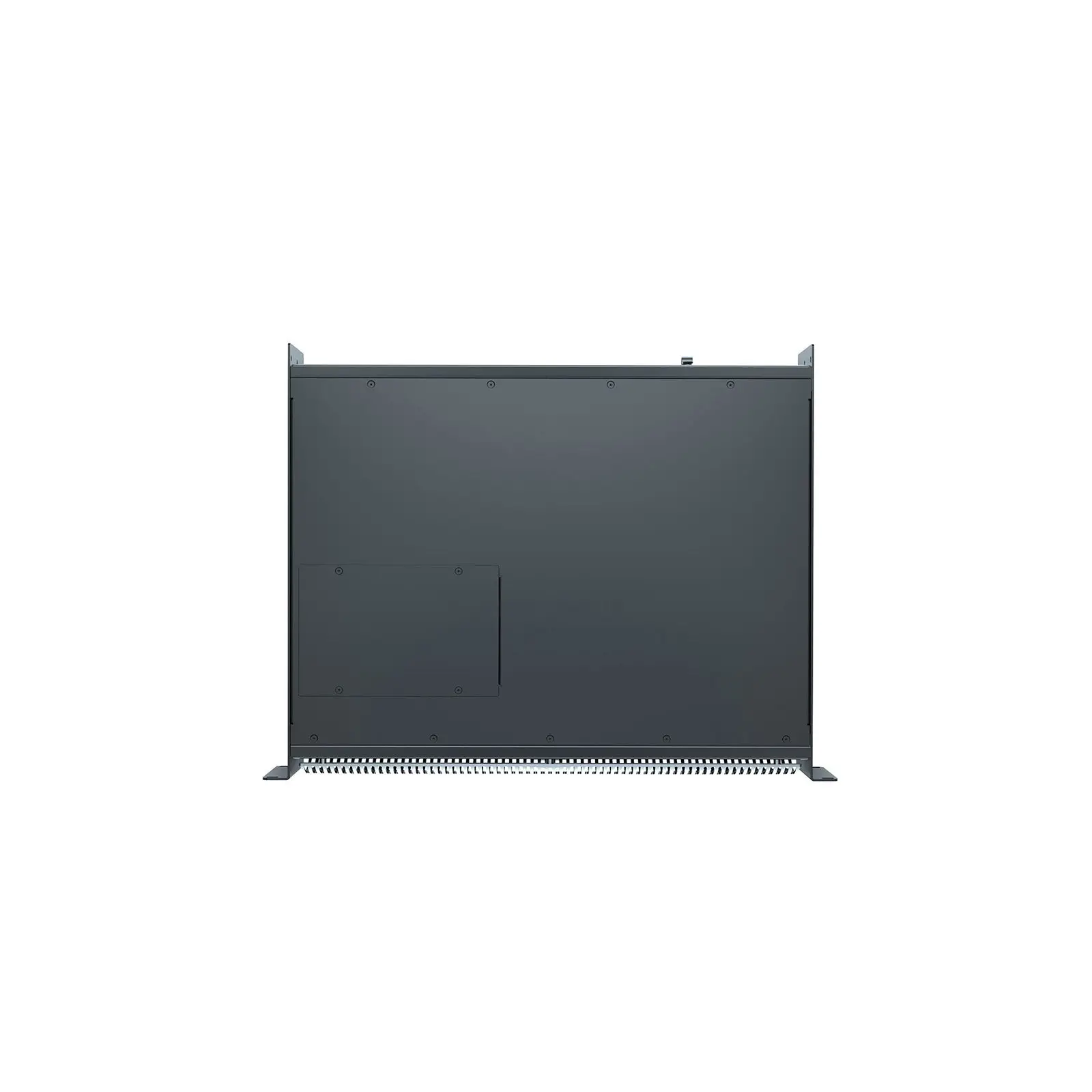

AHM64 64x64 Matrix Processor - Image 2

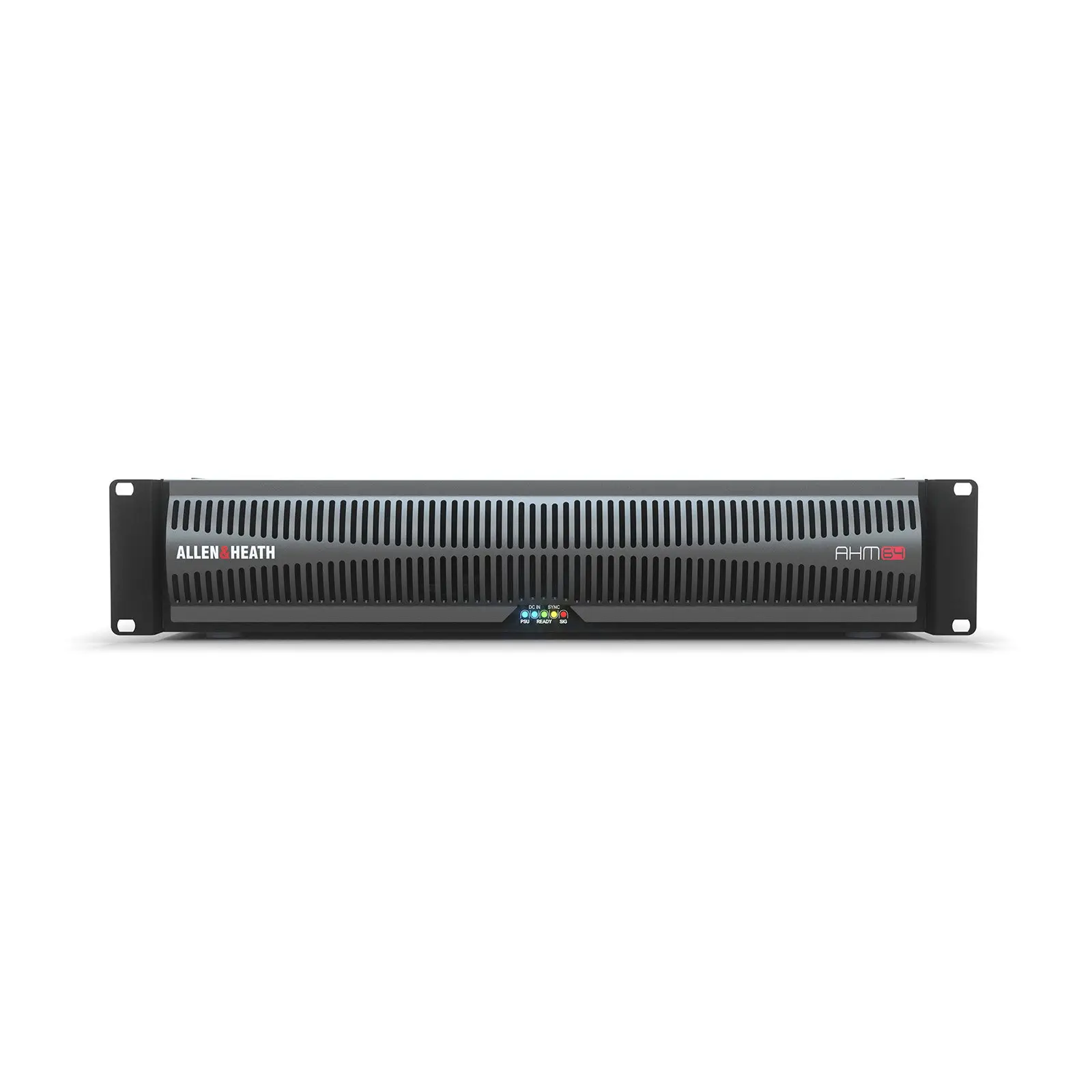

AHM64 64x64 Matrix Processor - Image 3

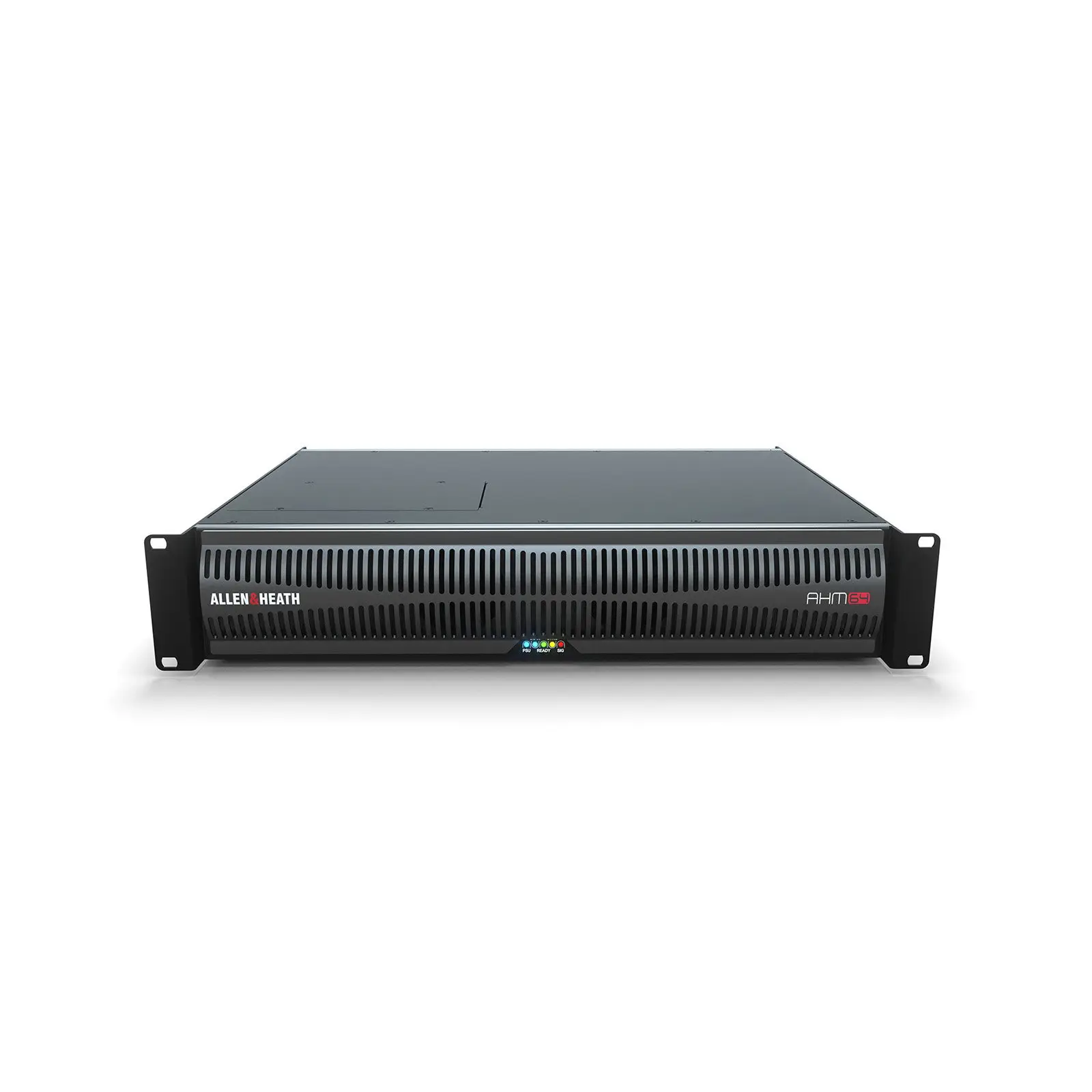

AHM64 64x64 Matrix Processor - Image 4

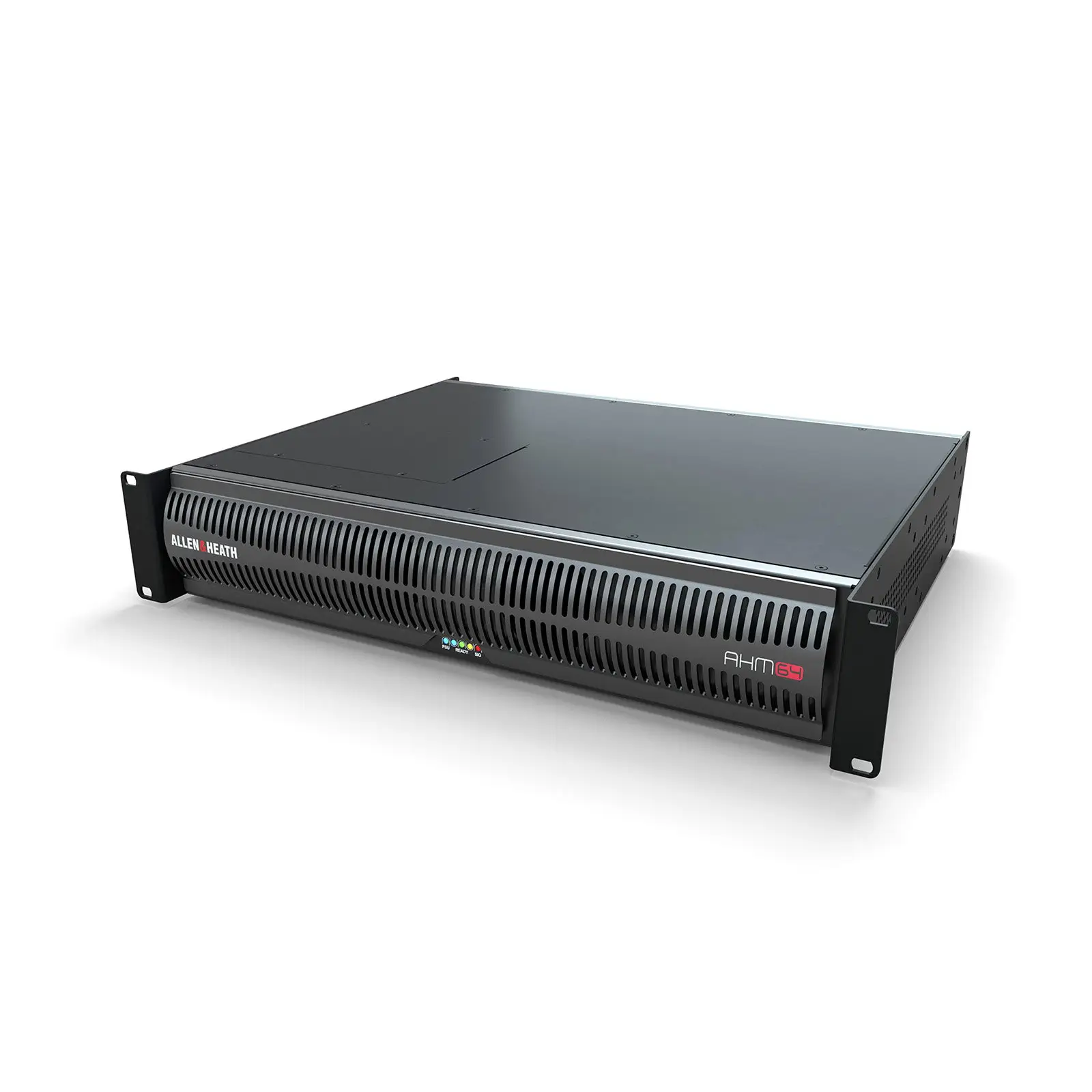

AHM64 64x64 Matrix Processor - Image 5

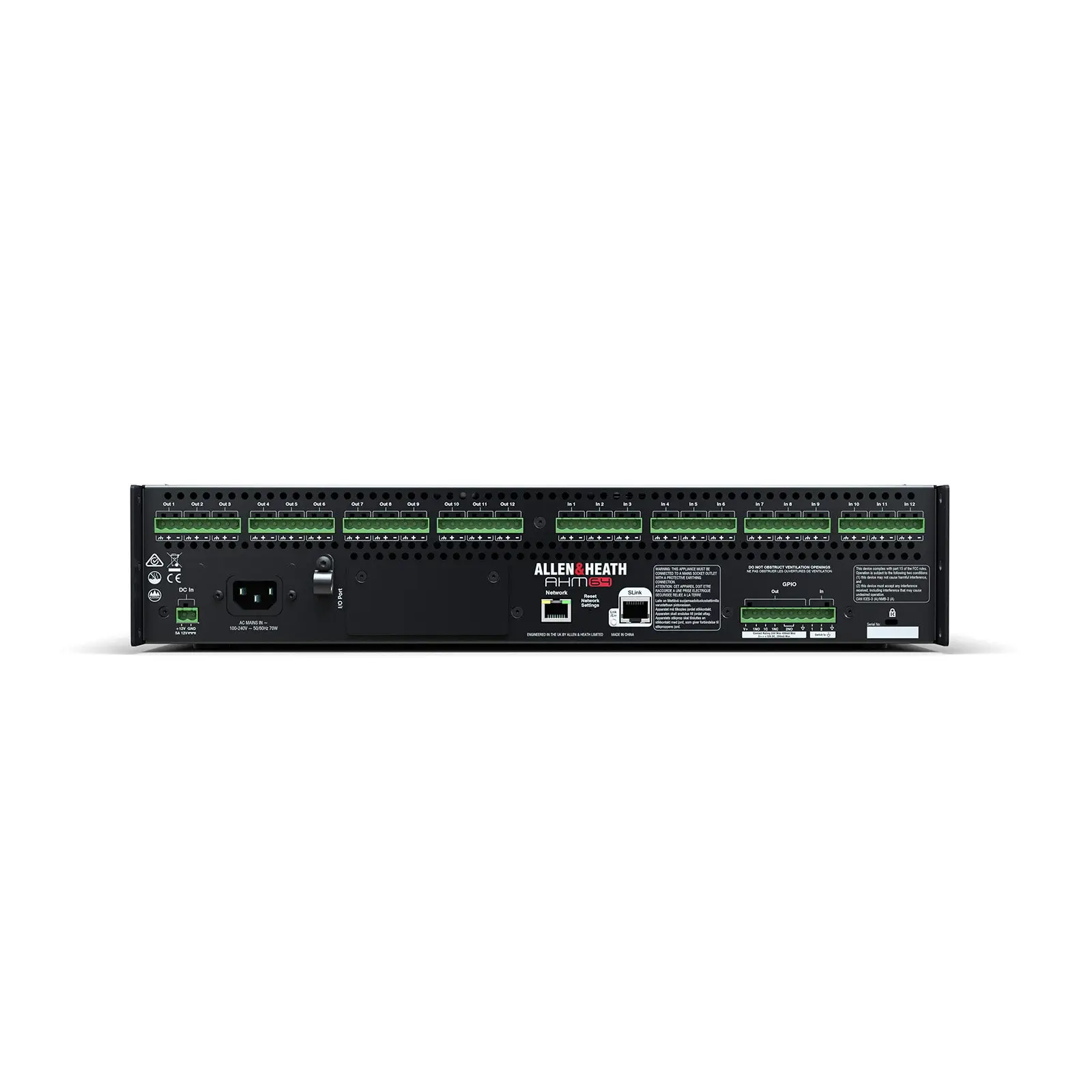

AHM64 64x64 Matrix Processor - Image 6
AHM64 64x64 Matrix Processor - Image 7

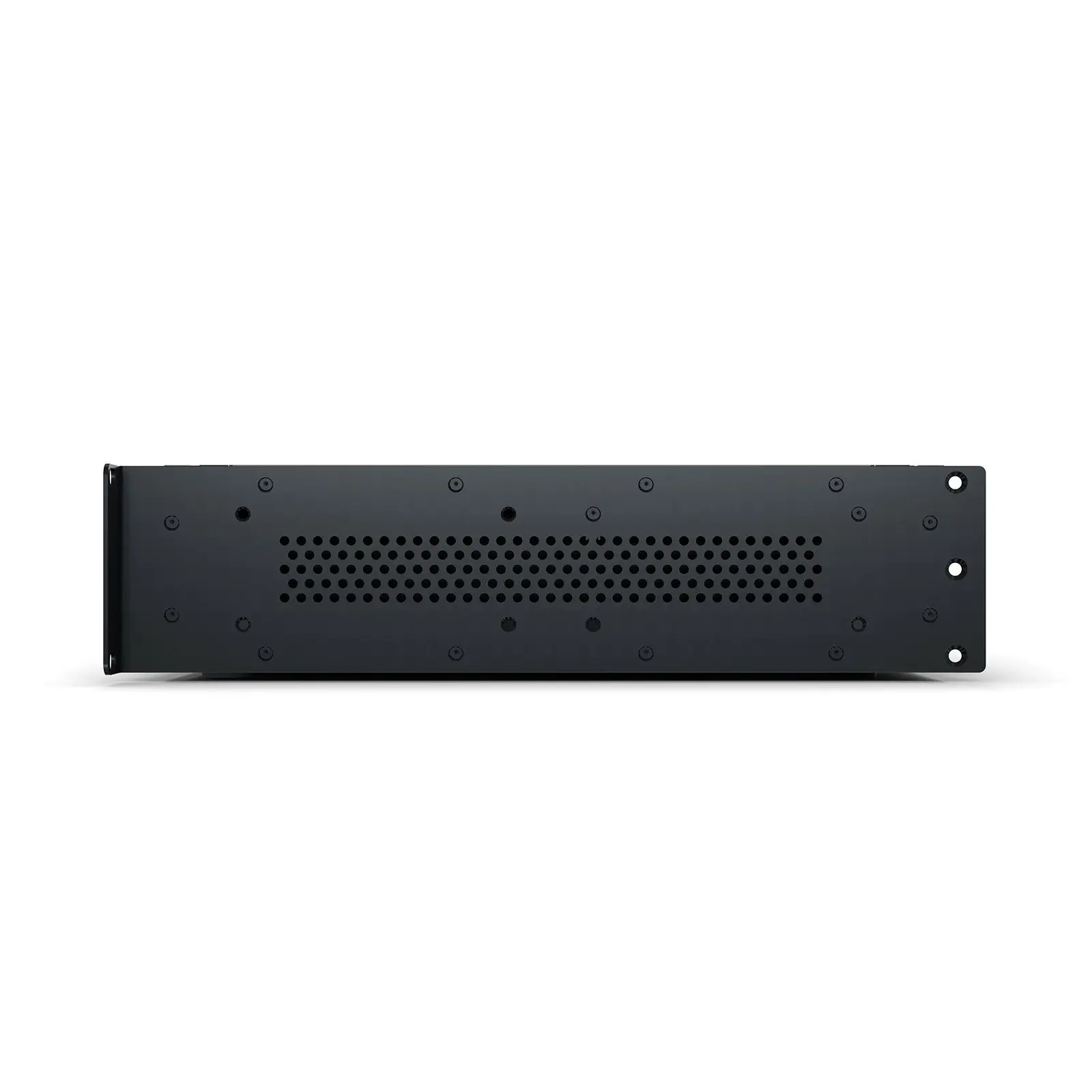

AHM64 64x64 Matrix Processor - Image 8

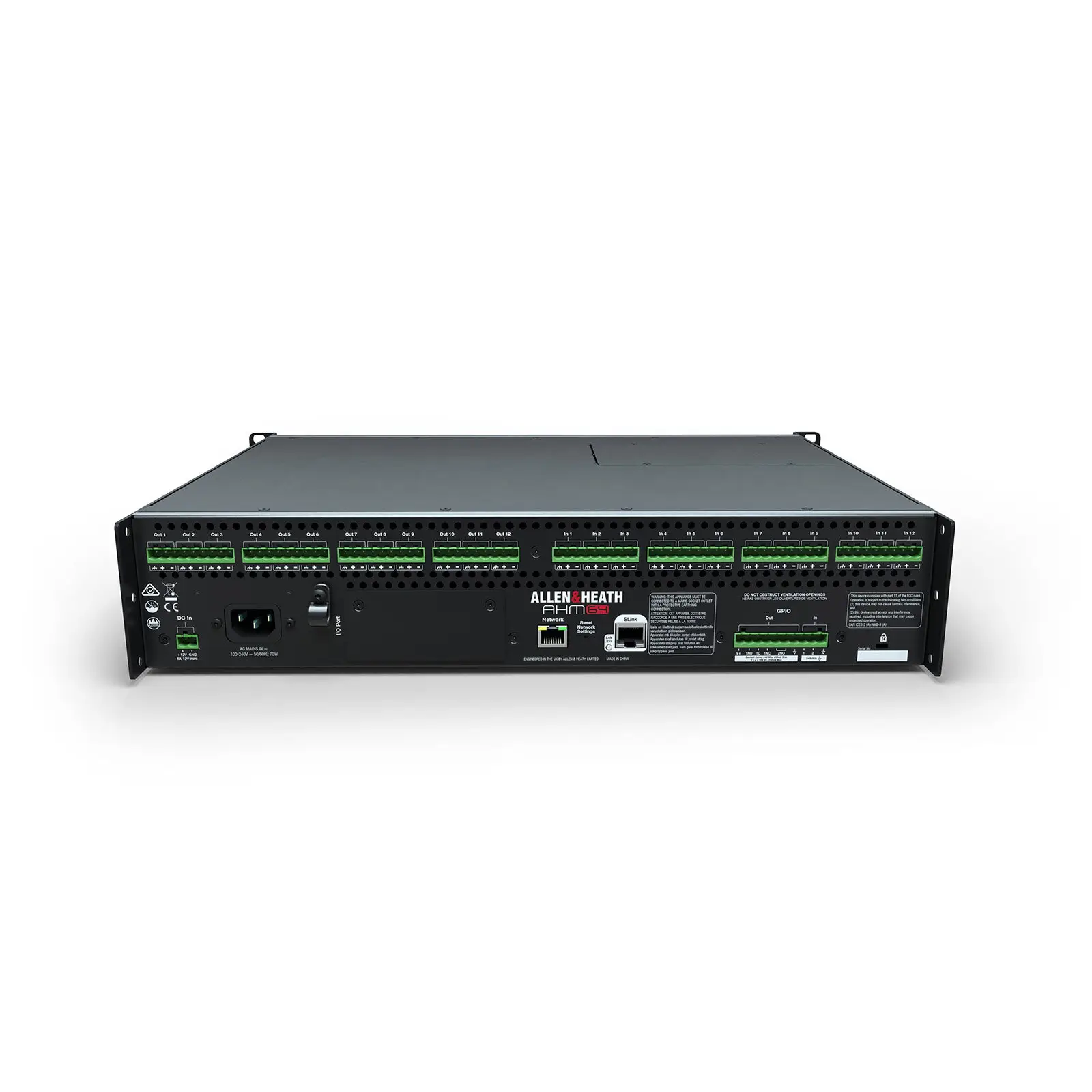

AHM64 64x64 Matrix Processor - Image 9

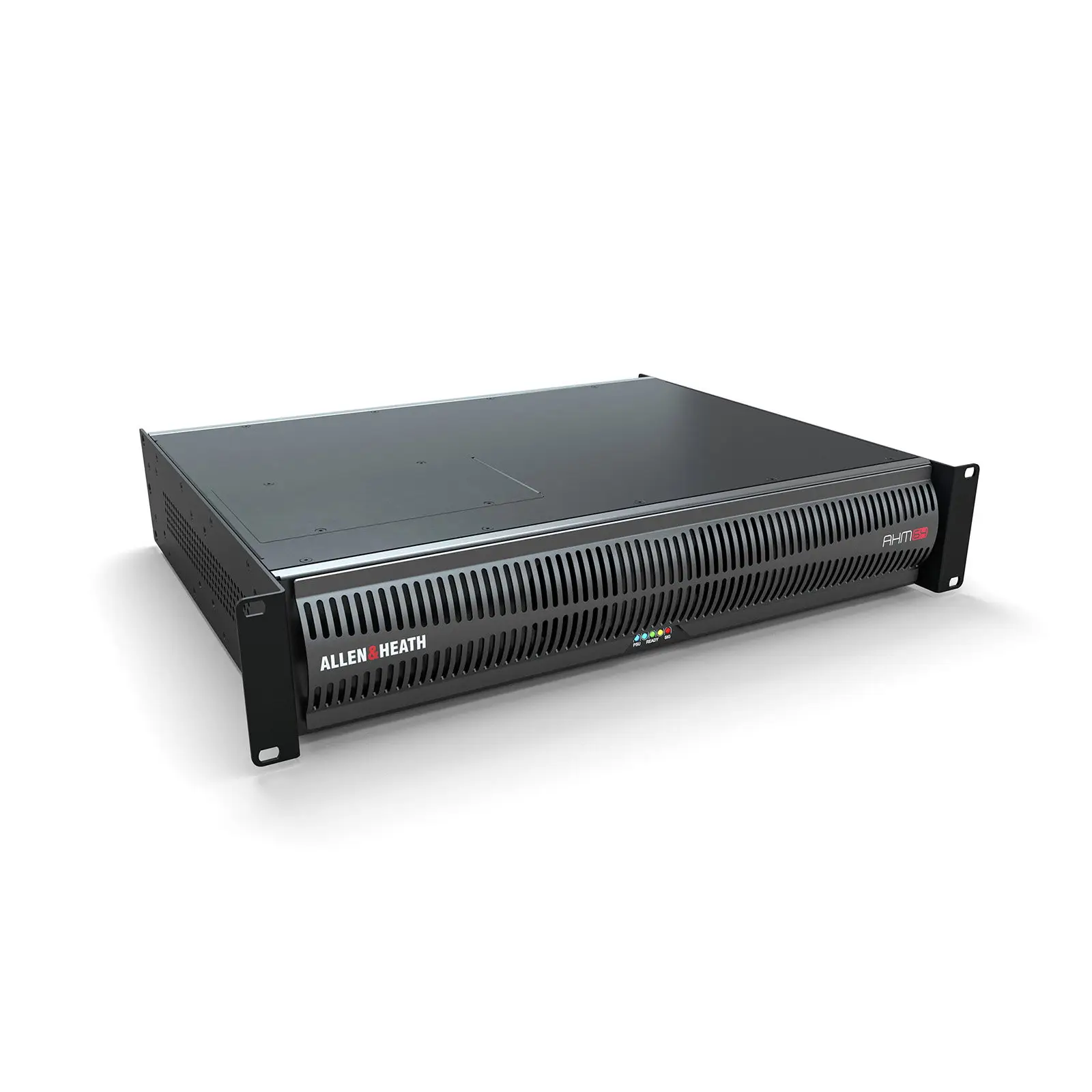

AHM64 64x64 Matrix Processor - Image 10
The Best PricesCompetitive pricing always
🇬🇧Supplying fast delivery throughout UK

AHM64 64×64 Matrix Processor

Free Delivery on this item!
£3,213.00
ex. VAT inc. VAT
In stock

The Allen & Heath AHM-64 is a powerful 64×64 digital matrix processor featuring a 96kHz FPGA core 12×12 local analog I/O and extensive audio networking capabilities.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: AH0026
Categories: , ,
Brand:

Description

The Allen & Heath AHM-64 is a powerful 64×64 digital matrix processor featuring a 96kHz FPGA core 12×12 local analog I/O and extensive audio networking capabilities. Designed for scalable sound management and installation it offers advanced features like automatic mic mixing ambient noise compensation and speaker processing making it ideal for corporate hospitality education and house of worship environments.

Mic/Line Inputs: 12 x 3-pin Euroblock (balanced +48V phantom power) Line Outputs: 12 x 3-pin Euroblock (balanced relay protected) Input Sensitivity: -60 to +15dBu Analog Gain: +5 to +60dB in 1dB steps Maximum Input Level: +30dBu (PAD in) Output Impedance: <75Ω Maximum Output Level: +21dBu Dynamic Range: 108dB Frequency Response: 20Hz - 20kHz (+0/-0.5dB) THD+N: 0.005% @ +16dBu output 1kHz +5dB gain Sampling Rate: 96kHz ±20 PPM Power Supply: 100-240V AC 50-60Hz 70W max DC Input: 12V DC backup power supply Dimensions (H x W x D): 88mm x 482.6mm x 270mm Weight: 7kg (15.5 lbs)

64x64 processing matrix with 96kHz FPGA core 12x12 local analog I/O via Euroblock connectors I/O port supporting up to 128x128 audio networking 128x128 built-in SLink port for audio expansion 64 configurable processing outputs for mono/stereo zones or speaker processing 8x Automatic Mic Mixers with classic gain sharing and NOM algorithms Optional Acoustic Echo Cancellation (AEC) module Ambient Noise Compensation (ANC) and priority ducking 8-band PEQ dynamics and delay on every input and zone Speaker processing with crossover filter delay limiter and PEQ Compatible with IP1 IP6 and IP8 remote controllers 2x2 local GPIO plus networkable GPIO interface Integrated stereo/dual mono playback and event scheduler System Manager software and Custom Control app for configuration and control 32 user profiles with customizable access and control

AH0026_Datasheet.pdf Open in new tab ↗
Checking document preview…
AH0026_Manual.pdf Open in new tab ↗
Checking document preview…
AH0026_TD.pdf Open in new tab ↗
Checking document preview…
