Krypton Pro Rechargeable Floodlight 500lm
CP 535RA 5 Channel Cable Wheelchair Ramp
BOB-04 0x4 Dante Interface
Free Delivery on this item!BOB-04 is a digital audio Dante/AES67 Break Out Box. It delivers 4 LINE level audio outputs converted from 4 Dante/AES67 received from the Ethernet digital audio LAN it is connected to.The device.
- Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
- Premium Courier Service: Trackable delivery to your business premises
- 14-day hassle-free return policy — no questions asked
- 24/7 Customer Support: Help is always available, day or night
Description

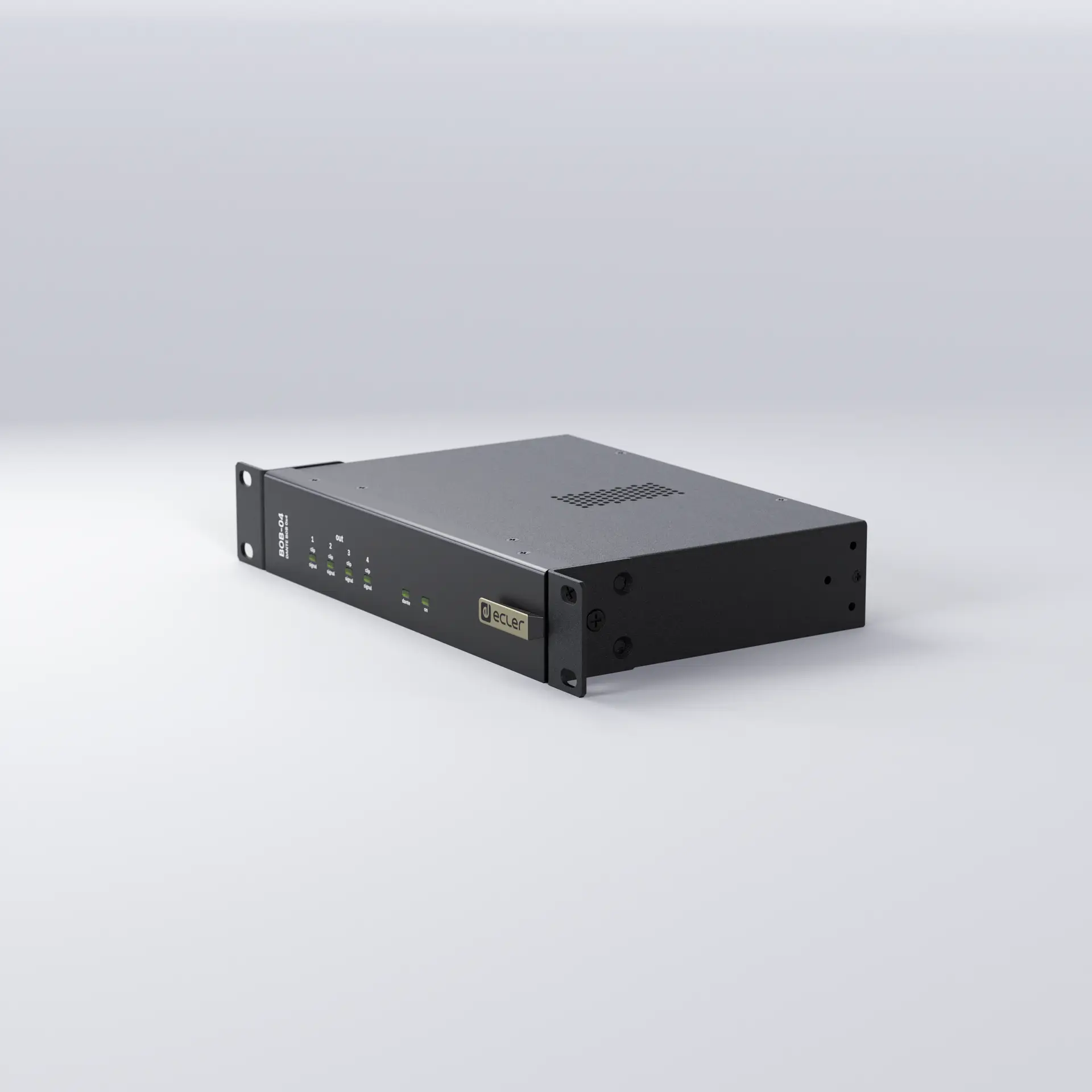

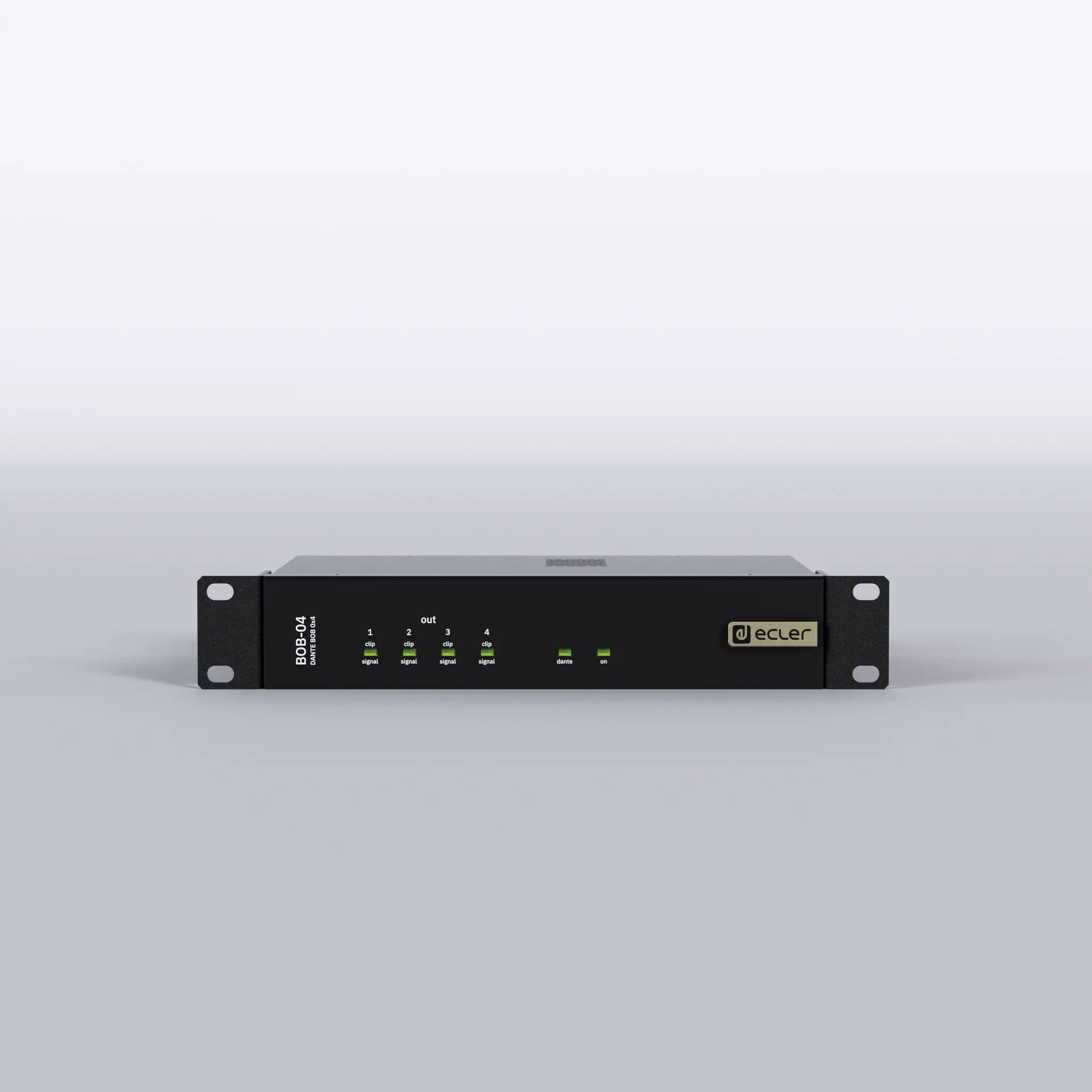

BOB-04 is a digital audio Dante/AES67(Audio Over IP) Break Out Box. It delivers 4 LINE level audio outputs converted from 4 Dante/AES67 (Audio Over IP) received from the Ethernet digital audio LAN it is connected to.The device features PoE (Power over Ethernet) DC supply directly from PoE ready Ethernet switches. An optional 24VDC external PSU is available (sold separately).BOB-04 is a generic Dante/AES67 device that can be used in combination with EclerNet / EclerPLEX / VIDA / HALO Dante devices from Ecler or with any other third-party Dante/AES67 devices but it is not a native EclerNet / EclerPLEX guest unit.
Audio Converters
Sampling rate: 48kHz Resolution: 24 bit Latency: 1 / 2 / 5 ms (selectable) Frequency response: 0 - 20kHz Dynamic range: 115dB typ.Analogue Audio Output Ports

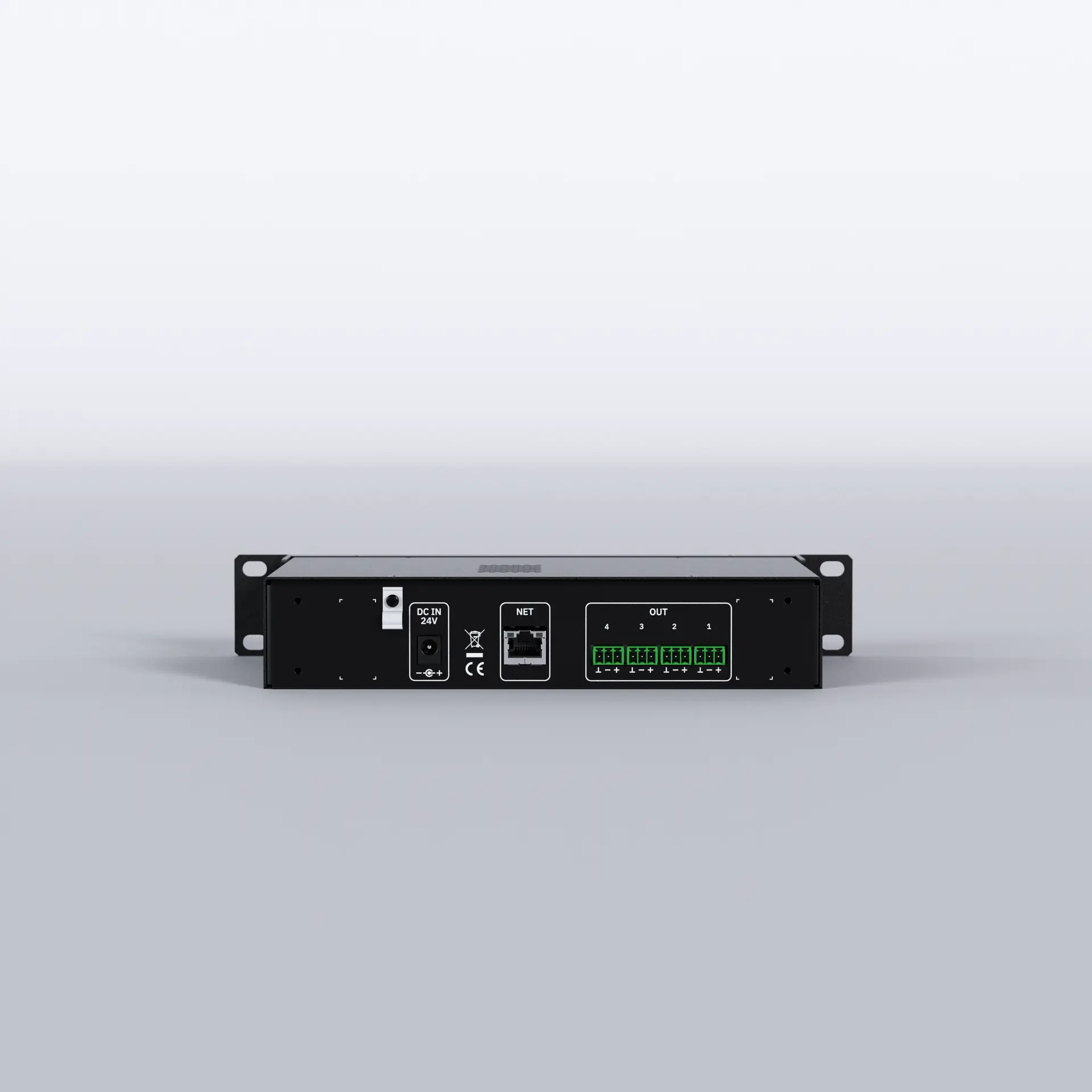

Number of output ports: 4 LINE level Connection type: Euroblock 3-pin balanced Max output level: +18dBV=+20dBu Output impedance: 316Ω Crosstalk: better than 95dBAudio Over Ip
Protocols: Dante® / AES67 (2 flows) Number of digital output ports: 4 Interfaces: 1 x RJ-45Connectivity
Ethernet: 1 RJ-45 connector10 /100Mb 1GB Auto X-Over Programing and control: Dante® ControllerElectrical
Power supply: 24VDC External PSU (sold separately) Secondary power supply: PoE: class 0 802.3af Poe PD compliant AC mains requirement: 90-265VAC @ 50-60Hz (External PSU: 24VDC) Power consumption: 13 VA / 7W Ventilation: PassivePhysical
Operating temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Operating humidity: <85% HR Storage temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Storage humidity: <90% HR Installation options: Desktop 19" racks (1RU) Included accessories: 4x Euroblock 3-pin connectors 4x Rubber feet 1x Frontal Support Half-Rack accessory 4x Washer Dimensions: 266.1 x 44 x 156.2mm / 10.48 x 1.73 x 6.15 in. (WxHxD) Weight: 1.1 Kg / 2.43 lb. Shipping dimensions: 430 x 52 x 261mm / 16.93 x 2.05 x 10.28 in. (WxHxD) Shipping weight: 1.65Kg / 3.64 lb.Ethernet interface. Euroblock connectors for analogue audio outputs. 4 Digital Dante/AES67 channels reception. 4 LINE level analogue audio outputs. PoE power supply ready. Compact format. Frontal support Half rack accessory included.
