BOB-22 2×2 Dante Interface
Free Delivery on this item!BOB-22 is a digital audio interface 2xMIC/LINE audio inputs and 2 LINE level audio outputs Dante/AES67 Break Out Box. It enables the conversion of up to 2 Dante/AES67 channels into 2 analogue audio.
- Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
- Premium Courier Service: Trackable delivery to your business premises
- 14-day hassle-free return policy — no questions asked
- 24/7 Customer Support: Help is always available, day or night
Description

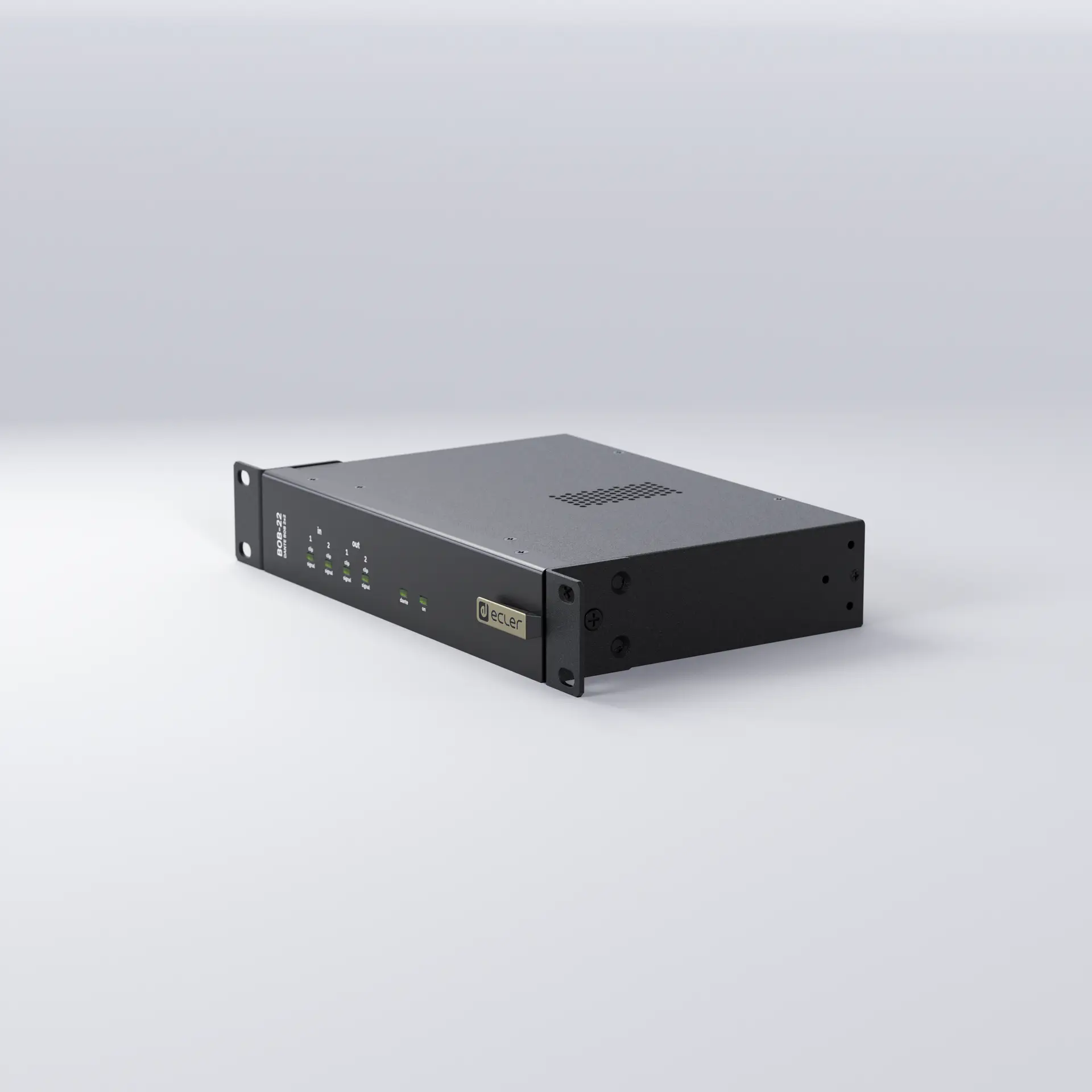

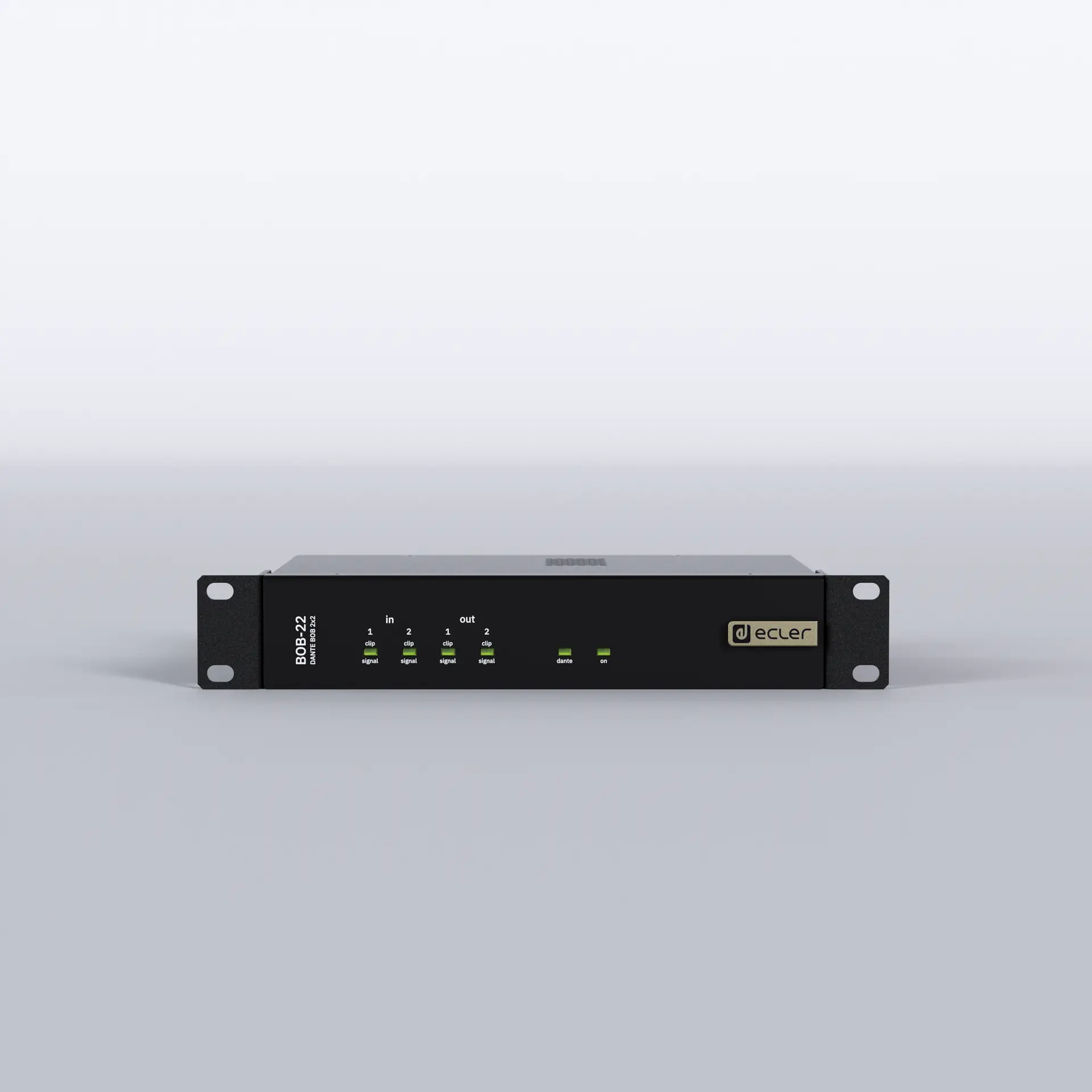

BOB-22 is a digital audio interface 2xMIC/LINE audio inputs and 2 LINE level audio outputs Dante/AES67 (Audio Over IP) Break Out Box. It enables the conversion of up to 2 Dante/AES67 channels into 2 analogue audio LINE level output signals and vice versa converting 2 MIC/LINE analogue audio input signals into 2 Dante/AES67 channels for transmission over an Ethernet network.The device features PoE (Power over Ethernet) for DC power directly from PoE-enabled Ethernet switches. An optional 24VDC external PSU is available (sold separately).BOB-22 is a generic Dante/AES67 device that can be used in combination with EclerNet / EclerPLEX / VIDA / HALO Dante devices from Ecler or with any other third-party Dante/AES67 devices but it is not a native EclerNet / EclerPLEX guest unit.
Audio Converters
Sampling rate: 48kHz Resolution: 24 bit Latency: ADC 0.81 ms DAC 0.56 ms Total 1.37 ms Frequency response: 0 - 20kHz Dynamic range: ADC:110dB DAC:115dBAnalogue Audio Input Ports
Number of input ports: 2 MIC/LINE level Connection type: Euroblock 3-pin balanced Input sensitivity: -50dBV to +0dBV Input impedance: > 4 kΩ Max input level: +18dBV = +20dBu THD + Noise: THD+Noise @ 1kHz 0dBV input (line) <0.005%THD+Noise @ 1kHz -40dBV input (mic.) <0.40% CMRR: 56dB typ. Phantom power: +48VDC Internal jumper activationAnalogue Audio Output Ports
Number of output ports: 2 LINE level Connection type: Euroblock 3-pin balanced Max output level: +18dBV = +20dBu Output impedance: 316 ohms Crosstalk: better than 95dBAudio Over Ip
Protocols: Dante® / AES67 (2/2 flows) Number of digital input ports: 2 Number of digital output ports: 2 Interfaces: 1 x RJ-45Connectivity
Ethernet: 1 RJ-45 connector10 /100Mb 1GB Auto X-Over Programing and control: Dante® ControllerElectrical
Power supply: 24VDC External PSU (sold separately) Secondary power supply: PoE: class 0 802.3af Poe PD compliant AC mains requirement: 90-265VAC @ 50-60Hz (External PSU: 24VDC) Power consumption: 14 VA / 8W Ventilation: PassivePhysical

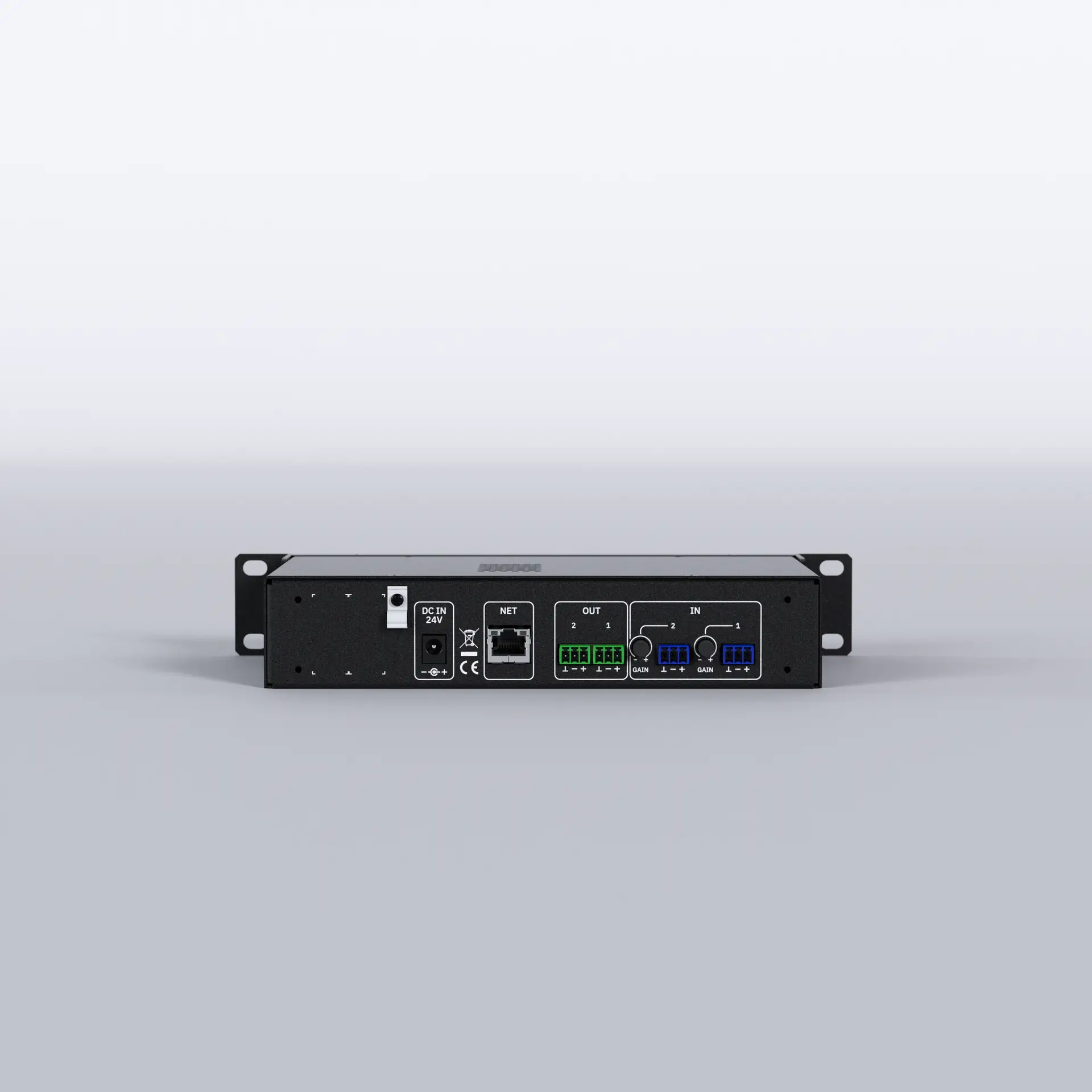

Operating temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Operating humidity: <85% HR Storage temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Storage humidity: <90% HR Installation options: Desktop 19" racks (1RU) Included accessories: 4x Euroblock 3-pin connectors 4x Rubber feet 1x Frontal Support Half-Rack accessory 4x Washer Dimensions: 266.1 x 44 x 156.2mm / 10.48 x 1.73 x 6.15 in. (WxHxD) Weight: 1.1 Kg / 2.43 lb. Shipping dimensions: 430 x 52 x 261mm / 16.93 x 2.05 x 10.28 in. (WxHxD) Shipping weight: 1.7 Kg / 3.75 lb.Ethernet interface. Euroblock connectors for analogue audio inputs and outputs. 2 Analogue MIC/LINE audio inputs reception. 2 Analogue LINE level audio outputs. 2x2 Digital audio -transmission and reception -channels in Dante/AES67 format. PoE power supply ready. Phantom power (+48VDC by internal jumper activation). Input sensitivity (adjustable from -50dBV to +0dBV). Compact format. Frontal support Half rack accessory included.
