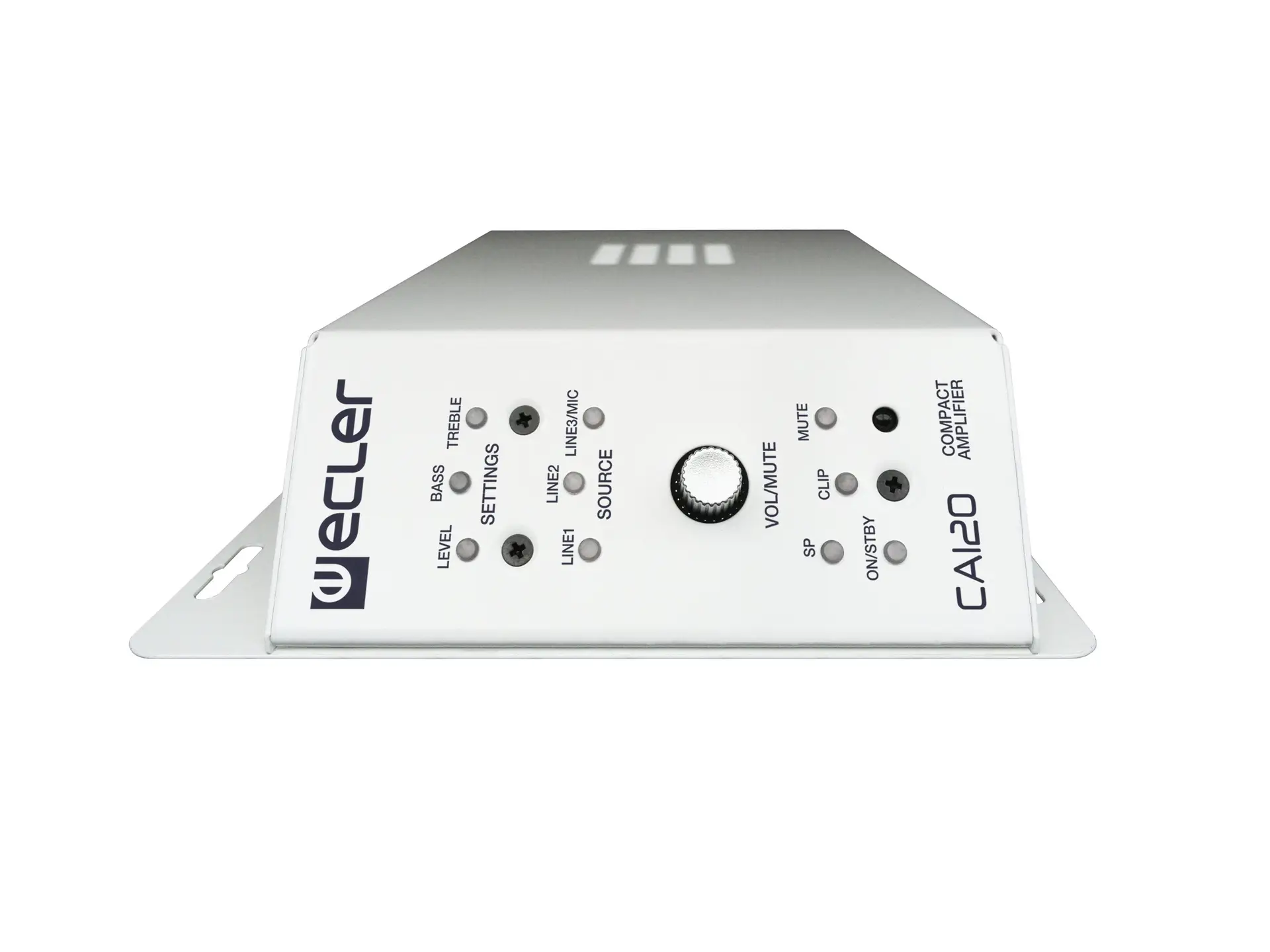

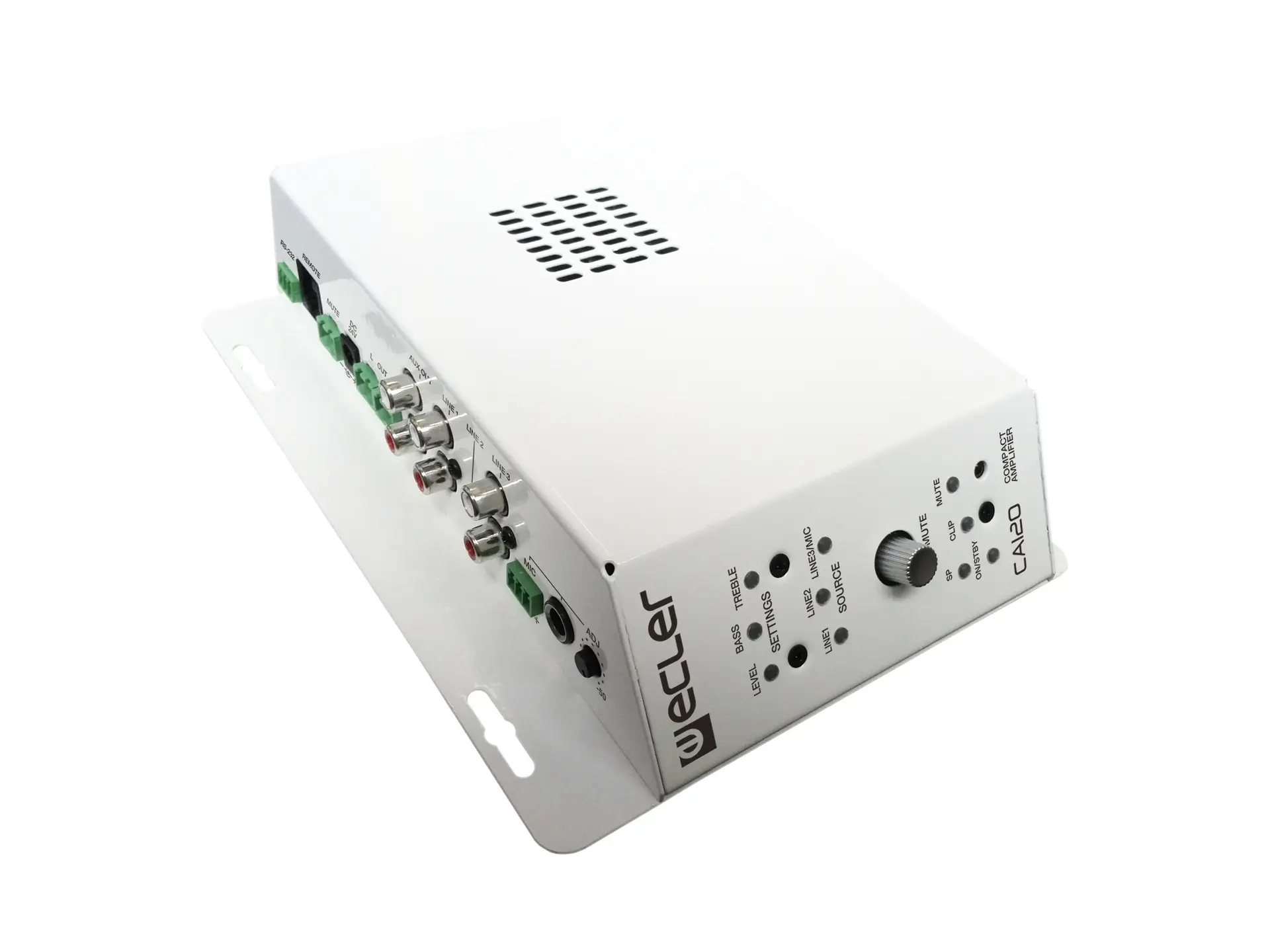

CA120 – 2x 60WMicro Amplifier With RS-232
Free Delivery on this item!CA120 is a 2 x 60WRMS @ 4 ohm stereo amplifier with a tiny size but amazing remote control features: serial RS-232 port IR receiver and 0-10 VDC remote port.
- Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
- Premium Courier Service: Trackable delivery to your business premises
- 14-day hassle-free return policy — no questions asked
- 24/7 Customer Support: Help is always available, day or night
Description
CA120 is a 2 x 60WRMS @ 4 ohm stereo amplifier with a tiny size but amazing remote control features: serial RS-232 port IR receiver and 0-10 VDC remote port. It’s an ideal solution in those audiovisual applications which require integration with external control devices: education classrooms meeting rooms multimedia presentations retail shops etc.
Channels

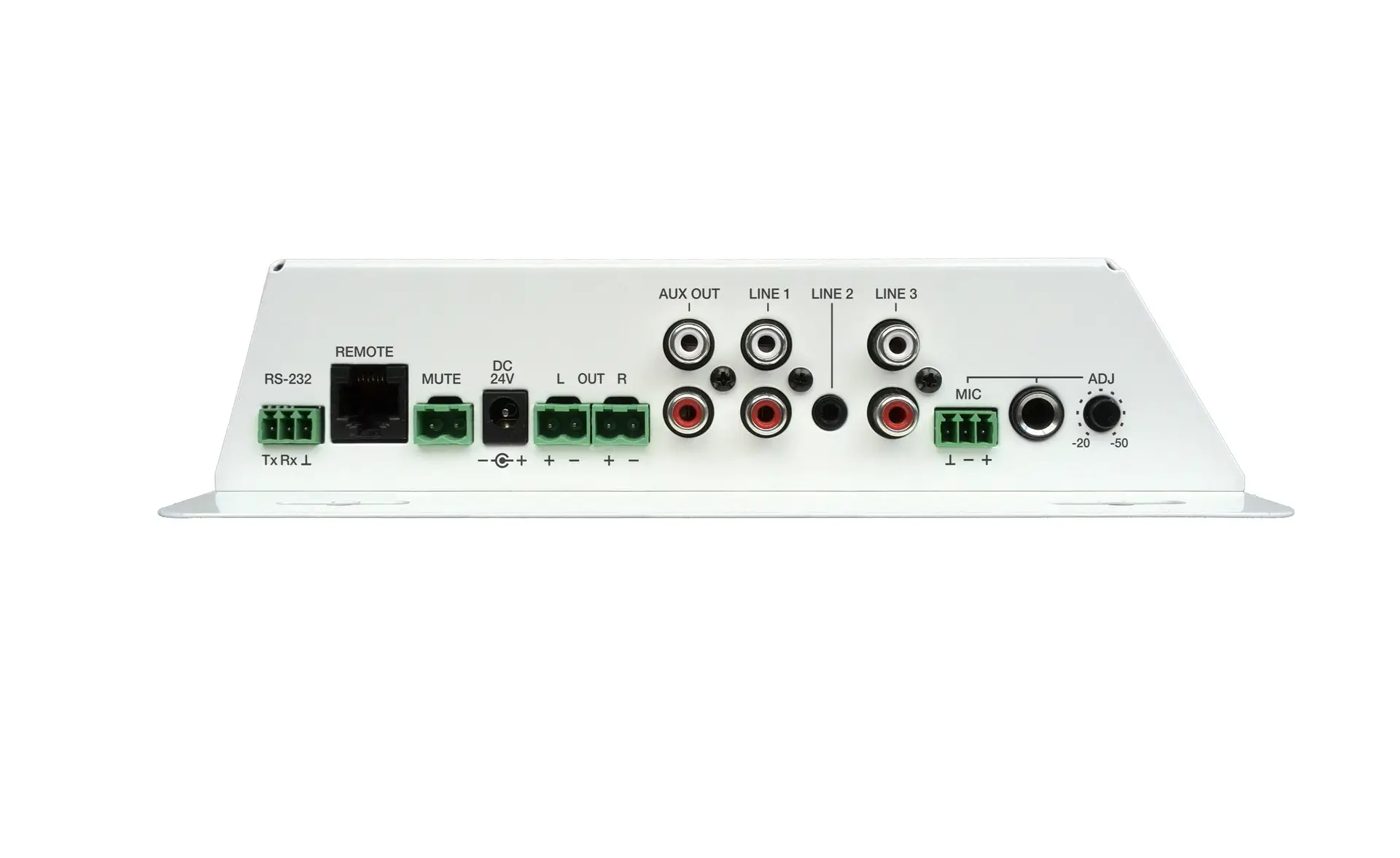

Number of output channels: 2 + 1 AUX Output connection type: Euroblock Output configuration: 2 x 60WRMS @ 4Ω stereo amplifier Number of input channels: 3 Input connection type: MIC: balanced Euroblock or jackLINE: unbalanced minijack or double RCA Input configuration: 1 MIC/LINE input2 LINE inputsOutput Power - All Channels Driven @ 1%Thd
Max output power @ 8Ω: STEREO 2x34W Max output power @ 4Ω: STEREO 2x56WSignal
Input sensitivity: LINE: -6dBV (0dBV internally selectable)MIC (BAL): -20 to -50dBV Input impedance: LINE: >8kΩMIC: >1kΩ Frequency response: 15Hz - 30kHz (-3dB) THD + Noise: SPKR OUT: < 0.15%AUX OUT: 85dBMIC: >65dB Crosstalk: >65dB @ 1kHz CMRR: MICRO (BAL): >65dB @ 1kHzElectrical

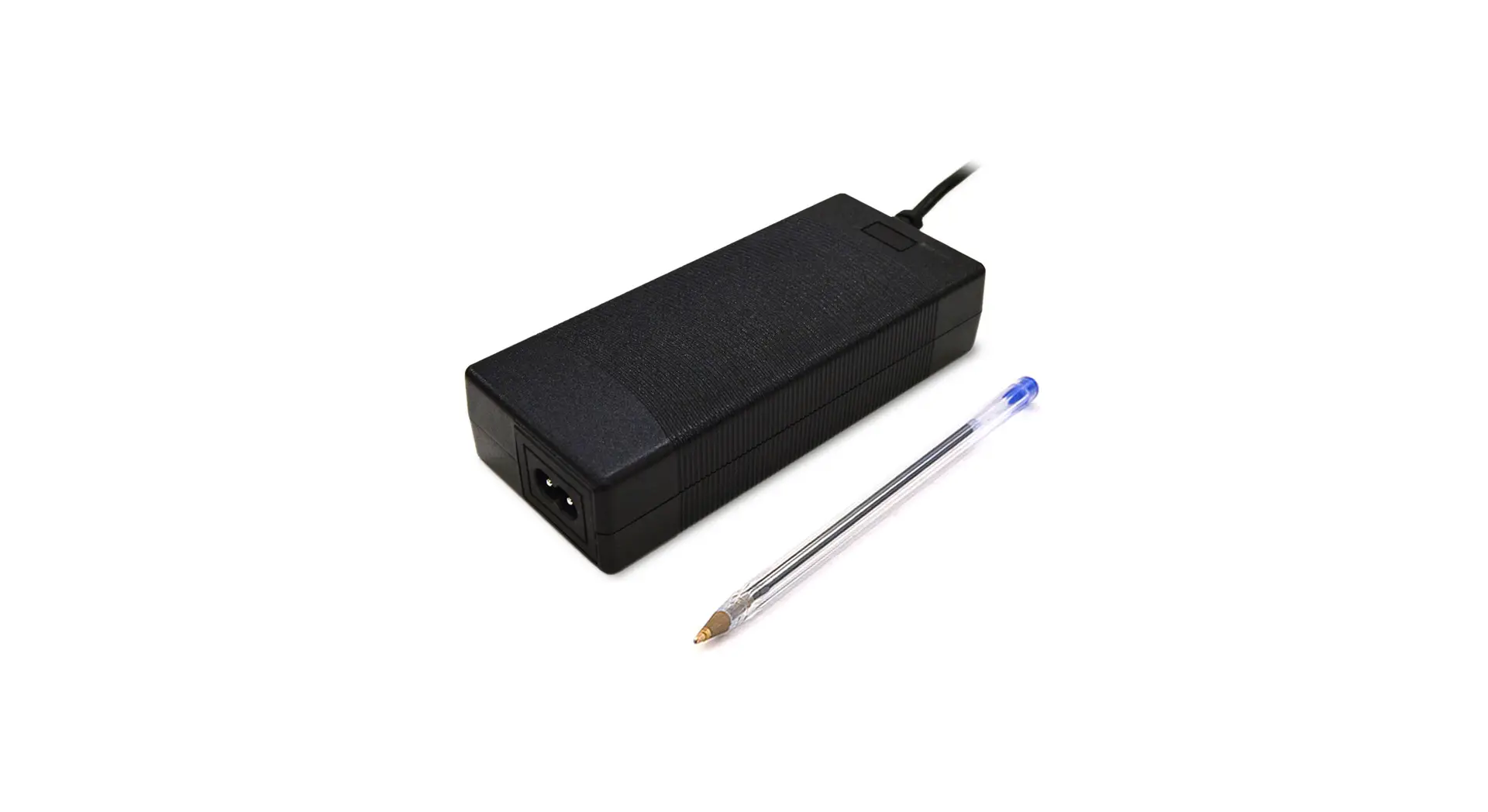

Power supply: Universal AC mains requirement: 100-240V @ 50-60Hz + External PSU 24VDC AC mains connector: DC24V power connectorPower Consumption
Power Consumption (1/3 POWER @ 4Ω all channels driven): pink noise 58VA / 52W Power Consumption (1/8 POWER @ 4Ω all channels driven): pink noise 33VA / 24W Power Consumption (STBY/SLEEP): <2.5WTechnologies
Energy saving: Auto stand by function Efficiency: TBC Cooling: Convection (fanless)Protections
AC protection: No DC protection: No VHF protection: No Short-circuit protection: No Clip limiter: No Long term limiter: No Thermal protection: NoRemote Control Connections
GPIs: Volume & Input/preset selection (0-10V based) External MUTE: Power free contact (infrared remote)Settings
Attenuators: Front panel knob Tone control: 2-band independent tone control (Bass Treble) for the microphone / line 3 and line 1&2 input connection. Output settings: STEREO-MONO outputs Auto standby function: Rear panel micro switch Auto standby time: 120 secondsConnectivity
Serial port: RS-232 Programing and control: EclerCOMM software or CA-NET protocolMonitoring
Signal Present: SP LED (Green) Cliping: CLIP LED (Red) Standby: STBY LED (Orange)Physical
Operating temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Operating humidity: <85% HR Storage temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Storage humidity: <90% HR Installation options: Wall or under a surface (table shelf cupboard etc.) Included accessories: REVO-IR remote control Optional accessories: WPaVOL or WPaVOL-SR for remote control Dimensions: 160 x 48 x 210 x mm / 6.3 x 1.89 x 8.27 in. (WxHxD) Weight: 0.95kg / 2.1 lb Shipping dimensions: 340 x 60 x 220mm / 13.39 x 2.36 x 8.66 in. (WxHxD) Shipping weight: 1.7kg / 3.75 lb2 x 60W RMS @ 4Ω amplifier Universal external power supply AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode minimising power consumption Lightweight silent high-performance amplifier (fan-free convection cooling) Suitable for stereo and parallel (mono) 1 switchable balanced mic / unbalanced line input with high quality microphone preamplifier phantom power supply noise gate and “talkover” function or priority over the rest of input 3 stereo lines (not balanced) 2-band independent tone control (Bass Treble) for the microphone / line 3 and line 1&2 input connection. Auxiliary output for liaison with other amplifiers or external audio devices Local control by digital rotary knob (“encoder”) Remote control by infrared remote control Remote control by WPmVOL or WPmVOL-SR (0-10 VDC) wall panel RS-232 control port compatible with EclerCOMM software (free) and control protocol CANET MUTE port to silence the entire unit by closing external contact
