Chassis Feedthrough opticalCON IP65 NO2-4FDW-A

Name: Chassis Feedthrough opticalCON IP65 NO2-4FDW-A - Power-Hub
Brand: Neutrik
SKU: CONN2500
Price: 90.30 GBP
Availability: InStock

£90.30

ex. VAT inc. VAT

In stock

The Neutrik NO2-4FDW-A is a black chromium plated opticalCON chassis connector with 4 solder contacts and 1 LC-Duplex feedthrough socket. It is designed as a feedthrough connector allowing.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

Description

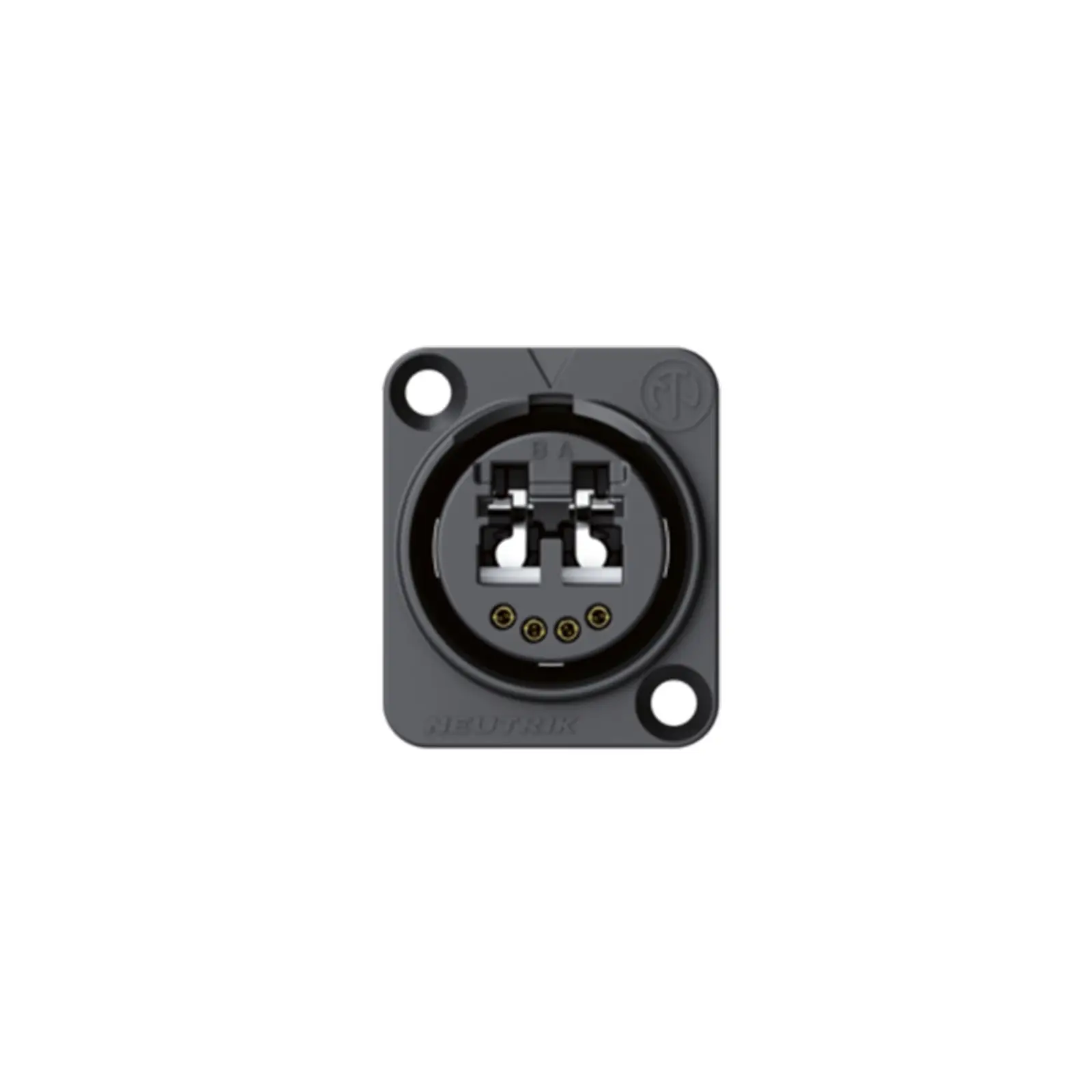

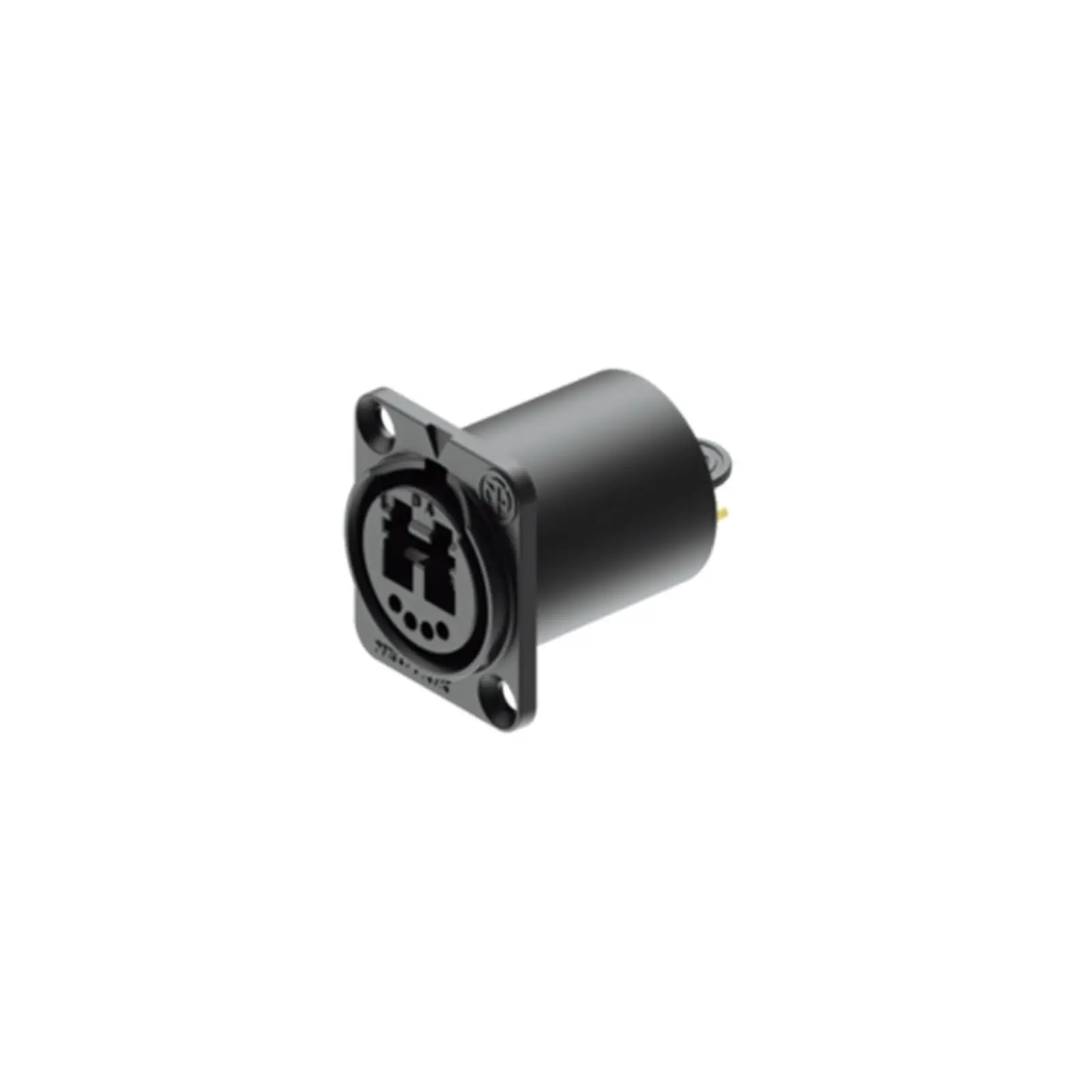

The Neutrik NO2-4FDW-A is a black chromium plated opticalCON chassis connector with 4 solder contacts and 1 LC-Duplex feedthrough socket. It is designed as a feedthrough connector allowing a conventional LC-Duplex connector to be connected on the rear for simplified installation.

Built in a standard D size shell the NO2-4FDW-A features an automatic sealing shutter with silicone gasket to help protect the optical connection from dust and dirt. The front side accepts either a rugged opticalCON connector or a standard LC connector with Push-Pull locking for secure connection.

The connector provides IP65 ingress protection in mated condition when used in combination with SCDP-* and supports colour coding with SCDP-* according to ANSI/TIA-568.3-D standards.

Product code: NO2-4FDW-A Product type: Chassis connector Gender: Female Optical connector: LC-Duplex Feedthrough Contacts: 4 solder contacts Contact resistance: 2 GΩ initial Rated current per contact: 6A Rated voltage: < 50V Insertion force: < 45N Withdrawal force: < 45N Lifetime: 5000 mating cycles Locking force: 1000N Locking device: Push-Pull Mounting direction: Front mounting Chassis shape: D Contacts material: Bronze CuSn6 Insert material: Polyamide PA 6 PBT 30% GR PBT 50% GR Shell material: Zinc diecast ZnAl4Cu1 Shell plating: Black chromium Split sleeve: Ceramics Temperature range: -40°C to +75°C Protection class: IP65 in mated condition in combination with SCDP-* Insertion loss: < 0.4dB per connection

Chassis connector with black chromium plating 4 solder contacts and 1 LC-Duplex feedthrough socket Designed as a feedthrough connector for simplified installation Accommodates standard LC connectors on the rear Front side connection by rugged opticalCON or standard LC connector Automatic sealing shutter helps protect the optical connection from dust and dirt Shutter with silicone gasket Push-Pull locking mechanism for secure connection Standard D size shell Suggested OEM equipment connector due to LC front compatibility IP65 ingress protection in mated condition with SCDP-* Colour coding with SCDP-* according to ANSI/TIA-568.3-D Standard
