Chassis Feedthrough opticalCON Quad IP65 NO4FDW-A

Name: Chassis Feedthrough opticalCON Quad IP65 NO4FDW-A - Power-Hub
Brand: Neutrik
SKU: CONN2501
Price: 93.10 GBP
Availability: InStock

£93.10

ex. VAT inc. VAT

In stock

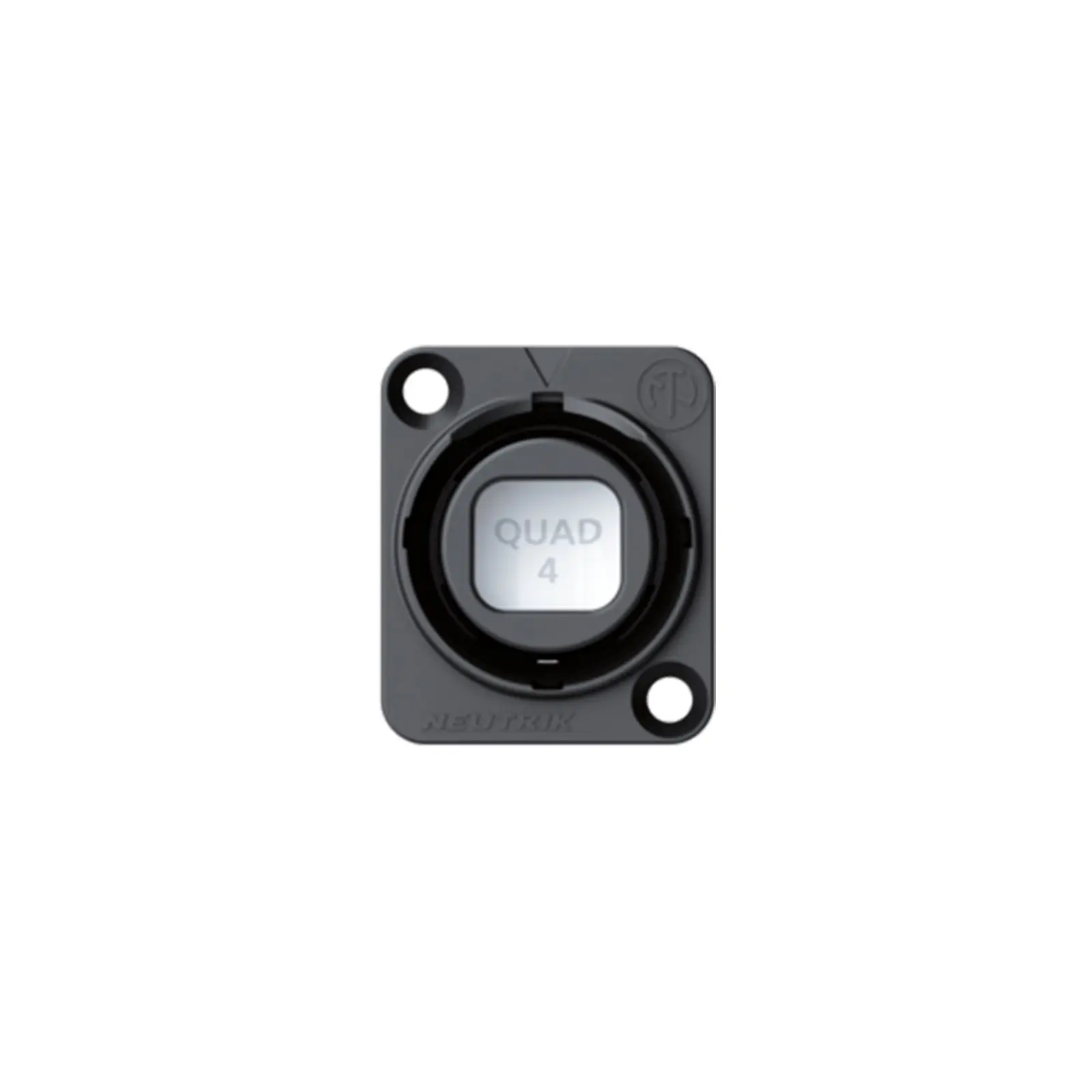

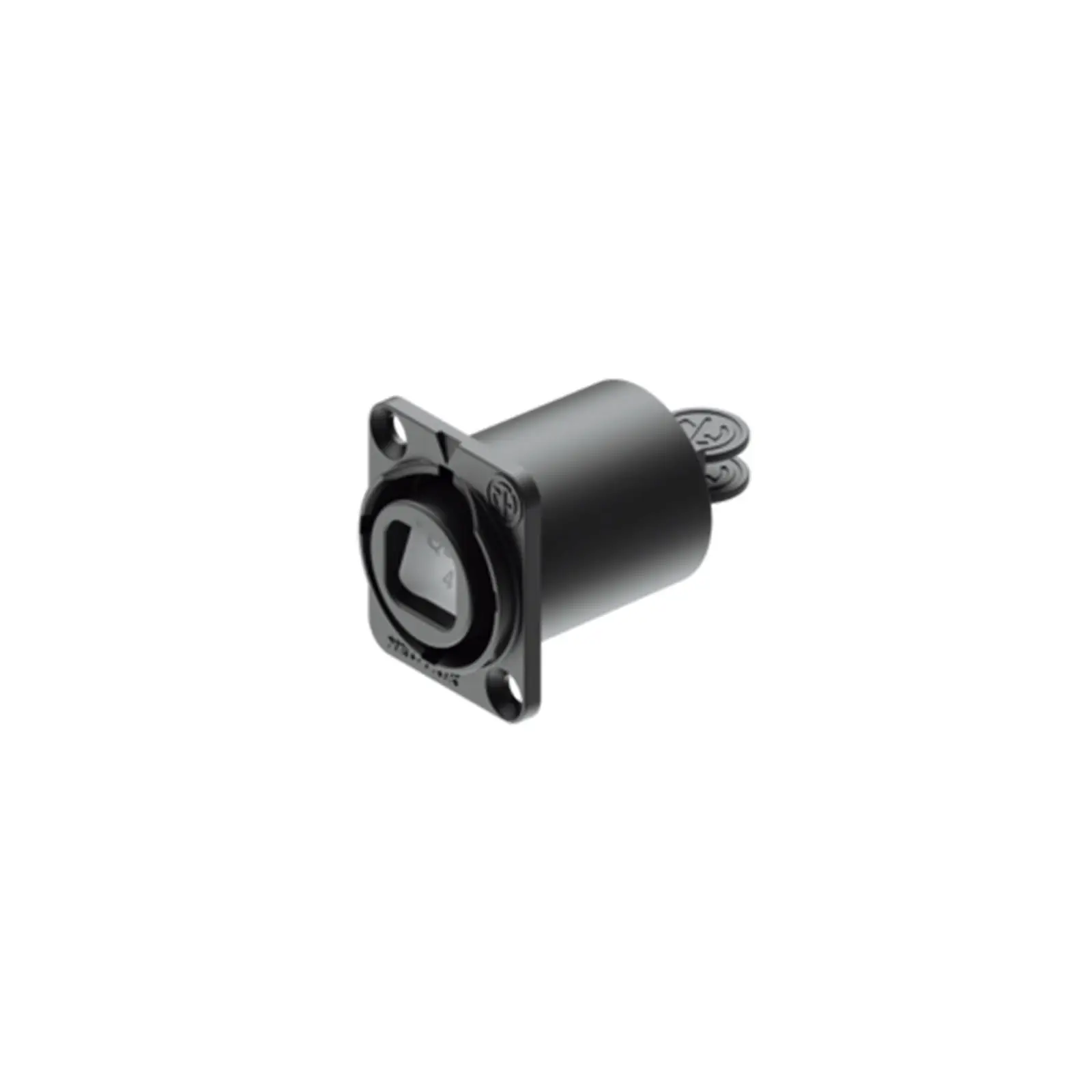

The Neutrik NO4FDW-A is a black chromium plated opticalCON QUAD chassis connector with front panel mounting and IP65 ingress protection in mated condition when used with SCDP-*.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

Description

The Neutrik NO4FDW-A is a black chromium plated opticalCON QUAD chassis connector with front panel mounting and IP65 ingress protection in mated condition when used with SCDP-*.

The chassis connector acts as a feedthrough allowing simplified installation by connecting four conventional LC connectors on the rear. It is built in a standard D size shell and features an automatic sealing cover for dust and dirt protection with a Push-Pull locking mechanism for secure connection.

The NO4FDW-A provides a rugged 4-channel point-to-point multichannel routing solution and accommodates standard LC connectors on the rear for cost effective and simple installations.

Product code: NO4FDW-A Product type: Chassis connector Connector series: opticalCON QUAD Gender: Female Mounting direction: Front mounting Chassis shape: D Locking device: Push-Pull Insertion force: < 45N Withdrawal force: < 45N Lifetime: 5000 mating cycles Insert material: Polyamide PA 6 PBT 30% GR PBT 50% GR Shell material: Zinc diecast ZnAl4Cu1 Shell plating: Black chromium Temperature range: -40°C to +75°C Protection class: IP65 in mated condition in combination with SCDP-* Insertion loss: < 0.5dB per connection Panel cutout diameter: ≥ 23.8mm Panel cutout mounting holes: ≥ 3.2mm Panel cutout centres: 19mm x 24mm Assembled width with SCDP-*: 37mm Assembled height with SCDP-*: 42mm

Black chromium plated chassis connector Front panel mounting Designed as a feedthrough connector for simplified installation Connects four conventional LC connectors on the rear Rugged 4-channel point-to-point multichannel routing solution Built in a standard D size shell Automatic sealing cover for dust and dirt protection Laser protected metal shutter seals dust proof with two-component rubber gasket Push-Pull locking mechanism for secure connection Accommodates standard LC connectors on the rear IP65 ingress protection in mated condition with SCDP-* Colour coding with SCDP-* according to ANSI/TIA-568.3-D Standard
