COB Cannon LP200STX

Free Delivery on this item!
£408.34
ex. VAT inc. VAT
In stock

A powerful and flexible professional wash lighting fixture that can be used for a wide variety of applications. It harnesses the power of an efficient 200-Watt COB RGBAL LED light source which.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1226100432
Categories: ,
Brand:

Description

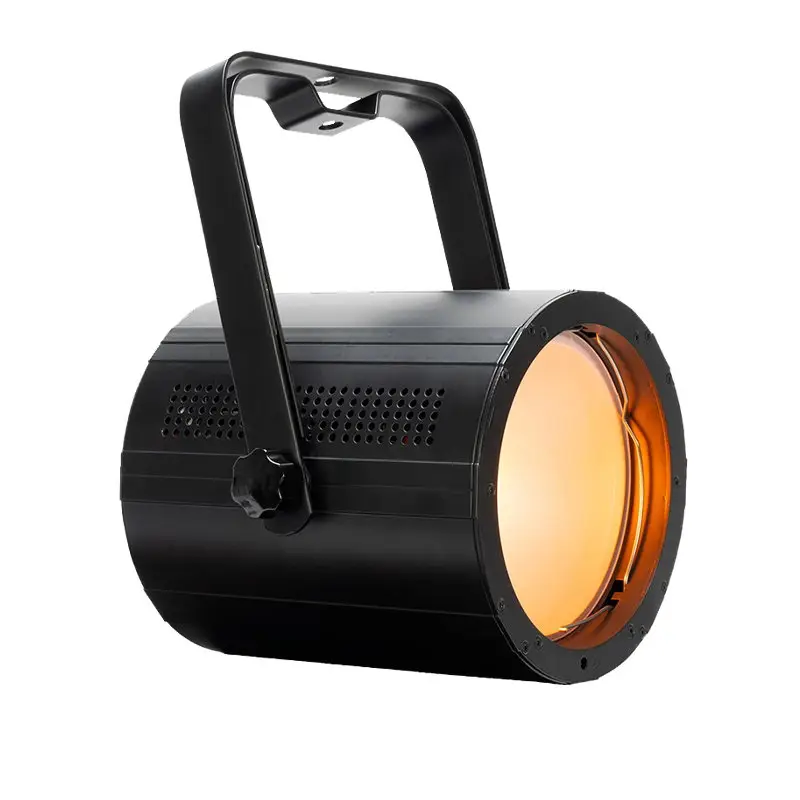

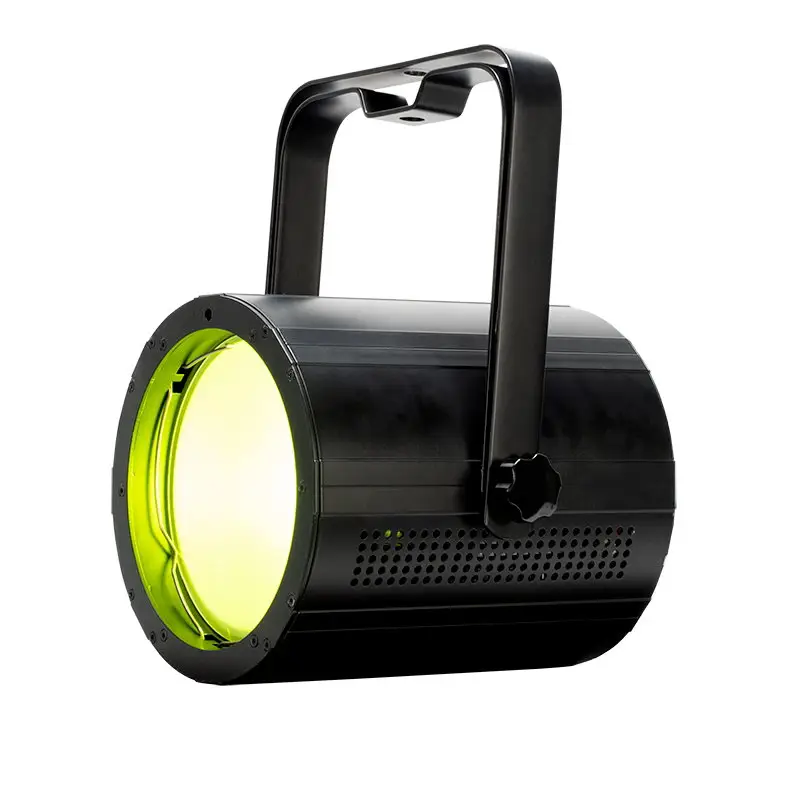

The COB Cannon LP200STX is a powerful and flexible professional wash lighting fixture that can be used for a wide variety of applications. It harnesses the power of an efficient 200-Watt COB (Chip On Board) RGBAL (red green blue amber and lime) LED light source which generates a potent and even output with no colour shadows. This efficient light engine combines red green blue amber and lime LED chips to allow the creation of a huge gamut of colours as well as white light with a tunable white colour temperature between 2300K and 9900K. The inclusion of the lime LED chip helps certain colours to appear more vivid and also boosts the CRI to in excess of 90. This fixture includes the Aria X2 wireless management system.

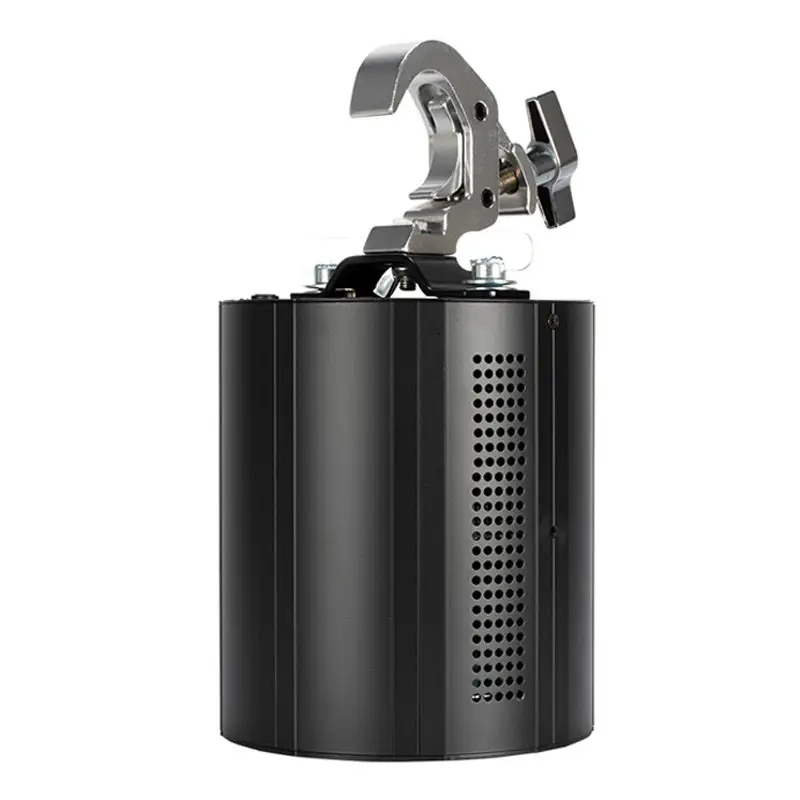

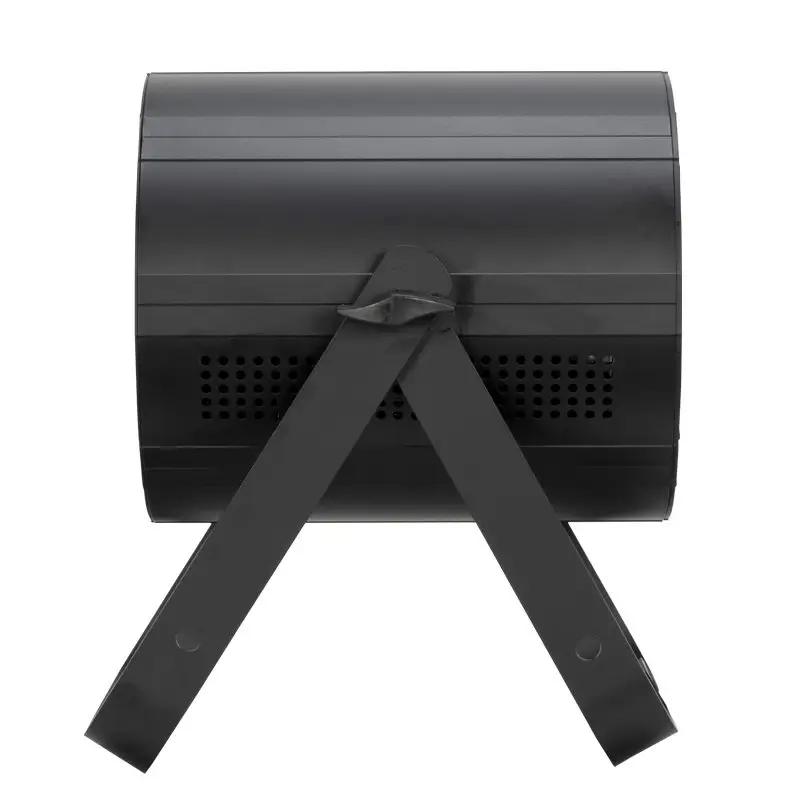

Offering a wide native beam angle of 80-degrees allowing a large area to be washed with vibrant coloured light the fixture is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. For easy integration into an existing control system 5-pin DMX input and output sockets are included on the unit’s rear panel. There are also locking power input and output sockets which can be used to connect up to three fixtures to a single power outlet. It is also supplied with a flexible scissor yoke which can either be used as a hanging bracket or floor stand and barn doors for directing the light output are available as an optional accessory. An Omega Bracket is included so that this fixture can be hung vertically as a pendant light.
Manufacturer Part Number: 1226100432
Specifications
OPTICAL:

Light Source: 1x 200-Watt COB (Chip on Board) RGBAL (Red Green Blue Amber & Lime) LED Engine LED Engine Life Rating: Approximately 50000 hrs. CRI: >90 Tunable White Color Temperature: 2300~9900K 80° beam angle Includes lens kit to change to 40° or 50° beam angle

FEATURES:

Embedded Aria X2 Wireless Management System Primary / Secondary Mode Flicker Free operation (No flickering on camera) Produces powerful smooth RGBAL color mixing with rich palettes of color Scissor yoke allows fixture to be mounted on truss or set on the ground Optional Barn Doors (BAR001) sold separately

CONTROL:

10 DMX Channel modes (5CH 8CH-A 8CH-B 9CH 10CH-A 10CH-B 12CH 13CH 16CH 20CH) Linear color temperature control via DMX Built-in color temperature presets accessible via DMX 64 built-in color macros 4-button OLED digital DMX display on rear panel Compatible with the ADJ UC IR24 remote control (included) LED pulse and strobe effect Electronic Dimming: 0 - 100% 6 selectable Dim Modes (Standard Stage TV Architectural Stage 2 & Theatre) 4 selectable Dim Curves (Square Linear Inv. Squa & S.Curve) Adjustable selectable Refresh Rate (14 presets from 900 - 25000Hz)

CONNECTIONS:

5-pin XLR connectors for DMX data linking (5-Pin DMX only as of June 2023) Indoor locking power In & Out connections to daisy chain power

ELECTRICAL:

Auto sensing power supply: AC100V/60Hz - 240V/50Hz Power Draw: 175W max Daisy chain up to 10 fixtures (230V) maximum

DIMENSIONS / WEIGHT:

Dimensions (LxWxH): 330x261x190mm (with bracket); 219x190x190mm (without bracket) Weight: 4.30 kg

WHAT'S INCLUDED:

(1) 50° lens (1) 40° lens UCIR24 Wireless IR Remote Power Cord Scissor Yoke Omega Bracket (Also available as a spare part: 9900027829)

ACCESSORIES:

COB Cannon Wash Barn Doors (see below)

Specifications are subject to change without notice.
