DAM614 6 input / 4 Zone Programmable Digital Rack Mixer / Zone Controller
Free Delivery on this item!DAM614 is a fully programmable audio digital mixer. It includes 6 audio inputs and 4 audio outputs front panel inputs and outputs level controls DSP processing RS-232 connectivity and 4 REMOTE.
- Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
- Premium Courier Service: Trackable delivery to your business premises
- 14-day hassle-free return policy — no questions asked
- 24/7 Customer Support: Help is always available, day or night
Description

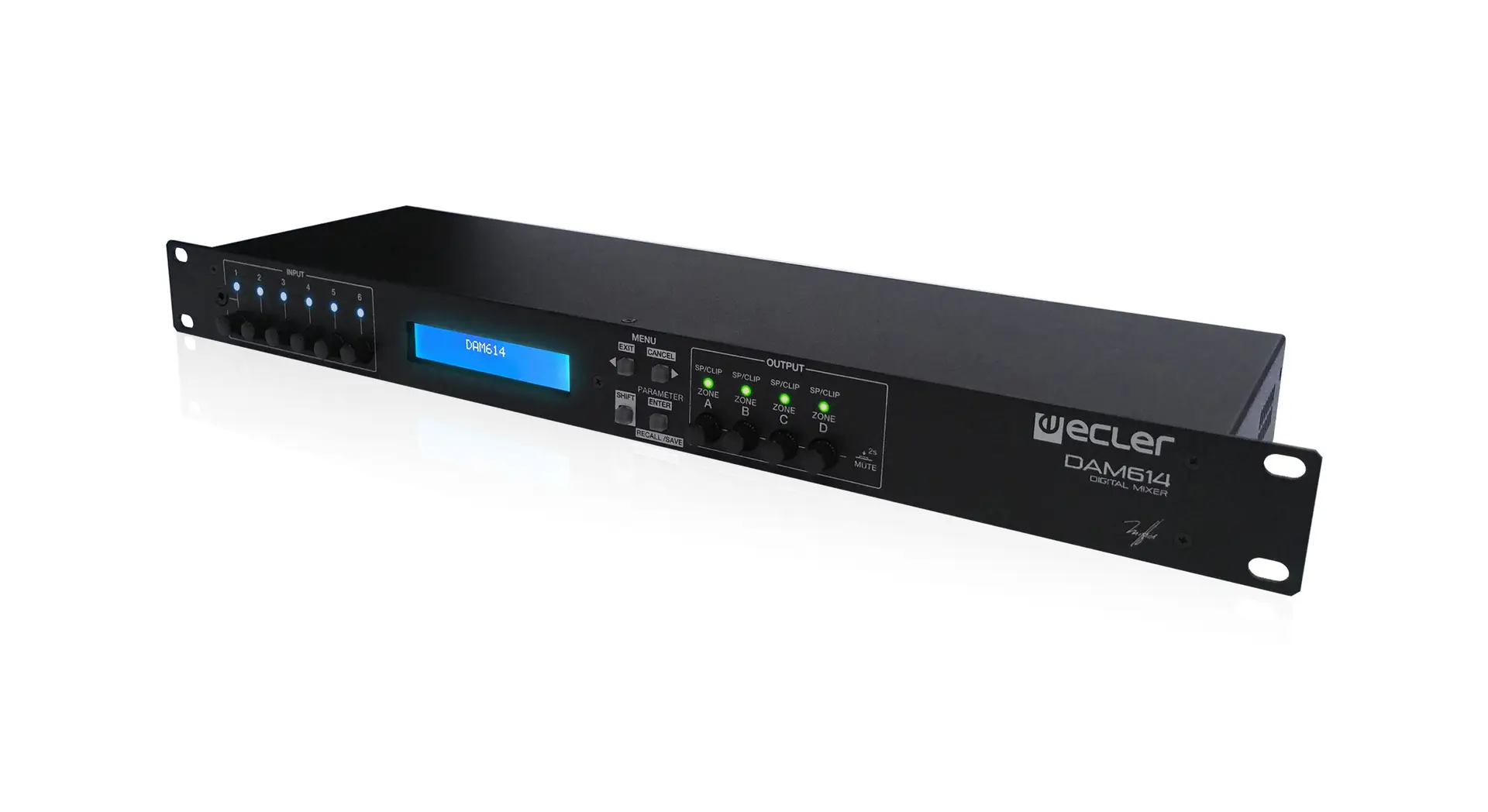

DAM614 is a fully programmable audio digital mixer. It includes 6 audio inputs and 4 audio outputs front panel inputs and outputs level controls DSP processing RS-232 connectivity and 4 REMOTE control ports (0-10VDC). Its 4 outputs can be used as mono independent zones or coupled as stereo zones. Regarding inputs the first 2 are stereo LINE inputs and the 3rd 4th 5th and 6th ones are MIC/LINE ready (phantom available) being possible to use them independently (mono) or as stereo-coupled inputs.
Digital Engine
Processor: 24 bits 48kHzAudio Converters
Sampling rate: 48kHz Resolution: 24 bit Frequency response: <10Hz ~ 20kHz (+0dB / -0.5dB)Analogue Audio Input Ports
Number of input ports: IN1-2 LINEIN3-6 MIC/LINE Connection type: IN1-2: RCA female (minijack for duplicated IN1)IN3-6: Terminal block (symmetrical) Input sensitivity: IN1-2: 0 / -6dBV Internal jumper adjust. 0dBV factory defaultIN3-6: -20 / -50dBV External potentiometer adjust Input impedance: IN1-2: >13kΩIN3-6: >24k electronically balanced THD + Noise: N/A CMRR: IN3-6: >55dB (20Hz ÷ 20kHz) Phantom power: IN3-6: +175 VDC (Internal jumper)Analogue Audio Output Ports

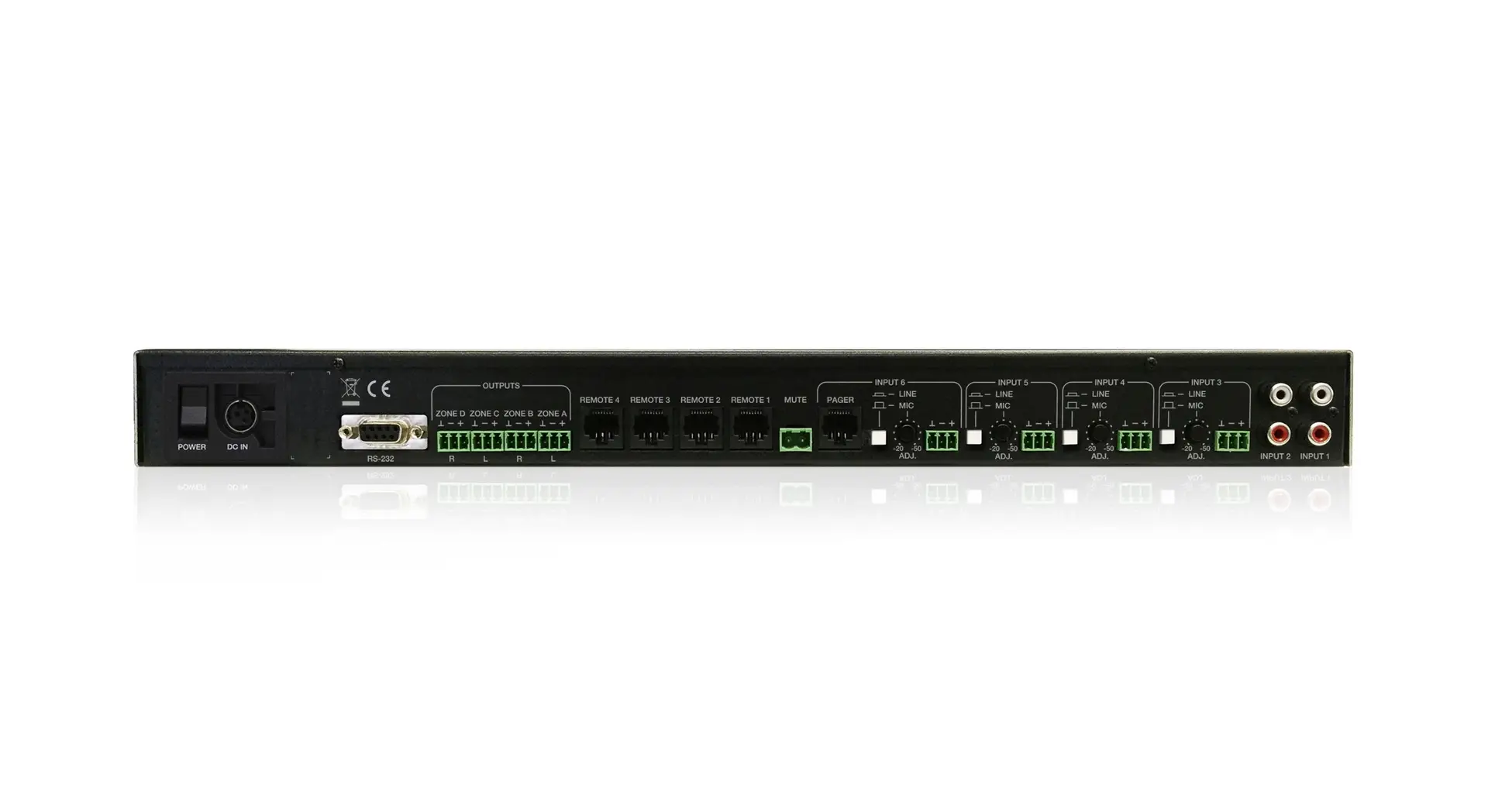

Number of output ports: 4 Line Connection type: Terminal block (symmetrical) Output impedance: 300Ω electronically balanced Crosstalk: >90dB 20Hz ÷ 20kHzConnectivity
Serial port: RS-232 Programing and control: EclerCOMM software or CA-NET protocolRemote Control Connections
Digital remote controls : 4 RJ-451 MUTE control GPIs: x4 GPIs (0-10VDC) for volume control x1 rear panel MUTE connectorElectrical
Power supply: DC supply ± 175 VDC AC mains requirement: 100-240VAC + External PSU 17.5VDC AC mains connector: AC socket connector (IEC) Power consumption: 12WPhysical

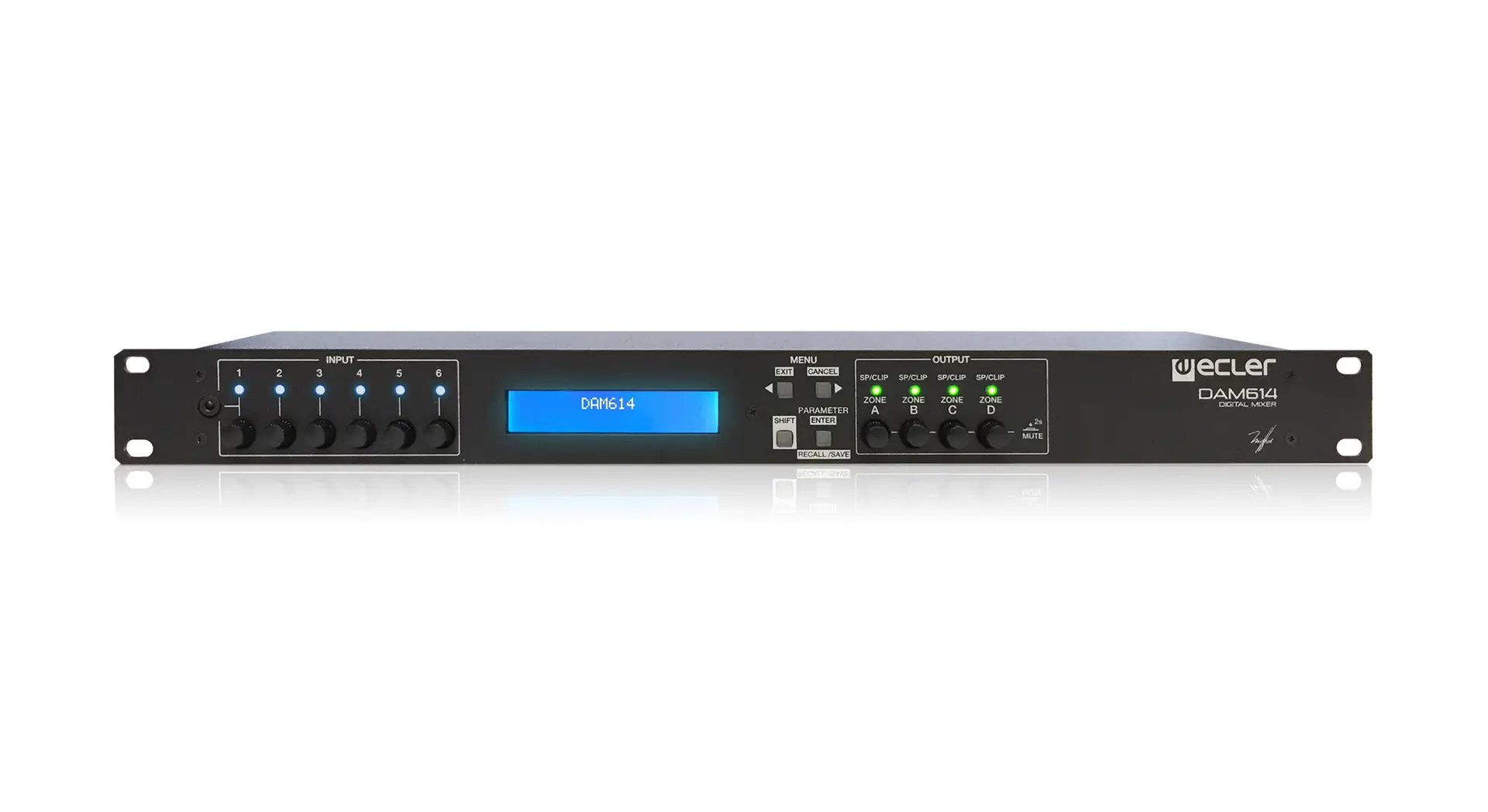

Operating temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Operating humidity: <85% HR Storage temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Storage humidity: <90% HR Installation options: Desktop 19" rack format Optional accessories: WPa series or similar for remote control MPAGE4 Dimensions: 4826 x 44 x 120mm / 19.0 x 1.7 x 4.72 in. (WxHxD) Weight: 2.0kg / 4.4 lb Shipping dimensions: 560 x 60 x 220mm / 22.05 x 2.36 x 8.66 in. (WxHxD) Shipping weight: 2.6kg / 5.73 lbDSP @ 24 bits / 48kHz Front panel LCD display 6 front panel input control digital knobs (one per input) 4 front panel output control digital knobs (one per output) 4 front panel keys for parameters adjustment and menus navigation Processing:- Independent level control for each input and output- Independent mixer for each output zone- Crossover filters available for each output- Independent 10 band graphic EQ for each output- Independent and adjustable High-pass filter available for MIC/LINE inputs- 2 level priority PAGER / DUCKER function triggered by MIC/LINE inputs- Independent Noise Gate function for MIC/LINE inputs- Independent Feedback Suppressor Function for MIC/LINE inputs- Adjustable delay time for 2 outputs
