Name: DINA-DR1 DIN Rail Lighting Controller - Power-Hub
Brand: Nicolaudie Architectural
SKU: NA0008
Price: 1860.60 GBP
Availability: InStock

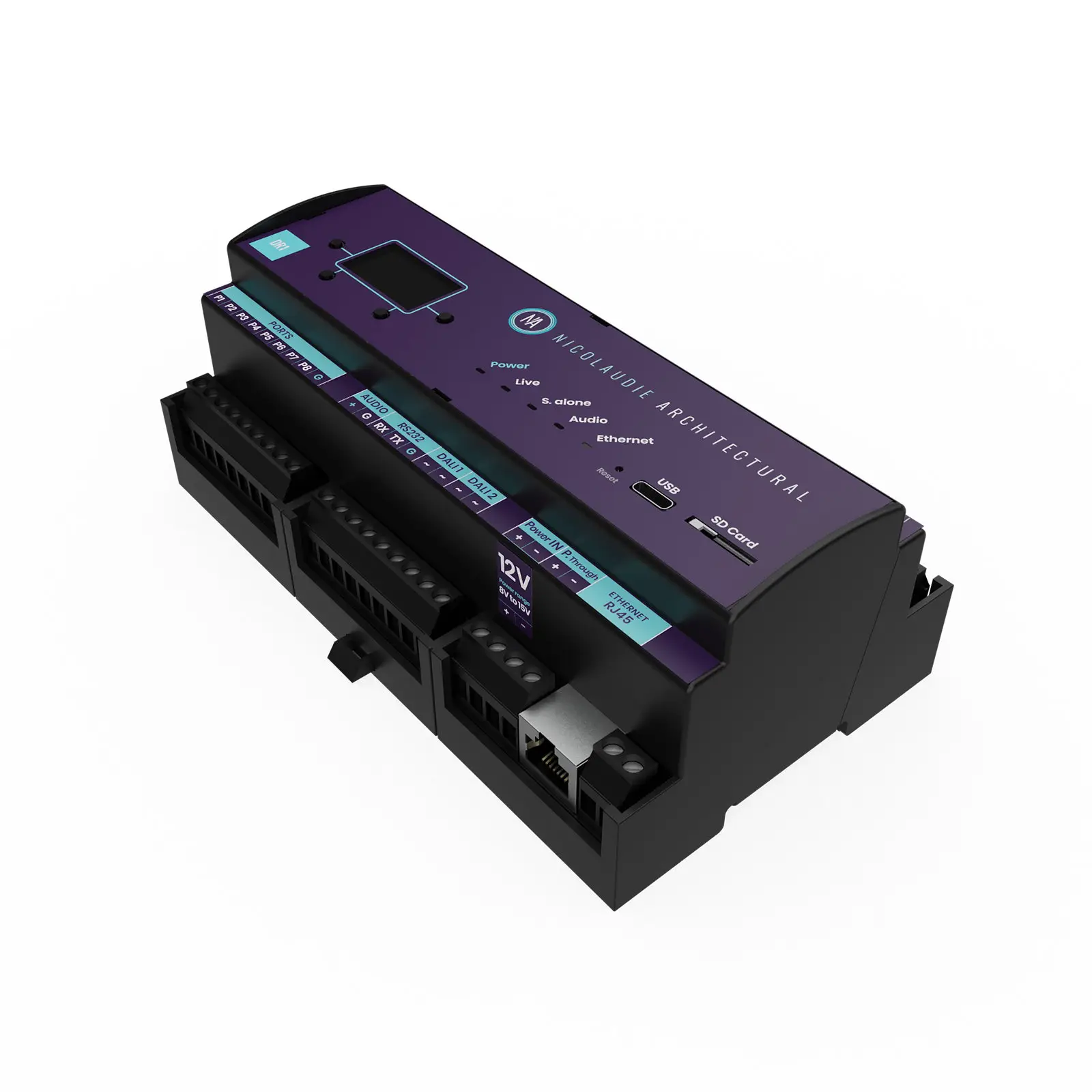

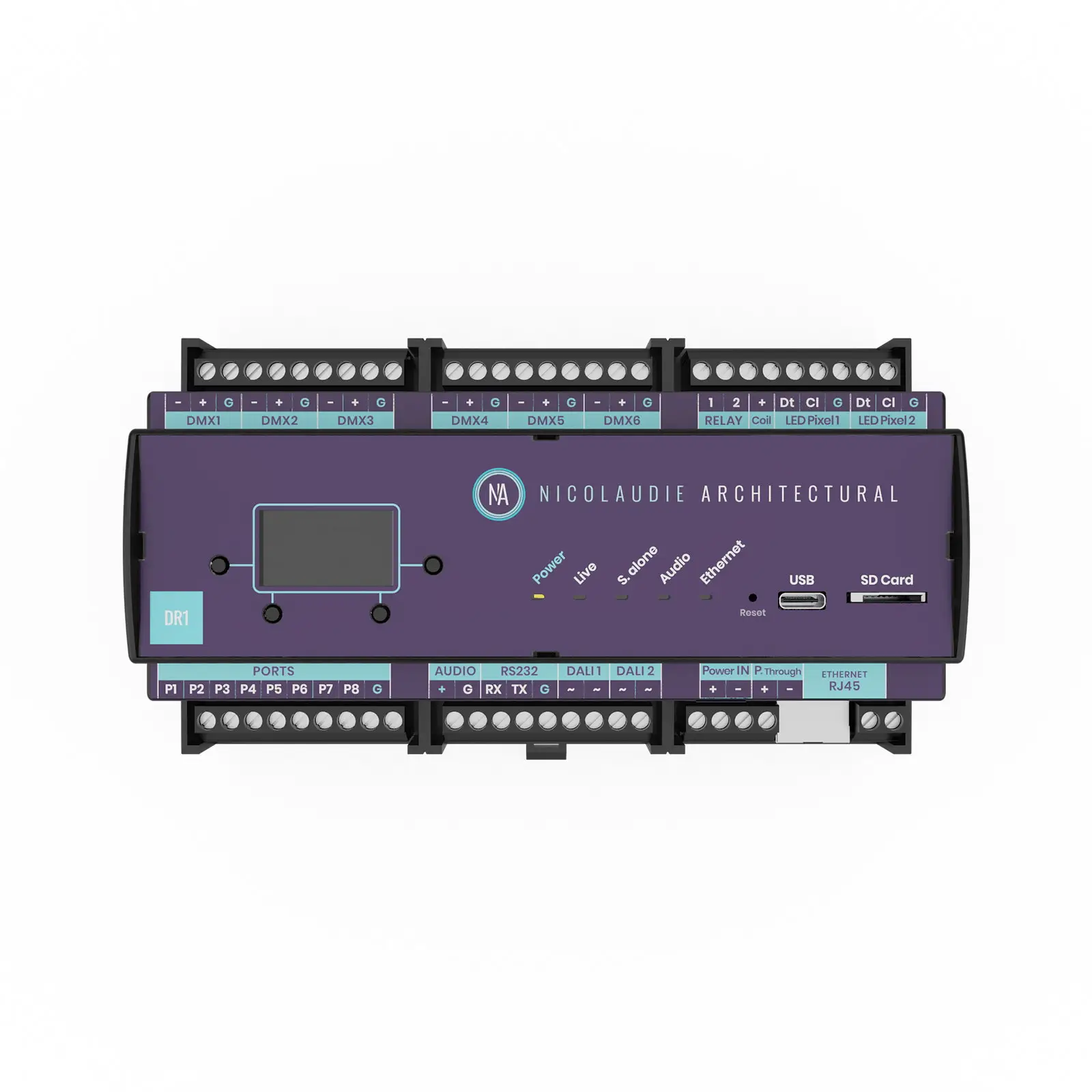

DINA-DR1 DIN Rail Lighting Controller

Free Delivery on this item!

£1,860.60

ex. VAT inc. VAT

In stock

Designed for din-rail mounting the DR1 is a strong and durable solution for fixed lighting installations. 3072 channels can be controlled over several protocols: DMX 512 Art-Net or SACN LED Pixel.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

Description

Designed for din-rail mounting the DR1 is a strong and durable solution for fixed lighting installations. 3072 (expandable to 6144 with eDMX) channels (1024 RGB or 768 RGBW fixtures) can be controlled over several protocols : DMX 512 Art-Net or SACN LED Pixel DALI. Multiple controllers can be connected and synchronised for large-scale lighting installation.Built on the NSA (New Stand Alone) engine the DR1 offers multi-zone show control as well as advanced and flexible triggering and integration possibilities: Time Audio Ports RS232 TCP DALI…This is the first lighting controller offering an all-in-one solution with multiple protocols. The DR1 can output DMX Art-Net SACN DALI LED pixel and create a control gateway for the most demanding dynamic lighting installations.There is nothing easier than programming the DINA-DR1: connect the controller to your computer (PC or Mac) over USB/Ethernet and start the ESA2 or ESA Pro 2 software.

Input Power: 12V DC (8–15V range) Output Protocol: 6 x DMX512 DALI-2 eDMX LED Pixel (SPI x 2) Programmability: PC Mac Android iOS Connections: USB-C Ethernet Screw terminals for: 6 DMX/RDM Universes LED Pixel (coming) 2 DALI loops 8 Contact ports Relay 12V power-in & pass-through RS232 scene trigger Audio in Battery holder: LIR2032 3.6V microSD slot TCP Connections: 10 + 1 cloud Memory: 16MB flash SD Card (max 32GB FAT32) Temperature: 0 to +50°C Buttons: 2 scene 2 page 1 reset OS Requirements: Mac OSX 10.13+ Windows 10/11 Dimensions (H x W x D): 62 x 160 x 91mm Weight: 0.32kg

2 year warranty DMX512 / eDMX / LED Pixel Stand Alone controller 6 x Universes (3072 channels) Output Universes via DMX512 (up to 6 universes) & Artnet/sACN (up to 12 universes with SUT universe upgrade) 2 x DALI buses (single-master) SUT Technology allows the device to be upgraded with more universes & used with other Nicolaudie Group software USB & Ethernet connectivity Stand Alone mode with 2000 scenes & 20 zones 16MB flash memory & microSD slot 8 dry contact trigger ports RDM compatible Windows/Mac software for programming iPhone/iPad/Android/Mac & Windows apps for remote control Compatible with NATOUCH-4 and NATOUCH-8 wall controllers Control 2 external relays Nicolaudie Cloud: Remote control and management via internet connection (subscription required) Audio triggering / sound-to-light RS232 protocol scene controlComing soon: Direct support for LED Pixel Tape

NA0008_CE_Certification.pdf Open in new tab ↗

Checking document preview…

NA0008_Datasheet.pdf Open in new tab ↗

Checking document preview…
