Name: DINA-DR2 DIN Rail Lighting Controller - Power-Hub
Brand: Nicolaudie Architectural
SKU: NA0010
Price: 936.60 GBP
Availability: InStock

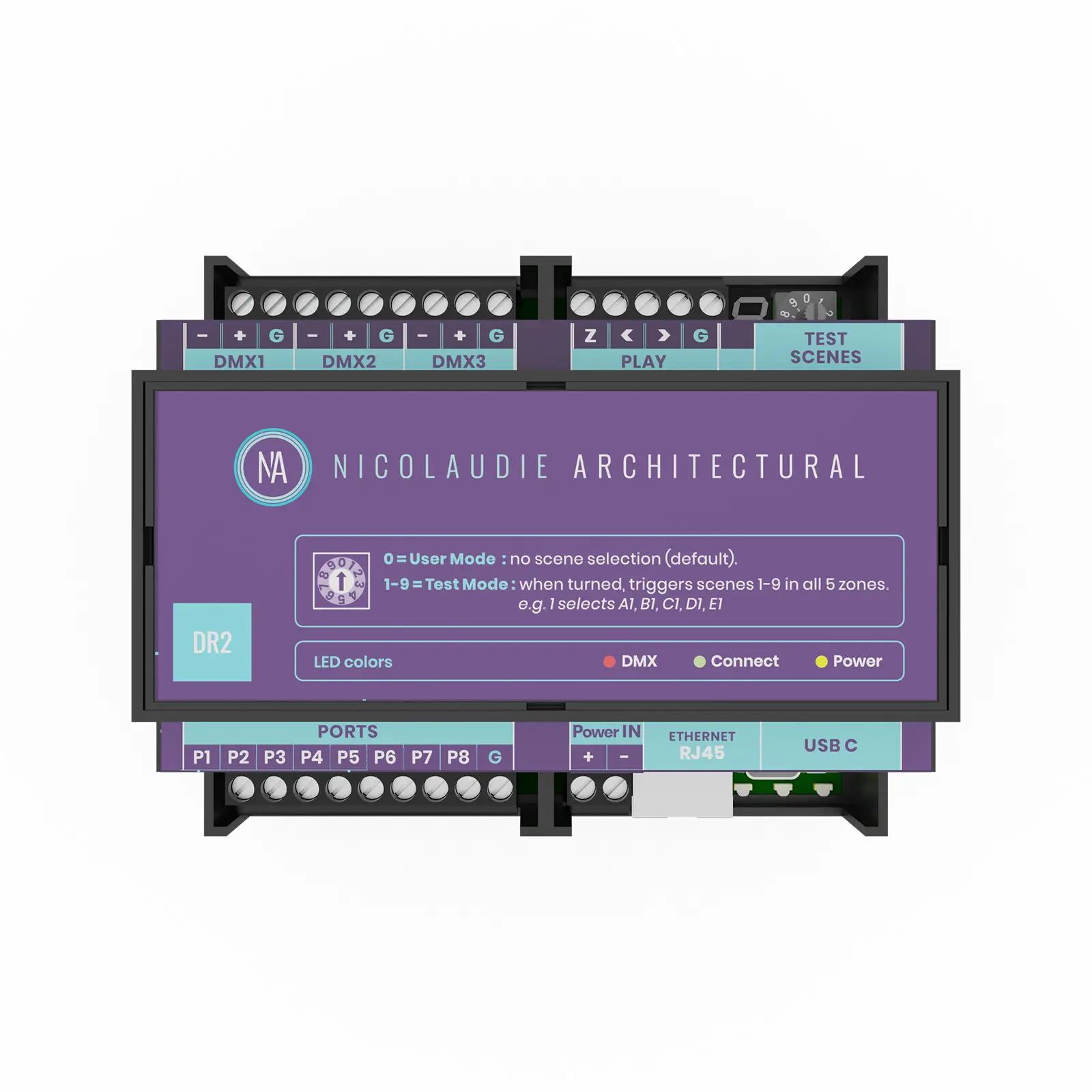

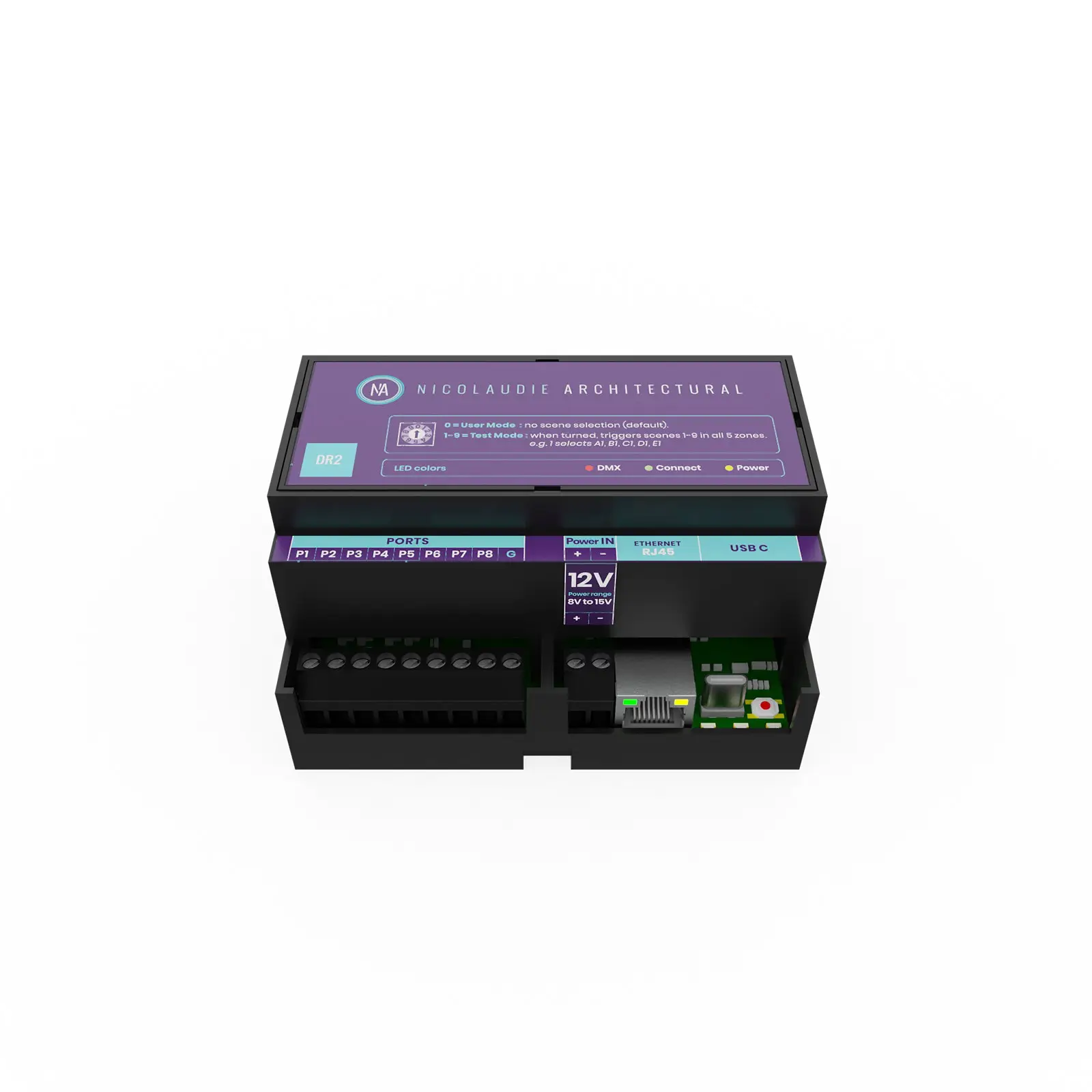

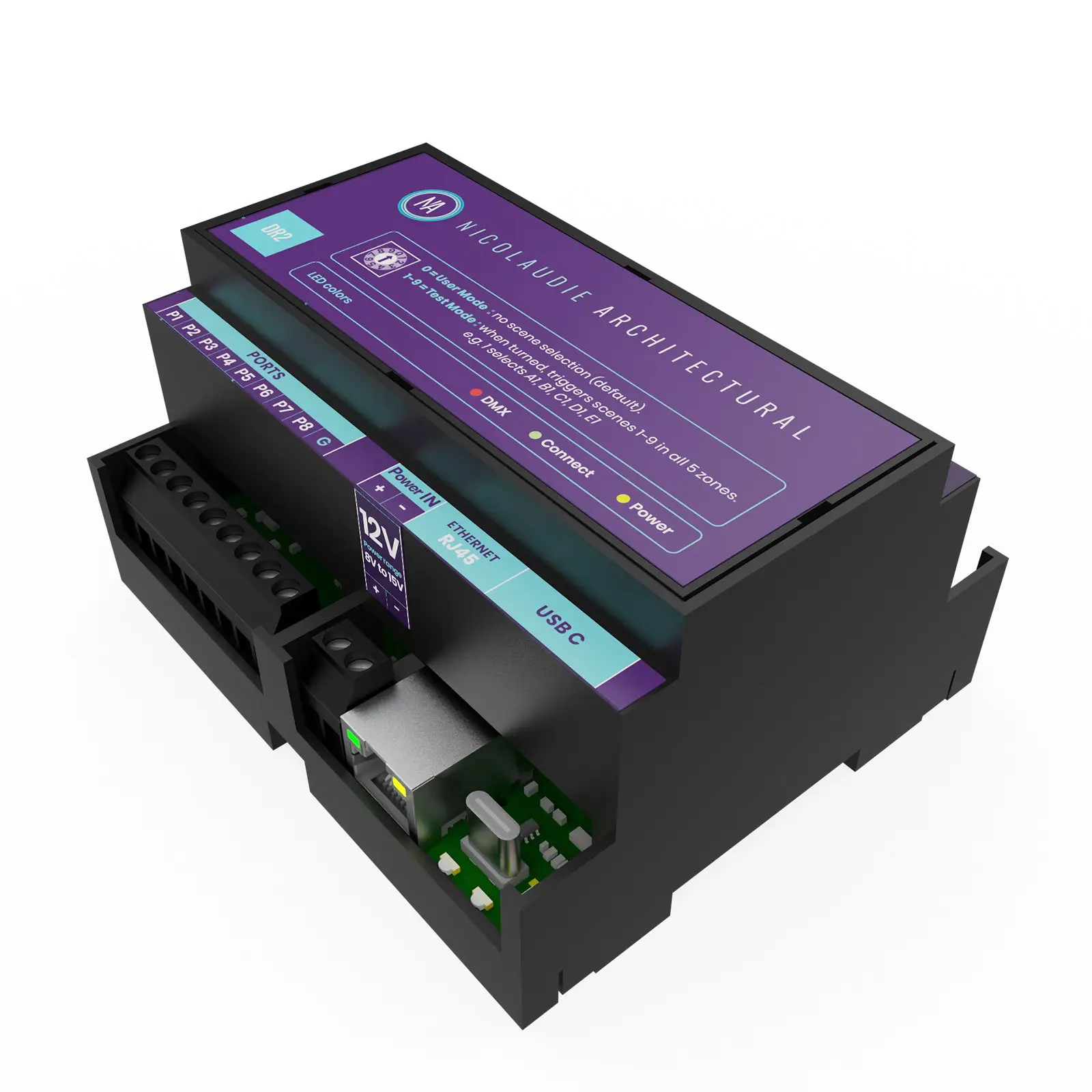

DINA-DR2 DIN Rail Lighting Controller

Free Delivery on this item!

£936.60

ex. VAT inc. VAT

In stock

The DINA-DR2 is built on the latest generation of lighting controllers from Nicolaudie Architectural and combines all our recent innovations. Designed for DIN rail mounting the DINA-DR2 is.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

Description

The DINA-DR2 is built on the latest generation of lighting controllers from Nicolaudie Architectural and combines all our recent innovations. Designed for DIN rail mounting the DINA-DR2 is the perfect solution for mid-range lighting installations. Delivered with 1024 DMX channels the controller can be ugraded to 1536 by adding a 3rd DMX universe.

Programmable with ESA Pro 2 software or with Arcolis application the DINA-DR2 features the new Nicolaudie Stand Alone engine (NSA) offering some great possibilities (multi-zone extended triggers 16-bit channels management…).

Thanks to its Ethernet connection the DINA-DR2 can be controlled from our Arcolis Remote Pro or Arcolis Remote applications as well as connected to the Internet and operated with the LS Cloud service.

Input Power: 12V DC (8–15V range) Output Protocol: 3 x DMX512 Programmability: PC Mac Android iOS Connections: USB-C Ethernet Screw terminals for: 3 DMX/RDM Universes 8+3 Contact ports 12V power-in Battery holder: LIR2032 3.6V microSD slot Memory: SD Card Temperature: 0 to +50°C Buttons: Rotary switch OS Requirements: Mac OSX 10.8–10.14 Windows 7/8/10 Dimensions (H x W x D): 59 x 106 x 91mm Weight: 0.32kg

2 year warranty DMX Stand Alone controller Up to 3 x DMX512 universes (1536 channels) RDM compatible USB & Ethernet connectivity for programming/control Stand Alone mode with 99 scenes Play scenes in 5 areas / zones microSD slot 8+3 dry contact trigger ports Test scenes rotary switch Windows/Mac software to set dynamic colours/effects iPhone/iPad/Android remote and programming apps SUT Technology allows the device to be used with other Nicolaudie Group software via an online upgrade LS cloud compatibility

NA0010_CE_Certification.pdf Open in new tab ↗

Checking document preview…

NA0010_Datasheet.pdf Open in new tab ↗

Checking document preview…
