Name: Dotz Par RGBL - Power-Hub
Brand: ADJ
SKU: ADJ1223200107
Price: 148.92 GBP
Availability: InStock

Dotz Par RGBL

Free Delivery on this item!

£148.92

ex. VAT inc. VAT

In stock

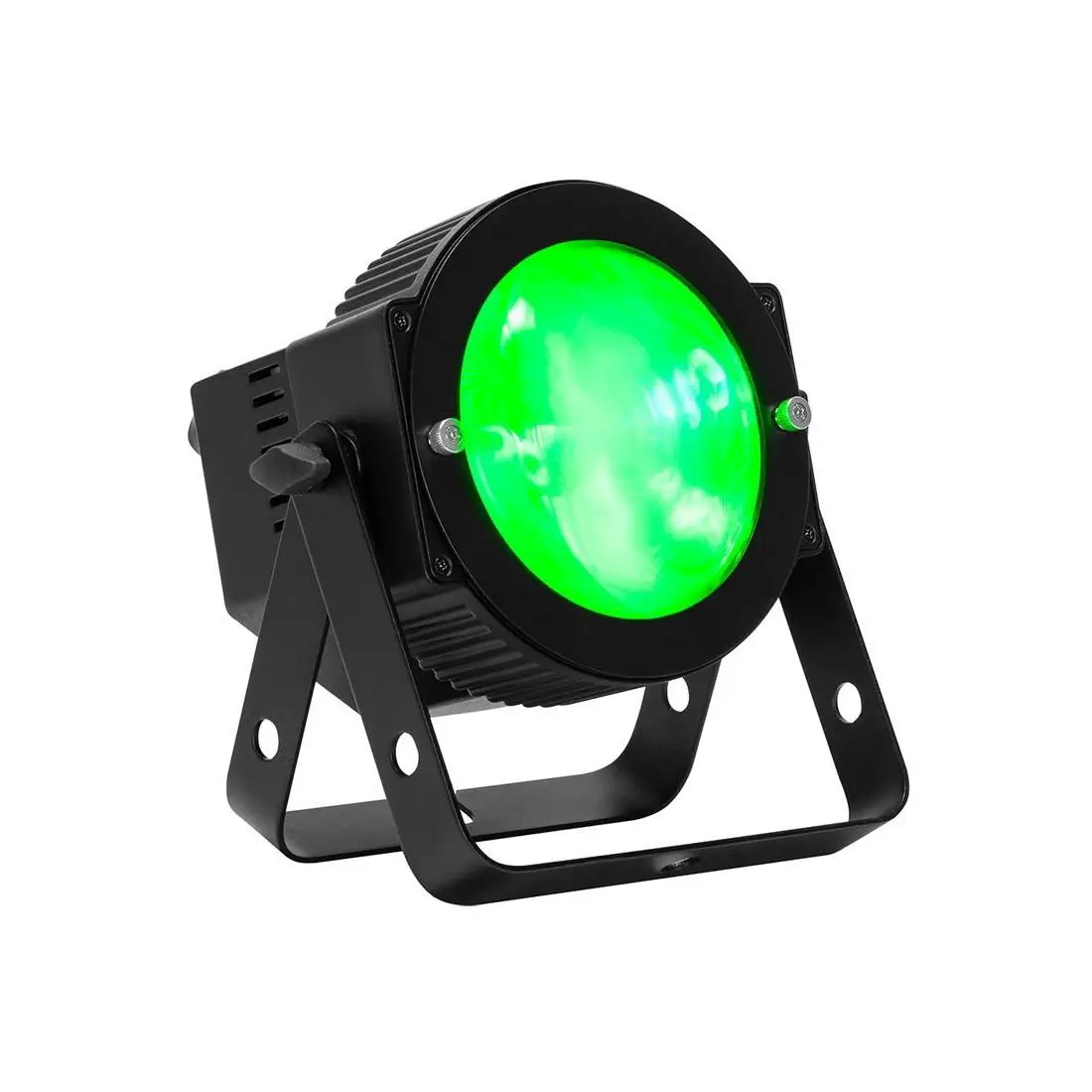

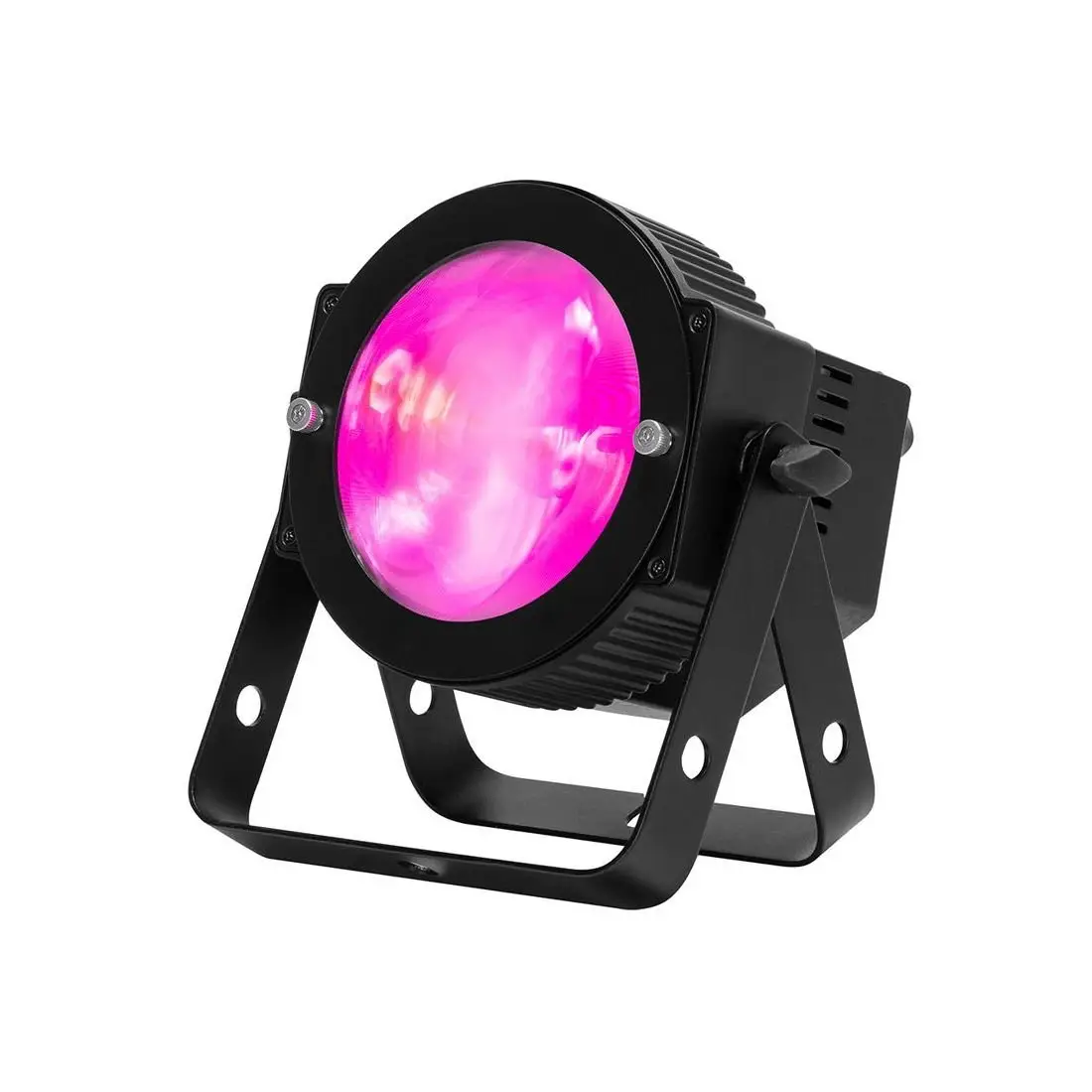

The ADJ Dotz Par RBGL offers lighting designers a brilliant even wash of light using the highly efficient Chip On Board with red green blue and lime LED chips.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

SKU: ADJ1223200107

Categories: Lighting, Pars & Slim Pars

Brand: ADJ

Description

The ADJ Dotz Par RBGL offers lighting designers a brilliant even wash of light using the highly efficient Chip On Board (C.O.B.) with red green blue and lime LED chips. With the addition of lime the Dotz Par RGBL offers a high CRI output advanced colour mixing plus linear colour temperature colour 2700K to 6500K) with built-in preset colour temperatures. Additionally the fixture has 16-Bit fine colour control with 64 built-in colour macros and a beam output of 30-degrees.

The Dotz Par RGBL has a small footprint and is light in weight making it idea for temporary event production or installation into small stages churches nightclubs or anywhere entertainment lighting is required. The 4-button DMX display allows for easy navigating into the fixtures flexible functions. There are 6 operational modes 6 dimmer curve modes 4 selectable dim curves and supports DMX and RDM protocols.

The fixture has locking power in and out sockets to daisy chain power plus 5-pin DMX in/out sockets. The supplied scissor yoke allows for flexible use allowing the fixture to be hung in the air or set on the ground.

Manufacturer Part Number: 1223200107

SPECIFICATIONS

Source:

Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red 4x Green 4x Blue & 4x Lime) 20000 Hours Rated Life

Photometric Data:

18° Beam Angle (With included lens) 29.7° Field Angle (With included lens) CRI: 85.3 CRI R9: 79.1 Lux: 957 (@ 3m Full On) Lumens: 1102

Effects:

Linear Colour Temperature Control (2700K to 6500K) Preset Colour Temperatures 16-Bit Fine Colour Control (Red Green Blue & Lime) 64 built-in Colour Macros

Control:

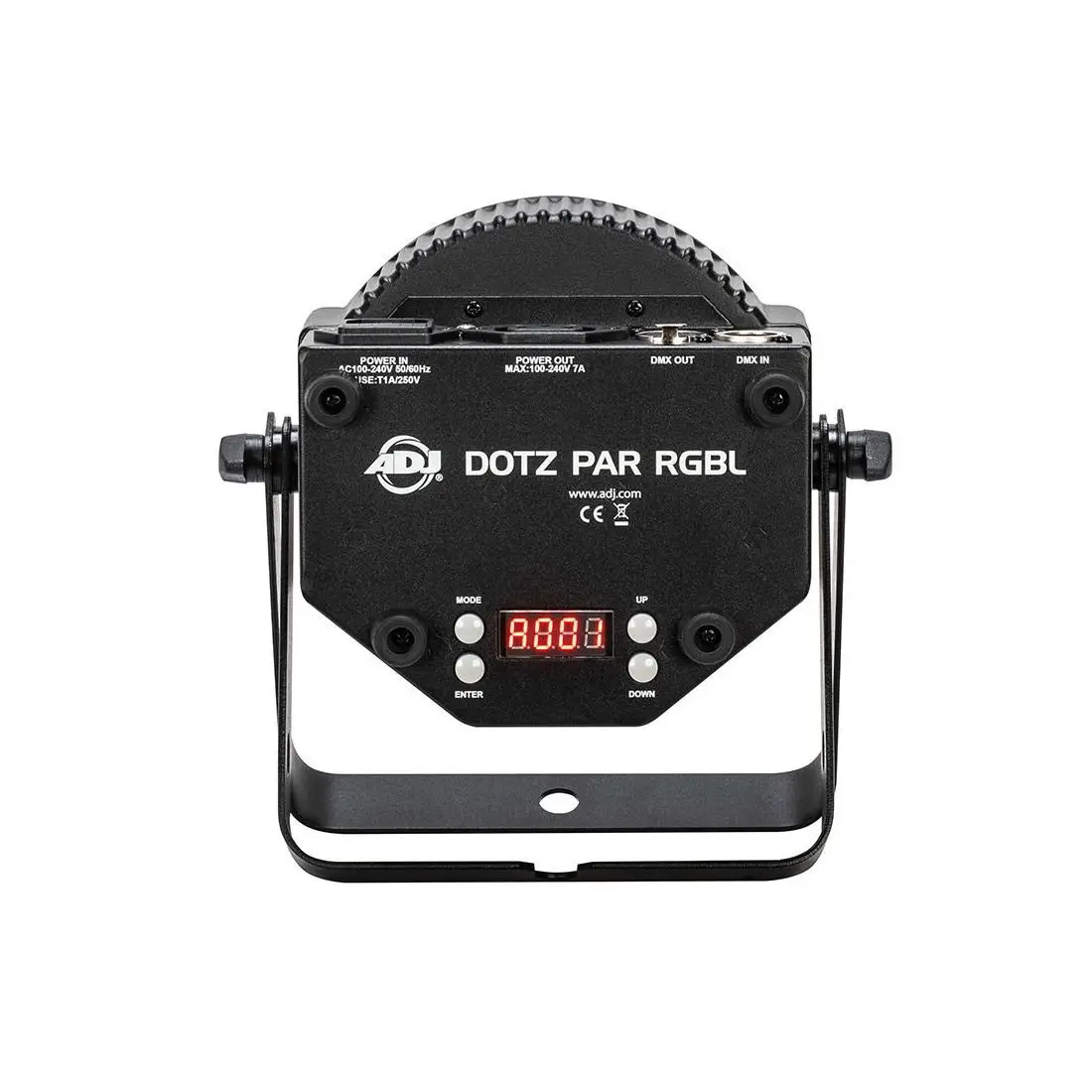

4-button DMX digital display on rear panel 6 Operational modes: Static Colour Mode RGBL Dimmer Mode Program Mode Sound Active Mode Wireless RF and DMX Controlled Supports RDM (Remote Device Management) With Wired Digital Communication Network 6 selectable Dimming Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Linear Square Inv. Squa S-Curve) 1200Hz LED Refresh Rate LED pulse and strobe effect Electronic Dimming: 0 - 100%

Construction / Connections:

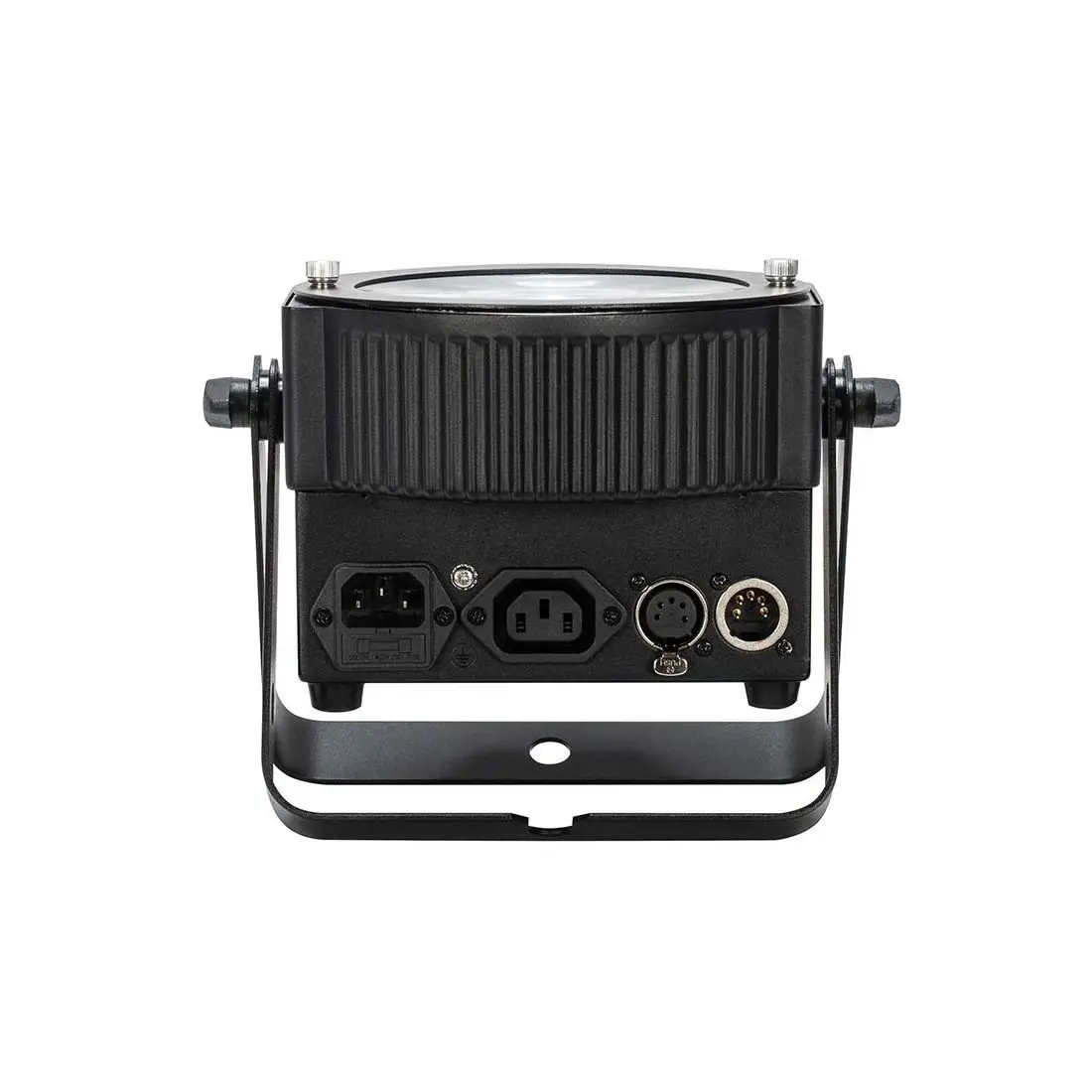

Plastic construction IEC Locking In/Out Power connectors Indoor 5-pin XLR DMX In/Out sockets Scissor Yoke

Electrical/Thermal:

Multi-voltage operation: AC 100-240V 50/60Hz Max Power Link: 57 @230V. Max power consumption: 36W Fuse protected: T1A/250V (5*20mm)

Dimensions & Weight:

Length: 131.8mm Width: 209mm Height: 221.44mm Weight: 2kg

Approvals/Ratings:

CE IP20

Included Accessories:

(1) Power Cord

(1) Lens Kit

Specifications are subject to change without notice
