eCA120 2x 60W Micro Amplifier
Free Delivery on this item!ECA120 is a 2 x 60W RMS @ 4 ohm stereo micro-amplifier in a very compact format and a light and silent design. It features 1 LINE stereo input AUTO STANDBY function and volume remote control.
- Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
- Premium Courier Service: Trackable delivery to your business premises
- 14-day hassle-free return policy — no questions asked
- 24/7 Customer Support: Help is always available, day or night
Description

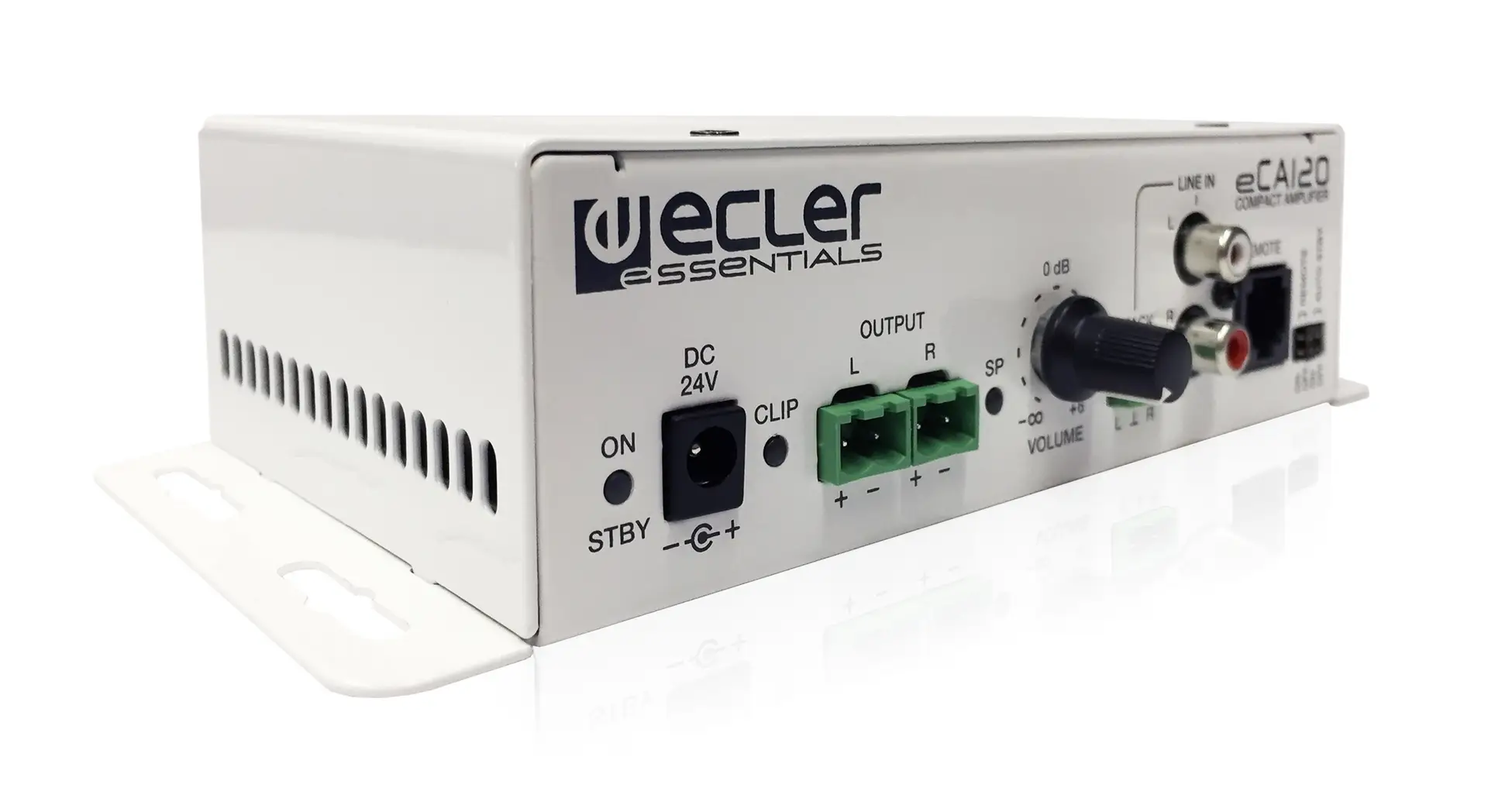

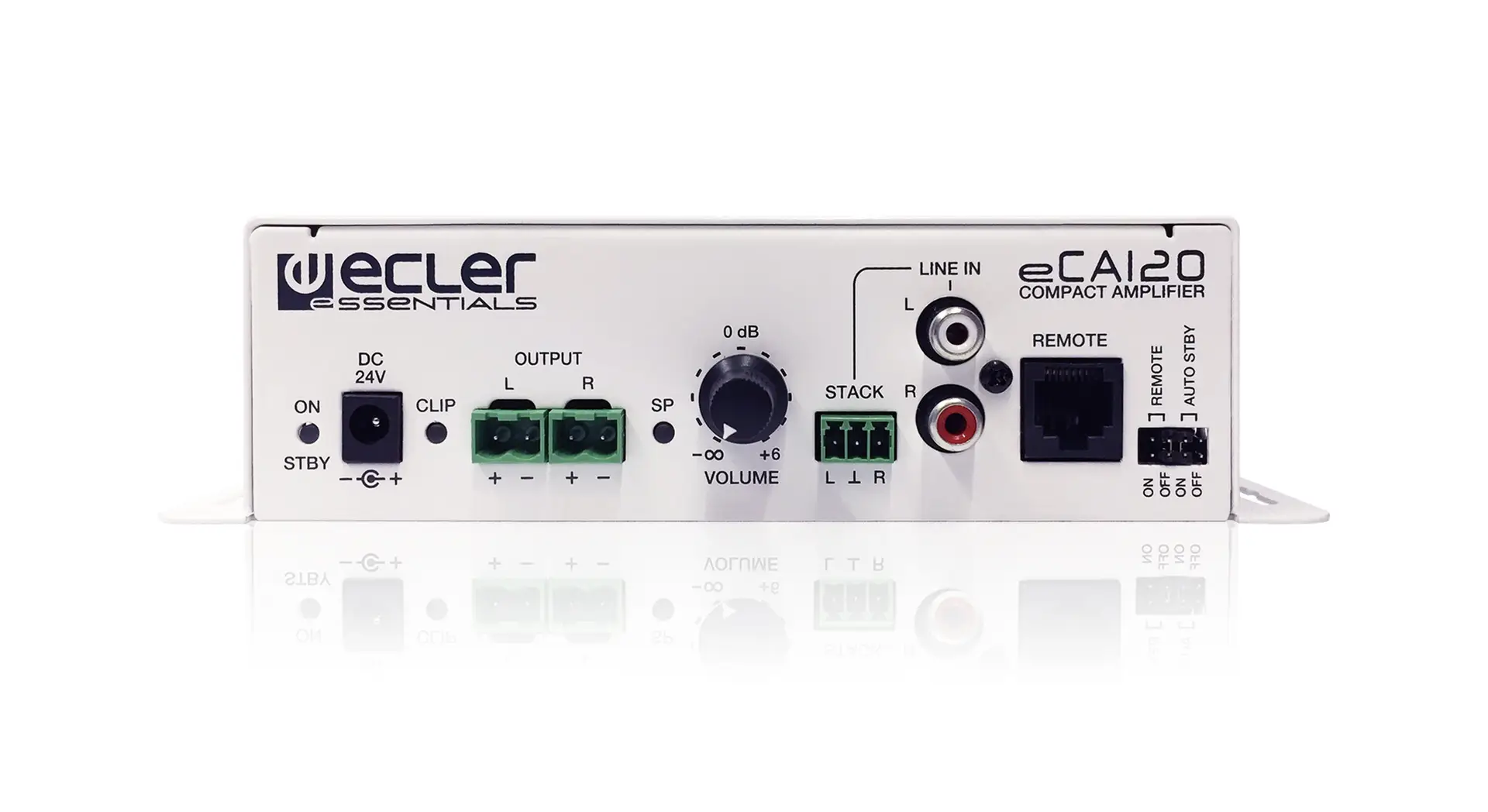

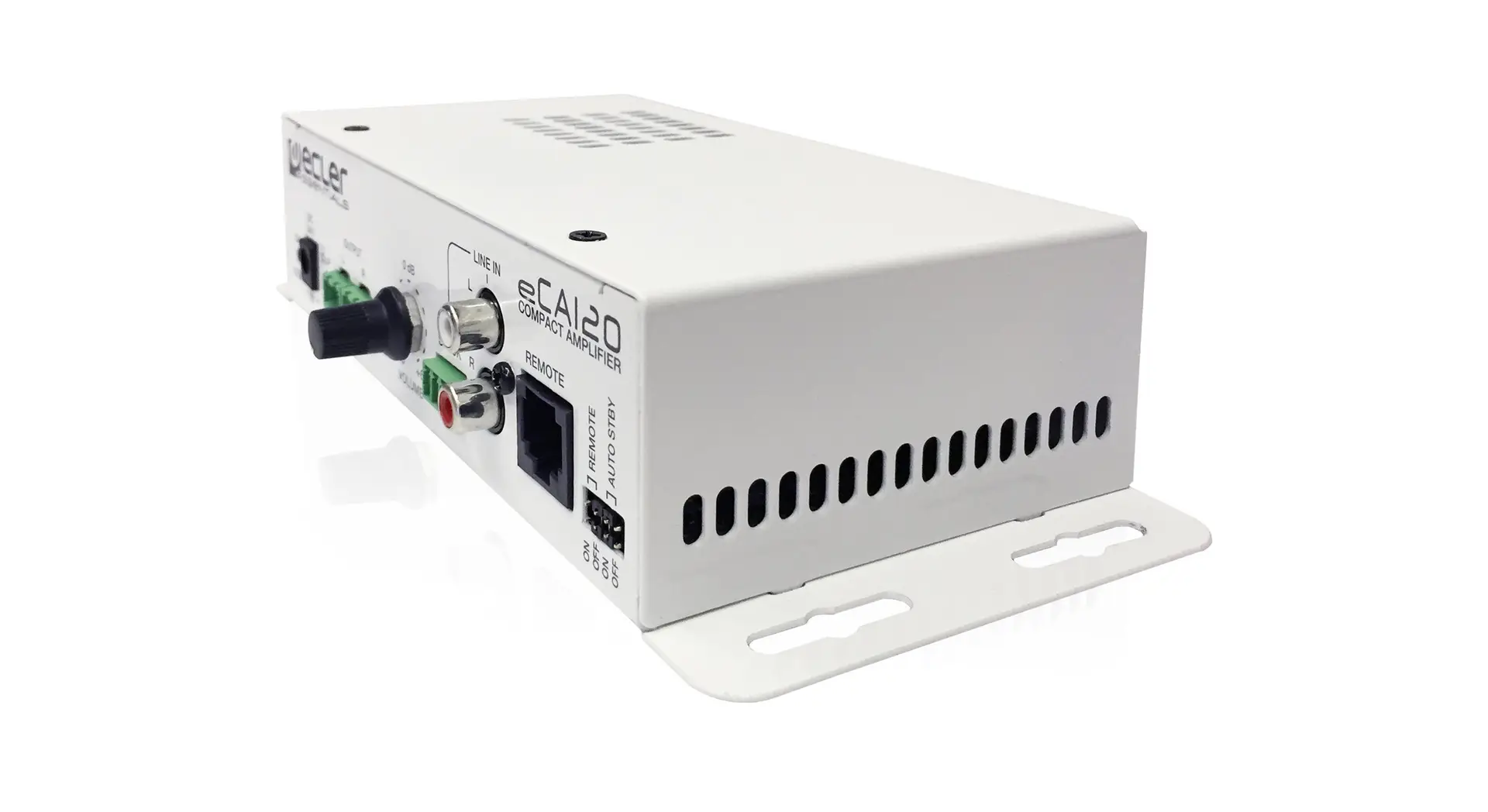

eCA120 is a 2 x 60W RMS @ 4 ohm stereo micro-amplifier in a very compact format and a light and silent (fanless) design. It features 1 LINE stereo input AUTO STANDBY function and volume remote control compatible with ECLER WPaVOL and WPaVOL-SR wall panels (0-10 VDC). External universal and CE/UL/CCC certified power supply.
Channels
Number of output channels: 1 Output connection type: Euroblock Output configuration: 2 x 60W RMS @ 4Ω stereo amplifier Number of input channels: 1 Input connection type: Dual RCA and 3-pin Euroblock Input configuration: LINE / STACK inputOutput Power - All Channels Driven @ 1%Thd
Max output power @ 8Ω: 2 x 34W Max output power @ 4Ω: 2 x 56WSignal
Input sensitivity: 0dBV Input impedance: >20kΩ Frequency response: 15Hz - 30kHz (-3dB) THD + Noise: SPKR OUT 85dB (VOLUME at 0dB) Crosstalk: >65dB @ 1kHzElectrical

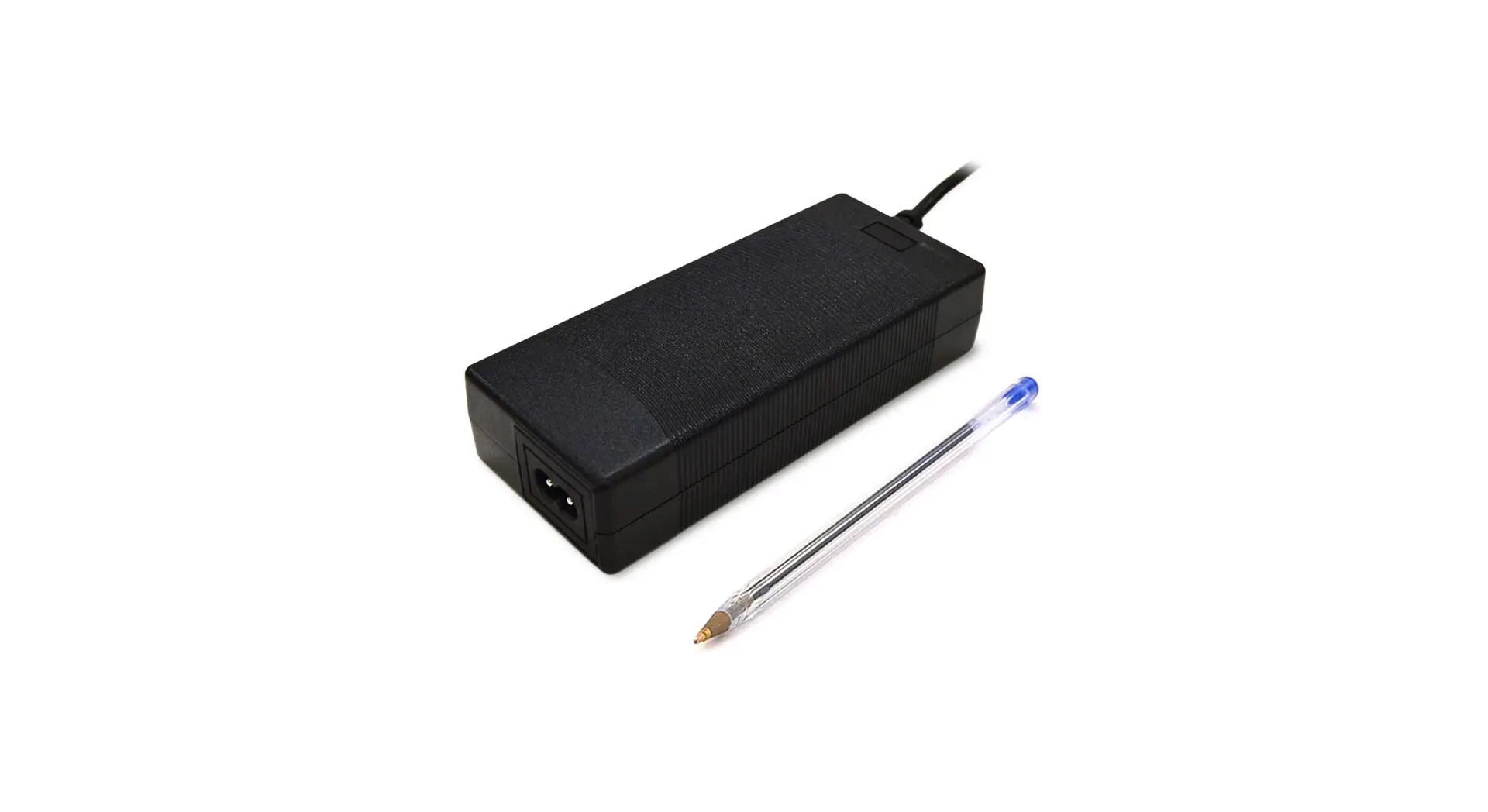

Power supply: Universal external power supply AC mains requirement: 100-240V @ 50-60Hz + External PSU 24VDC AC mains connector: DC24V power connectorPower Consumption
Power Consumption (1/3 POWER @ 4Ω all channels driven): pink noise 51W / 61VA Power Consumption (1/8 POWER @ 4Ω all channels driven): pink noise 26W / 38VA Power Consumption (STBY/SLEEP): <2.5WTechnologies
Energy saving: Auto standby function Cooling: Convection (fanless)Protections
AC protection: No DC protection: No VHF protection: No Short-circuit protection: No Clip limiter: No Long term limiter: No Thermal protection: NoRemote Control Connections
GPIs: x1 GPI (0-10VDC) for volume controlSettings
Attenuators: Front panel knob Output settings: Stereo and parallel (mono) outputs Auto standby function: Front panel jumper Auto standby threshold: -40dBV (L&R) Auto standby time: 120 secondsMonitoring
Signal Present: SP LED (Green) Cliping: CLIP LED (Red) Standby: STBY LED (Orange)Physical
Operating temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Operating humidity: <85% HR Storage temperature: Min: -10°C ; 14°FMax: 40°C ; 104°F Storage humidity: <90% HR Installation options: Wall or under a surface (table shelf cupboard etc.) Optional accessories: WPaVOL series for remote control Dimensions: 190 x 48 x 90mm / 7.48 x 1.89 x 3.54 in. (WxHxD) (knobs and connectors excluded) Weight: 0.6kg / 1.32 lb Shipping dimensions: 220 x 60 x 170mm / 8.66 x 2.36 x 6.7 in. (WxHxD) Shipping weight: 1.2kg / 2.65 lb2 x 60W RMS at 4 ohm stereo amplifier External universal power supply AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode minimizing power consumption Light and silent (fanless) design 1 unbalanced stereo line input (LINE IN / STACK) with dual RCA connector and 3-pin Euroblock connector Local volume control by knob Remote volume control by WPa series wall panel (0-10VDC)
