Encore FR150Z

Free Delivery on this item!
£384.31
ex. VAT inc. VAT
In stock

Lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine. It produces a white wide soft-edged beam for stage and theatre use at 3000K.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1237000174
Categories: ,
Brand:

Description

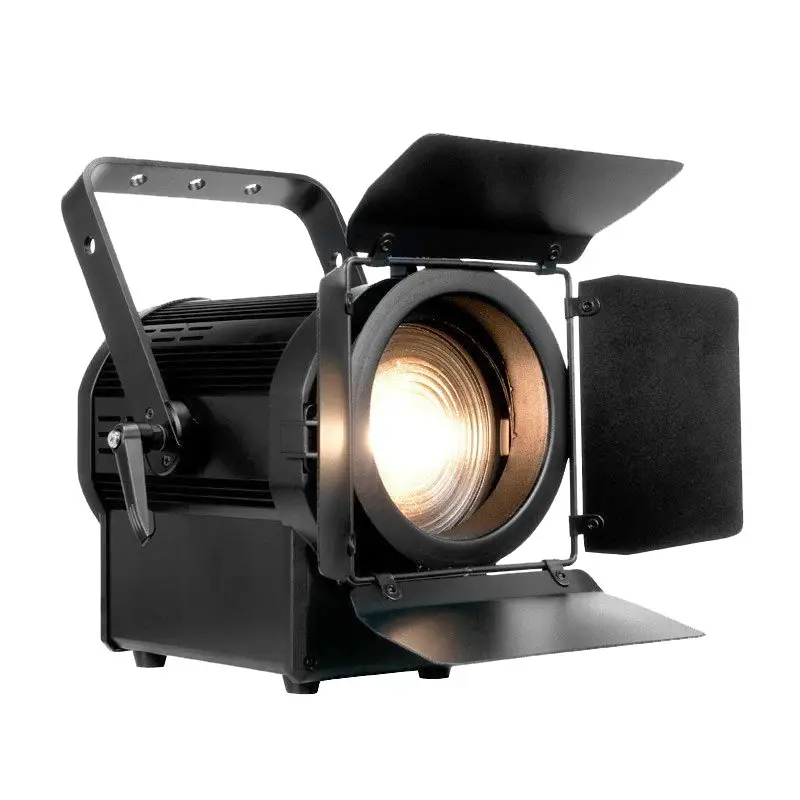

Part of the Encore stage lighting series the Encore FR150Z lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine. It produces a white wide soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 15 to 38 degrees.

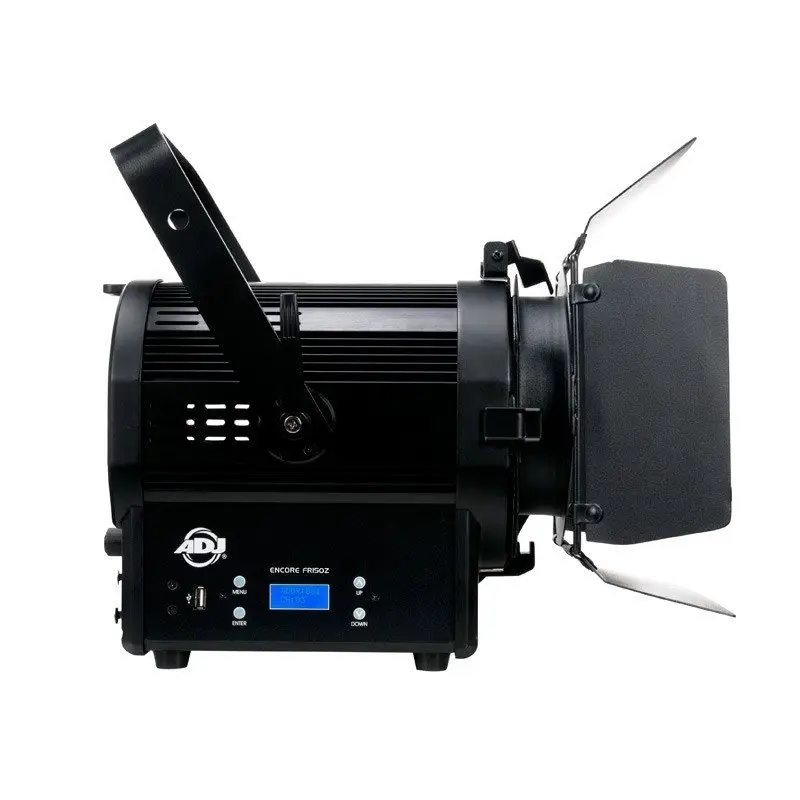

The Encore FR150Z has a 4-button LCD operational menu 3-pin and 5-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another.

Manufacturer Part Number: 1237000174 Dimensions (L x W x H): 33.5 x 31.5 x 41.5cm Weight: 9.00Kg

Specifications:


Source

• Light Source: 1 WW COB-LED

• Individual LED wattage : 130W

• Average LED lifetime : approximately 50000 hrs.

• Colour Temperature: 3000K

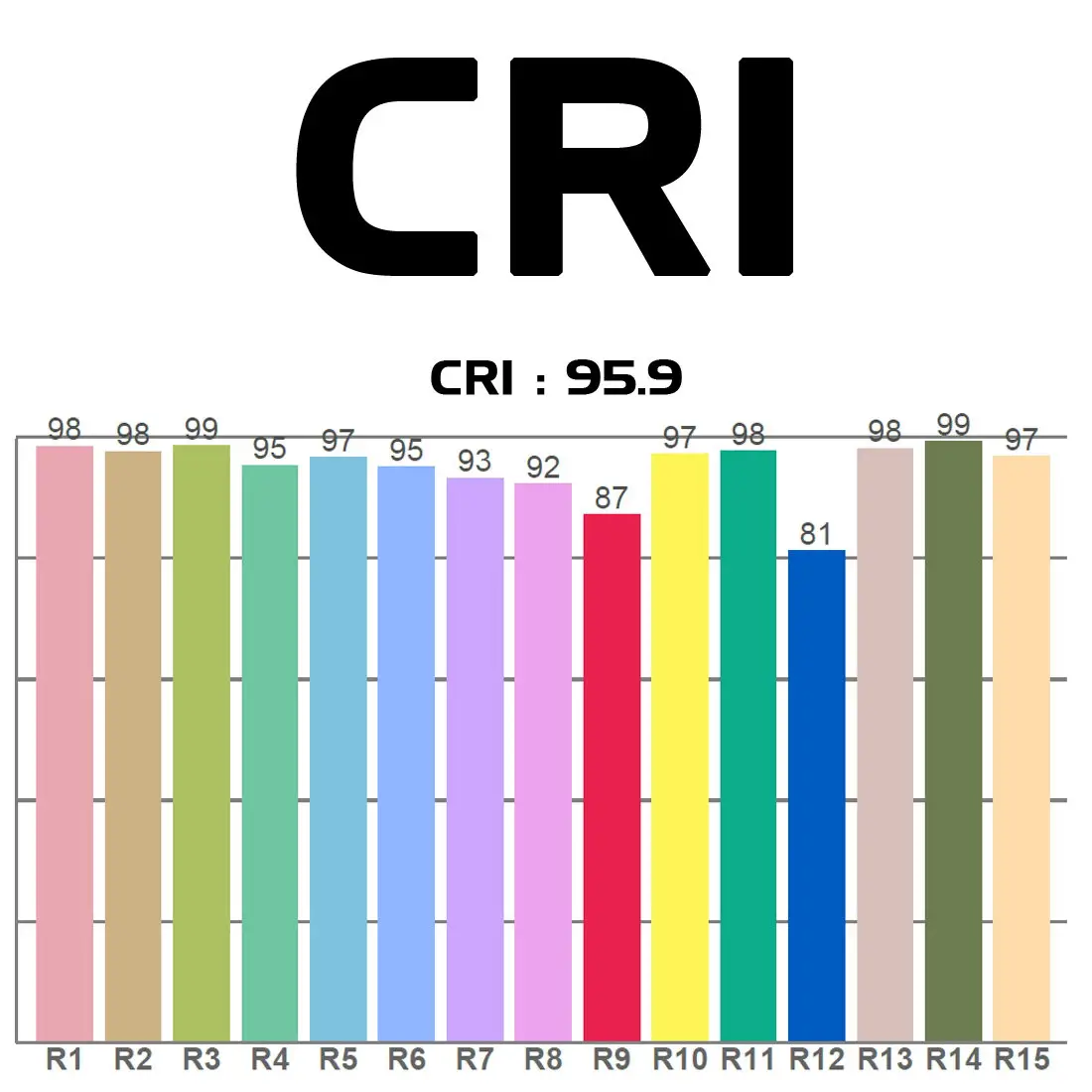

• CRI: 95.9


Optics

• Adjustable Beam Angle: 15-38 degrees

• 8-inch/200mm Fresnel Lens


Control

• 2 operational Modes : Manual WW Dimmer Mode and DMX Control

• 6 DMX Modes: 1 2 2-2 3 2-3 & 4-channel

• RDM compatible

• 16bit Electronic Dimming: 0 - 100%

• 6 selectable Dim Modes (Standard Stage TV Architectural Theatre & Stage 2)

• Adjustable Dim Curves (Linear Square Inv. Square and S-Curve)

• Adjustable Fanmodes (Auto Low High)

• LED pulse and strobe effect

• 4-button DMX digital display on rear panel


Colours

• Warm White 3000K


Construction

• Robust extruded aluminium housing

• Manual Zoom Knob

• Barndoors included

Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 150W

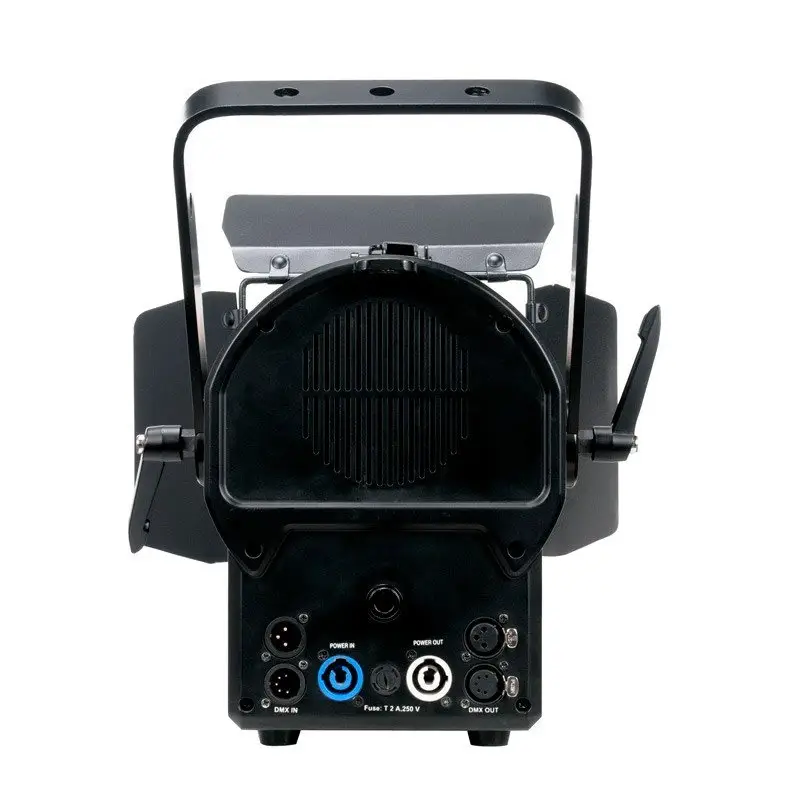

Connections

• 3 & 5-pin Locking DMX In/Out connections

• Locking Power In/Out connections

• USB port for Firmware Update


Dimensions & Weight

• Dimensions (LxWxH):

Without Barndoors: 276 x 298.62 x 416mm

With Barndoors: 422.23 x 298.62 x 416mm

• Weight:

Without Barndoors: 68 kg.

With Barndoors: 74 kg
