Name: Encore LP7 IP - Power-Hub
Brand: ADJ
SKU: ADJ1226100383
Price: 304.25 GBP
Availability: InStock

Encore LP7 IP

Free Delivery on this item!

£304.25

ex. VAT inc. VAT

In stock

The ADJ Encore LP7IP is a versatile heavy duty Par with seven 20W Quad LEDs a 10-degree beam angle and all metal construction. It is IP65 outdoor rated to protect against rain snow and dust.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

SKU: ADJ1226100383

Categories: Lighting, Pars & Slim Pars

Brand: ADJ

Description

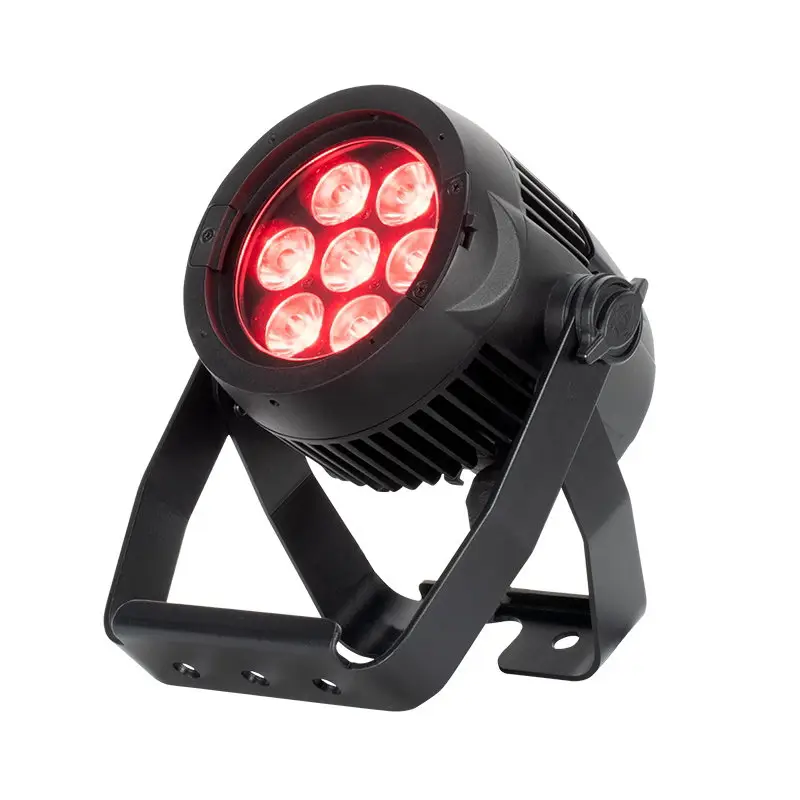

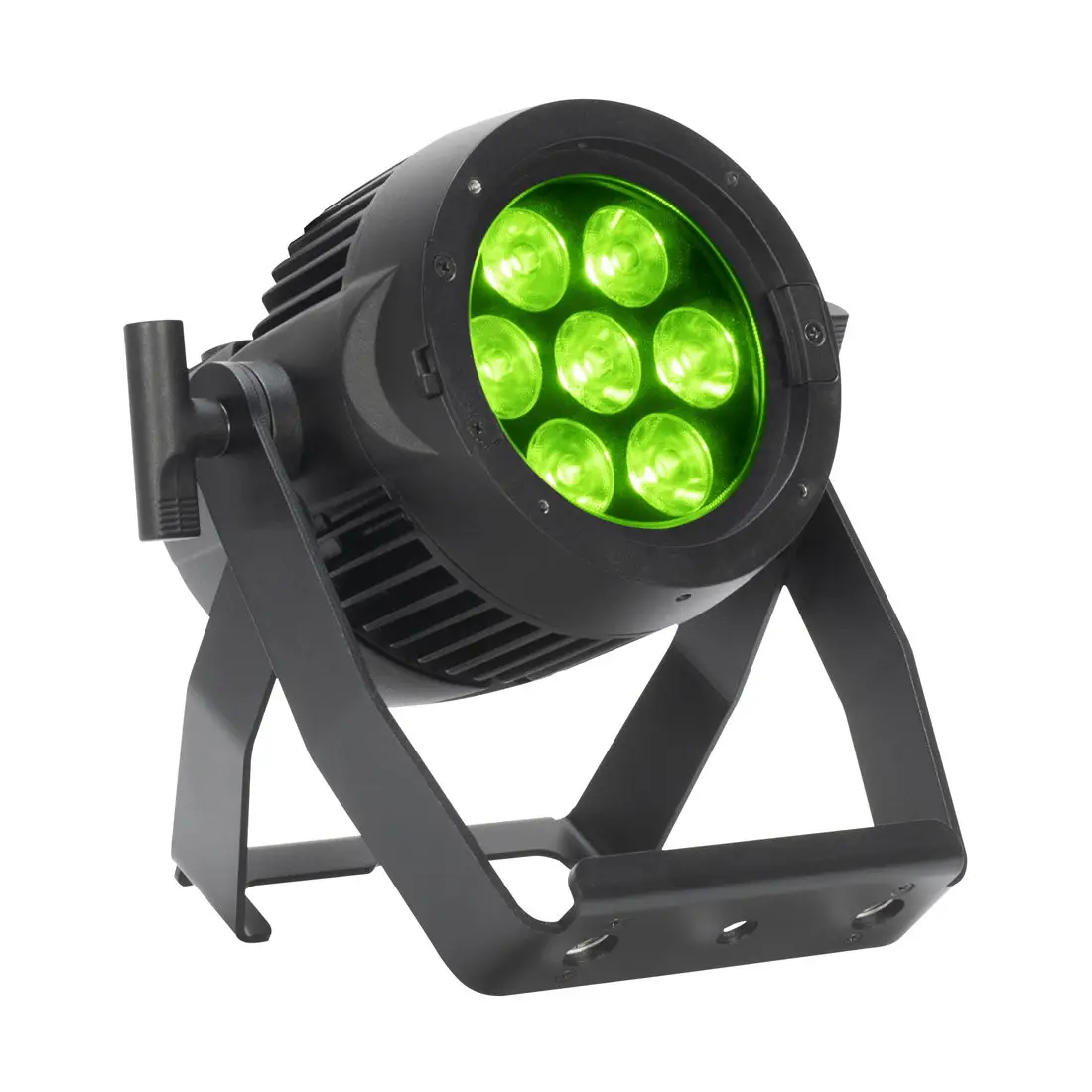

The ADJ Encore LP7IP is a versatile heavy duty Par with seven (7) 20W Quad LEDs (4-IN-1: Red Green Blue & Lime) a 10-degree beam angle and all metal construction. It is IP65 outdoor rated to protect against rain snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white colour temperature control from 2700K – 7000K.

The ADJ Encore LP7IP is a versatile IP65 outdoor rated Par with 7 x 20-Watt (4-IN-1: Red Green Blue & Lime) Quad LEDs. With a 10-degree beam angle users may produce wide washes with smooth colour mixing from 64 built-in colour macros utilizing red green blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues but with its IP65 rating it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain snow and dust.

The Encore LP7IP professional features include: 6 DMX modes 5 operational modes 6 selectable dimming modes 4 selectable dimming curves and a 4-Button DMX menu with digital display. The unit is equipped with IP65 Locking Power connectors and IP65 rated 5-pin DMX connectors with rubber covers. IP rated power linking and DMX cables are available but standard 5-pin DMX cables may also be used for indoor applications.

There are several additional frost filter options that customize the beam angle. These filter snap into the front of the fixture. One 25° double frost filter is included in the package and optional 20° 60° 100° 40°x1° 60°x30° are sold separately.

Manufacturer Part Number: 1226100383 Dimensions (L x W x H): 15.5 x 25.7 x 26.3cm

SOURCE:

Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red Green Blue & Lime)

PHOTMETRIC DATA:

Beam angle: 10-degrees CRI: 84 CRI R9: 76.6 Lumens: 2500

EFFECTS:

Linear Colour Temperature Control (2700K to 7000K) Preset Colour Temperatures (2700K 3200K 4000K 5600K 6500K and 7000K) 16-Bit Fine Colour Control (Red Green Blue & Lime) 64 built-in Colour Macros

CONTROL / CONNECTIONS:

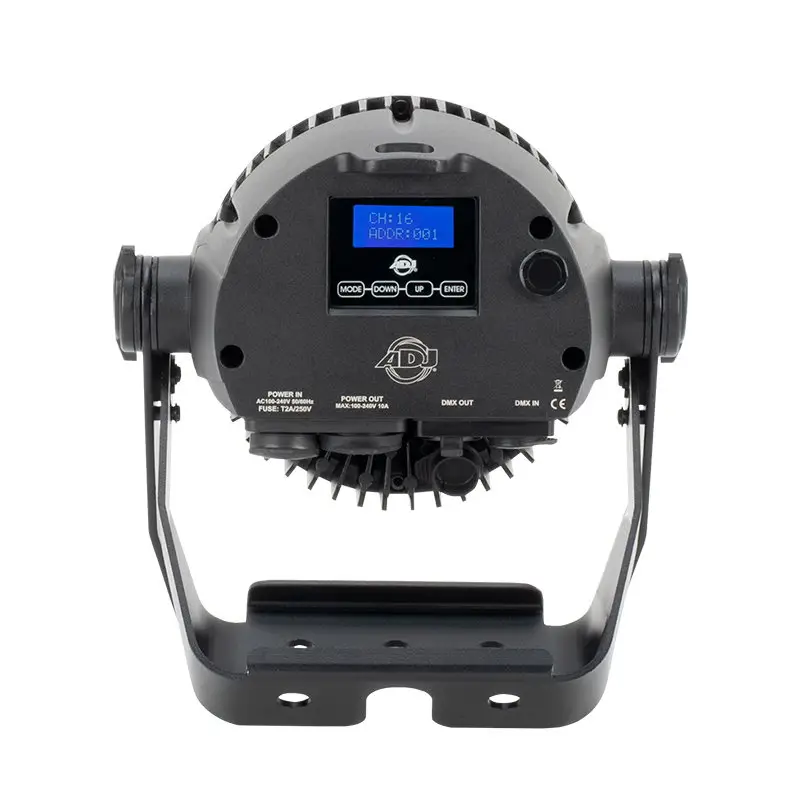

4-button DMX digital display on rear panel 4 Operational modes: Static Colour Mode RGBL Dimmer Mode Program Mode and DMX Controlled Supports RDM (Remote Device Management) 6 selectable Dimming Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Linear Square Inv. Square S-Curve) Adjustable Refresh Rate (14 presets from 900 – 25000Hz) Flicker Free operation (No flickering on camera) LED pulse and strobe effect Electronic Dimming: 0 - 100% 6 DMX Modes: 4 7 8 10 13 & 16-channel Quiet fan mode

CONSTRUCTION:

IP65 Rated: Ingress Protection against liquid snow dust and sand All metal construction IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets Locking outdoor IN/Out Power connectors Data linkable via 5-pin DMX connections Includes 25° double frost filter optional 20° 60° 100° 40°x1° 60°x30° are sold separately Scissor Yoke with Quick Locks & safety eye Optional Omega bracket available

ELECTRICAL / THERMAL:

Multi-voltage operation: AC 100-240V 47/63Hz Daisy chain: 20 @ 220V Max power: 103W

DIMENSIONS / WEIGHT:

Dimensions (LxWxH): 220x160x242mm Weight: 3.45 kg.
