Encore Profile Mini WW

Free Delivery on this item!
£192.16
ex. VAT inc. VAT
In stock

Designed for applications where size really matters the ADJ Lighting Encore Profile Mini WW is a compact and versatile LED-powered ellipsoidal luminaire.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1237000326
Categories: ,
Brand:

Description

Designed for applications where size really matters the ADJ Lighting Encore Profile Mini WW is a compact and versatile LED-powered ellipsoidal luminaire. It utilizes a potent 40W warm white LED engine with a 50000-hour average life expectancy and 3000K colour temperature. Its light is focused through precision-engineered optics to deliver a crystal-clear 900 Lumen output with an even field and extremely high CRI of >98.
Two compatible lens options are available (sold separately) which can be used to adapt the fixture depending on the beam angle required. Both lenses offer manual zoom with the EP Mini Lens 1530 option offering a variable beam angle of 15° – 30° and the EP Mini Lens 2550 version providing wider options of 25° – 50°. The fixture can also be used to project GOBO patterns and is supplied with a holder for standard “E” size GOBOs (GOBOs sold separately).

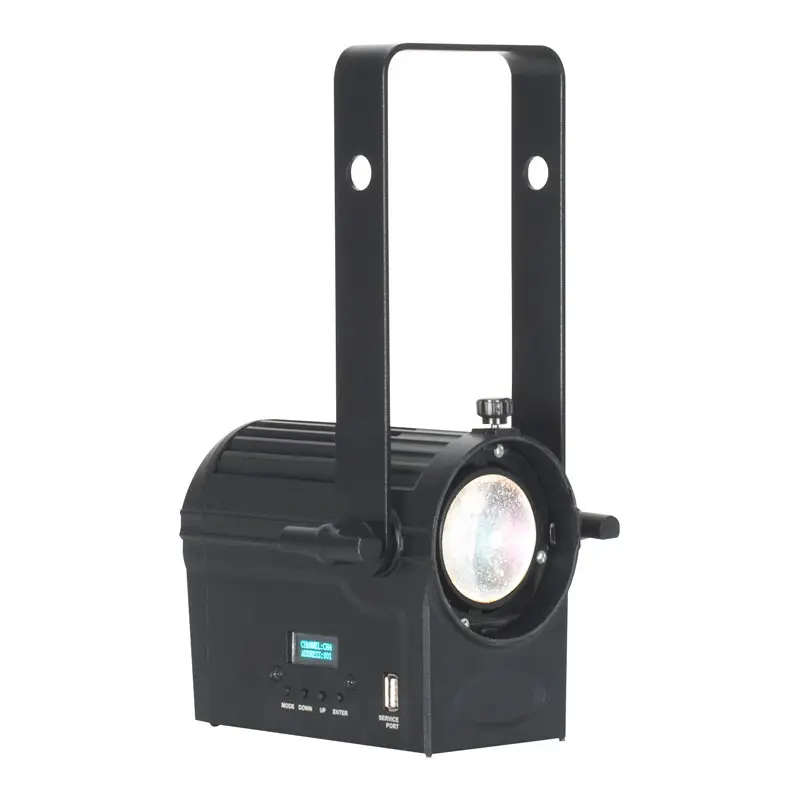

The Encore Profile Mini WW offers digital dimming with variable curves and a selection of dimming modes as well as variable speed strobing. It also supports adjustable refresh rates so that flicker can be avoided for filming applications. A convenient OLED menu display on the rear panel provides access to an intuitive menu interface for DMX addressing and configuration of the unit’s adjustable operating parameters and it is supplied with a variable angle hanging bracket that locks securely into place using a pair of large thumb tightening screws.
Manufacturer Part Number: 1237000326 Dimensions (L x W x H): 3.0 x 3.0 x 7.8cm
Specifications
Source:

40W Warm White LED Engine 50000 Hour Average LED Life* *LED Life may vary depending on several factors including but not limited to: Environmental Conditions Power/Voltage Usage Patterns (On-Off Cycling) Control and Dimming.

Photometric Data:

>98CRI 900 Total Lumens 3000K Colour Temperature

Effects:

Electronic Strobe and Dimming Variable Dimming Curves and Dimming Modes

Gobos:

Supports “E” Size GOBO Holder is included GOBOs are sold separately

Control:

(3) DMX Channel Modes (1 / 3 / 4) Adjustable Refresh Rates (900-1500 25000 Hz) 4 Button Control Panel OLED Menu Display RDM (Remote Device Management)

Connections:

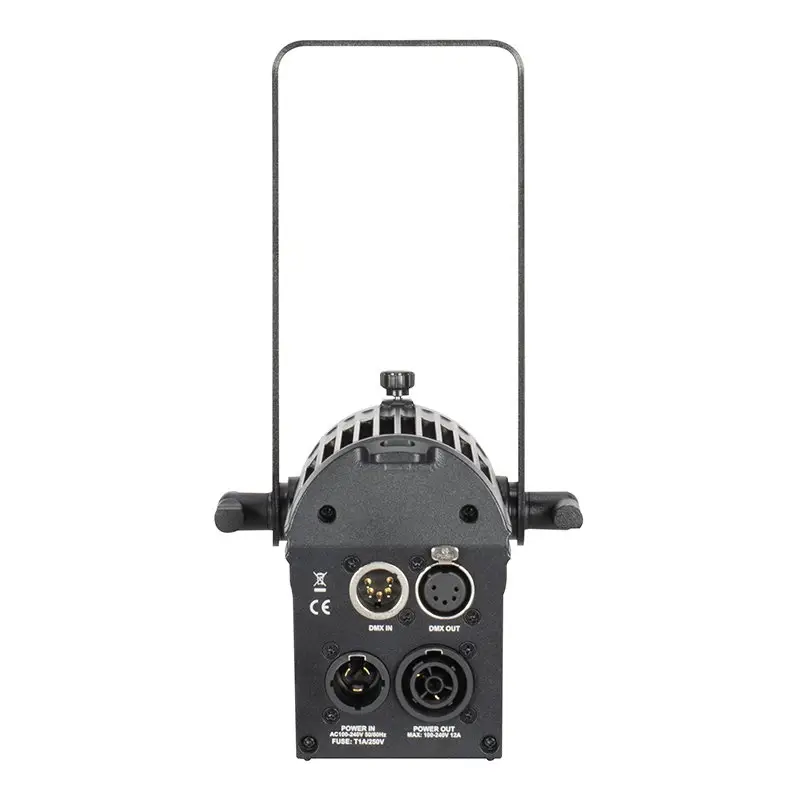

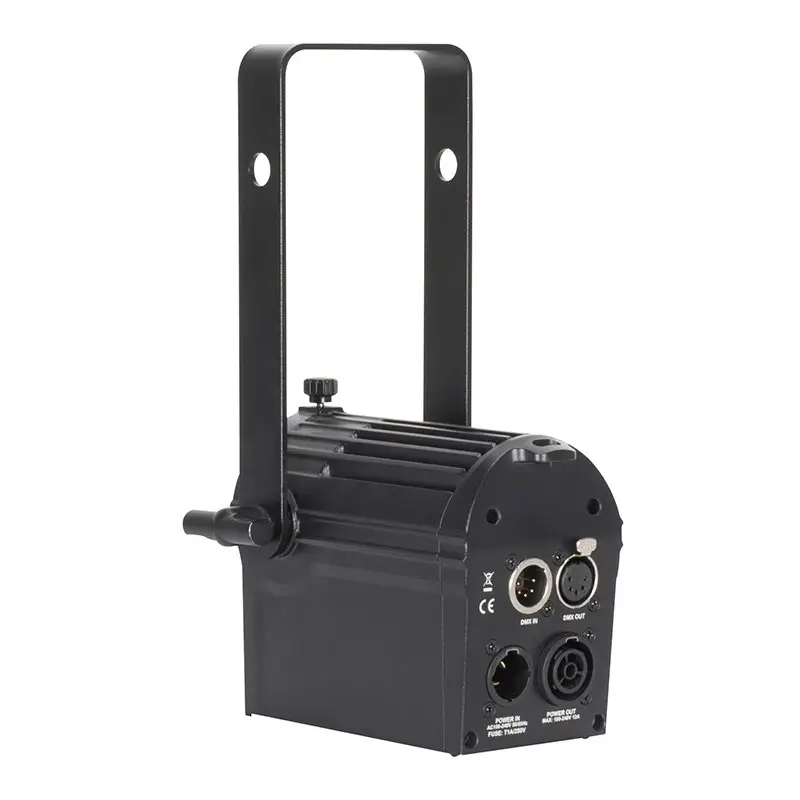

Locking 5pin XLR Connector In/Out IP65 Locking Power Connector In/Out

Dimensions & Weight:

Length: 224mm (Without lens) Width: 144mm Height: 276mm Weight: 1.8 kg

Electrical & Thermal:

Convection Cooled AC 100-240V - 50/60Hz 45.7W Max Power Consumption @ 230V Power Linking: 53pcs Max @230V Minimum and Maximum Ambient Temperatures: -10° to 45°C

Approvals & Ratings:

CE | cETLus (Pending) | IP20

Included items:

(1) Locking Power Cable

Accessories:

EP Mini Lens 1530 (15° - 30° Manual Zoom Lens) EP Mini Lens 2550 (25° - 50° Manual Zoom Lens)
