etherCON Chassis Connector NE8FDIS-TOP

£8.33
ex. VAT inc. VAT
In stock

The Neutrik NE8FDIS-TOP is a premium etherCON RJ45 chassis connector designed for demanding outdoor applications. Featuring IP65/IP67 sealing—even when unmated—airtight construction corrosion.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: CONN572
Categories: ,
Brand:

Description

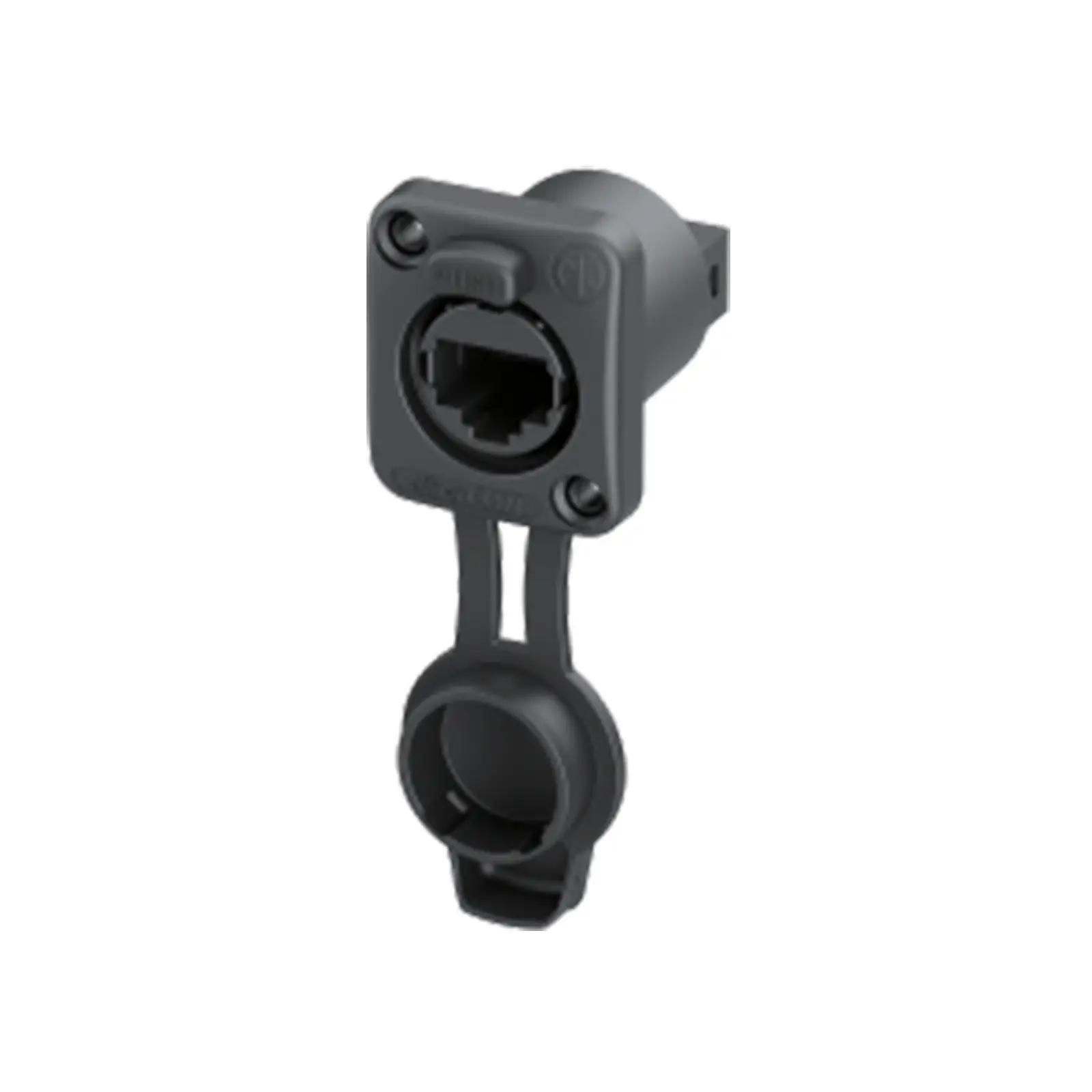

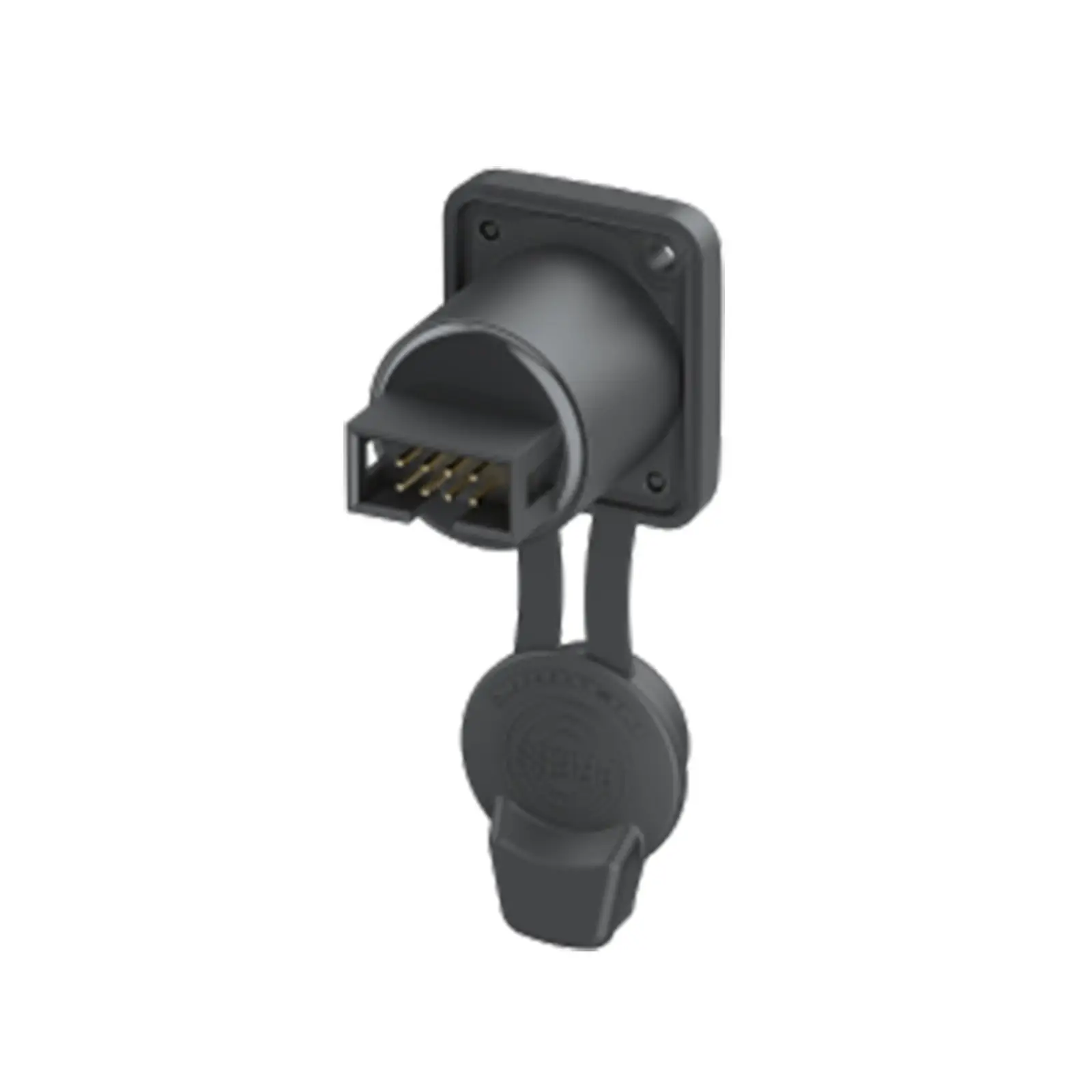

The Neutrik NE8FDIS-TOP is a premium etherCON RJ45 chassis connector designed for demanding outdoor applications. Featuring IP65/IP67 sealing—even when unmated—airtight construction corrosion resistance UV protection and 100W PoE support (IEEE 802.3bt Type 4 Class 8) this rugged D-shape front-mount connector provides reliable data transmission in harsh environments. The IDC termination features a 2×4 pin box header feedthrough for efficient internal wiring. ESD protection up to 2kV and compliance with international standards make it ideal for professional AV broadcast and industrial use.

  • Connection type: RJ45 feedthrough with IDC 2x4 pin box header termination
  • Mounting: D-shape front-mount chassis
  • Gender: Female
  • Contact plating: Gold-plated brass
  • Contact resistance: <10mΩ
  • Insulation resistance: >0.5GΩ
  • Rated current: 1.5A
  • Rated voltage: ≤57V
  • Transmission: CAT3 / CLASS C 1–16MHz
  • Temperature range: -30°C to +70°C
  • Ingress protection: IP65 / IP67
  • Material: PA66 housing brass contacts
  • Panel cutout: 24mm D-shape with standard etherCON mounting holes
  • Compliance: UL1863 CSA C22.2 No.182.4-M90 IEC 62368-1:2018 Annex Y
  • IP65/IP67 protection even when unmated with sealing cap
  • Airtight design for outdoor and harsh environments
  • IDC 2x4 pin box header feedthrough for efficient internal wiring
  • Supports High-Power PoE (100W IEEE 802.3bt Type 4 Class 8)
  • UV-resistant and corrosion-resistant materials
  • 2 kV ESD protection
  • Seamless etherCON TOP design language
  • Easy maintenance front-mount design
  • Latch lock mechanism for secure mating
  • Durable construction rated for ≥1000 mating cycles
