Name: Inline TeeBox Connector 3-Pole 4-9.5mm THK200C2E - Power-Hub
Brand: Hylec
SKU: CONN1202
Price: 13.51 GBP
Availability: InStock

Inline TeeBox Connector 3-Pole 4-9.5mm THK200C2E

£13.51

ex. VAT inc. VAT

In stock

The THK200C2EF is a 3-way Junction Box / splitter suitable for internal or external uses. Accepting cables from 4 to 9.5mm diameter the handy T shaped box supplied complete with three pole terminal.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

Description

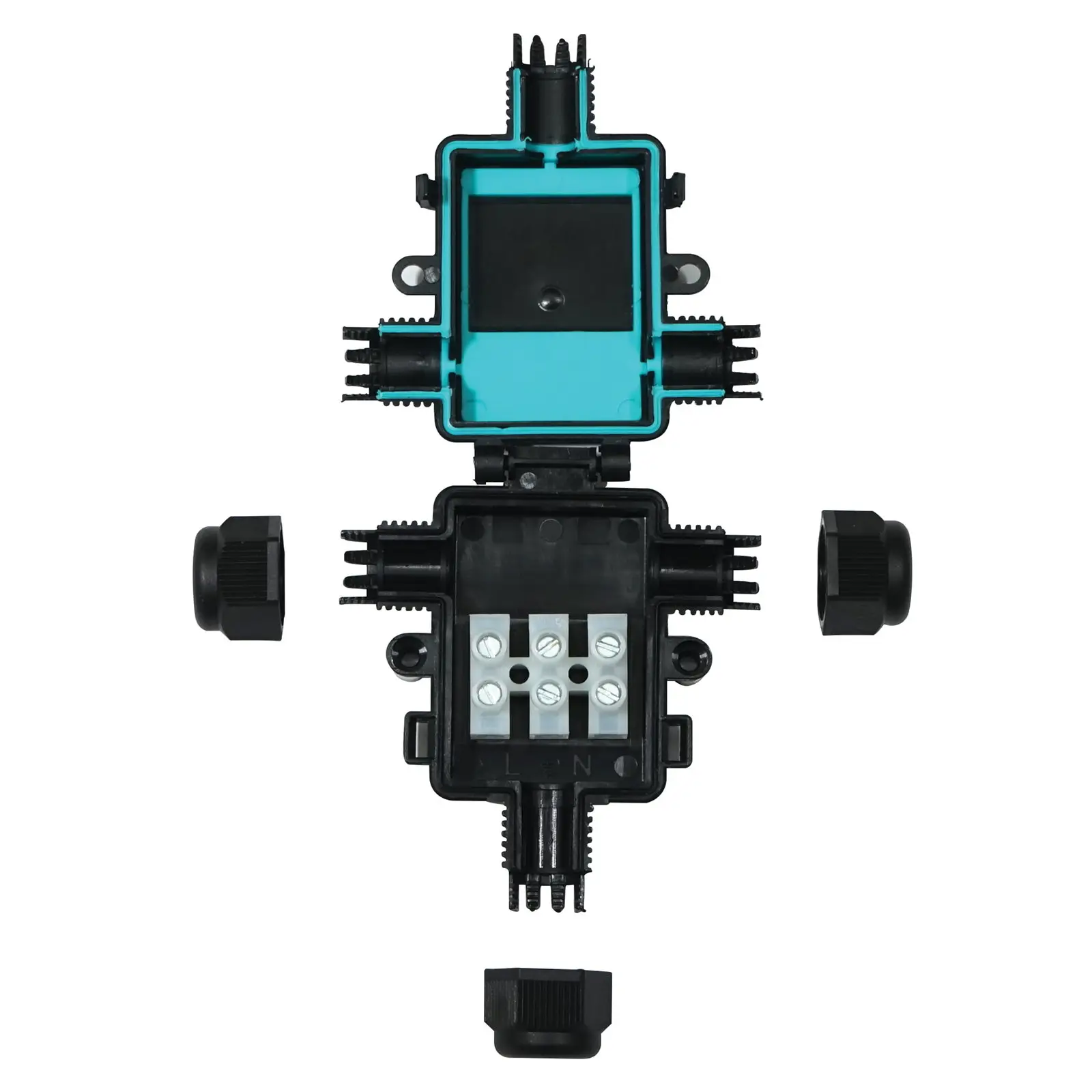

The THK200C2EF is a 3-way Junction Box / splitter suitable for internal or external uses. Accepting cables from 4 to 9.5mm diameter the handy T shaped box supplied complete with three pole terminal block. The connection hinge between the top and the bottom simplifies the installation process.

Cable entries: 3 Body material: PA66 / SEBS/ TPE IP rating: IP67 Max. conductor size: 4mm² Max. current: 16A Min. temperature rating: -40°C Max. temperature rating: 125°C Min. cable diameter: 4mm Max. cable diameter: 9.5mm

Additional information

Weight	0.3000 kg
Dimensions	8.5000 × 8.0000 × 2.0000 cm

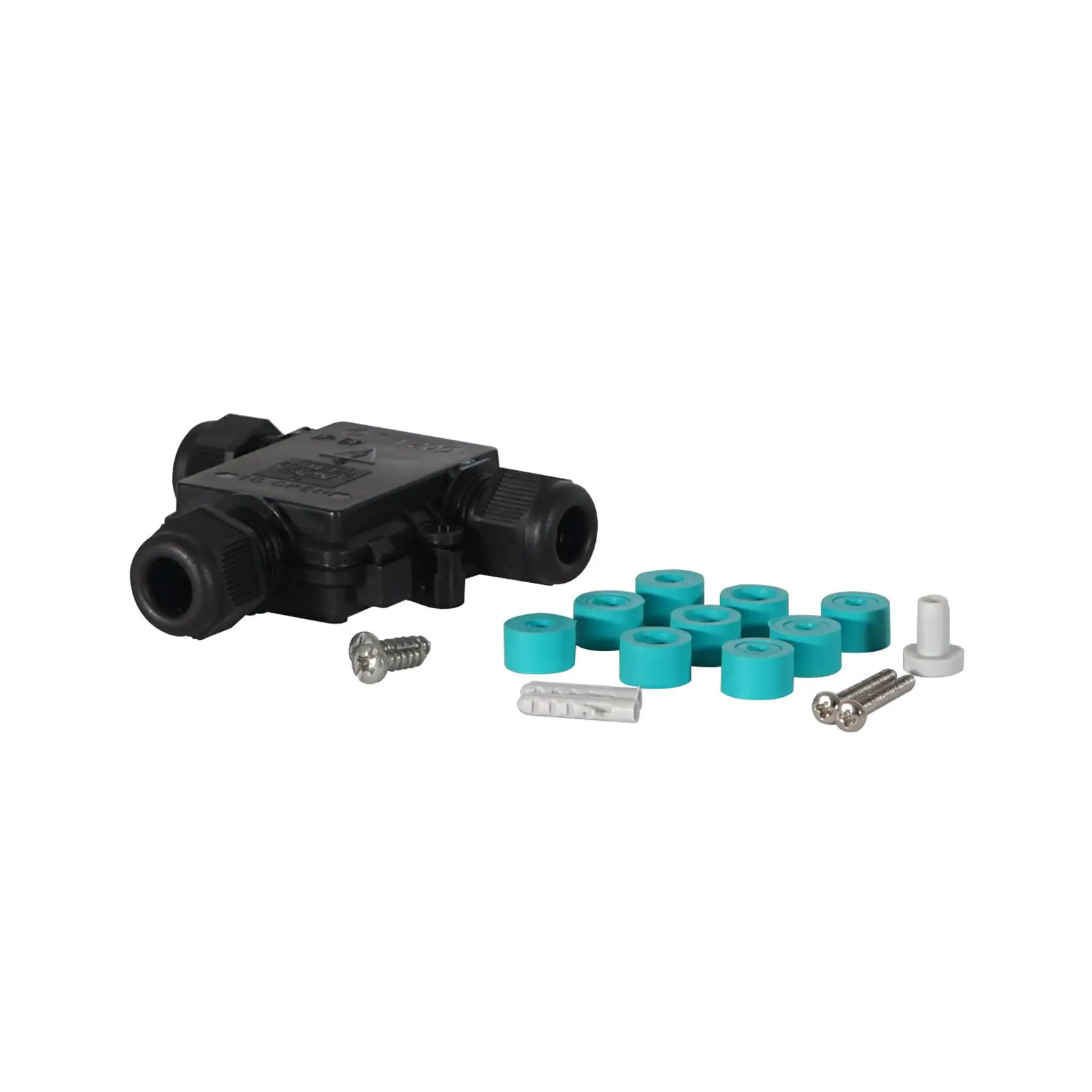

TeeBox 3 cable entries IP67 16A rated Screw terminals 3 sizes of gasket supplied (Cable sizes: 4-5.5mm 5.5-7mm 7-9.5mm). Blanking plug to allow a 2 cable connection. Closing screws plus 2 Fixing screws with wall plugs. Comprehensive range of connection options Protection rating up to IP68 depending on product Unique 3 pole T connector TH029 available for use in TH209 & TH211 range no cable forming required TH211 available as full KIT version complete with TH029 fitted Power distribution products available in 3 port (TH630) and 4 port (TH62) versions Temperature range of –20°C to +125°C/li>

Hylec_Catalogue.pdf Open in new tab ↗
