Name: Jolt Panel FX2 - Power-Hub
Brand: ADJ
SKU: ADJ1226200072
Price: 560.46 GBP
Availability: InStock

Jolt Panel FX2

Free Delivery on this item!

£560.46

ex. VAT inc. VAT

In stock

An innovative multi-use strobe / wash / eye candy fixture. It is equipped with 800 x.5-Watt RGB SMD LEDs for colour strobe wash and eye candy effects as well as 48 x 5-Watt white SMD LEDs located.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

SKU: ADJ1226200072

Categories: Lighting, Strobes

Brand: ADJ

Description

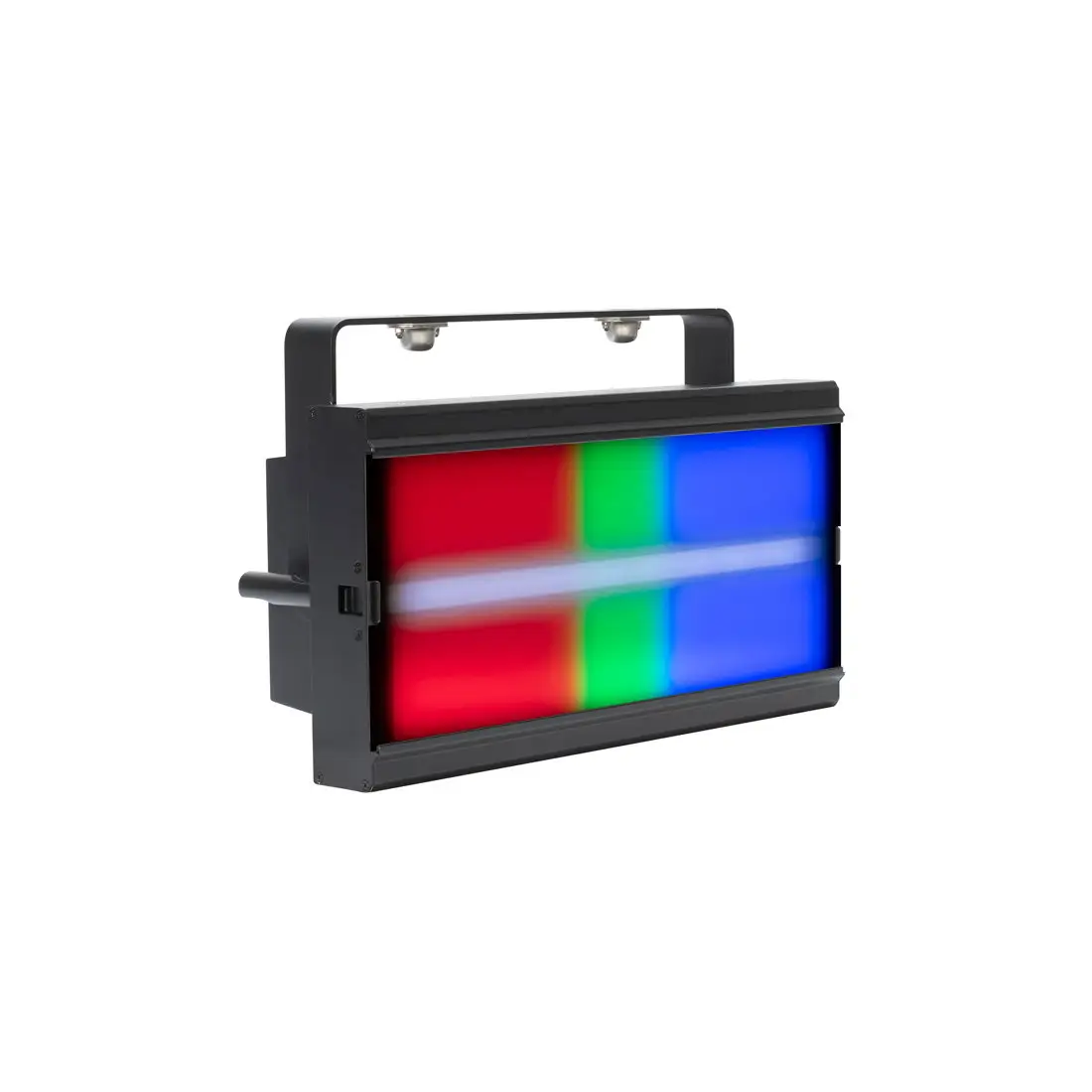

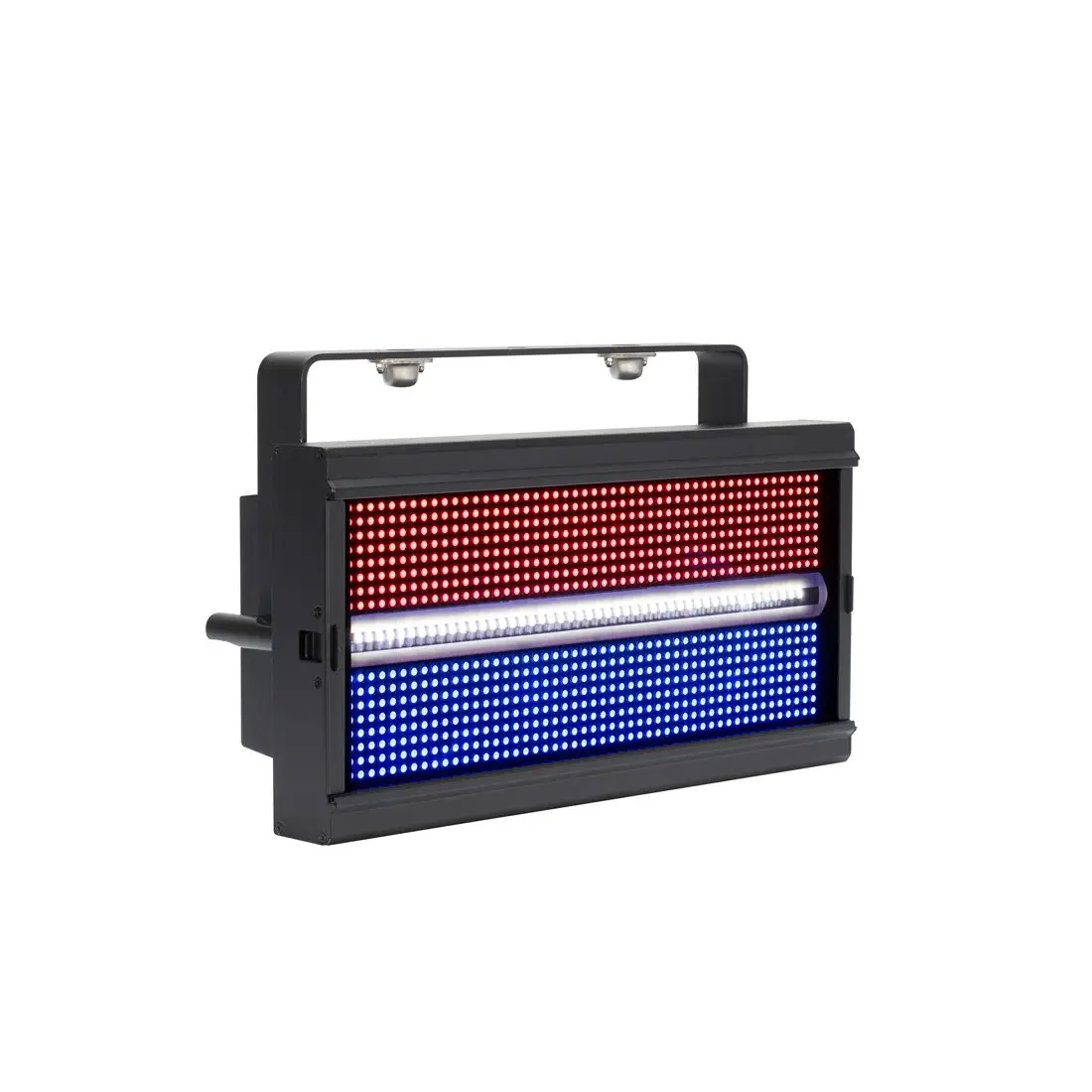

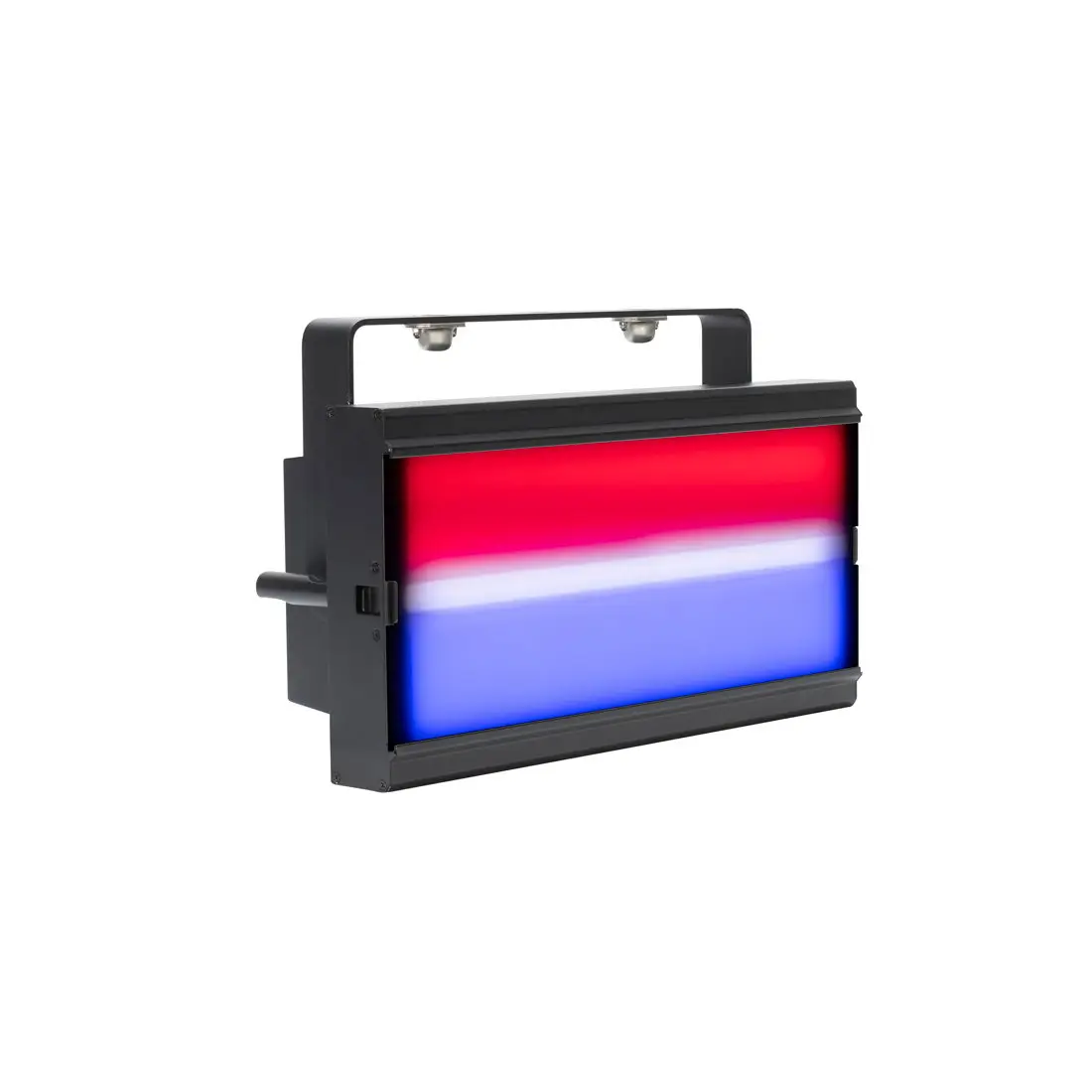

The ADJ Lighting Jolt Panel FX2 is an innovative multi-use strobe / wash / eye candy fixture. It is equipped with 800 x .5-Watt RGB SMD LEDs for colour strobe wash and eye candy effects as well as 48 x 5-Watt white SMD LEDs located in the centre of the fixture to create the traditional look of a strobe. Both types of LED are grouped into independent controllable zones (6 white and 40 colour) allowing for the creation of eye-catching animated chase patterns. The Jolt Panel FX2’s massive light output is specifically designed for large stages nightclubs live events and touring.

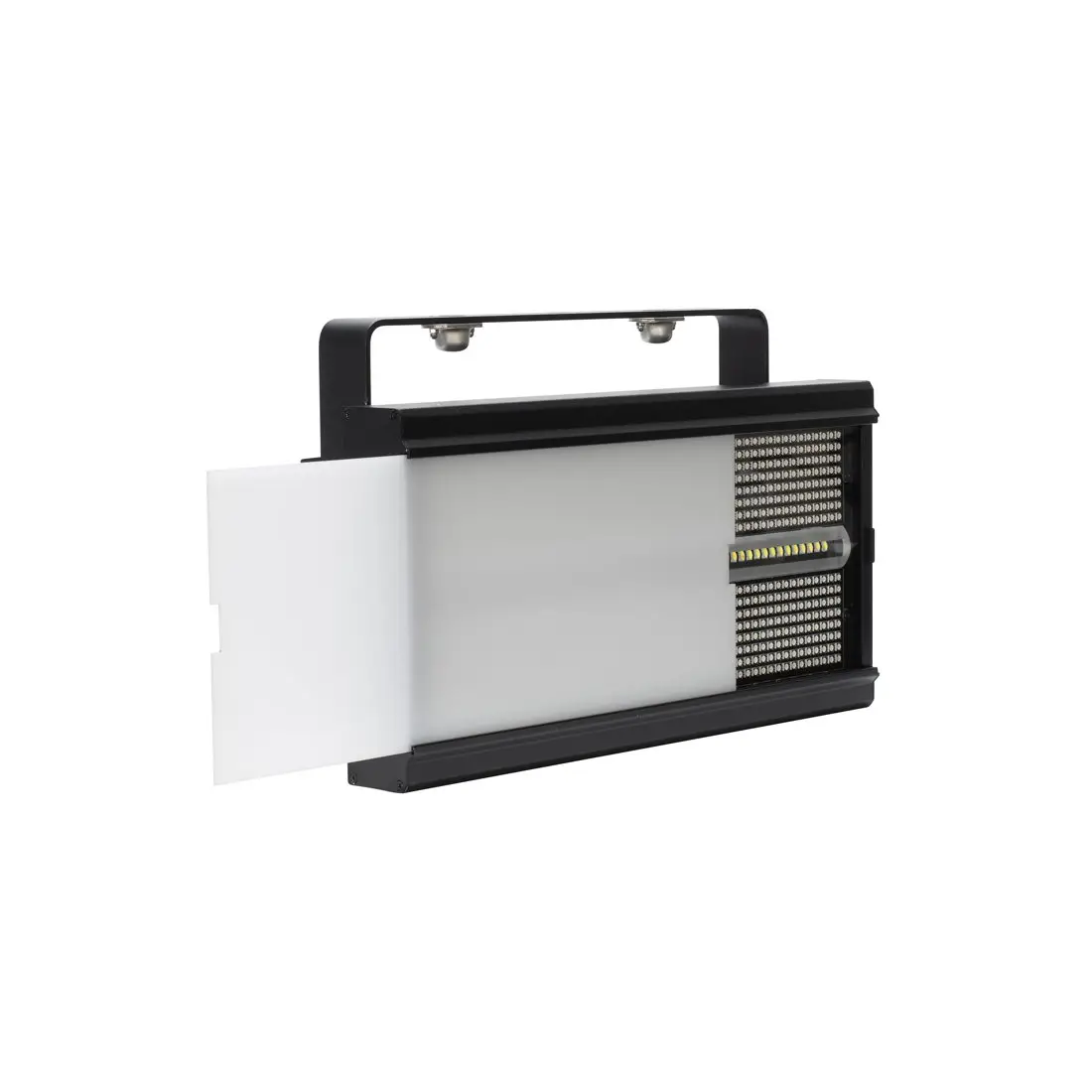

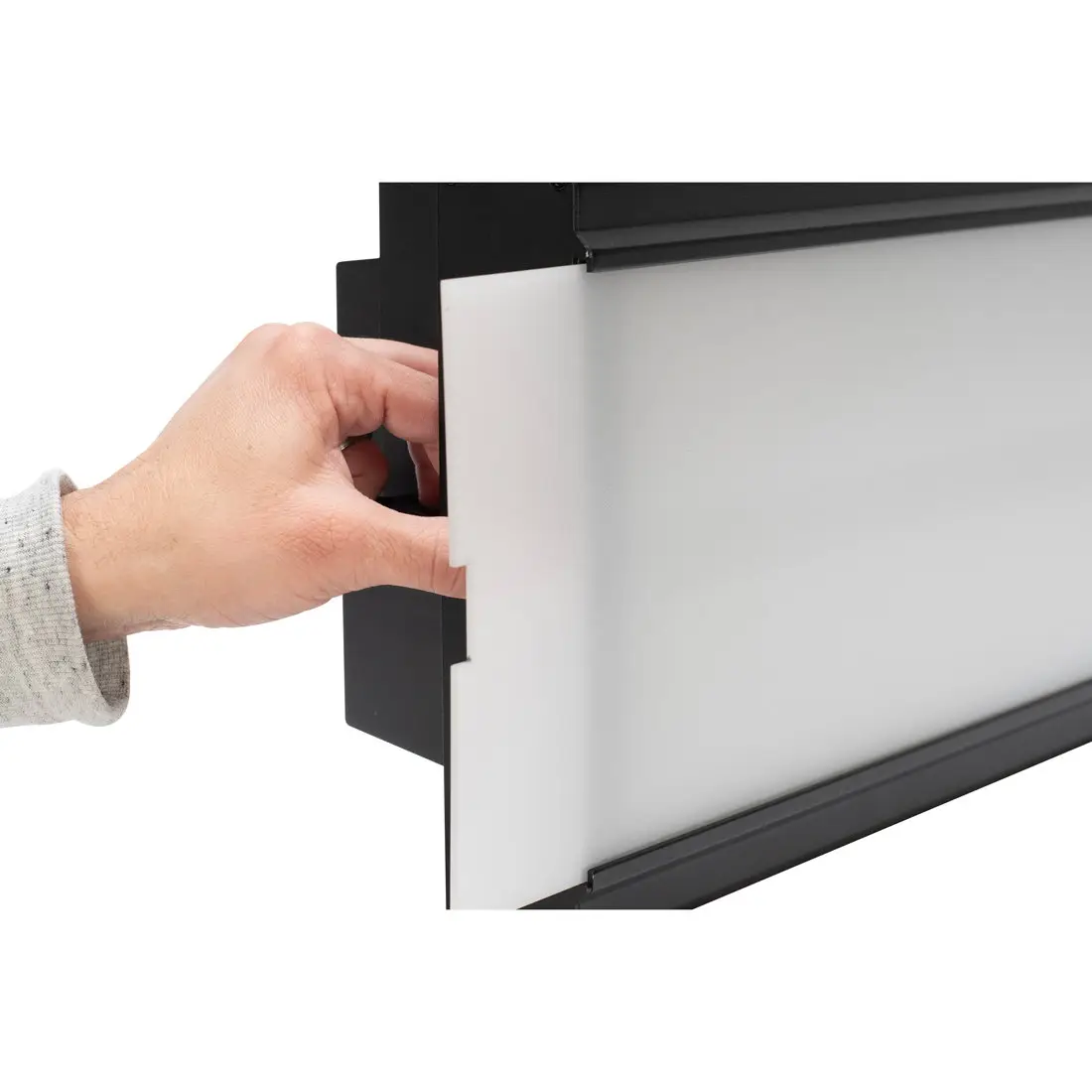

Building off the success of the original Jolt Panel FX the new Jolt Panel FX2 features upgrades that will help Lighting Designers add a new level of creativity to their lightshows. ADJ’s proprietary Aria X2 wireless DMX is built-in to each fixture (it is also compatible with ADJ’s WiFLY EXR wireless DMX) which allows data distribution to occur wirelessly. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture. These filters blur the pixel dots and provide designers with another creative way to change the effect from project to project.

The Jolt Panel FX2 offers users an easy way to navigate the built-in features from an LCD display with a 4-button menu system. The display allows users to change dimming modes dimming speed programs colour macros LED refresh rate and gamma settings as well as setting the DMX address and channel modes.

The rear panel has conveniently located 5-pin DMX in/out connections IP65 locking power in/out sockets to daisy chain power plus an OLED display with 4-button menu. There are also holes to connect an omega bracket to the Jolt Panel FX2 as an alternative to its variable angle bracket.

Manufacturer Part Number: 1226200072 Dimensions (L x W x H): 42.0 x 13.5 x 21.5cm

LIGHT SOURCE:

800 x 05-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs Beam Angle: 73° Field Angle: 111° RGB LED Specs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm White LEDs CCT: Typical 7400K (Min 6900 - Max 8000) 472nm CRI: 69.4 50000 Hour Average LED Life

FEATURES:

Aria X2 Wireless Management 40 x RGB LED Zones (126 141 and 143CH Modes) 6 x Cool White LED Zones (51 81 83 126 141 and 143CH Modes) 67 Built-In Colour Temperature Presets (2300K-8900K) 25 Built-in RGB LED Program Macros 9 Built-in Cool White LED Program Macros Channel for Light Shaping Filters (to Blur Pixel Dots) Includes Frost Filter Lens Built-in Receivers to Connect an Omega Bracket (sold separately)

CONTROL:

Control Protocols: DMX Aria X2 and RDM 10 DMX Channel Modes: 6 9 13 18 36 41 51 81 126 and 141 channel modes Dim Modes: 6 Presets (Standard Stage TV Architectural Theatre & Stage 2) Dim Curves: 4 Presets (Linear Square Law Inv Square Law & S Curve) 0-100% Smooth Dimming Strobe Shutter & Pulse Control Max Strobe Rate 20Hz; Min Strobe Rate: 1Hz. Refresh Rate: 900Hz - 25kHz. Display: OLED Display with 4-Button Touch Menu

CONNECTIONS:

Data: Locking 5-pin DMX In/Out Power: IP65 Locking Power In/Out

ELECTRICAL:

100-240V 50Hz/60Hz (Auto Sensing) Max Power Consumption: 208W @230V Max Power Link: 12pcs @230V Fuse Protected: T5A/250V Glass Fuse (5*20MM)

DIMENSIONS / WEIGHT:

Length: 153.8mm Width: 417mm Height: 263.5mm Weight: 91kg

WHAT'S INCLUDED:

1x IP65 locking power cable Diffusion filter

OPTIONAL ACCESSORIES:

180mm Omega Bracket Hydro (SKU 9900026435) Jolt Panel FX BLKF Jolt Panel FX 1x60 LF (60x1° Beam Shape filter) Jolt Panel FX 60x1 LF (1x60° Beam Shape filter)
