Novastar VX16S

Free Delivery on this item!
£4,403.63
ex. VAT inc. VAT
In stock

The VX16s is NovaStar’s new all-in-one controller that integrates video processing video control and LED screen configuration into one unit. Together with NovaStar’s V-Can video control software it.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1226300144
Categories: ,
Brand:

Description

The VX16s is NovaStar’s new all-in-one controller that integrates video processing video control and LED screen configuration into one unit. Together with NovaStar’s V-Can video control software it enables richer image mosaic effects and easier operations.

The VX16s supports a variety of video signals Ultra HD 4K×2K@60Hz image processing and sending capabilities as well as up to 10400000 pixels.

Thanks to its powerful image processing and sending capabilities the VX16s can be widely used in applications such as stage control systems conferences events exhibitions high-end rental and fine-pitch displays.

Manufacturer Part Number: 1226300144

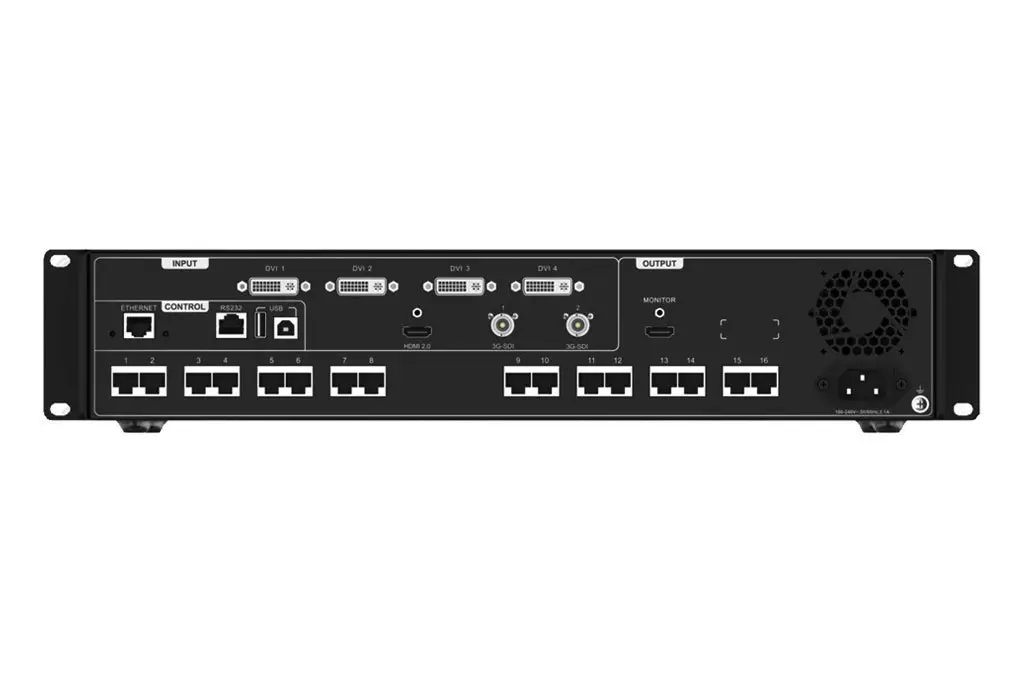

Industry-standard input connectors

2x 3G-SDI (Interlaced and Progressive scan supported) 1x HDMI 2.0 (Interlaced signal NOT supported) 4x SL-DVI (Interlaced signal NOT supported)

Output

16 Ethernet output ports load up to 10400000 pixels. 3 independent layers 1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2) Adjustable layer priorities Output Frame rates: 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 47.95 Hz 48 Hz 50 Hz 56 Hz 59.94 Hz 60 Hz 70 Hz 71.93 Hz 72 Hz 75 Hz 85 Hz 100 Hz 119.88 Hz and 120 Hz.

DVI mosaic

Up to 4 DVI inputs can form an independent input source which is DVI Mosaic.

Input resolutions/Frame Rates

Supported standard frame rates/resolutions:

- 1024×768 @ (48/50/59.94/60/75/85)Hz
- 1280×720 @ (23.98/24/25/29.97/30/48/50/59.94/60)Hz
- 1280×1024 @ (48/50/59.94/60/75/85)Hz
- 1364×768 @ (50/59.94/60)Hz
- 1366×768 @ (50/59.94/60)Hz
- 1440×900 @ (60/75/85)Hz
- 1600×1200 @ (48/50/59.94/60)Hz
- 1680×1050 @ 60Hz
- 1920×1080 @ (23.98/24/25/29.97/30/48/50/59.94/60)Hz
- 1920×1200 @ (50/59.94/60)Hz
- 2048×1080 @ (30/48/50/59.94/60)Hz
- 2048×1152 @ (30/60)Hz
- 2560×1080 @ (50/59.94/60)Hz
- 2560×1600 @ (50/59.94/60)Hz
- 2560×1600 @ 120Hz
- 3840×1080 @ 30Hz
- 3840×1080 @ (50/59.94/60)Hz
- 3840×1080 @ 120Hz
- 3840×2160 @ (23.98/24/25/29.97/30)Hz
- 3840×2160 @ (50/59.94/60)Hz
3D

Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D function is enabled.

Personalized image scaling

Three scaling options are pixel-to-pixel full screen and custom scaling.

Image mosaic

Up to 4 devices can be linked to load a super large screen when used together with the video distributor. Easy device operation and control through VCan Up to 10 presets can be saved for future use.

EDID management

Custom EDID and standard EDID supported

Device backup design

In backup mode when the signal is lost or the Ethernet port fails on the primary device the backup device will take over the task automatically.
