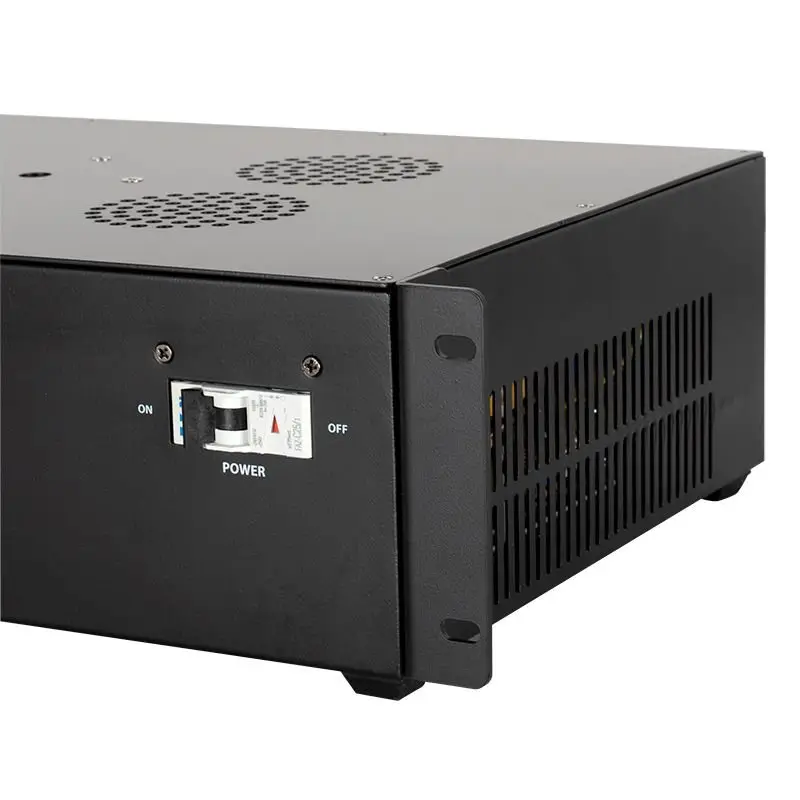

Pixie Driver 8000 V2 - Image 2

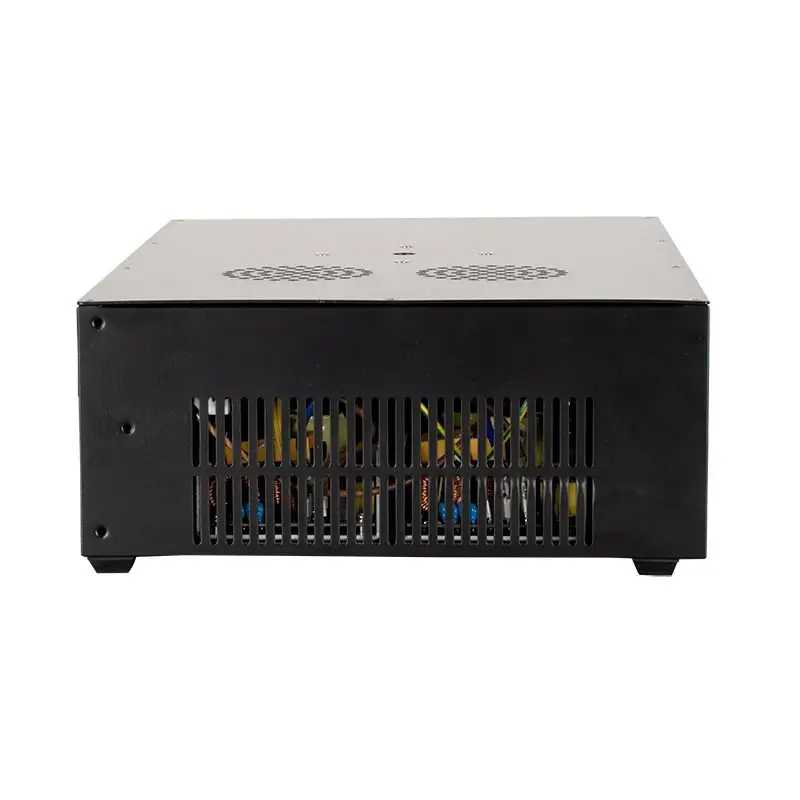

Pixie Driver 8000 V2 - Image 3
Pixie Driver 8000 V2 - Image 4
Pixie Driver 8000 V2 - Image 5
The Best PricesCompetitive pricing always
🇬🇧Supplying fast delivery throughout UK

Pixie Driver 8000 V2

Free Delivery on this item!
£1,136.94
ex. VAT inc. VAT
In stock

Designed specifically for the ADJ Pixie Strip 30 Pixie Strip 60 and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control plus.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1226200079
Categories: ,
Brand:

Description

Pixie Driver 8000 V2 is designed specifically for the ADJ Pixie Strip 30 Pixie Strip 60 and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control plus full pixel mapping control of 8160 max pixels via Kling-Net Art-Net or sACN (streaming ACN) protocols.

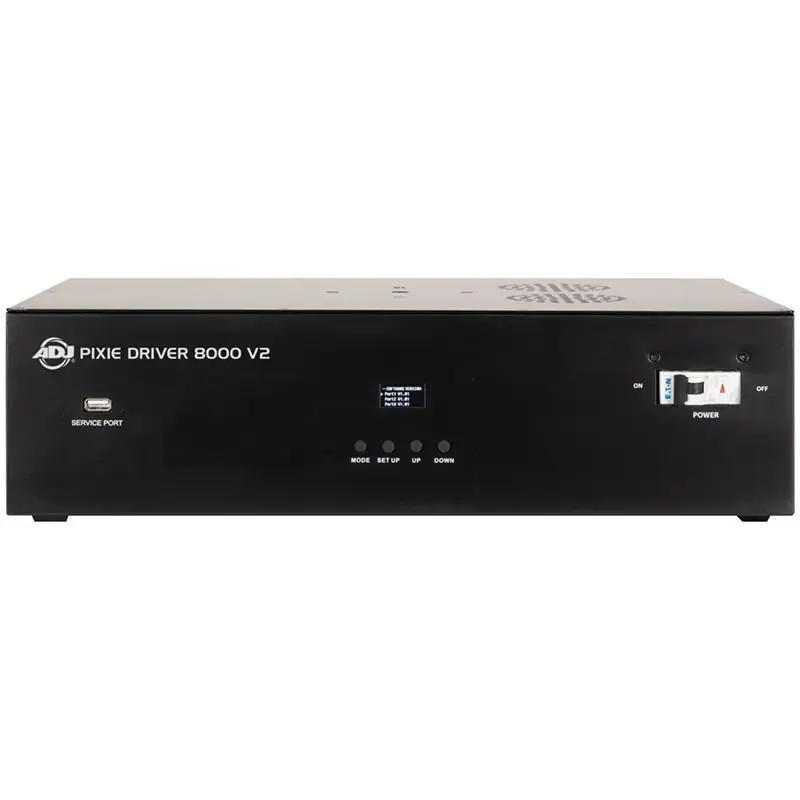

The Pixie Driver 8000 V2 features a universal auto switching power supply (100-240V) a 4-button LCD control menu display RJ45 Ethernet in/out ports (8) Pixie Strip outputs which use proprietary 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 2 to 50 feet (For additional details see Accessories Sold Separately under the Specifications section). The Pixie Driver 8000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Manufacturer Part Number: 1226200079
Specifications
Control Features:

Power / data supply for ADJ Pixie Strip 30 Pixie Strip 60 and Pixie Strip 120 Manual RGB mode Internal programs Manual Dimming and Strobe Control Full Pixel Mapping Control Drives up to 8160 Pixels via KlingNet ArtNet and sACN (1020 Pixels per port) OLED screen with 4-button menu USB port for Firmware Updates

Control Quantity:
KlingNet / Art-Net / sACN: (34) Pixie Strip 30's (17) Pixie Strip 60's or (8) Pixie Strip 120's (Per port. Or any combination not exceeding 1020 pixel per port)
Connections:

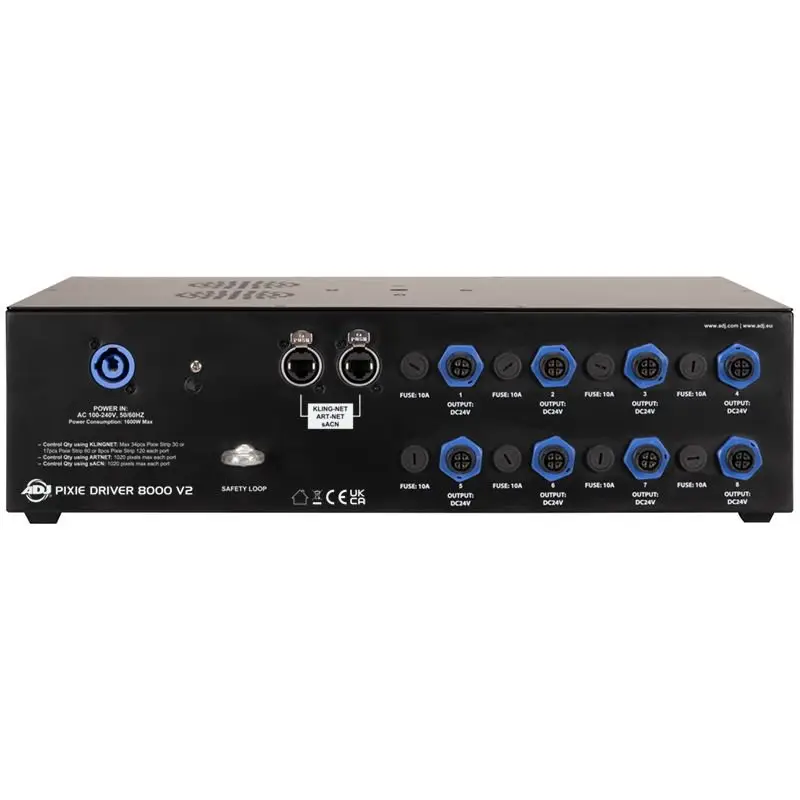

Power: PowerLock Input Two KlingNet / Artnet ethernet ports Eight 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options:

Bolt to add a clamp to hang from truss (clamp and truss not included) Includes 19-inch rack mount ears Safety eye

Electrical:

Multi-voltage operation: AC 100-240V 50/60Hz Power Consumption: 1600W max -4°F to 113°F (-20°C to 45°C)

Dimensions / Weight:

Dimensions (LxWxH): 11.6” x 18.9” x 4.8” / 294x480x120mm Weight: 13.4 lbs. / 6.1 kg.

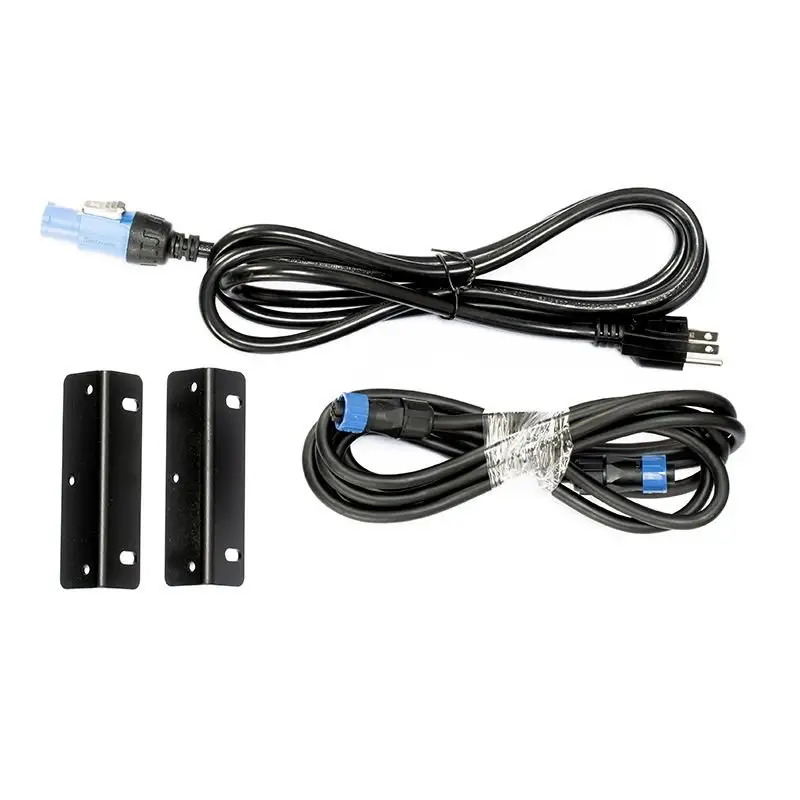

Included Accessories:
(1) PIXEL BC10 (PIX339): 10' 4-pin cable. Connects between Pixie Driver 8000 V2 and Pixie Strip.
(1) SIP20MPC (SIP293): Power Input cable
(2) 19" Rack Ears
Accessories Sold Separately:
PSLC1 (PIX158): 1-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC3 (PIX174): 3-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC5 (PIX188): 5-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC10 (PIX200): 10-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC15 (PIX213): 15-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC25 (PIX229): 25-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC50 (PIX242): 50-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
Specifications subject to change without notice.
