Name: Powersafe 500A Panel Drain T5 Post L3 Grey - Power-Hub
Brand: eLumen8
SKU: CONN614
Price: 36.86 GBP
Availability: InStock

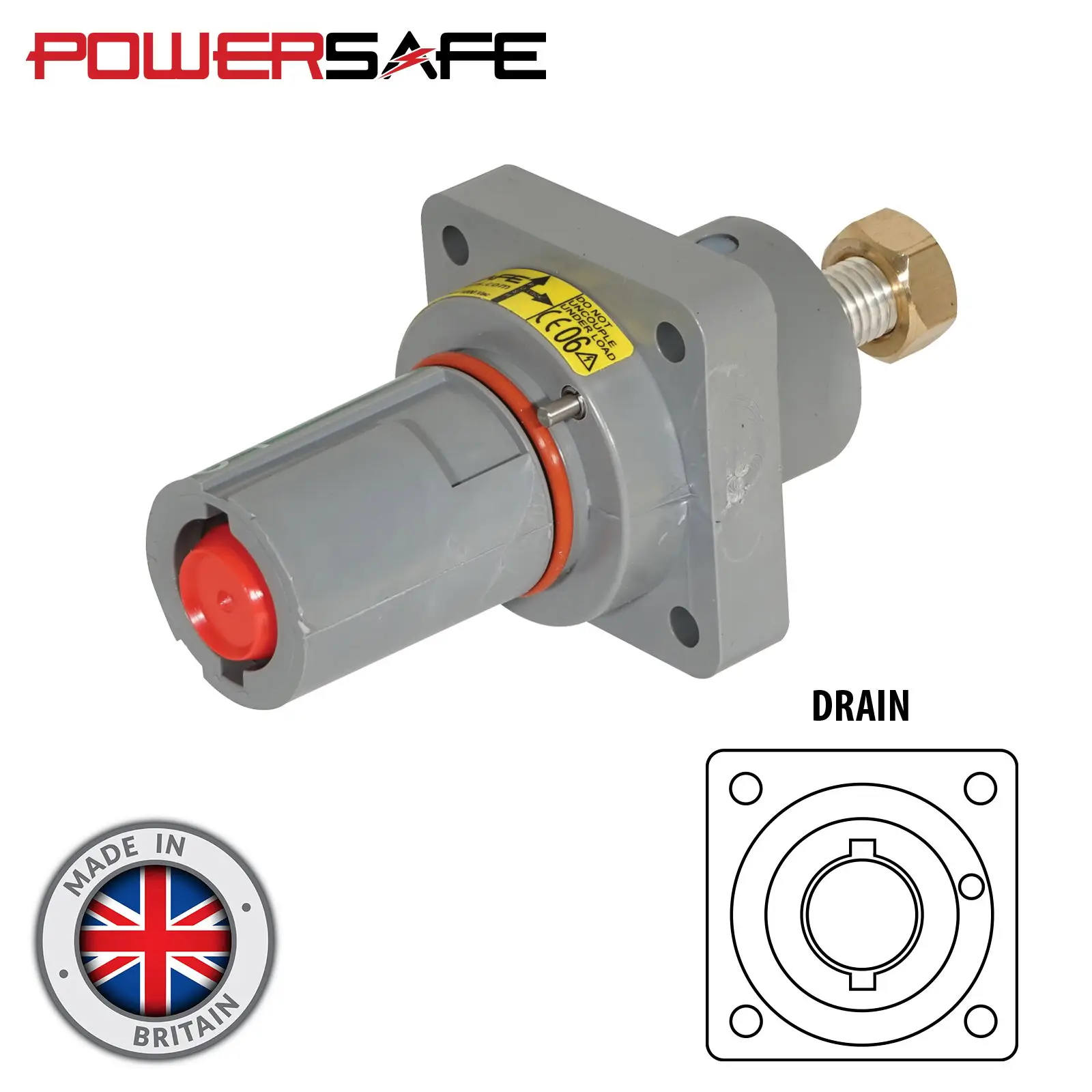

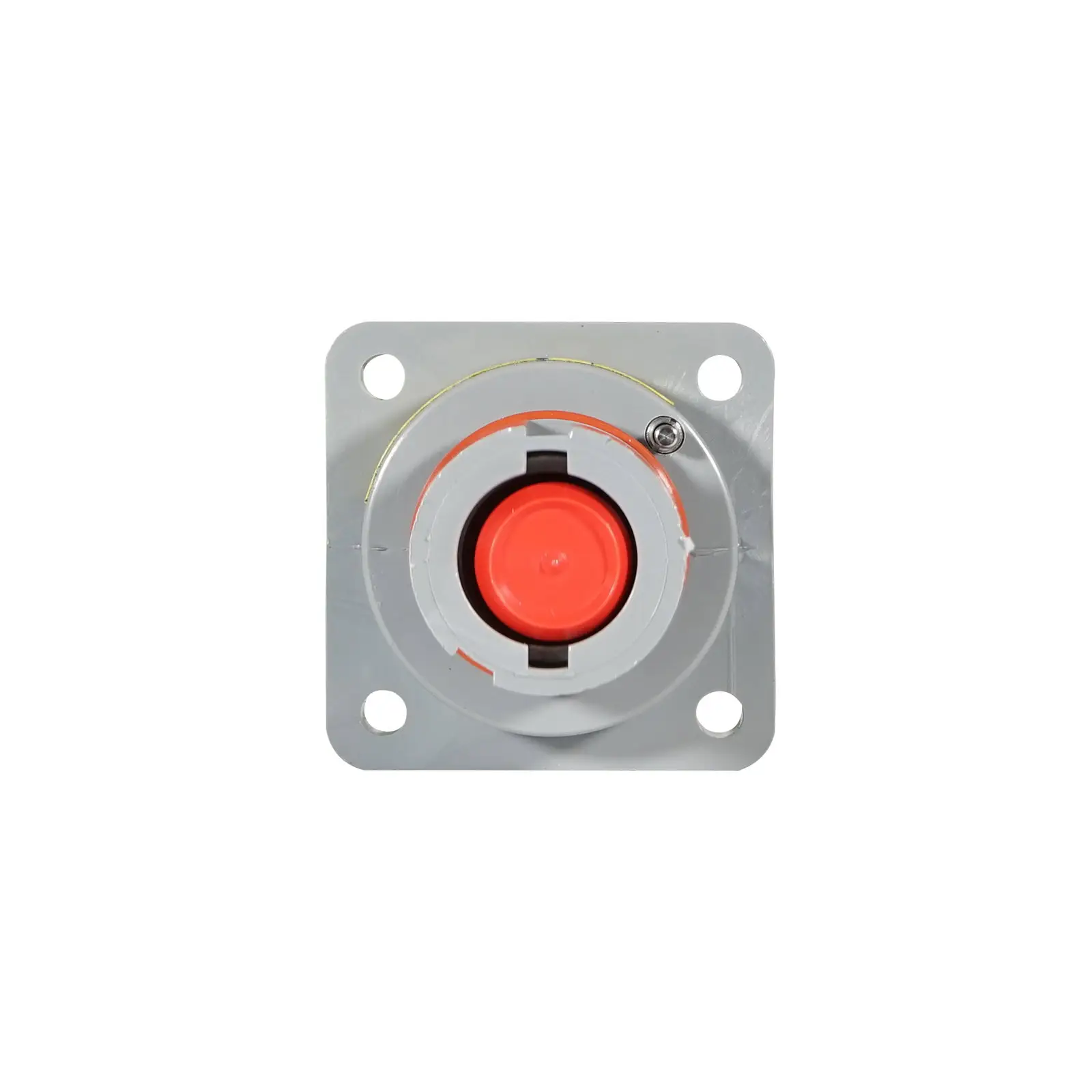

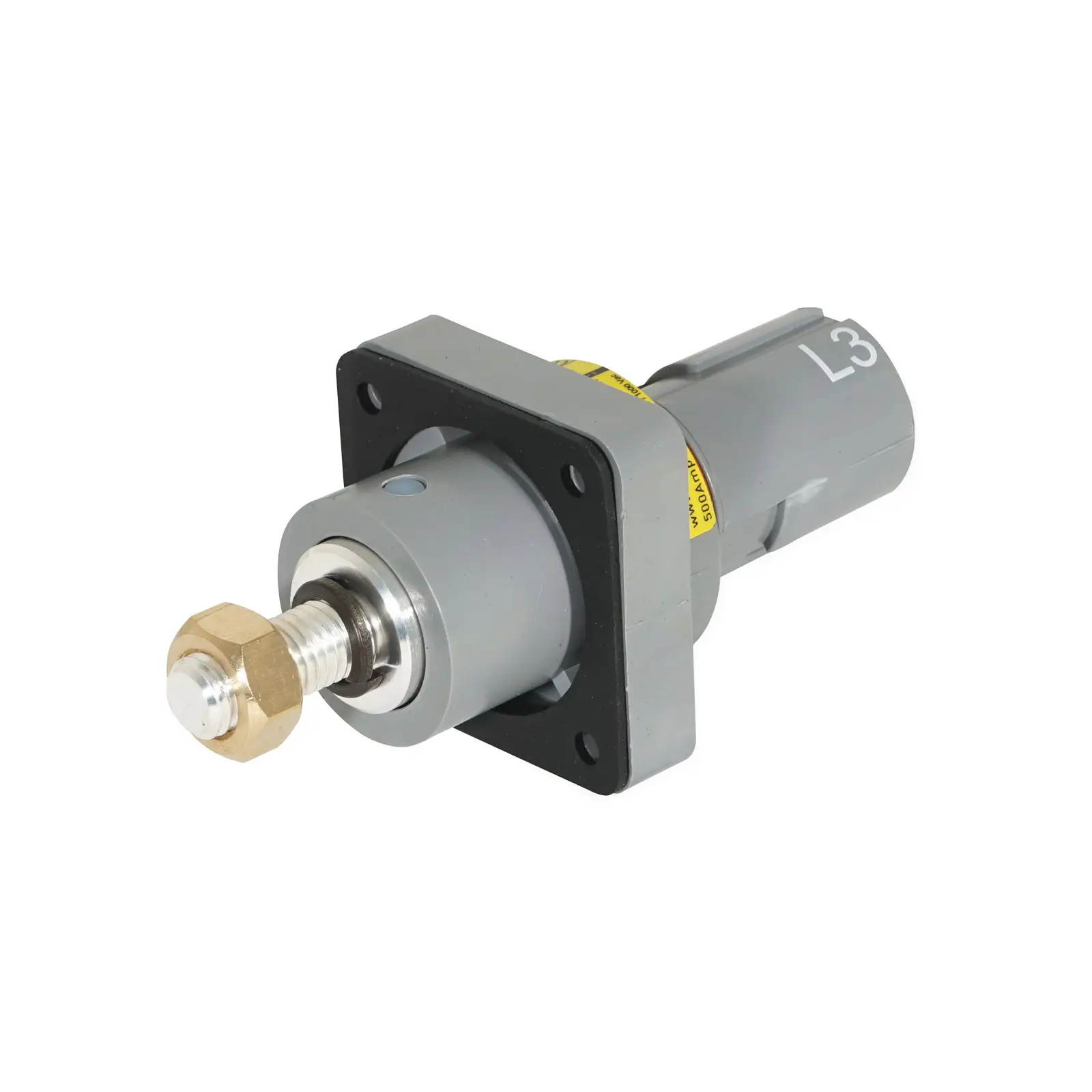

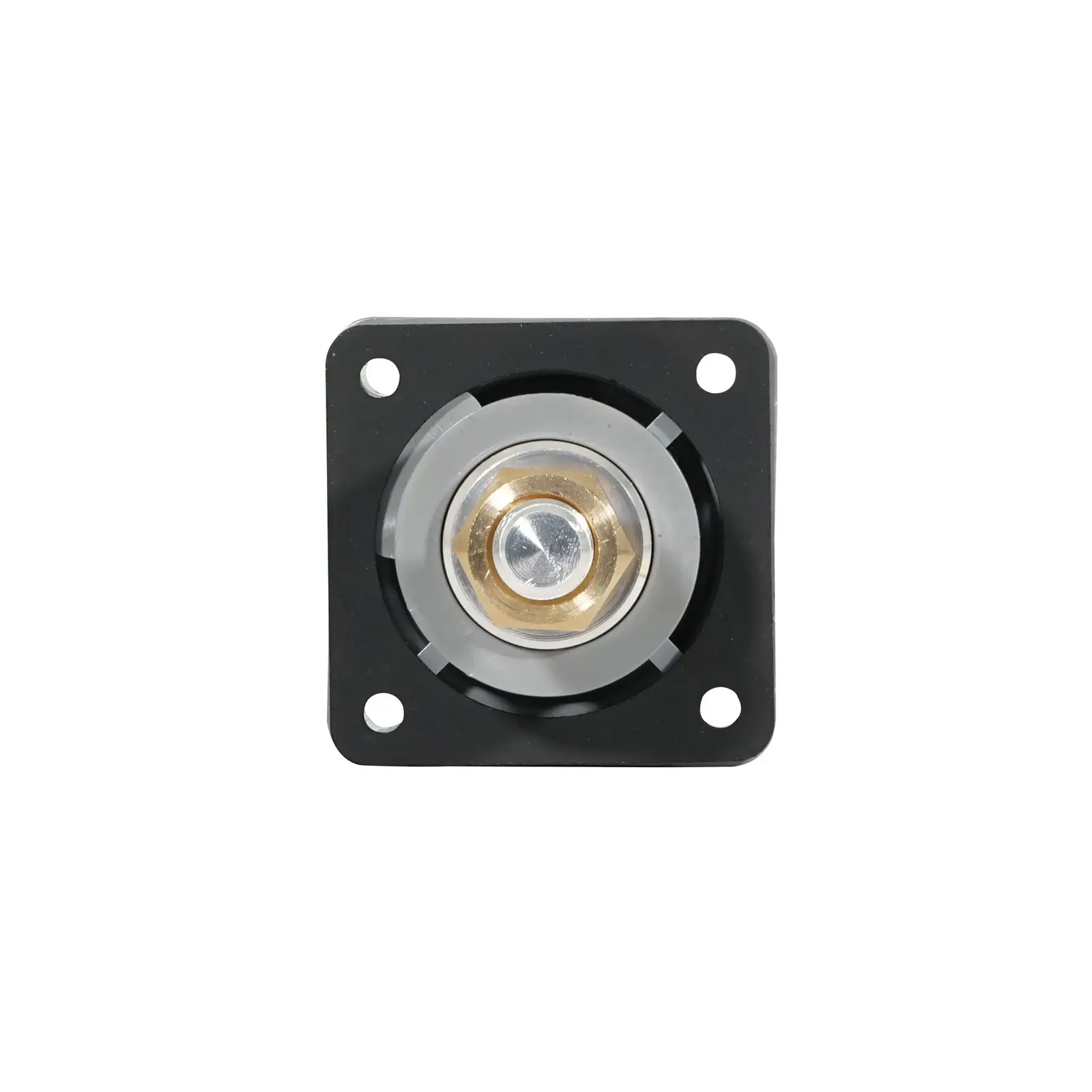

Powersafe 500A Panel Drain T5 Post L3 Grey

£36.86

ex. VAT inc. VAT

In stock

Phase 3s Powersafe single pole connectors are the highest rated safest and finest quality industrial plug available and are used by the power distribution events military and cable assembly.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

Description

Phase 3s Powersafe single pole connectors are the highest rated safest and finest quality industrial plug available and are used by the power distribution events military and cable assembly industries worldwide. A set of Powersafe line connectors can easily terminate to copper cable using either industry standard crimp tools or set-screw contacts. The three phase power distribution range includes: Earth Neutral L1 L2 and L3 available in either source or drain format as 800A or 500A determined by cable size (240mm²-300mm² requires 800A plugs 25mm²-185mm² requires 500A plugs). They are the perfect safe alternative to Camlock connectors and fully compatible with Litton VEAM T4 400 and T6 660 amp powerlocks ITT Cannon and other manufacturers.

No of contacts: 1 Maximum continuous rating* Up to 500A Surge current: 75kA Short circuit rating up to: 35.5kA Contact termination: T5 threaded post Mating method: Bayonet lock Operating voltage: 1000V AC Max. rated voltage to tarth: 2kV AC / 3kV DC Minimum flashover: 9.5kV DC or AC Peak Insulation resistance: >5MΩ @ Mating cycles: >500 Shell material: High temperature thermoplastic Contact plating: Silver * Subject to environmental factors and cable choice etc ** In accordance with EN60529

Additional information

Weight	0.3000 kg
Dimensions	6.0000 × 13.0000 × 17.0000 cm

Made in Britain Manufacturers code: SPD-3-GY-T5 Type: 500A Panel Drain T5 Post L3 Grey Mechanically keyed to eliminate the possibility of cross mating Secondary locking prevent unintentional uncoupling under load Finger-proof protection against electric shock IP2X Waterproof and dustproof to IP67 rated Colour coded for easy identification Innovative contact band allows higher rating (400A>500A 660A>800A) Contact band cannot come out High impact insulator (no glass used and flame retardant) Field installation no special tools required Integral cable strain relief Daisy chain capability facilitates flexible stock cable lengths Large cable range: 25mm²-300mm² (Please note: If you require Powersafe for power cables less than set screw 120mm² i.e. 95mm² 70mm² 50mm² 35mm² 25mm² you must purchase a reducer kit separately)
