Solidcom H1 Antenna ANT01

Name: Solidcom H1 Antenna ANT01 - Power-Hub
Brand: HOLLYLAND
SKU: HL0087
Price: 2597.00 GBP
Availability: InStock

Free Delivery on this item!

£2,597.00

ex. VAT inc. VAT

In stock

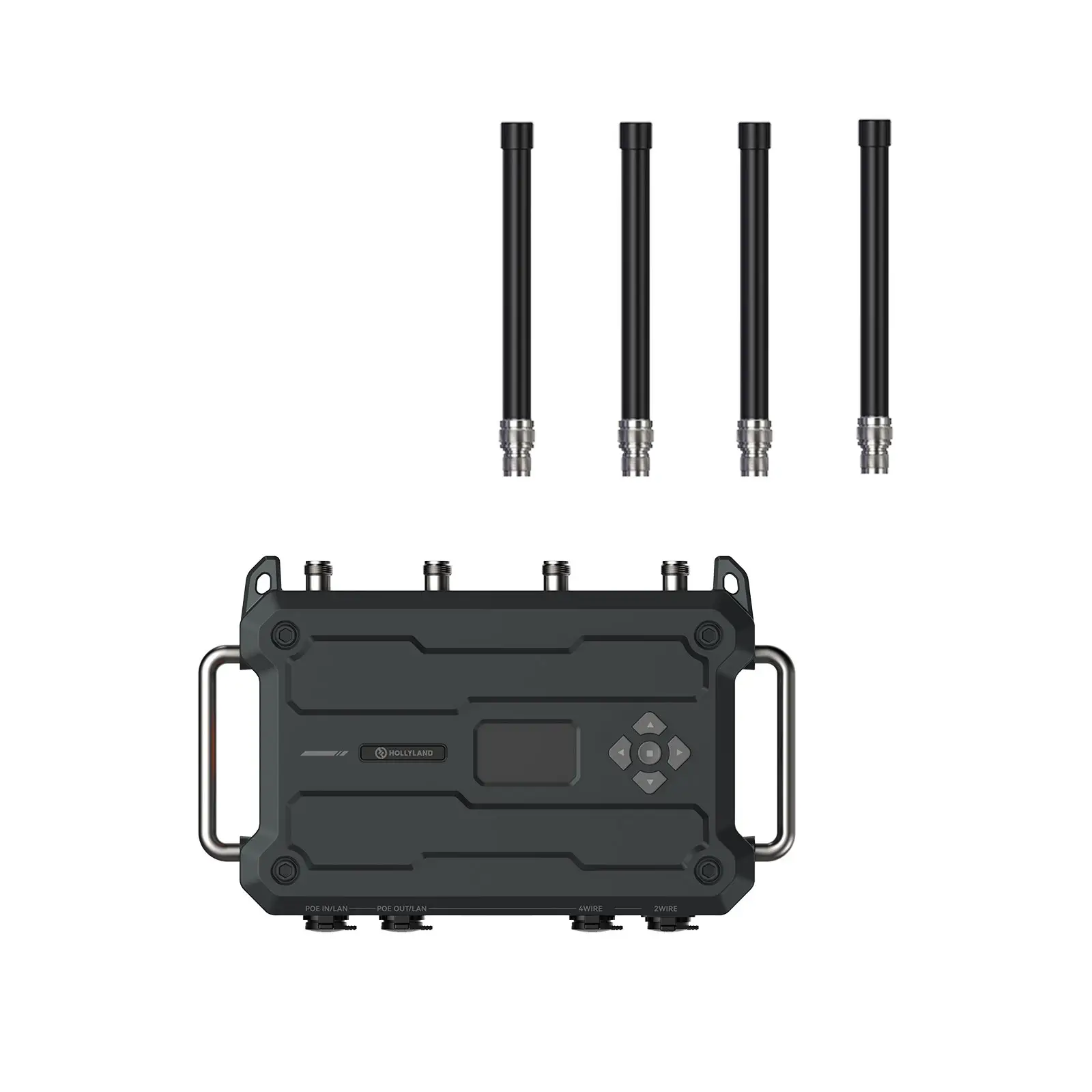

The Solidcom ANT01 is the core antenna unit of the Solidcom H1 wireless intercom system delivering scalable license-free full-duplex communication for professional productions.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

SKU: HL0087

Categories: Audio, Comms

Brand: HOLLYLAND

Description

The Solidcom ANT01 is the core antenna unit of the Solidcom H1 wireless intercom system delivering scalable license-free full-duplex communication for professional productions. Operating independently or as part of a larger network a single ANT01 supports up to 20 beltpacks while cascading multiple antennas enables coverage for up to 80 beltpacks across large sites using seamless roaming technology. Designed for flexible deployment the ANT01 supports PoE DC or battery power and integrates easily with Dante and existing wired intercom systems. With long-range DECT transmission network-based configuration and robust IP54 construction the Solidcom ANT01 provides reliable wide-area wireless coverage for demanding production environments.

Model: Solidcom ANT01 Product Name: Full-Duplex Wireless Intercom System LOS Range: 500m Operating Frequency: DECT: 1880 - 1930 MHz; BT: 2402 - 2480 MHz; WIFI: 2.4G - 2.4835 Ghz Transmit Power: 24 dBm Bandwidth: 1.728 MHZ Modulation Mode: GFSK Receiver Sensitivity: -90 dBm Antenna Gain: 4dB Power Consumption: 15.5W POE Output Power: ≤ 45W POE Input Power: ≤ 60W V/G Mount Battery Voltage Range: 9 - 30V Dimensions: 302 × 188.56 × 64.6mm Weight: 1987g Ingress Protection (IP) Rating: IP54 Operating Temperature: -10 - 45℃ Storage Temperature: -20 - 60℃

Modular hub/antenna design supporting scalable intercom networks Cascades up to 8 antennas via central station or up to 3 antennas in standalone mode Supports up to 80 beltpacks (hub-based) or 30 beltpacks (standalone) full-duplex Long-range wireless coverage up to 500m line-of-sight with seamless roaming DECT-based full-duplex communication for stable interference-resistant performance Auto-cascade Ethernet connectivity with zero IP or network configuration required Built-in WiFi and Bluetooth for remote configuration via web interface or mobile app Stores up to 100 group configurations 100 role presets and 80 beltpack profiles Built-in 4×4 DANTE/AES67 interface for direct audio network integration Remote system access and configuration support via cloud-enabled apps IP54-rated antenna for reliable outdoor operation in challenging environments Supports PoE DC or V/G-mount battery power for flexible installation options

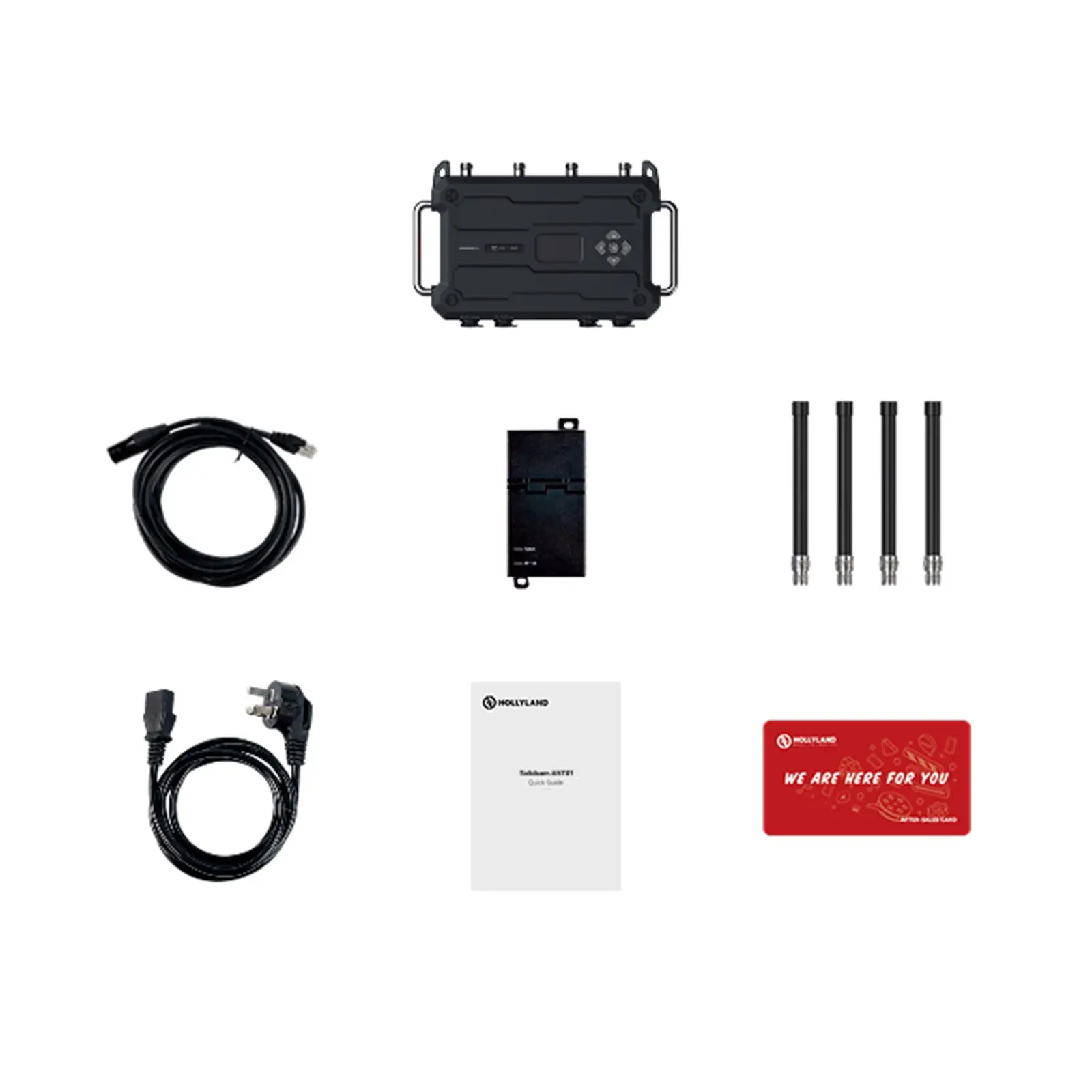

Whats in the box:
