VS3IP

Free Delivery on this item!
£1,200.99
ex. VAT inc. VAT
In stock

A high resolution video panel from ADJ. Each panel has a pixel pitch of 3.84mm with a configuration of a 3-in-1 RGB SMD1921 LEDs. The panel is IP65 on the front and IP54 on the back which allows.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1226300160
Categories: ,
Brand:

Description

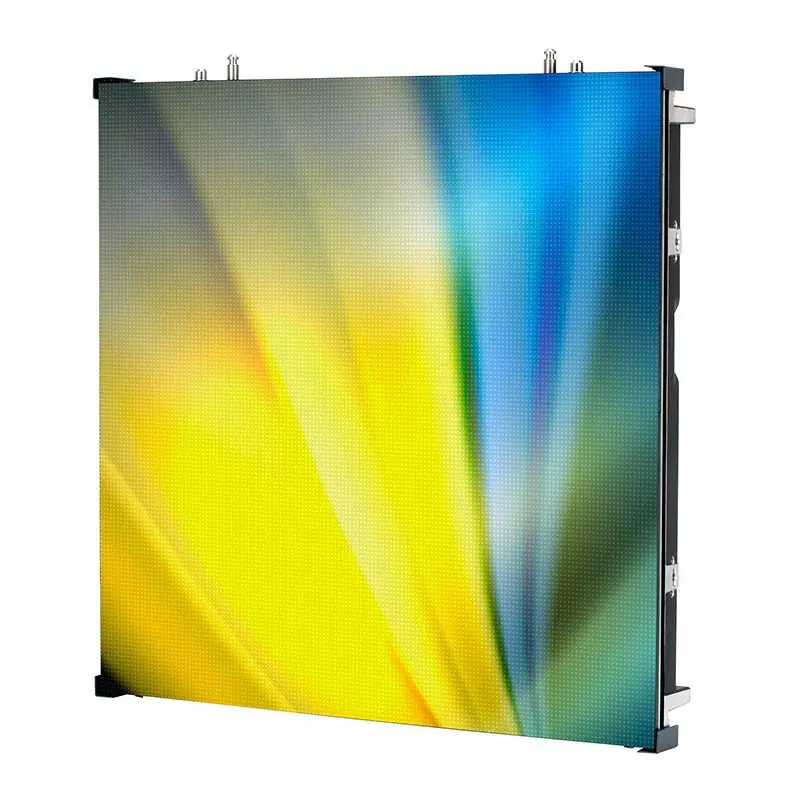

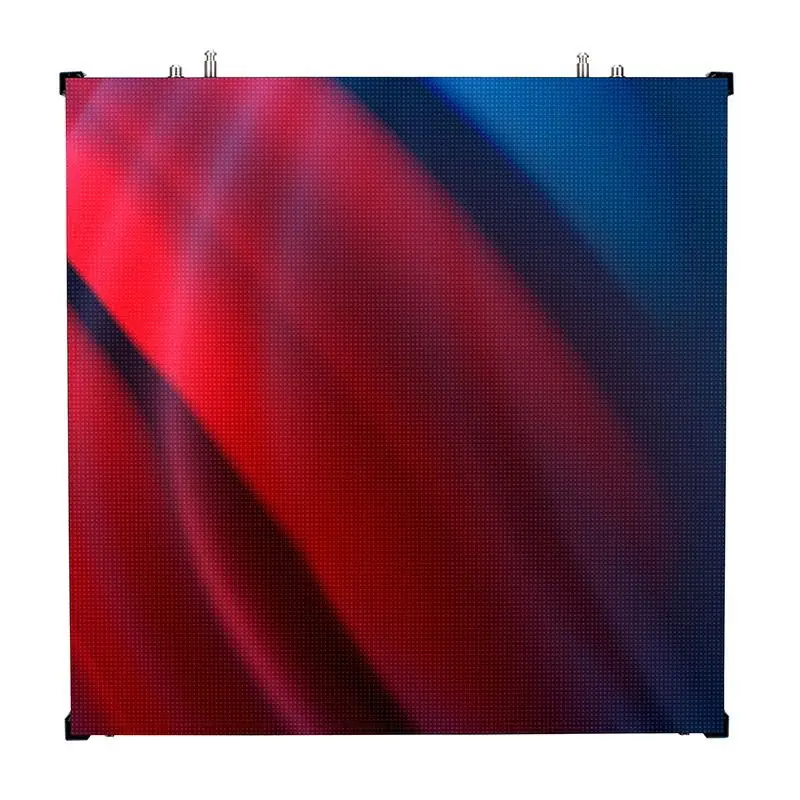

The VS3IP is a high resolution video panel from ADJ. Each panel has a pixel pitch of 3.84mm with a configuration of a 3-in-1 RGB SMD1921 LEDs. The panel is IP65 on the front and IP54 on the back which allows for temporary outdoor use. The brightness is 4500 NITS. The panel also features MOM (Memory On Module) technology and produces a high refresh rate of 3840Hz. The VS3IP includes IP65 locking power in/out connections and locking RJ45 ethernet in/out connections. This panel also features a built-in Novastar A5S receiving card.

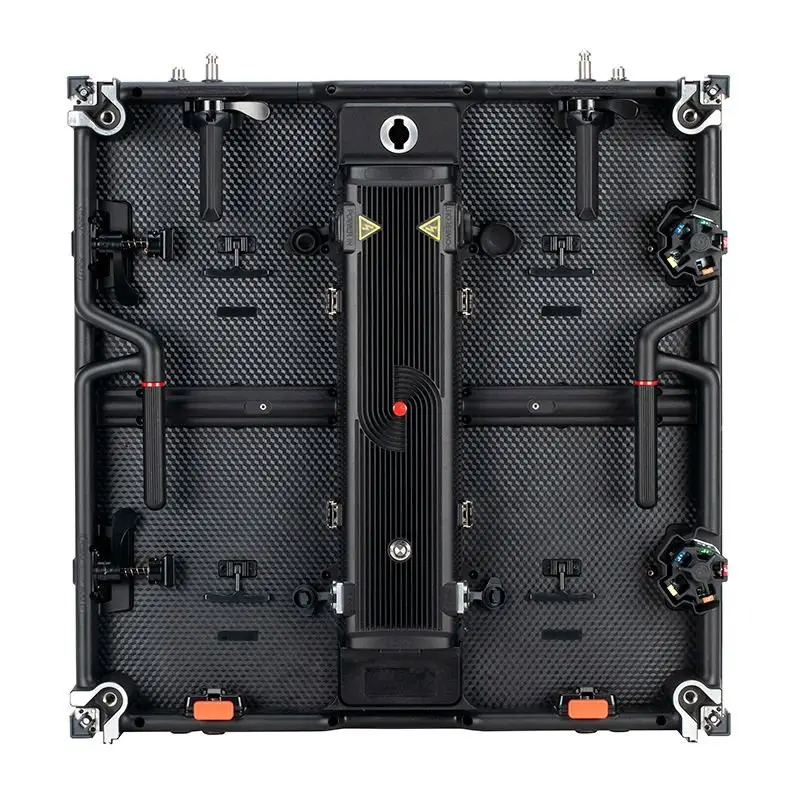

The VS3IP has four individual mini modules and is rear serviceable. The VS3IPRB1 single panel multi-purpose rigging bar may be used to vertically hang up to 20 VS3IP panels or vertically ground stack up to 8 panels. The panel is CE and ETL approved.
The VS3IP is a great video solution for indoor or outdoor use. ADJ offers accessories such as video processors cabling rigging bars flight cases so that you have everything you need to get up and running.
Manufacturer Part Number: 1226300160 Dimensions (L x W x H): 7.5 x 57.5 x 57.5cm
SPECIFICATIONS:
Source

Light Source: RGB SMD1921 LED Pixel Density: 150x150 per panel; 67816 per square meter Operating Life / MTBF: 50000 Hours / 5000 Hours Pixel Pitch: 3.84mm Gaps<0.5mm

Optics

Brightness: 4500 NITS View Angle: Horizontal 160°/Vertical 140° @ 3m Gray Scale: ≥14-bit Brightness Adjustment: 0~100% 100 Levels Contrast ratio: 5000:1 Display Colour: 256 Processing: 14-bit

Control

Control Mode: Novastar Synchronous System Refresh Rate: 3840Hz Control Distance: Ethernet Cable <120m Optional Novastar Sending Cards and Accessories available Frame Update Frequency: 50-75Hz Brightness Correction: Pixel Module Cabinet

Colours

RGB

Construction

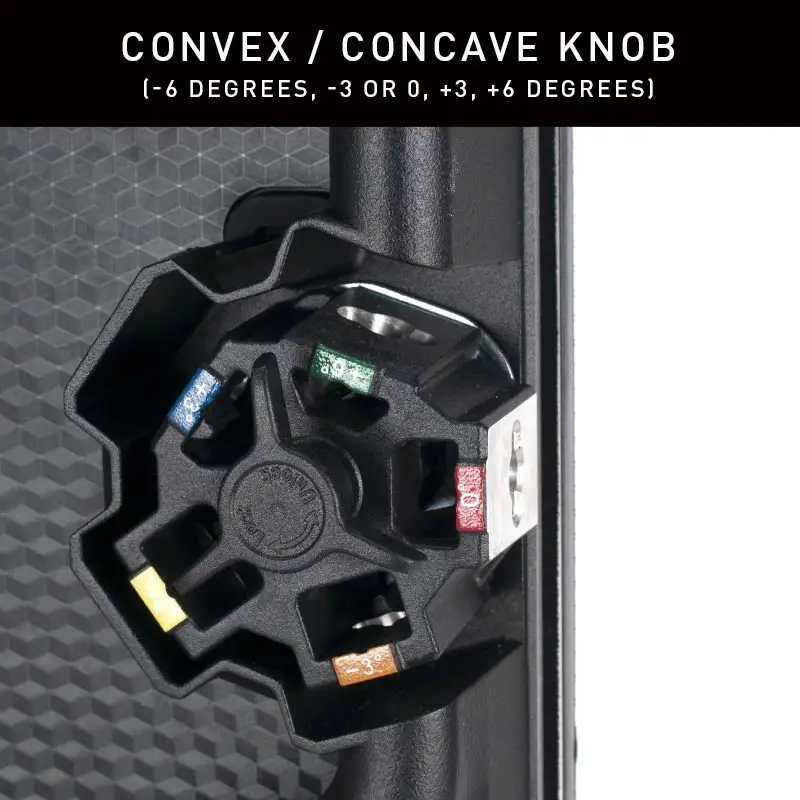

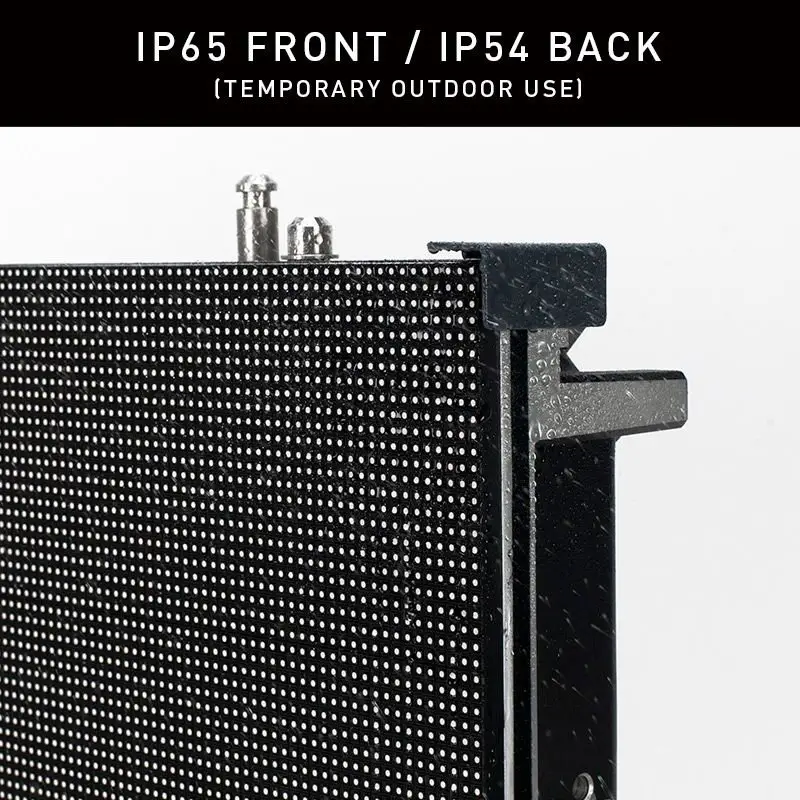

Protection Level: IP65 Front / IP54 Back Aluminium Frame with built-in corner protectors Module Quantity: 4 IP65 Front / IP54 Back (Temporary outdoor use) Curve panels in convex or concave -6 -3 degrees or 0

+3 +6 degrees

Quick lock system to connect panels together Quick release power supply / receiving card module

Electrical

Multivoltage 100-240V 50/60Hz Max. Power Consumption: 210W/per panel Ave. Power Consumption: 84W/per panel Operational temperature: -20 to +40 degrees Operational humidity: 10% — 90% (no condensation)

Connections

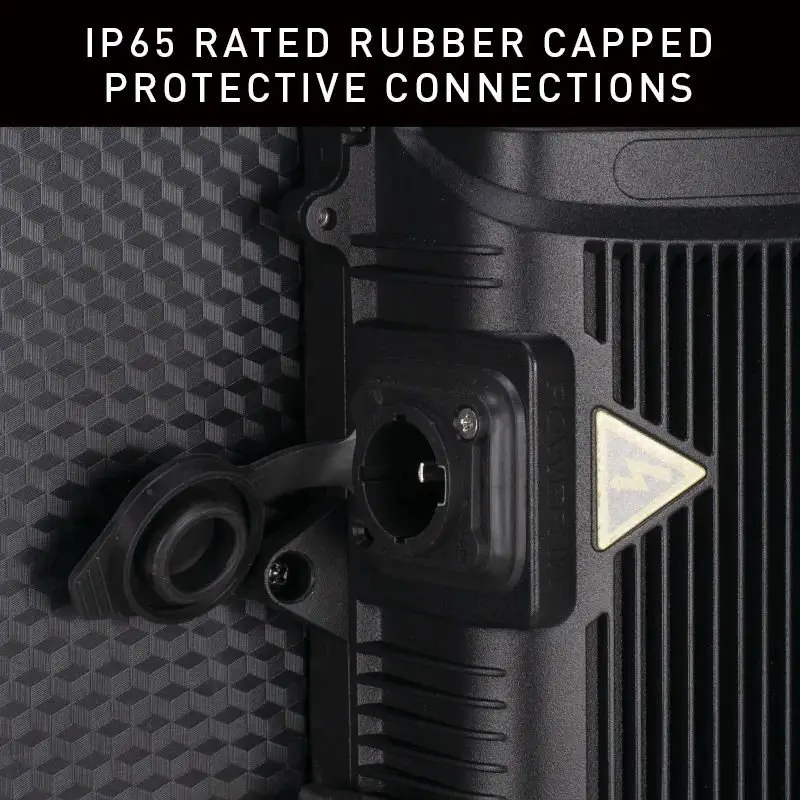

Locking IP65 RJ45 In/Out connectionsLocking IP65 Power In/Out connections

Dimensions & Weight

Dimensions (LxWxH): 576 x 76.8 x 576 mm Weight: 9kg.

What’s included

Locking IP65 RJ45 Cabinet to Cabinet Data Link Cables Locking IP65 Power Link Cables

Optional Accessories

1521000306 ADJ Touring Case 8x VS3IP/AV6: Flight Case – Fits 8 VS3IP Panels 1226300161 VS3IPRB1: Rigging Bar – Hang up to 20 VS3IP Video Panels vertically or ground stack up to 8 VS1RSB Rear Support Bracket for VS Series Panels 1226300156 VSRQR: Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss 1226300067 Novastar VX4S: Video Processor 1226300034 Novastar MCTRL-300: Video Processor Arkaos Media Master: Video Software Arkaos GrandVJ 2.0: Video Software

adj_vs3ip_-_user_guide.pdf Open in new tab ↗
