Name: ZM 8 BW Wall Plate - Power-Hub
Brand: Clever Acoustics
SKU: CRAM19A
Price: 63.00 GBP
Availability: InStock

ZM 8 BW Wall Plate

£63.00

ex. VAT inc. VAT

In stock

Dedicated wall plate for the ZM 8 Zone Mixer. Installation of the plates requires simple easy connection via standard RJ45 terminated CAT5e cable. 3 year warranty Zone LED indicator with up/down.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

Description

Dedicated wall plate for the ZM 8 Zone Mixer. Installation of the plates requires simple easy connection via standard RJ45 terminated CAT5e cable.

Serial communication speed: 4800bps Communication port: RJ45 Communication protocol: RS485 Serial communication distance: 1km maximum MIC input sensitivity: 5mV/600Ω Phantom power: +12V 350mV/10kΩ AUX input sensitivity: 350mV/10kΩ - Audio output: 0dB/600Ω Frequency response: 50Hz-18kHz (±1dB) S/N ratio: MIC: >65dB AUX: >75dB THD: <0.1% @ 1kHz Power consumption: 5W Power supply: DC 24V Dimensions (H x W x D): 86 x 86 x 48mm Weight: 70g

Additional information

Weight	0.7000 kg
Dimensions	9.3000 × 18.0000 × 13.3000 cm

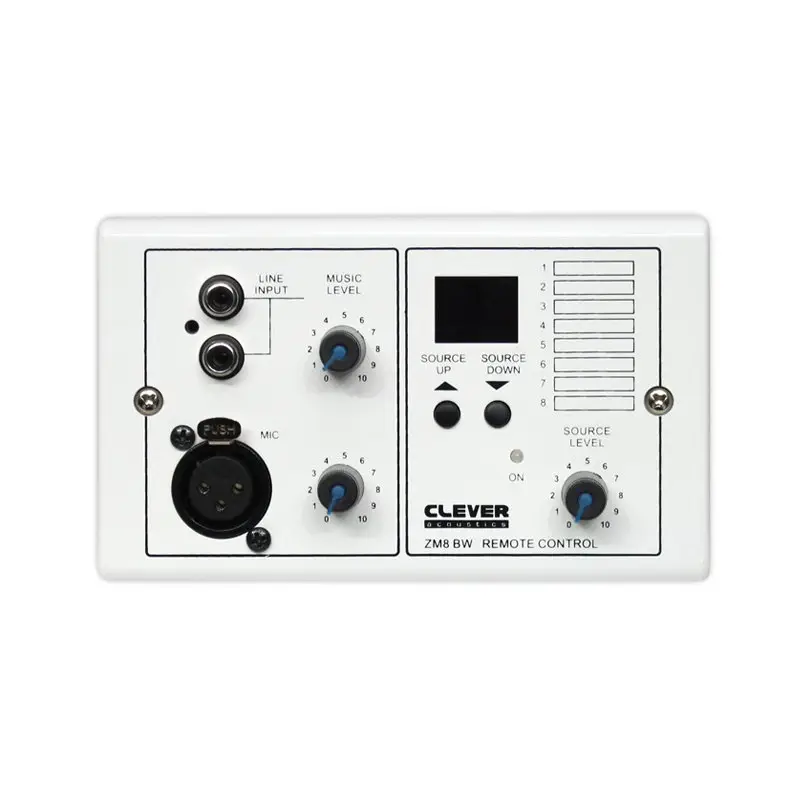

3 year warranty Zone LED indicator with up/down buttons Volume controls provided DC 24V power supply from controller Metal back box supplied Remote line via phono and microphone via XLR inputs with gain controls Source selection and volume control Line mic and source selection are sent using a single CAT5e cable Only for use with the ZM 8 Zone Mixer (CRAM19)
