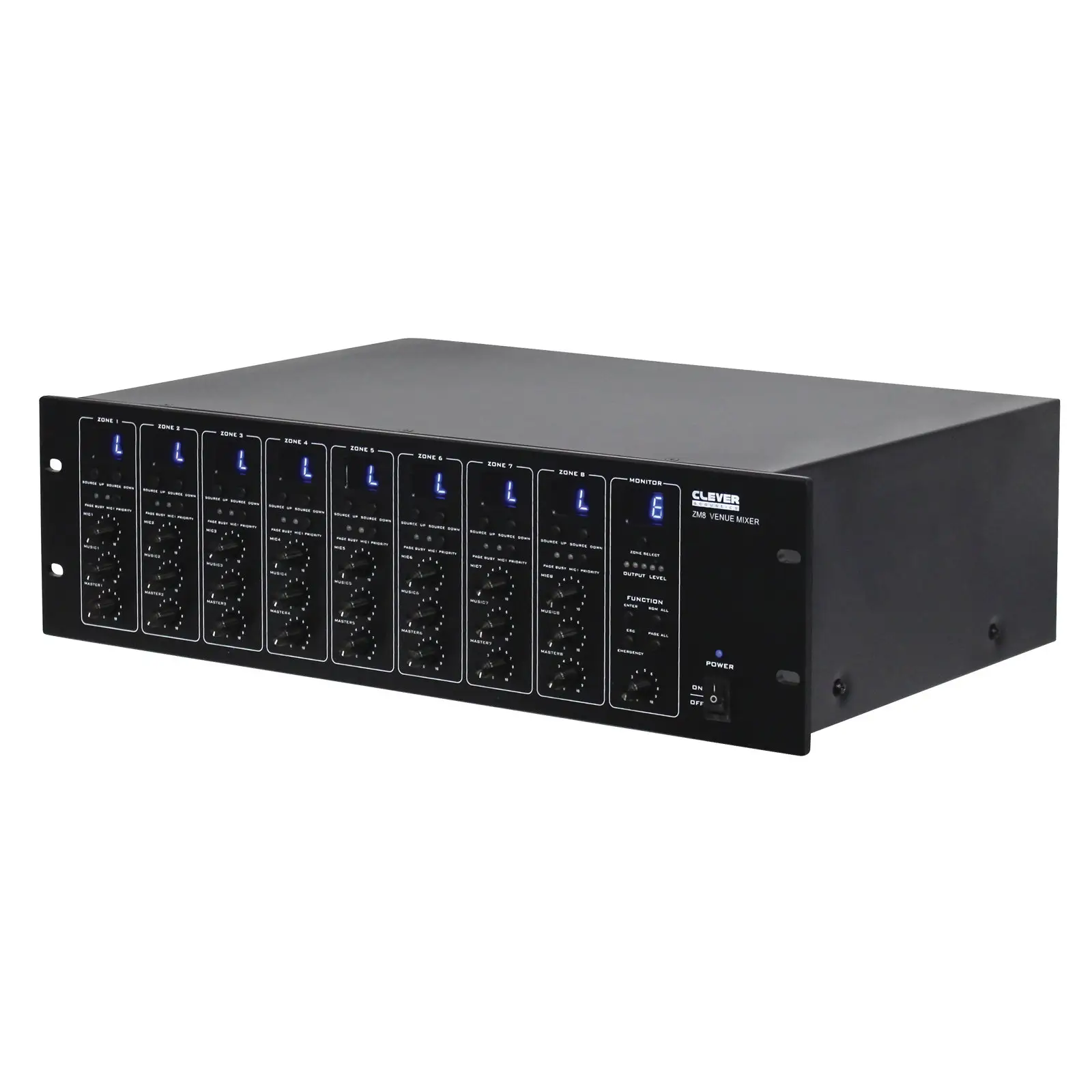

ZM 8 Zone Matrix System

Free Delivery on this item!
£726.60
ex. VAT inc. VAT
In stock

The ZM 8 Zone Mixer allows 8 signal sources plus 2 dedicated paging microphones to be routed into 8 separate zones. With the addition of more ZM 8 zone mixers each system is expandable up to a total.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: CRAM19
Categories: , ,
Brand:

Description

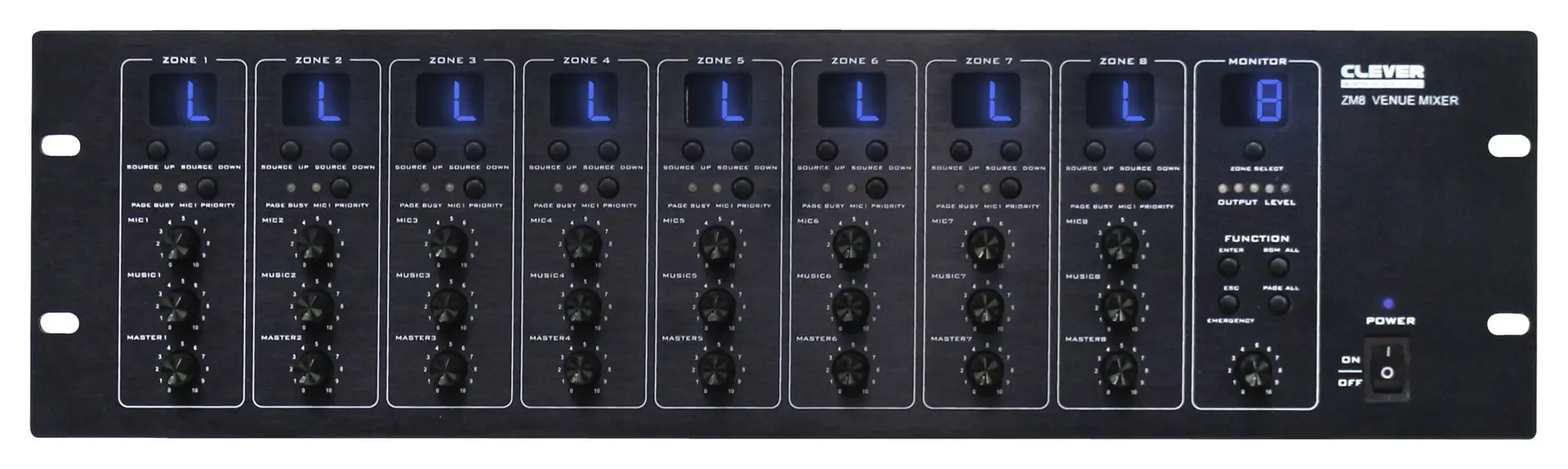

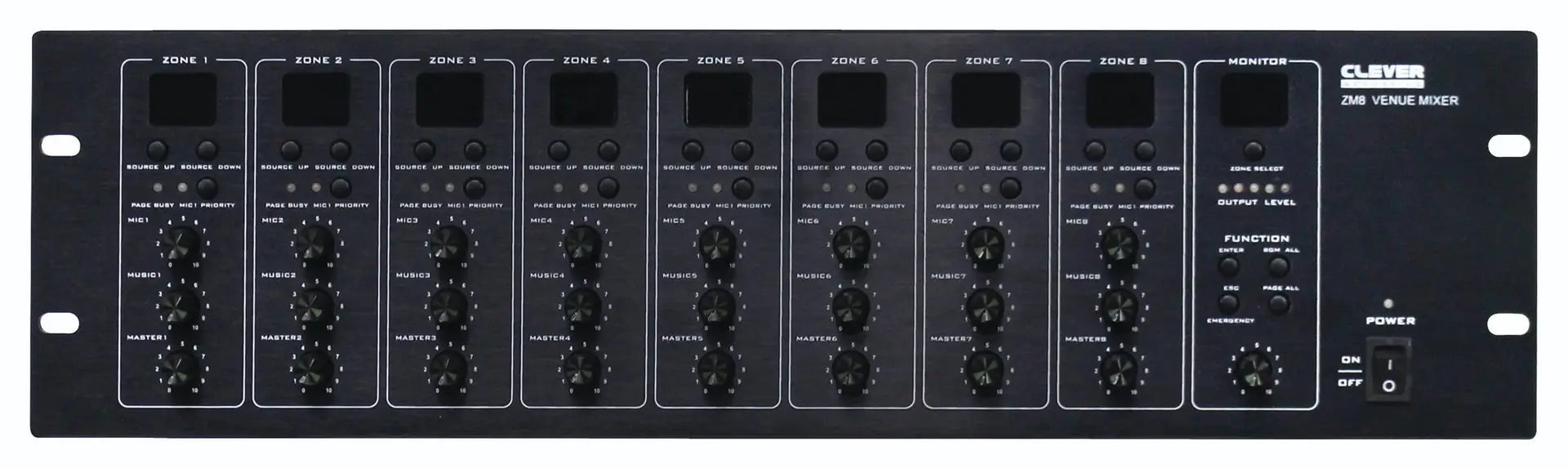

The ZM 8 Zone Mixer allows 8 signal sources plus 2 dedicated paging microphones to be routed into 8 separate zones. With the addition of more ZM 8 zone mixers each system is expandable up to a total of 32 zones. Each zone can be controlled remotely via a wall plate which offers great flexibility whilst control is also available centrally via the master front panel. The ZM 8 zone mixer offers a complete solution for multi-zone multi-functional venues such as entertainment establishments hotels shopping centres and airports. With digital LCD displays of program/local input selection and monitor selection and LED indication for monitor output level microphone priority and busy.

Outputs: 0.775V / 600Ω Frequency response (MIC): 80Hz-18KHz (+1/-3dB) Frequency response (Line): 20Hz-20KHz (+1/-3dB) Power supply: 110V/60Hz and 240V/50Hz or DC 24V Power consumption: 20W Dimensions (H x W x D): 132 x 484 x 304mm Weight: 10.3kg

Additional information

Weight 10.7000 kg
Dimensions 44.5000 × 53.0000 × 21.3000 cm

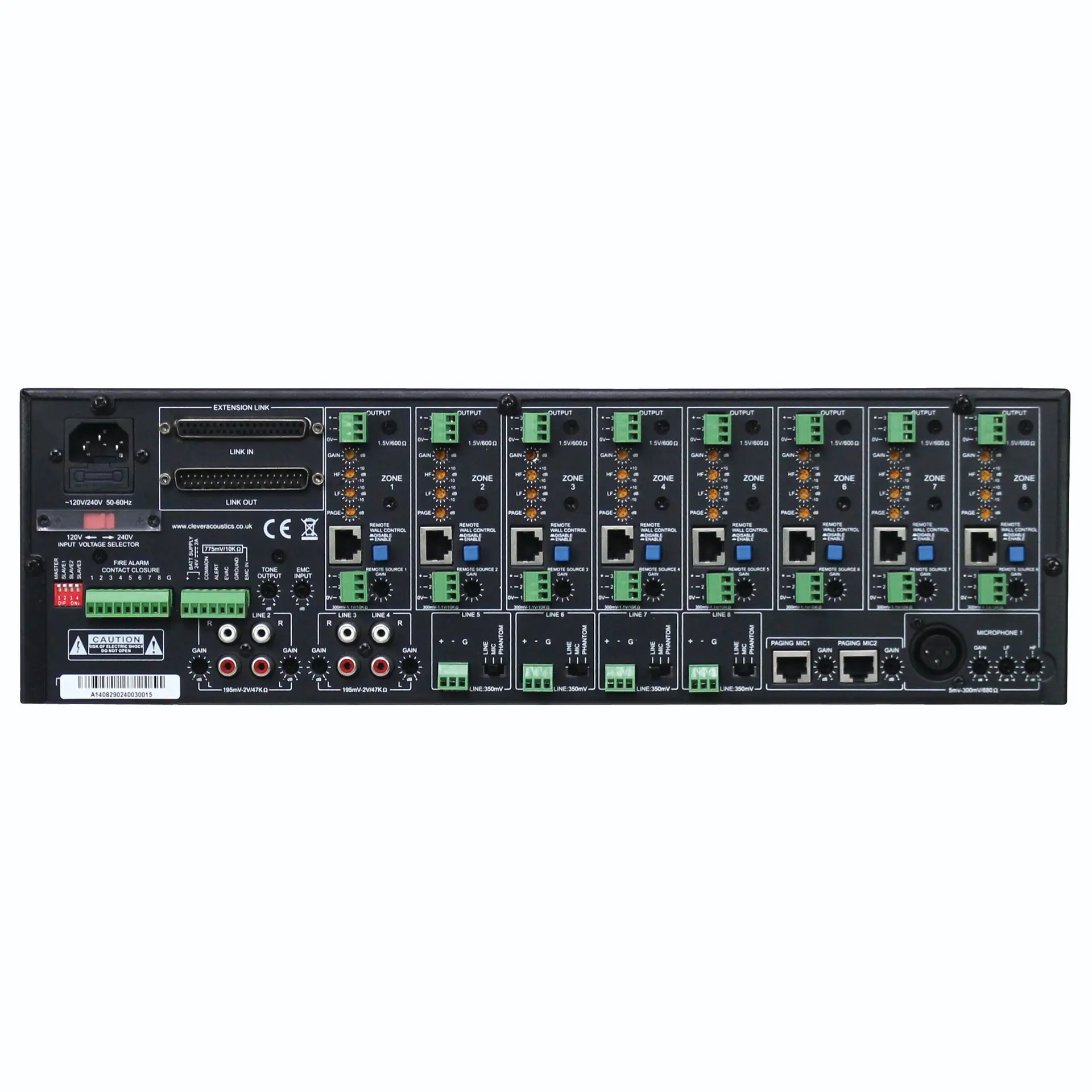

3 year warranty Each zone output features front panel operator controls for source select priority mic override paging mic level music level and master volume control Engineers controls include gain HF/LF control paging level control wall plate enable/disable and remote source gain Mic 1 features balanced XLR gain control and LF and HF tone adjustment Paging mic inputs 1 and 2 located on rear panel feature audio input via RJ45 for use with the PM ZM8 paging microphone and gain control  8 zone voice alarm contact closure to activate built-in tone voice alarm Full fire alarm relay functions (alert evacuation and alarm; three pre-recorded chimes are provided with tone control) EMC and ground for external voice alarm generator input  4 swift keys for direct all channel BGM and paging access Priority from high to low: mic 1 fire alarm remote paging console remote control panel and background music AC 220V-240V and DC 24V operating voltage Monitor output with volume
