Aria X2 Bridge

Free Delivery on this item!
£318.67
ex. VAT inc. VAT
In stock

EMPOWER YOUR LIGHTING EXPERIENCE TO A NEW DIMENSION! Introducing the Aria Wireless Management System for Advanced Lighting Control at the Shop or in the Show.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1321000090
Categories: ,
Brand:

Description

EMPOWER YOUR LIGHTING EXPERIENCE TO A NEW DIMENSION!
Introducing the Aria Wireless Management System for Advanced Lighting Control at the Shop or in the Show. Aria X2 Bridge “bridges the gap” between the new Aria X2 serial protocol and existing wireless DMX solutions. The Aria X2 Bridge is also compatible with ADJ WiFLY Elation eFly Magmatic MagFly and Acclaim Aria.
Frequency Agility:
Aria modules boast the capability to transmit and receive signals on
standard 802.15.4 channels both in the 2.4GHz and 915MHz (U.S) or 2.4GHz 868MHz or 863MHz (Europe) spectrums. This agility guarantees top-notch network performance even in crowded environments. Units can seamlessly switch between spectrums ensuring network reliability.
Bluetooth Low Energy (BLE) Configuration:
Aria simplifies device setup with BLE enabling you to configure settings directly from the fixture menu. BLE also offers auxiliary functions such as individual DMX channel adjustments opening doors to creative control possibilities.
OTA Updates:
Keep your Aria system up-to-date with Over-The-Air (OTA) updates for Aria firmware fixture firmware and fixture menus. A cloud repository stores these updates and the service app efficiently retrieves them with future multi-hop DMX support enabling mesh network updates.
Wireless Mesh Excellence:
Aria’s robust foundation lies in its Wireless Mesh technology featuring a versatile multi-hop DMX protocol. It adapts to various settings and use cases with early configurations requiring minimal user intervention for optimal performance. Future releases will simplify network configuration through internal metrics ensuring low latency and reduced collisions (available: TBA).
Frequency Hopping:
Aria modules will implement a frequency hopping scheme enhancing network reliability and reducing user configuration requirements. This innovation optimizes spectrum utilization providing a seamless and efficient lighting experience (available: TBA).
Manufacturer Part Number: 1321000090
SPECIFICATIONS
Features

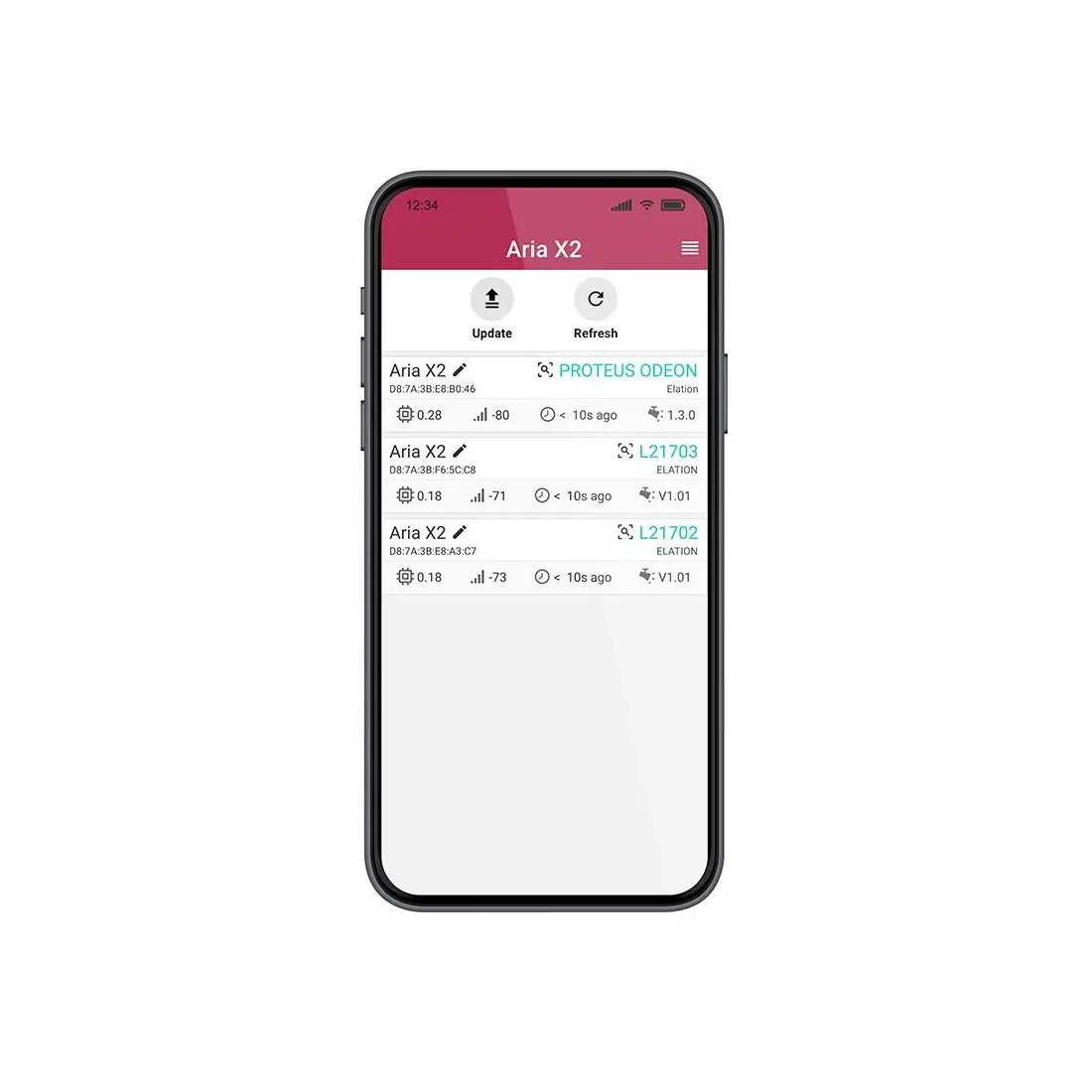

Single DMX Universe 900Mhz. 2.4 GHz WiFi and Bluetooth Configuration via App (Coming Soon) or Front panel Wireless to DMX or DMX to Wireless Aria X2 to SM220 (eFly WiFly MagFly and Acclaim Aria) SM220 (eFly WiFly MagFly and Acclaim Aria) to Aria X2

Supported Protocols

DMX RDM (Planned for future software release) Proprietary 802.15.4 Aria X2 Mesh Protocol (Planned for future software release) Bluetooth 5.2 (BLE) Aria X2 Serial Protocol This is our proprietary serial protocol for communicating with a variety of fixtures.

RF Characteristics

Frequency range 2404-2480 MHz 863-870 MHz (EU) 902-928 MHz Radio module: Aria X2 Interference mitigation CSMA Adaptive frequency hopping (on the roadmap) OTA updates

Connectors

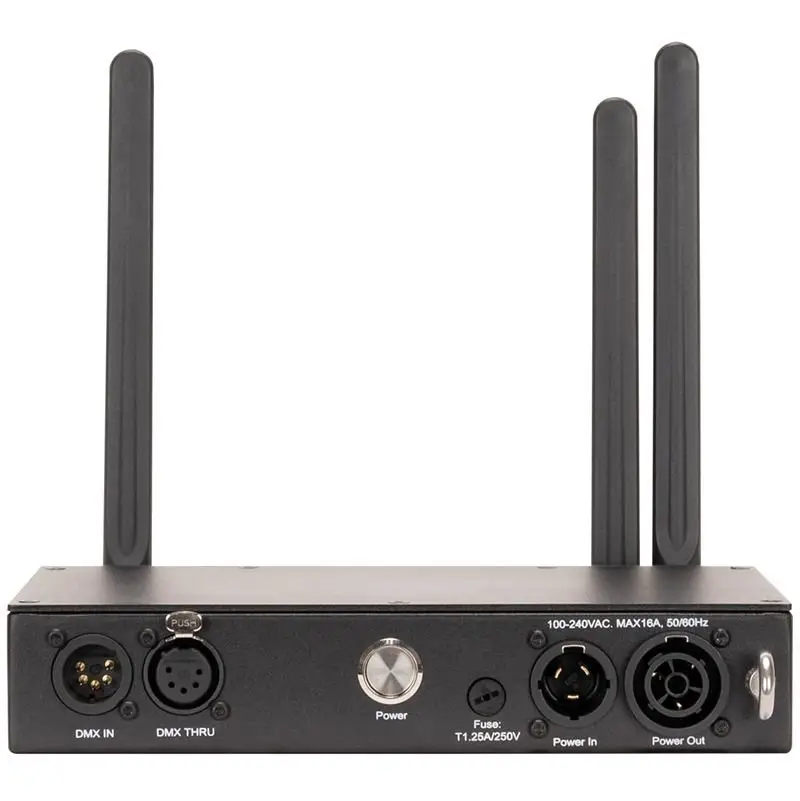

Antenna: 5G JT SMA DMX: 5-pin XLR Input and Output DC: 2.5mm/5.5mm Barrel connector Outdoor Locking Power Input and Output

Power

AC100-240V 50/60Hz Power Consumption: 2W Power Fuse: T1.25A/250V. (5 x 20mm)

Physical

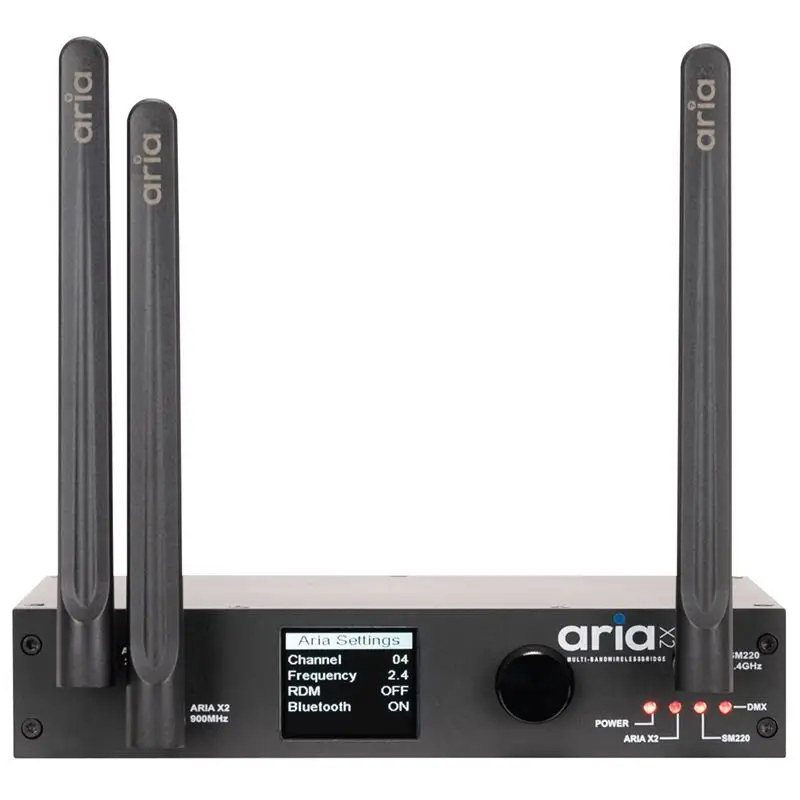

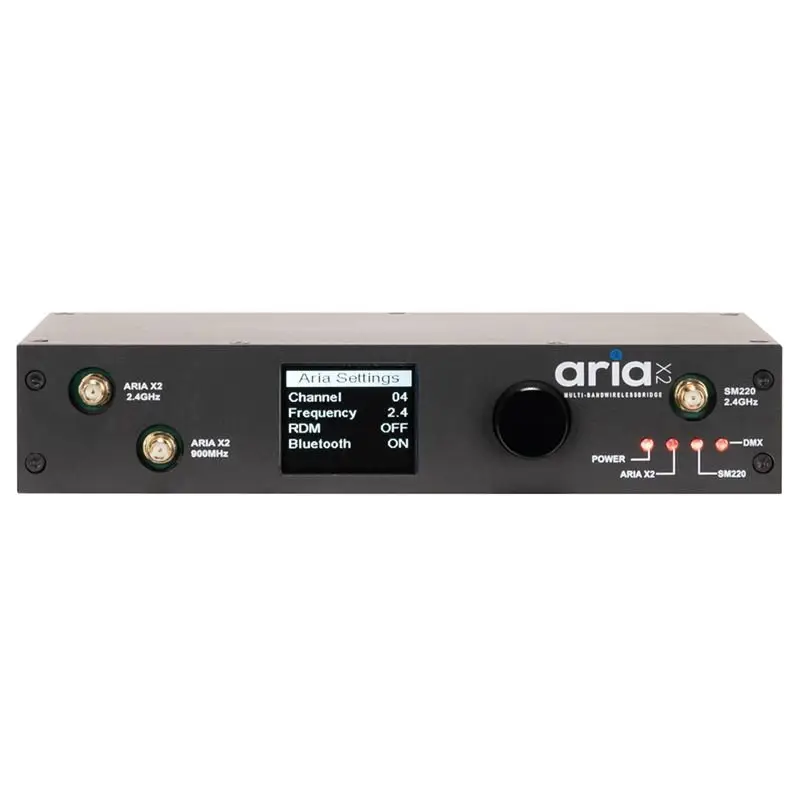

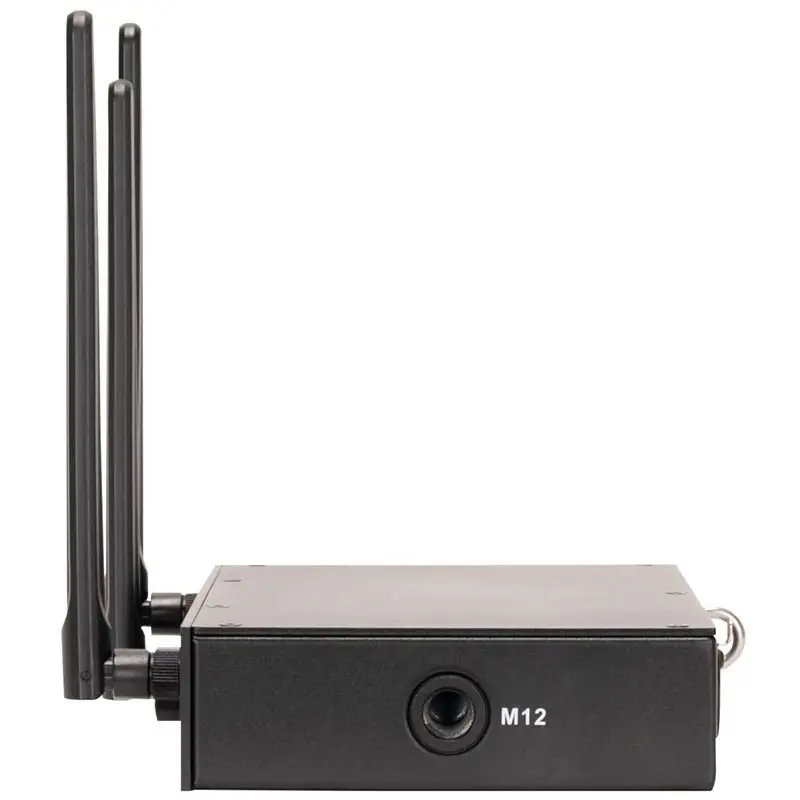

IP20 Aluminium / Metal enclosure Front panel digital screen and rotary knob M10 and M12 Threads Safety Eyelet Max ambient operating temp: 45°C Max operating humidity: 75% Storage temperature: 25°C Rack and wall mount accessories

Dimensions and Weight

Length: 163.95mm Width: 215.30mm Height: 42mm 1.23kgs

Specifications subject to change without notice.
