PC415X

Multi-functional Design: The PC415X offers 4 power outputs 4 power outputs an Aria X2 transceiver and DMX/RDM splitter in one device. Flexible DMX Channel Modes: Operate in 1 2 or 4 DMX channel modes ensuring compatibility across different setups User-Friendly Control: Navigate with ease using the push button and encoder wheel complemented by an OLED control menu display Event Scheduler: Manage power and DMX outputs with an internal On/Off scheduler for automated operation Single DMX Universe: Works seamlessly as a single DMX universe transmitter ideal for precise control over lighting configurations Multi-Protocol Support: Features Sub-GHz 2.4 GHz WiFi Bluetooth and proprietary Aria X2 Mesh Protocol for reliable wireless communication Future-Ready: Configuration via front panel and app support (app coming soon) for on-the-go adjustments Mounting Flexibility: Rack-mountable and truss-mountable for versatile installation options

DMX/RDM: Designed for DMX lighting control with RDM support planned in a future software release Proprietary Protocols: Supports Aria X2 Mesh Protocol and 802.15.4 communication plus Bluetooth 5.2 for versatile device connectivity

Frequency Range: Operates between 2404-2480 MHz with additional EU (863-870 MHz) and US (902-928 MHz) bands Enhanced Reliability: CSMA and planned adaptive frequency hopping ensure minimal interference Over-the-Air Updates: Future-proof your setup with OTA updates

Safety: Meets EN IEC 62368-1 and BS EN standards for safe operation Health & EMC: Complies with EN IEC 62311:2020 and ETSI EMC standards ensuring safety and low interference

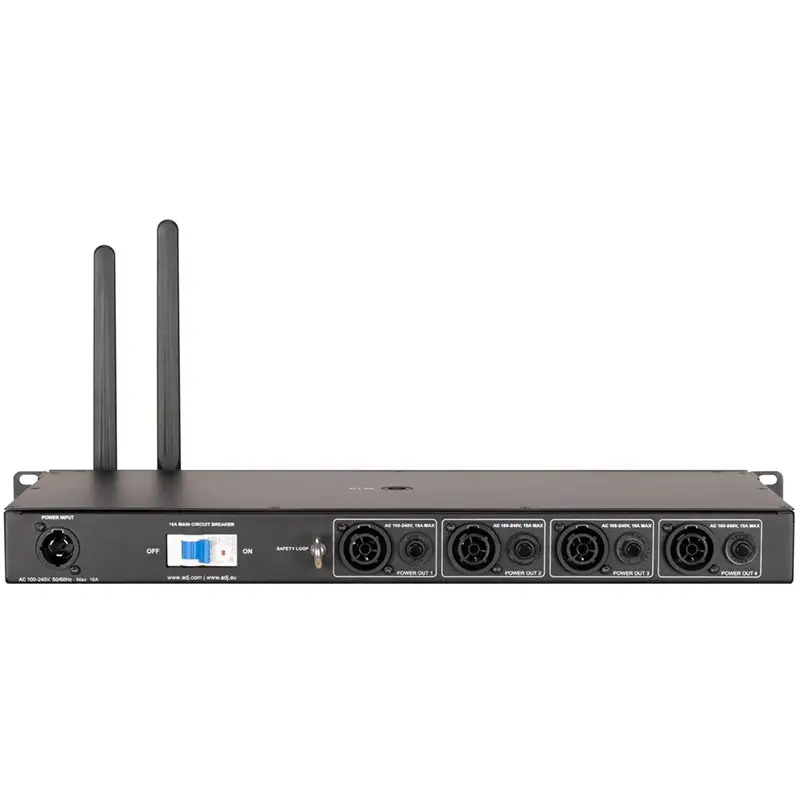

DMX and Power Options: Features (1) DMX input (4) DMX outputs and (4) IP65 locking power outputs with 15A resettable breakers Antenna Compatibility: Equipped with dual 5G JT SMA antennas

Versatile Power Input: Compatible with AC100-240V 50/60Hz and equipped with a 16A main power switch Low Power Consumption: Runs efficiently with minimal power requirements and features on a CR2032 lithium battery for critical backup

Robust Design: Durable IP20 metal enclosure with a digital screen rotary knob and safety eyelet Temperature Tolerant: Operates in ambient temperatures up to 45° C and humidity below 75% Compact Dimensions: At just 3.36 kg it is designed for easy handling and secure installation

Length: 482mm Width: 249.17mm Height: 43.80mm Weight: 3.36 kg

Approvals: IP20-rated for indoor use Accessories: Comes with rack ears for a standard 19-inch rack mount two Aria X2 antennas and one IP65 locking power cable
