Novastar MCTRL 300

Free Delivery on this item!
£400.33
ex. VAT inc. VAT
In stock

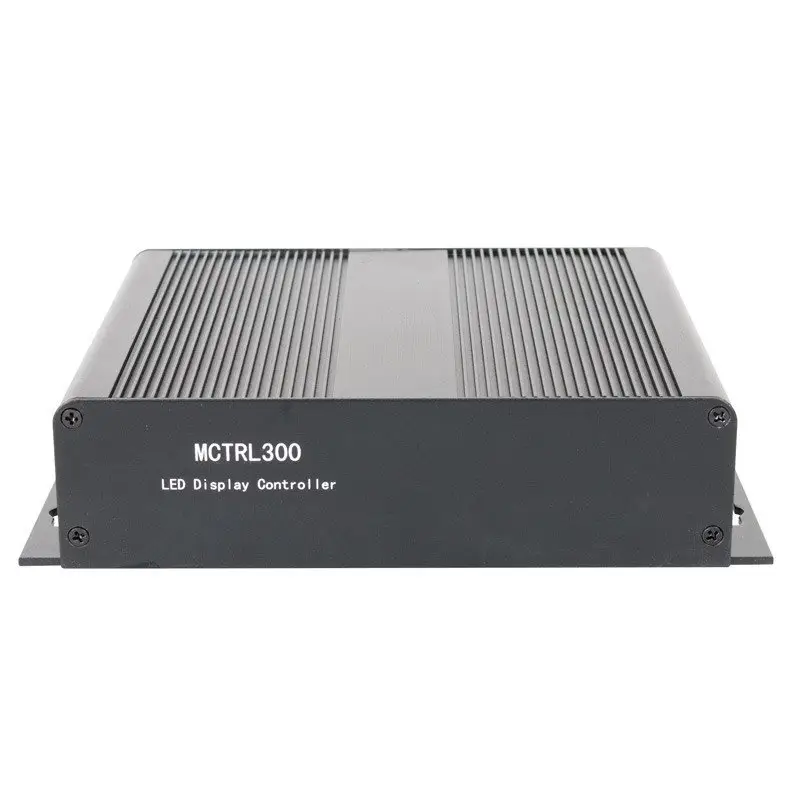

The MCTRL300 is the Novastar’s smallest LED controller which enables LED displays to be set up within a very short time. The sending card is built into a stable metal housing and is delivered with.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1226300034
Categories: ,
Brand:

Description

The MCTRL300 is the Novastar’s smallest LED controller which enables LED displays to be set up within a very short time. The sending card is built into a stable metal housing and is delivered with a DVI input. In addition the controller has a light sensor connection to which the NovaStar NS060 can be connected for automatic brightness monitoring (available on demand only).

The MCTRL300 is ideal for small to medium-sized LED displays and is compatible with all ADJ Video Panel Series : VS2/VS3/VS5/AV2/AV3/AV4IP & AV6X

This controller is supporting the following resolutions: 1280 x 1024 1024 x 1200 1600 x 848 1920 x 712 2048 x 668.

Manufacturer Part Number: 1226300034 Dimensions (L x W x H): 20.5 x 17.0 x 4.8cm

Specifications:

Control

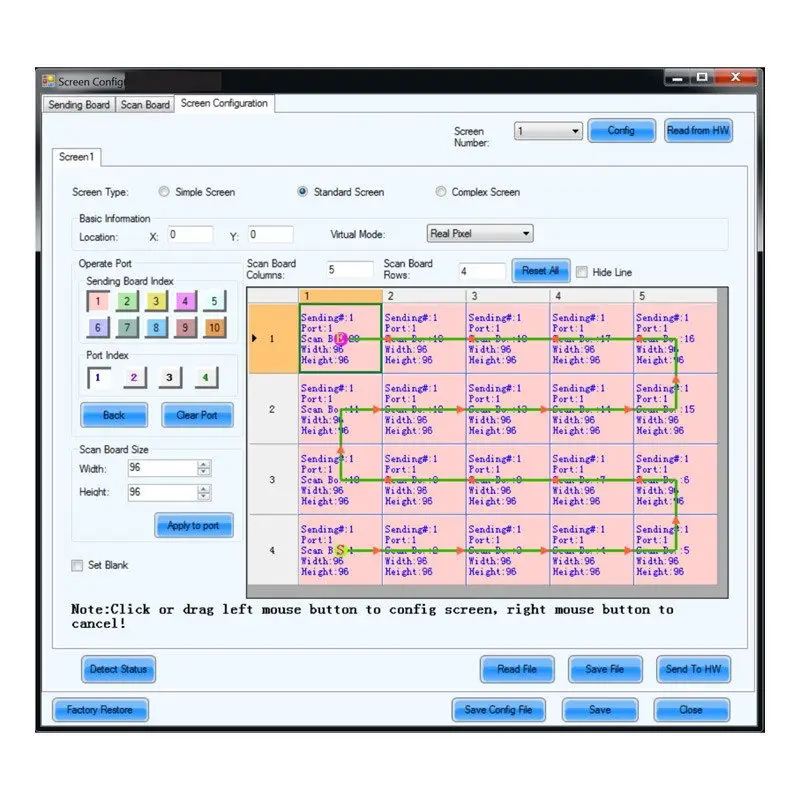

• Detailed control of Video Walls via LCTMars PC-Software

• Brightness Correction : Pixel Module Cabinet

• Control Mode: Synchronous Display with Control PC by DVI

• Requires Windows-PC

• Cascading of multiple MCTRL300 via UART

Resolution

• Max resolution capacity : 1.3 million pixels

• Supported resolutions: 1280 x 1024 1024 x 1200 1600 x 848 1920 x 712 2048 x 668

• Scan Mode 1/12 Duty

• Supported Input : Composite S-Video Component VGA DVI HDMI HD_SDI to DVI

Construction

• Aluminium Metal Housing

Electrical

• Multi-voltage operation: AC 100-240V 50/60Hz

• Power Draw: 10W

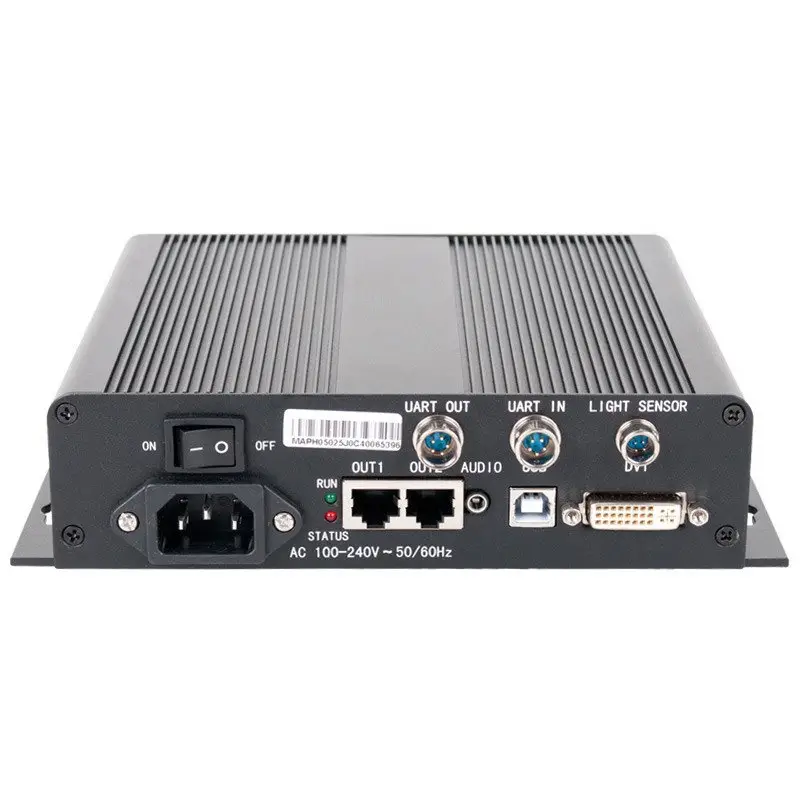

Connections

• Inputs

1x DVI

1x IEC Power connector

1x Light Sensor Connector

1x USB Type B for PC connection

• Outputs

2x RJ45 CAT6 Ethernet Screen outputs (mirrored or independent content or as redundancy)

Dimensions & Weight

• Dimensions (LxWxH): 204 x 160 x 48mm

• Weight: 1kg.

smartlct_user_manual_english.pdf Open in new tab ↗
