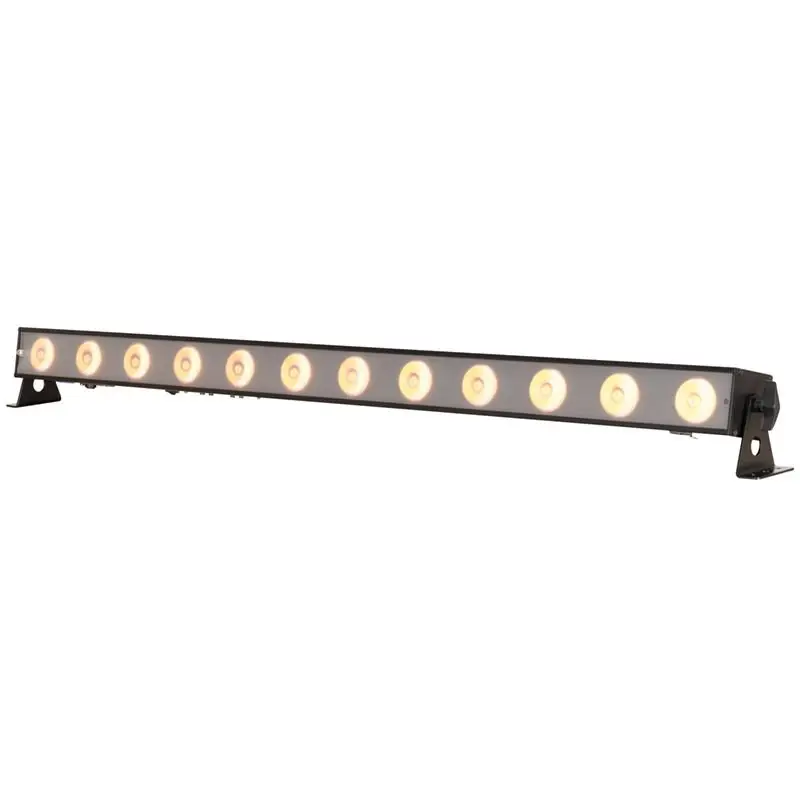

UBL12HB - ADJ1226200081

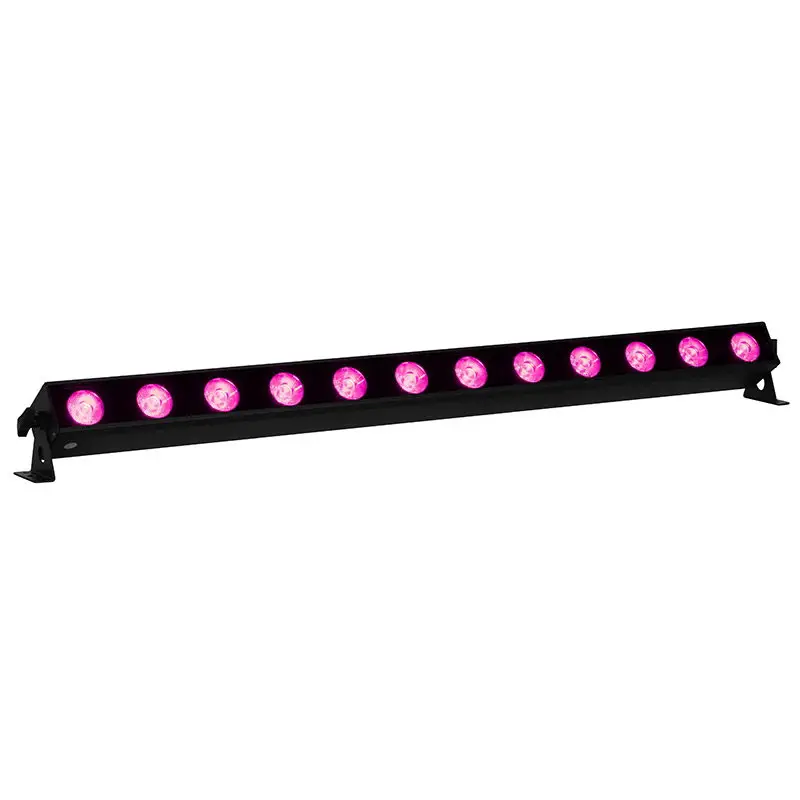

UBL12HB - Image 2

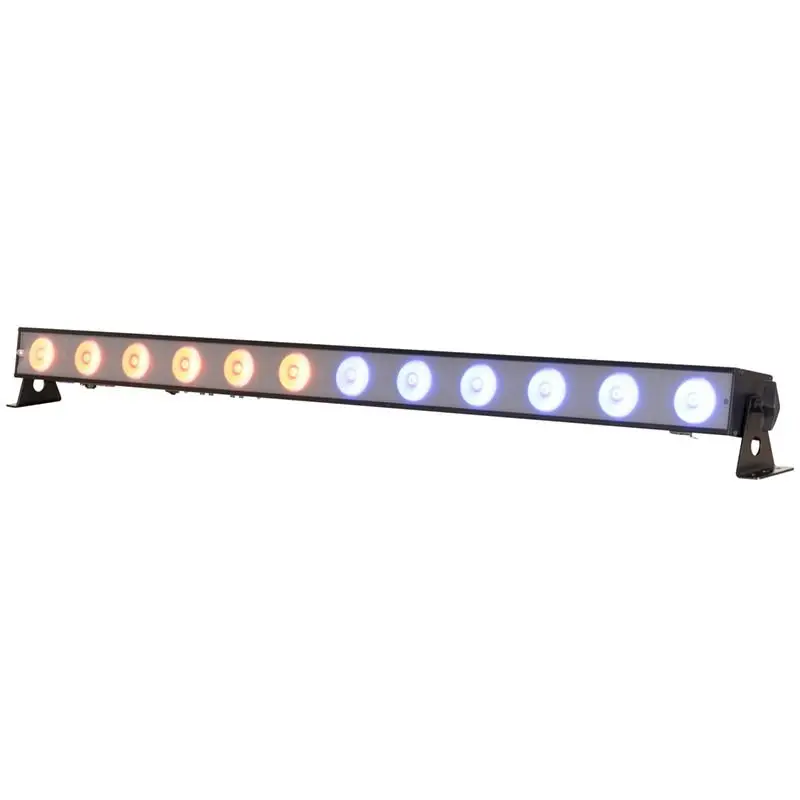

UBL12HB - Image 3

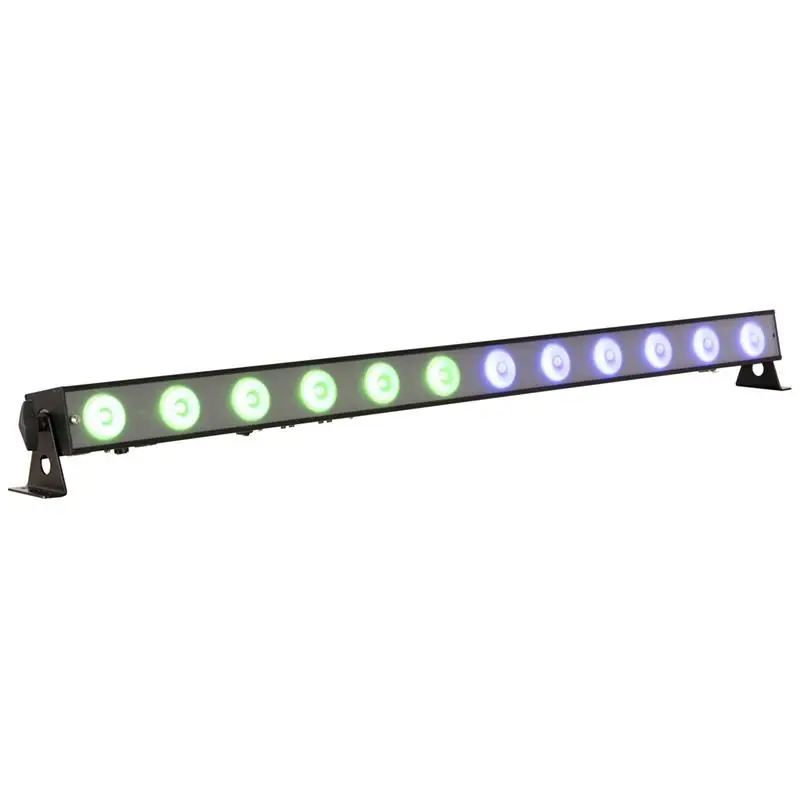

UBL12HB - Image 4
UBL12HB - Image 5
UBL12HB - Image 6
The Best PricesCompetitive pricing always
🇬🇧Supplying fast delivery throughout UK

UBL12HB

Free Delivery on this item!
£400.33
ex. VAT inc. VAT
In stock

Redefines event lighting as a 1-meter battery-powered linear LED wash luminaire. Designed for professional use this lime-infused HEX LED fixture sets a new standard in performance.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1226200081
Categories: ,
Brand:

Description

Building on the success of the UBL12H the UBL12HB redefines event lighting as a 1-meter battery-powered linear LED wash luminaire. Designed for professional use this lime-infused HEX LED fixture sets a new standard in performance. Powered by twelve ultra-bright 20-Watt HEX LEDs (Red Green Blue Amber Lime and UV) it is a versatile powerhouse that delivers seamless and precise colour blending.
This fixture excels with its high CRI output and adjustable linear colour temperature range from 2300K to 9900K. The inclusion of the lime chip enhances colour accuracy achieving a CRI exceeding 90 for an exceptional visual experience. It empowers lighting designers and event producers to create striking displays on walls floors and ceilings.
The UBL12HB features a 17° beam angle an 85.5mm pixel pitch and smooth RGBAL+UV colour mixing. Its innovative Horizontal Magnetic Alignment ensures seamless colour consistency across multiple fixtures. Control is intuitive with an OLED display and 4-button interface supporting linear colour temperature adjustment and compatibility with the ADJ UC-IR24 remote. The fixture offers seven DMX channel modes and five operational modes including Auto Run Program Mode Sound Trigger RGBAL+UV Manual and DMX-512 Mode. It is also RDM compatible.
With advanced features such as a 1.9kHz LED refresh rate 64 built-in colour macros and selectable dimming modes and curves the UBL12HB offers exceptional versatility. It supports DMX daisy-chaining for up to 17 units (120V) or 32 units (230V). Certified for safety and reliability the UBL12HB is cETLus (pending) CE and FCC compliant with an IP20 rating.
The UBL12HB includes an indoor locking power cord UC-IR24 remote and a 20° diffusion filter. Expand its capabilities with the optional UBL912 linear diffusion lens kit (sold separately) which broadens the beam angle to 1×40 degrees. Whether mounted on the ground or truss with the included brackets the UBL12HB delivers innovation and versatility for unforgettable lighting displays.
Manufacturer Part Number: 1226200081
Light Source:

12 x 20W Ultra bright (Red Green Blue Amber Lime and UV) LEDs Long Life LEDs (Rated at approximately 50000 hrs.) 17° beam angle CRI >90 Pixel Pitch: 85.5mm

Features:

Linear Colour Temperature Control (2300K to 9900K) Smooth RGBAL+UV colour mixing Horizontal Magnetic Alignment feature (Built-In) Aria X2 Management System Includes UC-IR24 remote (Operates at a distance of up to 32.8 feet / 10 meters) RDM and RDM Net Ready

Control:

Linear Colour Temperature Control (2300K to 9900K) OLED Display with 4-buttons 7 DMX Channel Modes: 6 11 13 16 36 43 & 46 Channels 6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36 43 & 46 channel modes 5 operational modes: Auto Run Program Mode Sound Trigger RGBAL+UV Manual and DMX-512 Mode LED Refresh Rate: 1.9KHz 64 built-in Colour Macros 6 selectable Dim Modes (Standard Stage TV Architectural Theatre & Stage 2) 4 selectable Dim Curves (Square Linear Inv. Square & S. Curve) Built-In Microphone for sound trigger LED pulse and strobe effect Electronic Dimming: 0-100

Connections:

Linkable: DMX via 5-pin XLR cable Indoor Locking power In/Out to daisy chain power

Electrical:

Multi-voltage operation: AC 100V-240V 50/60Hz Power Draw: 61W Daisy-chain power link: Up to 17 UBL12H's can be linked @120V and up to 32 UBL12H's can be linked @230V

Battery:

Rechargeable Lithium ion Battery Capacity: 7000mAh Battery Voltage: 22.2V Charge Time AC Power: 5 Hours (To Full) Charge Time Flight Case: 5 Hours (To Full) Up to 20 Hour Battery Operation Battery Cycles: 500

Dimensions / Weight:

Dimensions (LxWxH): 1082x86.9x107.1mm Weight: 4.8 kg

Certifications / IP Rating:

IP20

Environment:

Operational Temperature Range: -20°C to 45°C Storage Temperature: -20°C to 45°C

What's Included:

(1) Indoor Locking Power Cord (1) UC-IR24 (1) 20° Diffusion Filter Includes pair mounting brackets to set on the ground or to mount a clamp to for truss mount

Optional Accessories:

(1) 1x40° Linear Diffusion Lens (SKU: UBL912)

Note: Specifications are subject to change without notice.
