VS2

Free Delivery on this item!
£960.79
ex. VAT inc. VAT
In stock

ADJ’s Vision Series video panels offer the highest quality LED binning and bright clear output. All models are front and rear serviceable. Each model has four individual mini modules for quick.

In stock
Open a Trade Account
Open a Trade Account
Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.
Create Account
We acceptAmerican ExpressApple PayGoogle PayMastercardPayPalVisa
Add to wishlist
  • Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)
  • Premium Courier Service: Trackable delivery to your business premises
  • 14-day hassle-free return policy — no questions asked
  • 24/7 Customer Support: Help is always available, day or night
SKU: ADJ1226300150
Categories: ,
Brand:

Description

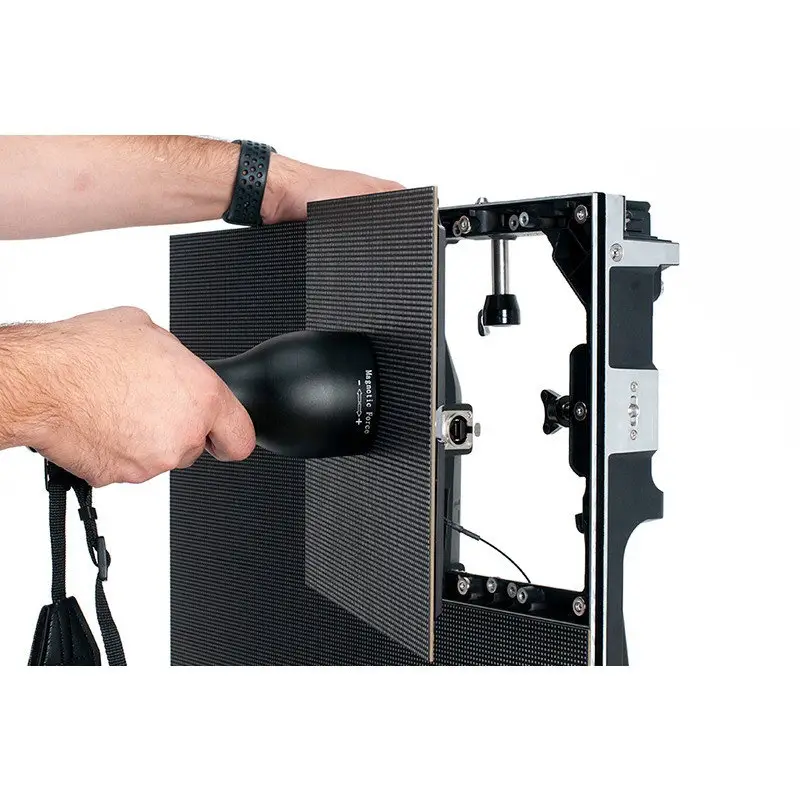

ADJ’s Vision Series video panels offer the highest quality LED binning and bright clear output. All models (except VS3IP) are front and rear serviceable. Each model has four individual mini modules for quick and easy servicing. All models (except VS3IP) are built on the same frame allowing panels with different resolutions to be used together. The Vision Series (VS2 VS3 VS5) panels use the same rigging bar and all fit into the same road case. All models have moveable corner protectors that safeguard the corners while they are not connected. Magnets on the top and bottom of the panels allow users to temporarily connect two panels together release them and then securely latch them from the rear. This enables a single user to install a full wall of panels.
The VS2 is a high-resolution video panel with a pixel pitch of 2.97mm configured with a 3-in-1 RGB SMD2121 LED and a brightness of 1000 NITS. Each panel contains four LED modules for easy serviceability. The VS2 connections include locking Power In/Out and locking RJ45 In/Out. Each panel features the Novastar A5s receiving card built-in. Hang or stack up to 20 VS Series video panels vertically with the VSRB1 rigging bar.
ADJ offers accessories such as video processors cabling rigging bars and flight cases.
Manufacturer Part Number: 1226300150 Dimensions (L x W x H): 7.8 x 51.0 x 51.0cm

Specifications:


Source

• Light Source: RGB SMD2121 LEDs

• Pixel Density : 168 x 168 pixels 112896 per square meter

• Average LED lifetime/MTBF : 50000 hrs./5000 hrs.

• Pixel Pitch: 2.97mm

• Gaps < 0.5mm


Optics

• Brightness: 1000 NITS

• View Angle: Horizontal 160°/Vertical 140°

• Gray Scale / Display Colour: ≥14-bit / 256

• Brightness Adjustment: 0~100% 100 Levels

• Contrast Ratio: 5000:1

• Processing: 14-bit


Control

• Built-In Novastar Receiving Card

• LED Refresh Rate: 3840Hz

• Control Distance: Ethernet Cable 120m

• Optional Novastar Sending Cards and Accessories available


Colours

• RGB


Construction

• Magnetic Aluminium Frame with built-in corner protectors

• Module Quantity: 4 magnetic module design

• Module Size : 250 x 250mm Front & Rear serviceable

• IP Rating: IP20


Electrical

• Multivoltage 100-240V 50/60Hz

• Max Power Consumption: 170W/panel

• Average Power Consumption: 68W/panel

• Operational temperature: -20 to +40 degrees

• Operational humidity: 10% — 90% (no condensation)


Connections

• Locking RJ45 In/Out connections

• Locking Power In/Out connections


Dimensions & Weight

• Dimensions (LxWxH): 500 x 69.6 x 500mm

• Weight: 77 kg.


adj_vision_series_-_user_manual.pdf Open in new tab ↗
