HL-Syscom 421S-2TX1RX AV Transmission System

Free Delivery on this item!

£3,633.00

ex. VAT inc. VAT

In stock

The Syscom 421S AV Transmission System from Hollyland is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well.

In stock

Open a Trade Account

Business customers can apply in minutes. No fees, fast approval, exclusive trade pricing and volume discounts.

Create Account

We accept

Delivery 2-4 working days (Mon-Sat delivery between 08:00 and 17:00)

Premium Courier Service: Trackable delivery to your business premises

14-day hassle-free return policy — no questions asked

24/7 Customer Support: Help is always available, day or night

Description

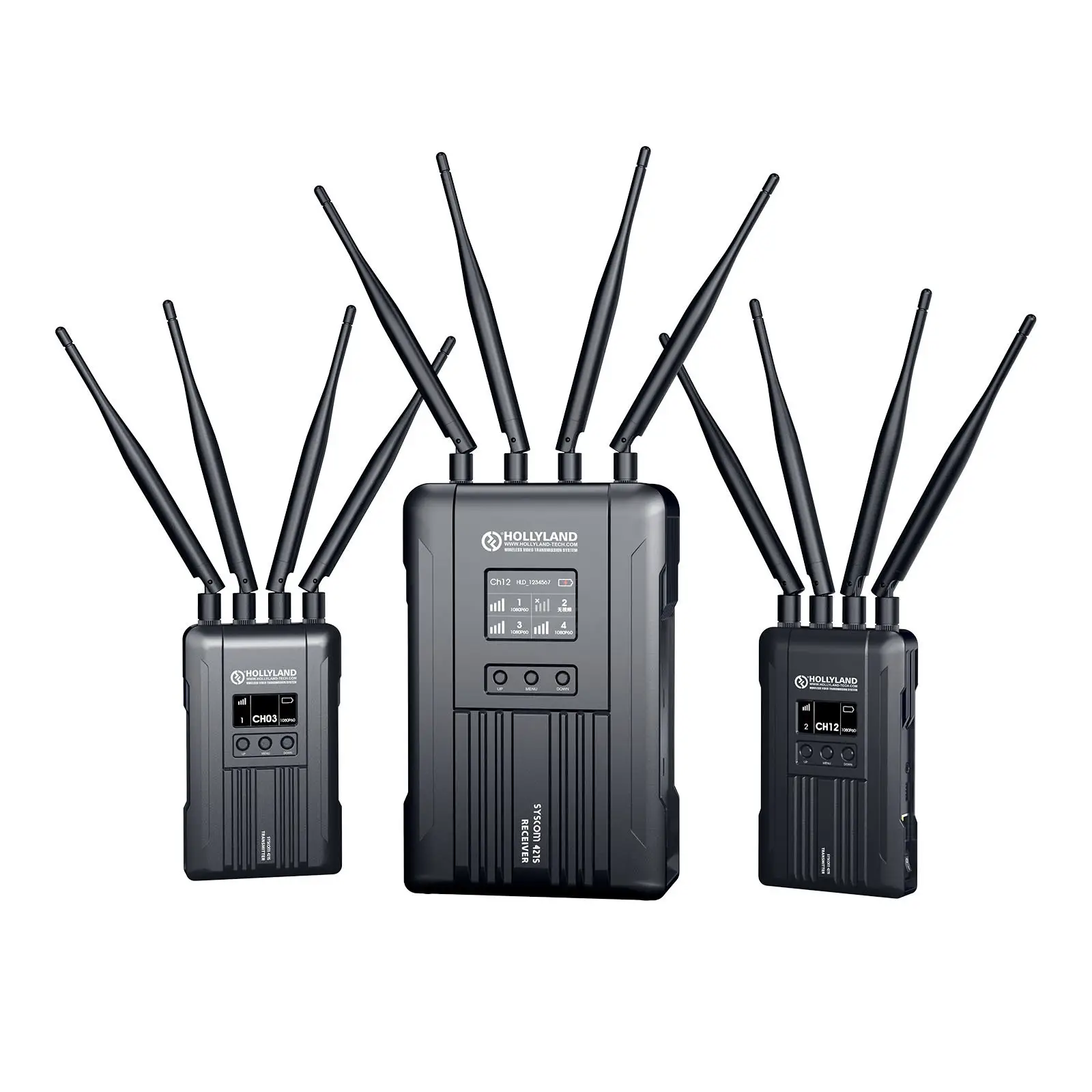

The Syscom 421S AV Transmission System from Hollyland is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well as tally. Supporting up to 1080p60 video signals via SDI and HDMI the transmitter/receiver system offers an 1800ft line-of-sight transmission range with 0.07 second latency. The system also supports Ethernet pass-through so you can stream directly via RTSP to the Internet.

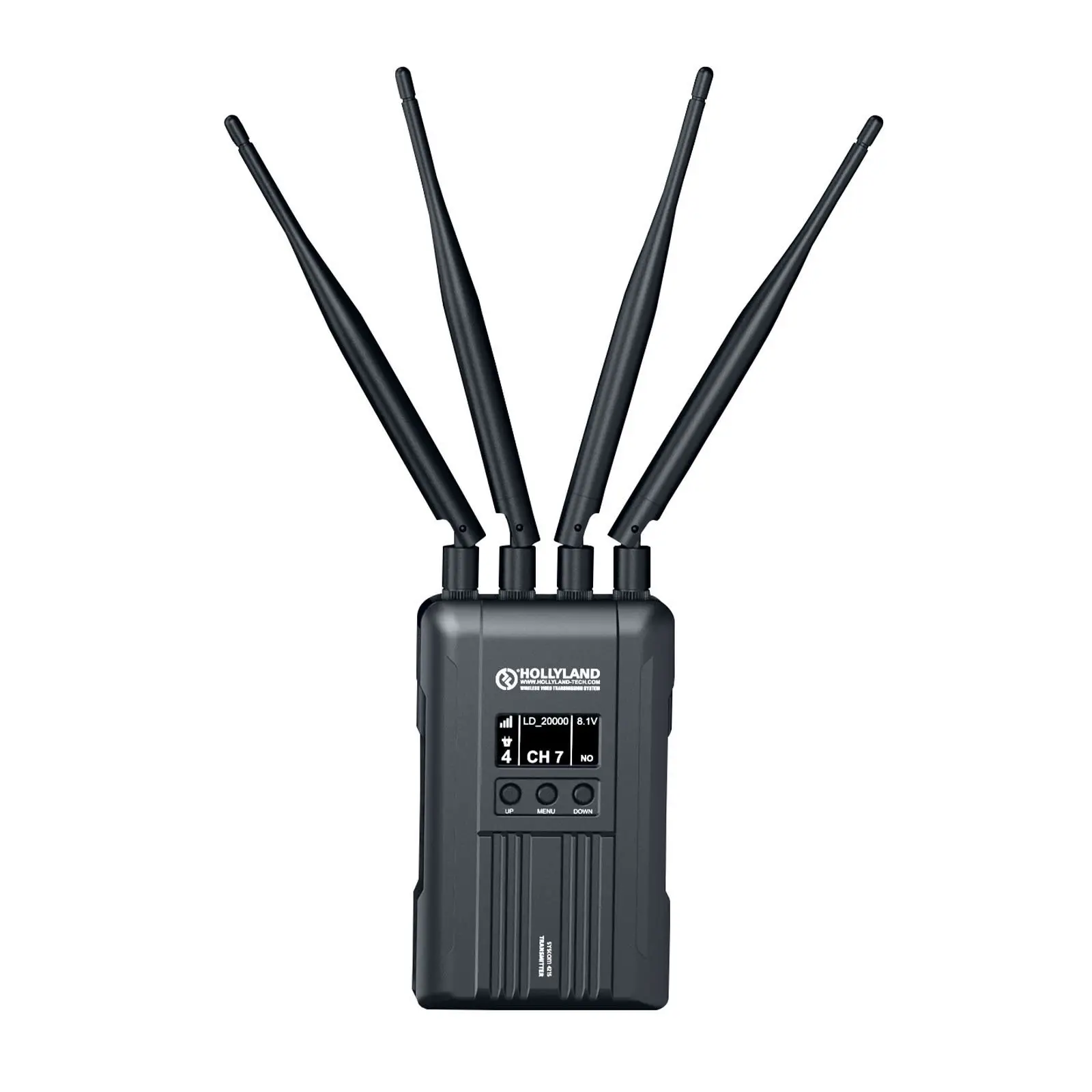

Transmitter Spec:Connectivity: SDI Input (BNC Female) HDMI Input (Type A Female) 3.5mm TALLY Output 4 Antenna (RP-SMA Male) DC Power Input USB Type-C LAN RS485/RS422 Power supply: 7~36V DC Frequency: 5.1~5.9GHz Dimensions (H x W x D): 144 x 88 x 30mm (External antenna and battery plate excluded) Weight: 431.5g

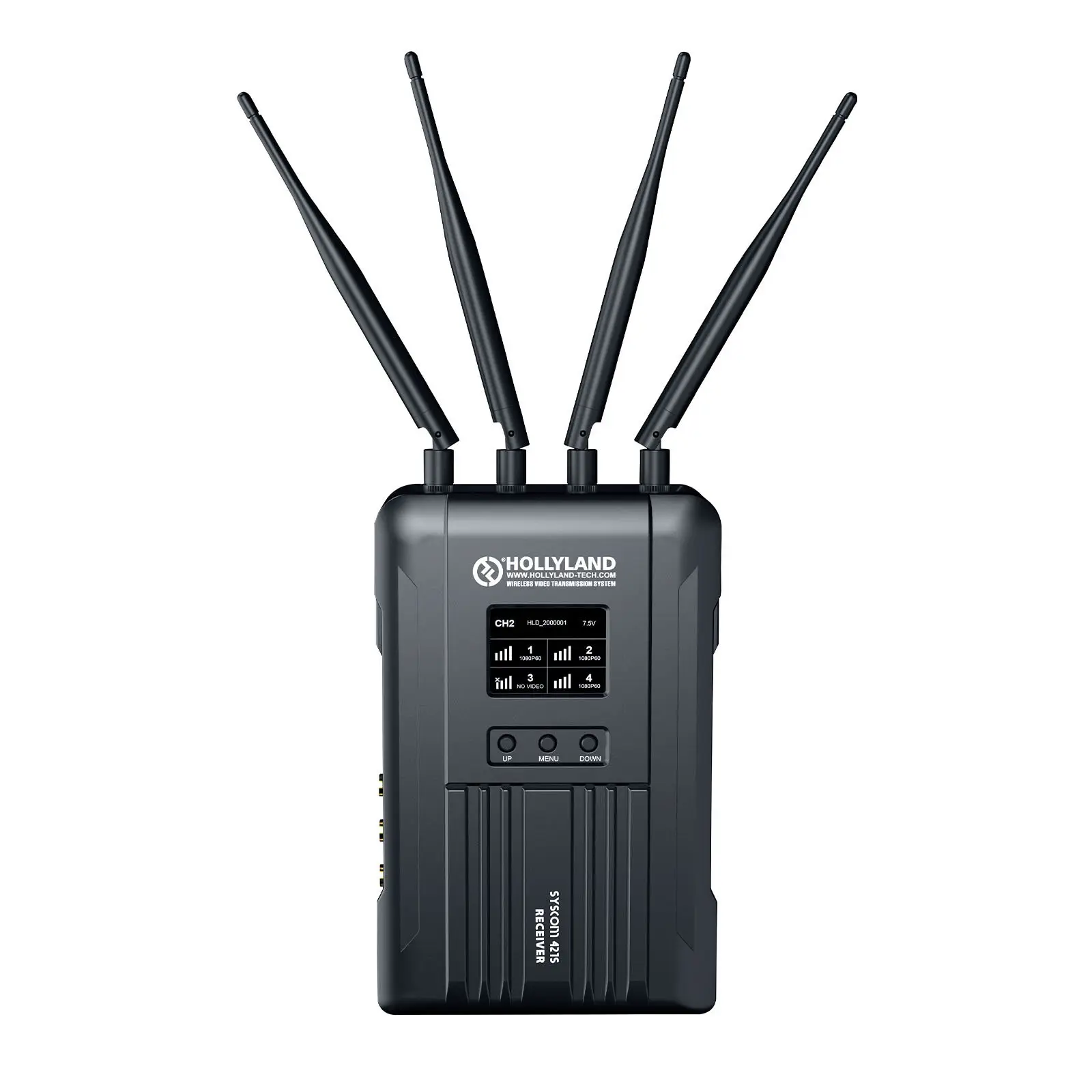

Receiver Spec:

Connectivity: SDI Input (BNC Female) HDMI Input (Type A Female) 3.5mm TALLY Output 4 Antenna (RP-SMA Male) DC Power Input USB Type-C LAN RS485/RS422 Power supply: 18~36V DC Frequency: 5.1~5.9GHz Dimensions (H x W x D): 242 x 148 x 62mm (External antenna and battery plate excluded) Weight: 1621g

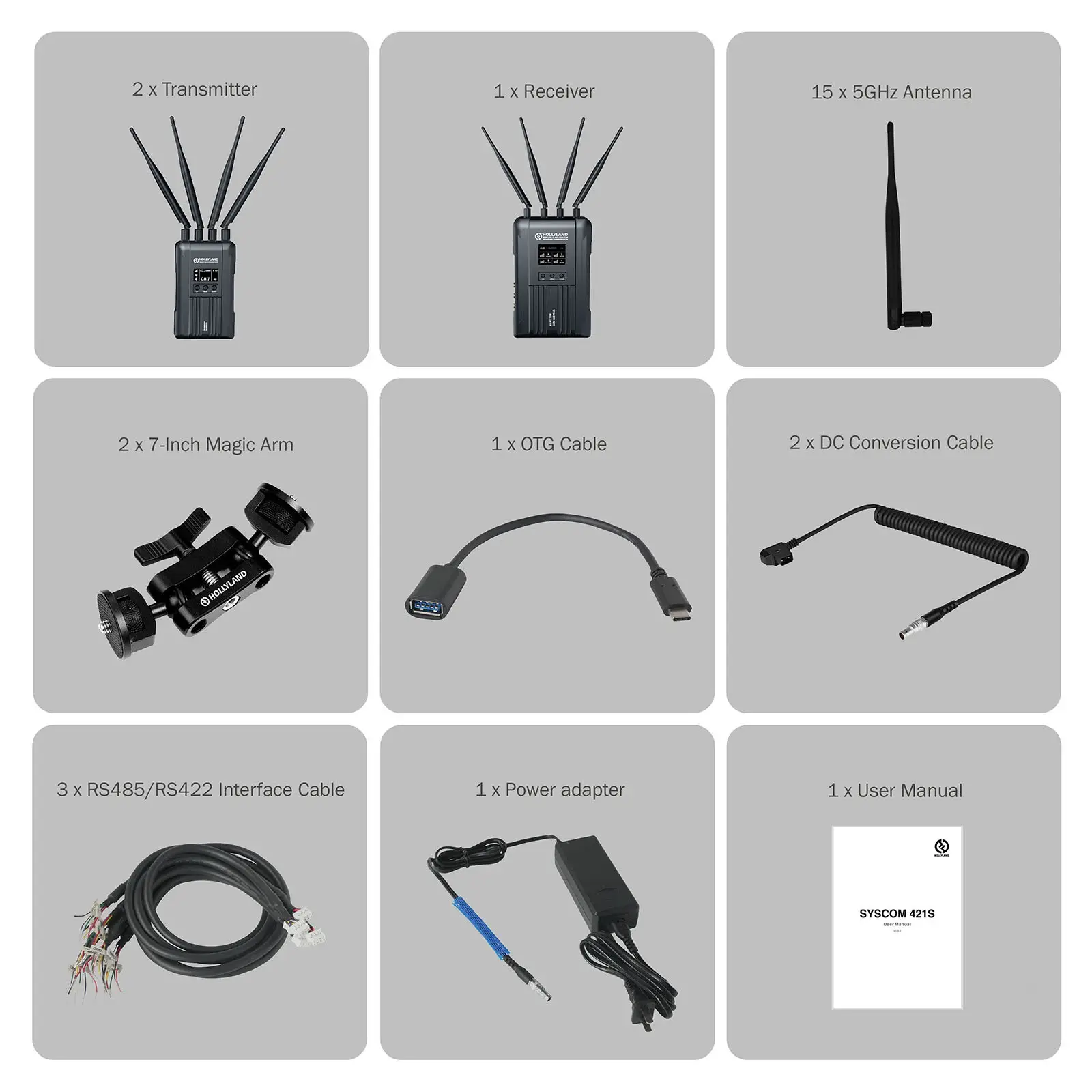

Receiver features 4 x SDI and 4 x HDMI outputs (one for each transmitter) to connect to a monitor or switcher Control PTZ cameras via IP or RS-422/485 serial connections Transmitters have a dedicated tally output port that supports optional tally lights Transmitters and receiver feature a 2-Pin power input for alternate DC power options Up to 1080p60 transmitter/receiver system 1800ft (548.64m) line-of-sight transmission Passes control and tally over LAN OLED display - Confirms the resolution transmission channel signal strength and battery power System includes a heavy-duty utility case with foam inserts featuring pressure relief valves for international travel waterproof o-ring seal between lid and base safety lock latches and ID slot Additional wireless transmitter available - Order code: HL0022 Contents:

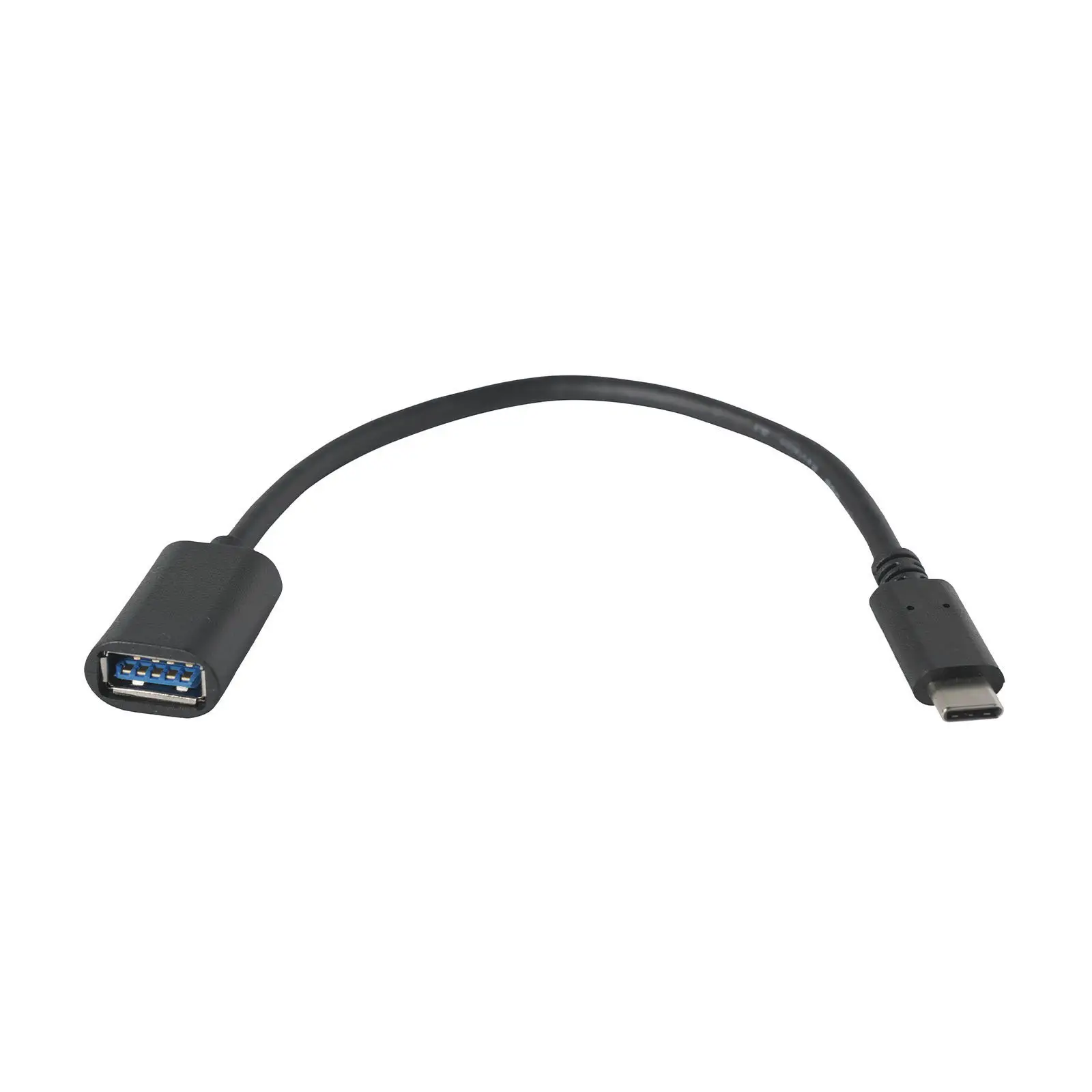

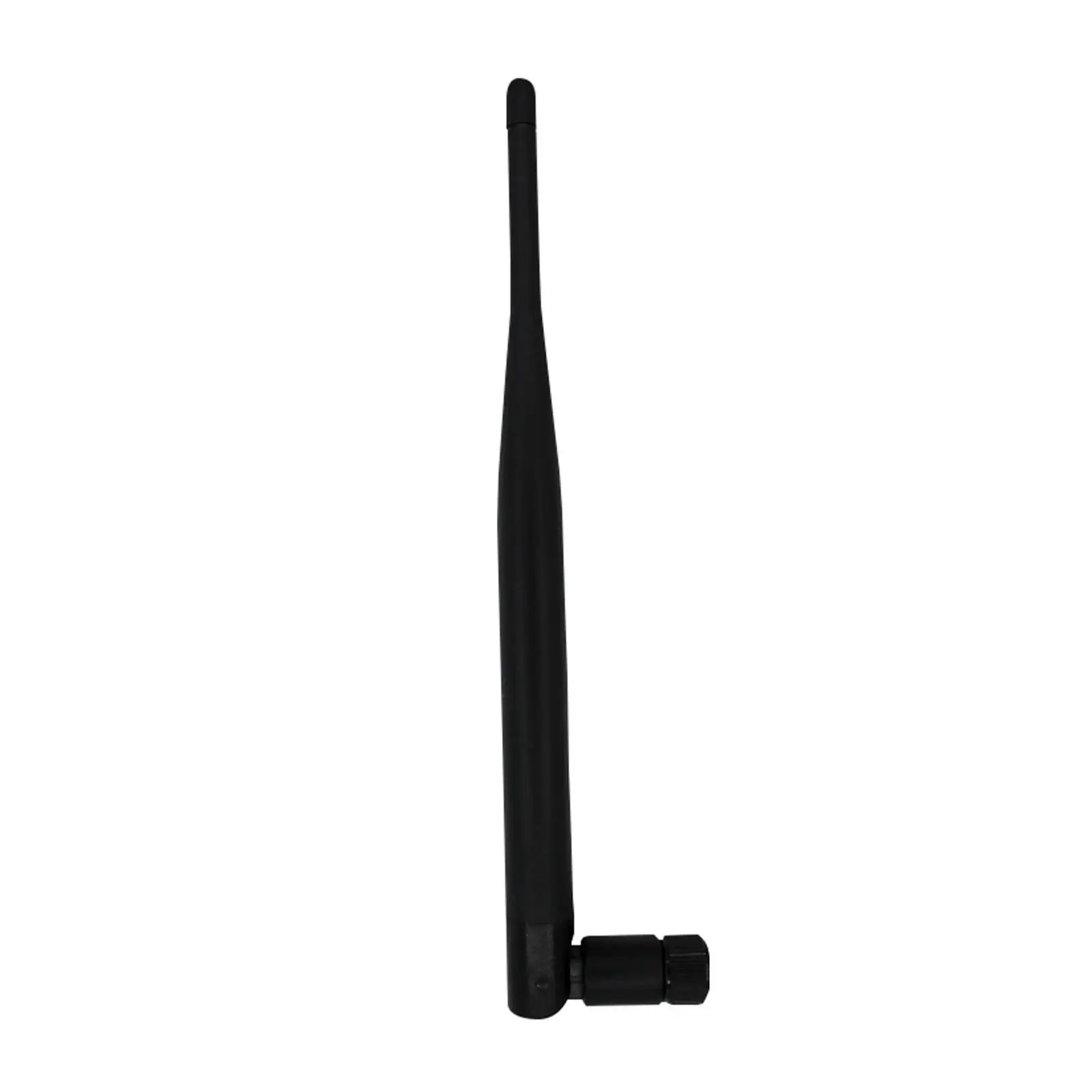

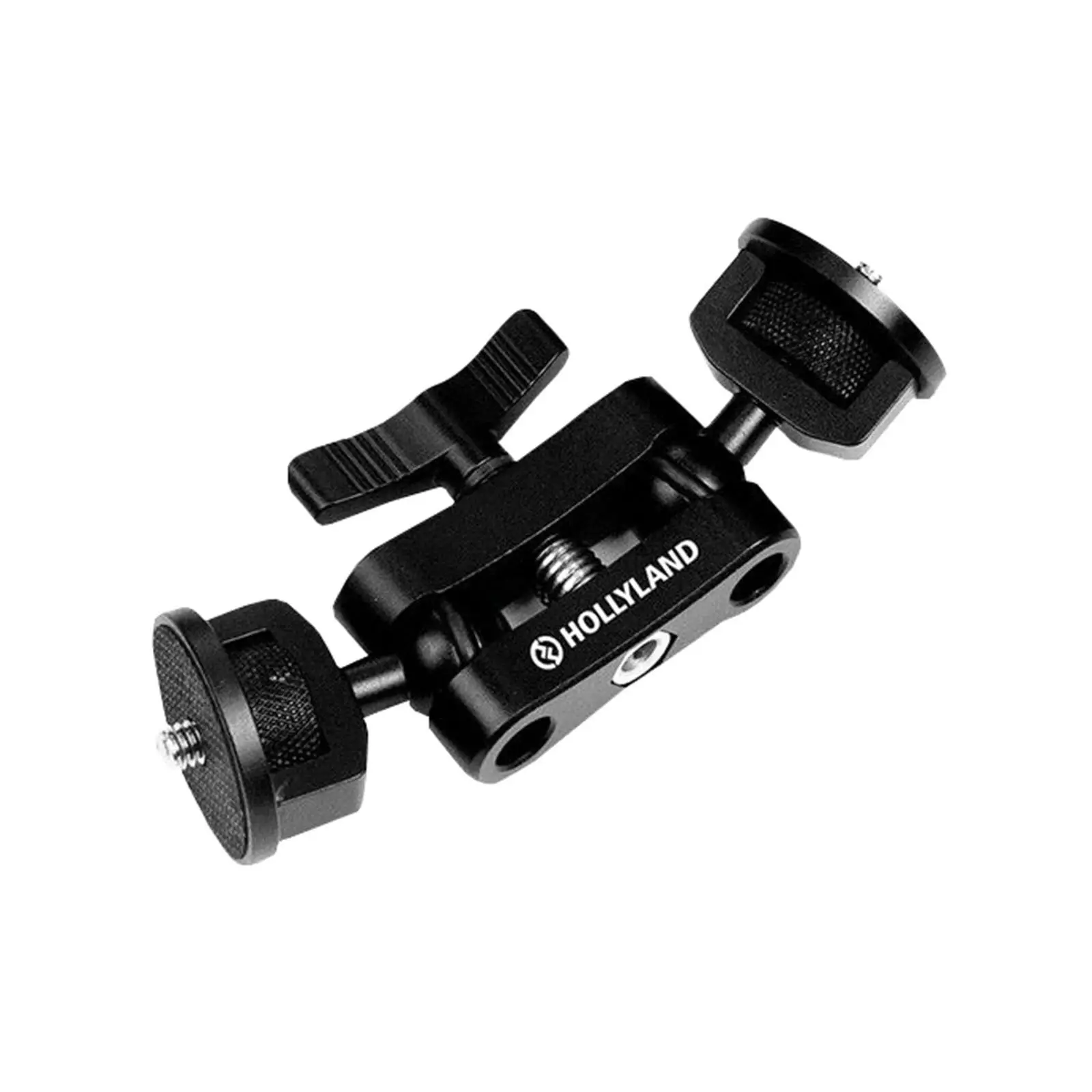

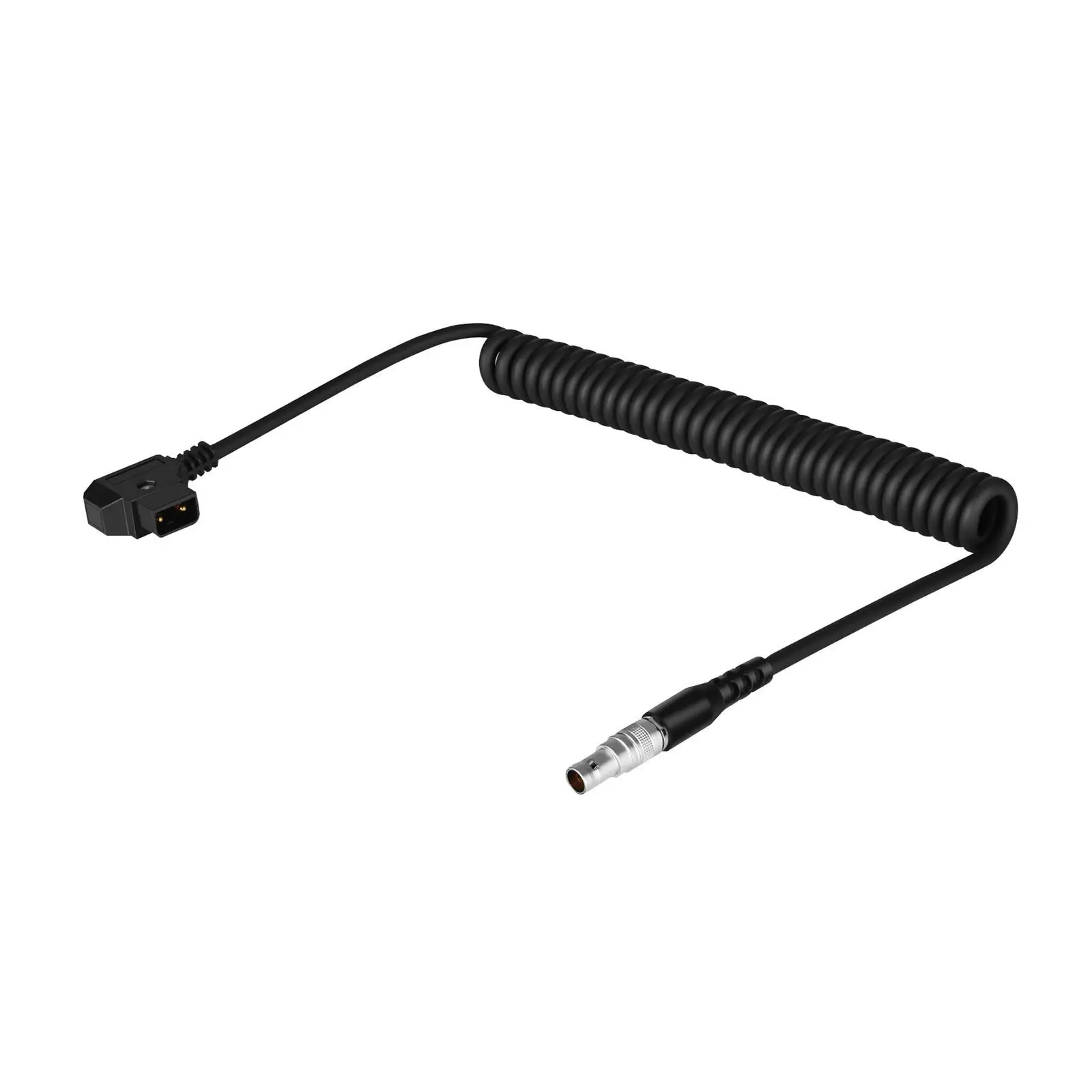

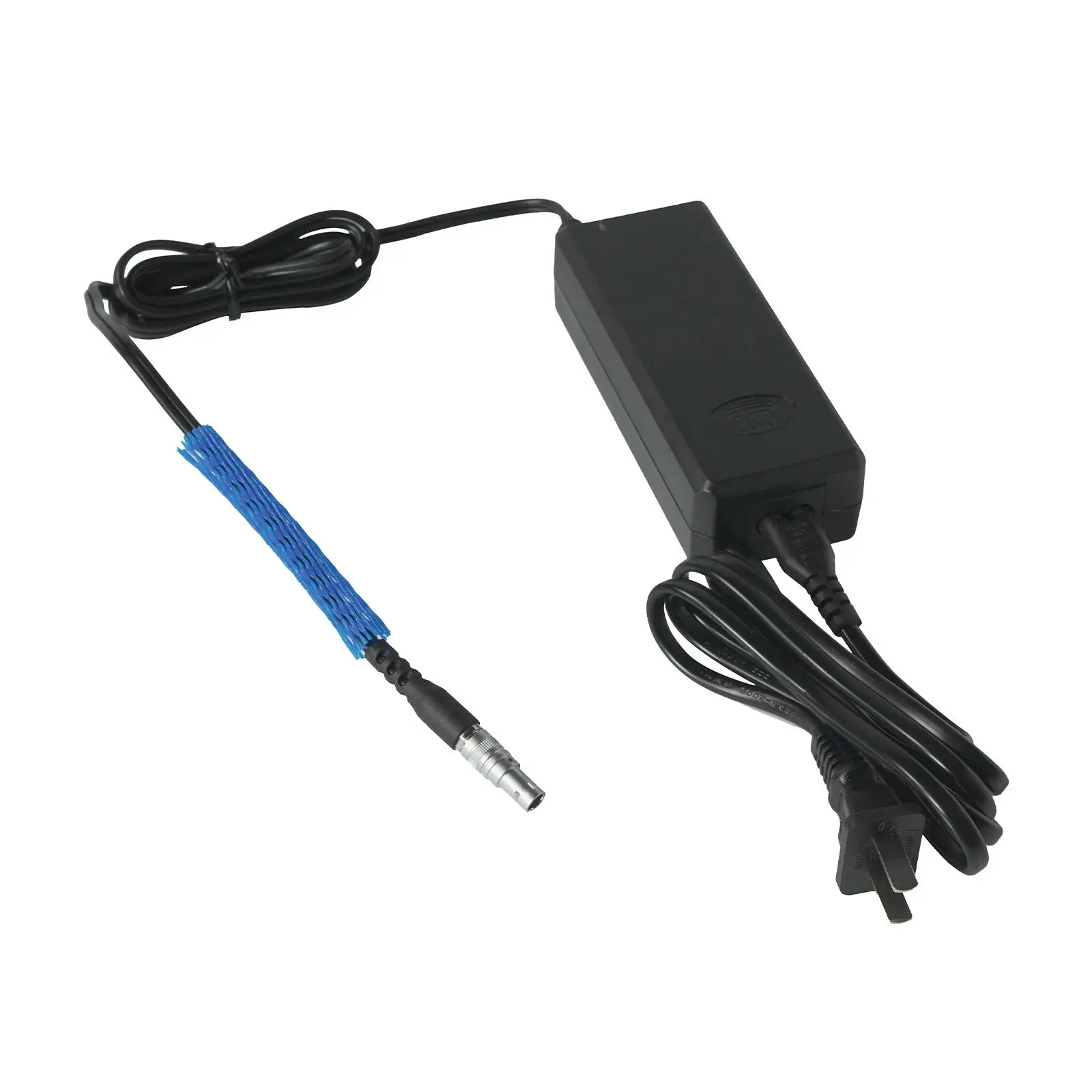

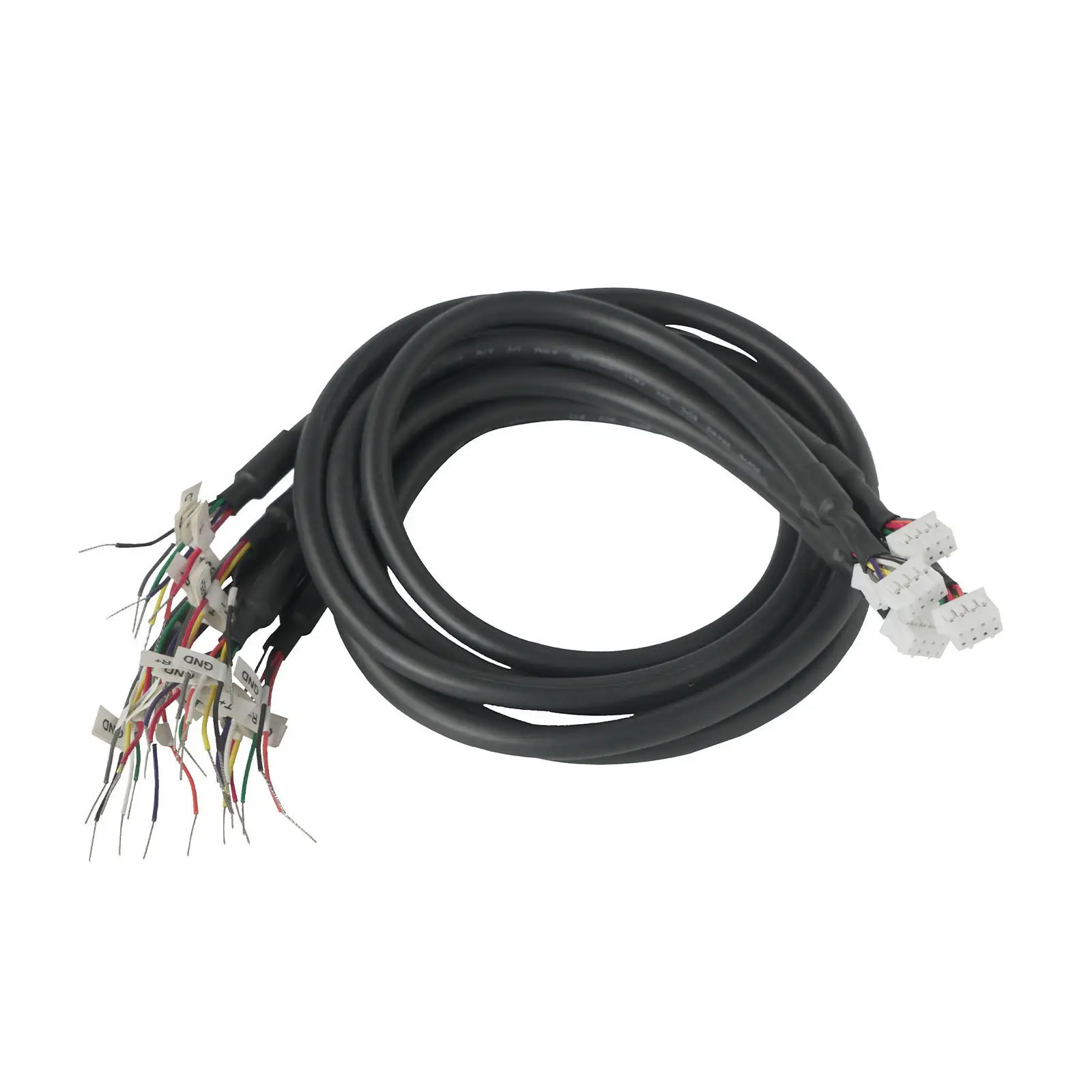

2 x Transmitter 1 x Receiver 15 x 5GHz Antenna 2 x 5.7-Inch Magic Arm 1 x OTG Cable 2 x DC Conversion Cable 3 x RS485/RS422 Interface Cable 1 x Power Adaptor 1 x Heavy-duty utility case
